IslandPath Analysis: Chloroflexus aurantiacus J-10-fl

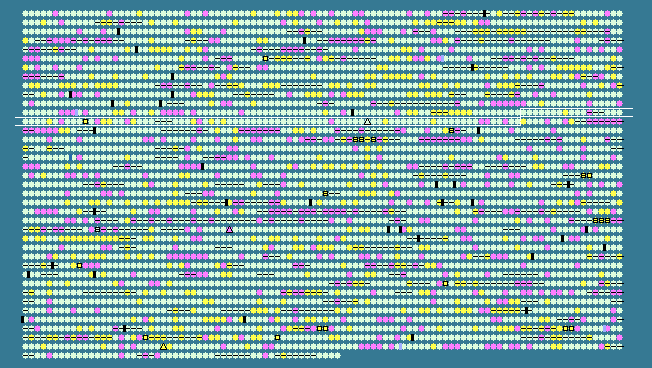

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 56.76 STD DEV: 3.69
Chloroflexus aurantiacus J-10-fl, complete genome - 1..5258541
3853 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1184	 59.74	0	1700188..1701501	-	437	163846787	-	Caur_1213	-	SAF domain-containing protein
1185	 55.56	0	1701697..1702227	-	176	163846788	-	Caur_1214	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1186	 56.07	0	1702233..1703261	-	342	163846789	-	Caur_1215	-	NAD-dependent epimerase/dehydratase
1187	 54.95	0	1703276..1704052	-	258	163846790	-	Caur_1216	-	glucose-1-phosphate cytidylyltransferase
1188	 54.99	0	1704077..1705027	-	316	163846791	-	Caur_1217	-	NAD-dependent epimerase/dehydratase
1189	 54.04	0	1705111..1706124	-	337	163846792	-	Caur_1218	-	NAD-dependent epimerase/dehydratase
1190	 58.05	0	1706118..1707254	-	378	163846793	-	Caur_1219	-	glutamine--scyllo-inositol transaminase
1191	 60.52	+1	1708019..1708669	-	216	163846794	-	Caur_1220	-	cyclic nucleotide-binding
1192	 57.09	0	1709050..1710354	-	434	163846795	-	Caur_1221	-	glucose/sorbosone dehydrogenase-like protein
1193	 55.43	0	1710898..1712178	-	426	163846796	-	Caur_1222	-	phospholipid/glycerol acyltransferase
1194	 57.72	0	1712159..1713142	-	327	163846797	-	Caur_1223	-	NAD-dependent epimerase/dehydratase
1195	 51.56	-1	1713139..1713555	-	138	163846798	-	Caur_1224	-	death-on-curing family protein
1196	 54.63	0	1713571..1713786	-	71	163846799	-	Caur_1225	-	hypothetical protein
1197	 55.28	0	1713827..1715302	-	491	163846800	-	Caur_1226	-	lysyl-tRNA synthetase
1198	 54.01	0	1715501..1715974	-	157	163846801	-	Caur_1227	-	transcription elongation factor GreA
1199	 58.16	0	1716653..1719004	+	783	163846802	-	Caur_1228	-	cell divisionFtsK/SpoIIIE
1200	 57.78	0	1719031..1719300	+	89	163846803	-	Caur_1229	-	hypothetical protein
1201	 56.03	0	1720238..1721422	+	394	163846804	-	Caur_1230	-	peptidase M24
1202	 58.64	0	1721781..1723736	-	651	163846805	-	Caur_1231	-	hypothetical protein
1203	 55.47	0	1723902..1725392	-	496	163846806	-	Caur_1232	-	hypothetical protein
1204	 56.25	0	1725533..1727644	+	703	163846807	-	Caur_1233	-	sulphate transporter
1205	 62.08	+1	1727663..1728643	+	326	163846808	-	Caur_1234	-	fructose 1,6-bisphosphatase II
1206	 57.63	0	1729453..1730703	+	416	163846809	-	Caur_1235	-	RNA methyltransferase
1207	 52.02	-1	1731100..1731618	+	172	163846810	-	Caur_1236	-	small GTP-binding protein
1208	 57.63	0	1731615..1732322	+	235	163846811	-	Caur_1237	-	hypothetical protein
1209	 57.88	0	1732346..1733722	+	458	163846812	-	Caur_1238	-	hypothetical protein
1210	 54.77	0	1733938..1735551	+	537	163846813	-	Caur_1239	-	histidine kinase
1211	 62.70	+1	1735915..1736721	+	268	163846814	-	Caur_1240	-	transposase IS4 family protein
1212	 58.16	0	1737416..1739884	-	822	163846815	-	Caur_1241	-	DNA gyrase, A subunit
1213	 49.49	-1	1740086..1741075	+	329	163846816	-	Caur_1242	-	DNA methylase N-4/N-6 domain-containing protein
1214	 61.58	+1	1741743..1743824	+	693	163846817	-	Caur_1244	-	hypothetical protein
1215	 62.60	+1	1744394..1745671	+	425	163846818	-	Caur_1245	-	glycosyl transferase group 1
1216	 56.45	0	1745649..1746206	-	185	163846819	-	Caur_1246	-	GCN5-related N-acetyltransferase
1217	 58.77	0	1746228..1747202	-	324	163846820	-	Caur_1247	-	ribosome small subunit-dependent GTPase A
1218	 52.85	-1	1747192..1747524	-	110	163846821	-	Caur_1248	-	hypothetical protein
1219	 62.13	+1	1747789..1748781	-	330	163846822	-	Caur_1249	-	pyridoxal-5'-phosphate-dependent protein beta subunit
1220	 59.12	0	1748800..1749780	-	326	163846823	-	Caur_1250	-	aldo/keto reductase
1221	 57.52	0	1750056..1751258	+	400	163846824	-	Caur_1251	-	PUA domain-containing protein
1222	 57.31	0	1751293..1752489	+	398	163846825	-	Caur_1252	-	arginine biosynthesis bifunctional protein ArgJ
1223	 56.05	0	1752496..1753164	+	222	163846826	-	Caur_1253	-	peptidase S16 lon domain-containing protein
1224	 55.09	0	1753180..1753464	+	94	163846827	-	Caur_1254	-	hypothetical protein
1225	 59.87	0	1753550..1754593	+	347	163846828	-	Caur_1255	-	magnesium chelatase
1226	 54.00	0	1754708..1755220	-	170	163846829	-	Caur_1256	-	hypothetical protein
1227	 56.13	0	1755305..1755655	-	116	163846830	-	Caur_1257	-	hypothetical protein
1228	 57.23	0	1755860..1757131	-	423	163846831	-	Caur_1258	-	aminotransferase class V
1229	 60.90	+1	1757177..1758460	-	427	163846832	-	Caur_1259	-	polysaccharide deacetylase
1230	 47.13	-2	1758773..1759033	-	86	163846833	-	Caur_1260	-	transglycosylase-associated protein
1231	 58.27	0	1759475..1760224	-	249	163846834	-	Caur_1261	-	phosphoribosylaminoimidazolesuccinocarboxamide synthase
1232	 62.00	+1	1760236..1761264	-	342	163846835	-	Caur_1262	-	phosphoribosylaminoimidazole synthetase
1233	 58.83	0	1761267..1762274	-	335	163846836	-	Caur_1263	-	ATP phosphoribosyltransferase
1234	 61.06	+1	1762280..1762957	-	225	163846837	-	Caur_1264	-	hypothetical protein
1235	 58.56	0	1762954..1764408	-	484	163846838	-	Caur_1265	-	histidyl-tRNA synthetase
1236	 56.67	0	1764971..1765330	-	119	163846839	-	Caur_1266	-	response regulator receiver
1237	 56.53	0	1765409..1766848	-	479	163846840	-	Caur_1267	-	histidine kinase
1238	 56.89	0	1767723..1768448	-	241	163846841	-	Caur_1268	-	hypothetical protein
1239	 56.04	0	1768540..1770177	-	545	163846842	-	Caur_1269	-	von Willebrand factor type A
1240	 55.50	0	1770212..1771348	-	378	163846843	-	Caur_1270	-	hypothetical protein
1241	 55.16	0	1772080..1773000	+	306	163846844	-	Caur_1271	-	binding-protein-dependent transport systems inner membrane component
1242	 56.90	0	1773014..1773904	+	296	163846845	-	Caur_1272	-	binding-protein-dependent transport systems inner membrane component
1243	 58.80	0	1773971..1775317	+	448	163846846	-	Caur_1273	-	extracellular solute-binding protein
1244	 55.47	0	1775570..1776391	+	273	163846847	-	Caur_1274	-	hypothetical protein
1245	 57.23	0	1776982..1777776	+	264	163846848	-	Caur_1275	-	ribonuclease H
1246	 59.93	0	1777871..1778671	-	266	163846849	-	Caur_1276	-	dihydrodipicolinate reductase
1247	 56.86	0	1778699..1779208	-	169	163846850	-	Caur_1277	-	hypothetical protein
1248	 54.92	0	1779232..1779912	-	226	163846851	-	Caur_1278	-	cyclic nucleotide-binding
1249	 58.03	0	1779956..1781032	-	358	163846852	-	Caur_1279	-	leucyl aminopeptidase (aminopeptidase T)-like protein
1250	 59.15	0	1781046..1783547	-	833	163846853	-	Caur_1280	-	peptidase U32
1251	 56.29	0	1783708..1784709	-	333	163846854	-	Caur_1281	-	radical SAM domain-containing protein
1252	 50.21	-1	1784862..1785572	+	236	163846855	-	Caur_1282	-	signal peptidase I
1253	 56.05	0	1785589..1786737	+	382	163846856	-	Caur_1283	-	glycosyl transferase group 1
1254	 55.03	0	1786792..1786980	+	62	163846857	-	Caur_1284	-	twin arginine-targeting protein translocase
1255	 57.65	0	1787344..1788663	+	439	163846858	-	Caur_1285	-	GTP-binding protein Obg/CgtA
1256	 56.48	0	1788660..1790141	+	493	163846859	-	Caur_1286	-	peptidase S10 serine carboxypeptidase
1257	 59.25	0	1790145..1790966	+	273	163846860	-	Caur_1287	-	alpha/beta hydrolase fold-containing protein
1258	 57.44	0	1791029..1791982	-	317	163846861	-	Caur_1288	-	integrase domain-containing protein
1259	 53.61	0	1792979..1793836	-	285	163846862	-	Caur_1289	-	PAS sensor protein
1260	 57.26	0	1793932..1794633	-	233	163846863	-	Caur_1290	-	short-chain dehydrogenase/reductase SDR
1261	 62.04	+1	1794758..1794973	-	71	163846864	-	Caur_1291	-	hypothetical protein
1262	 56.46	0	1794982..1795314	-	110	163846865	-	Caur_1292	-	iojap-like protein
1263	 55.67	0	1795524..1796096	+	190	163846866	-	Caur_1293	-	appr-1-p processing domain-containing protein
1264	 55.68	0	1796322..1796849	+	175	163846867	-	Caur_1294	-	PspC domain-containing protein
1265	 58.15	0	1797150..1797971	-	273	163846868	-	Caur_1295	-	hypothetical protein
1266	 57.17	0	1798068..1798541	-	157	163846869	-	Caur_1296	-	cyclase/dehydrase
1267	 56.85	0	1799208..1800440	-	410	163846870	-	Caur_1297	-	Bcr/CflA subfamily drug resistance transporter
1268	 56.99	0	1800662..1801126	+	154	163846871	-	Caur_1298	-	GCN5-related N-acetyltransferase
1269	 60.64	+1	1801215..1801928	-	237	163846872	-	Caur_1299	-	hypothetical protein
1270	 57.48	0	1801901..1802923	-	340	163846873	-	Caur_1300	-	radical SAM domain-containing protein
1271	 58.28	0	1803567..1805474	-	635	163846874	-	Caur_1301	-	VanW family protein
1272	 55.36	0	1805767..1805934	-	55	163846875	-	Caur_1302	-	Flp/Fap pilin component
1273	 55.37	0	1806271..1807332	-	353	163846876	-	Caur_1303	-	histidine kinase dimerisation and phosphoacceptor region
1274	 58.83	0	1807584..1808489	+	301	163846877	-	Caur_1304	-	LysR substrate-binding
1275	 54.84	0	1808476..1810716	-	746	163846878	-	Caur_1305	-	UvrD/REP helicase
1276	 56.19	0	1811126..1813453	-	775	163846879	-	Caur_1306	-	membrane-bound proton-translocating pyrophosphatase
1277	 53.01	-1	1813684..1814562	-	292	163846880	-	Caur_1307	-	Sulfate transporter/antisigma-factor antagonist STAS
1278	 52.78	-1	1814693..1815556	-	287	163846881	-	Caur_1308	-	Sulfate transporter/antisigma-factor antagonist STAS
1279	 54.85	0	1815572..1816417	-	281	163846882	-	Caur_1309	-	Sulfate transporter/antisigma-factor antagonist STAS
1280	 55.72	0	1816448..1817890	-	480	163846883	-	Caur_1310	-	prolyl-tRNA synthetase
1281	 52.44	-1	1818094..1818339	-	81	163846884	-	Caur_1311	-	hypothetical protein
1282	 55.67	0	1818532..1819104	+	190	163846885	-	Caur_1312	-	hypothetical protein
1283	 58.90	0	1819223..1822774	+	1183	163846886	-	Caur_1313	-	alpha-1,6-glucosidase, pullulanase-type
56.76	MEAN

3.69	STD DEV
