IslandPathversion 1.0

IslandPath Analysis: Cellvibrio japonicus Ueda107

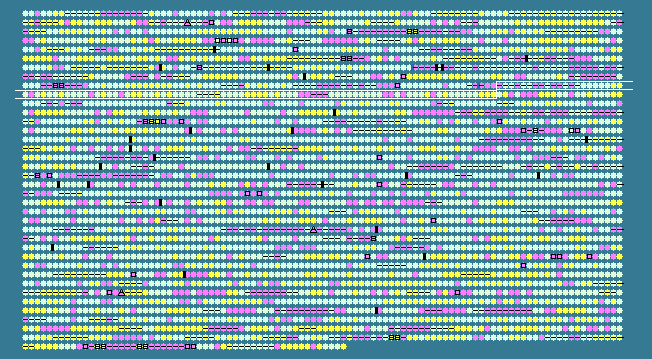

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
880	 48.15	0	1067235..1068584	-	449	192362216	-	CJA_0908	-	sensor histidine kinase
881	 52.38	0	1068700..1070148	+	482	192359506	-	CJA_0909	-	Na+-driven multidrug efflux pump
882	 48.86	0	1070222..1071799	+	525	192360585	prfC	CJA_0910	-	peptide chain release factor 3
883	 47.66	0	1071803..1072144	+	113	192361963	-	CJA_0911	-	hypothetical protein
884	 50.98	0	1072233..1072793	+	186	192361105	-	CJA_0912	-	hypothetical protein
885	 50.50	0	1072850..1074043	-	397	192361603	-	CJA_0913	-	TonB family C-terminal domain protein
886	 48.15	0	1074256..1074957	+	233	192360285	-	CJA_0914	-	cyclic nucleotide-binding domain protein
887	 47.95	0	1075035..1075718	+	227	192361764	-	CJA_0915	-	hypothetical protein
888	 50.89	0	1075817..1076659	-	280	192361566	-	CJA_0916	-	hypothetical protein
889	 35.24	-2	1076745..1076954	-	69	192360084	-	CJA_0917	-	hypothetical protein
890	 42.59	-1	1076983..1077090	+	35	192358802	-	CJA_0918	-	hypothetical protein
891	 49.09	0	1078050..1078487	+	145	192361107	-	CJA_0919	-	TonB system transport protein ExbD2
892	 47.24	0	1078549..1079073	-	174	192360078	-	CJA_0920	-	YbaK / prolyl-tRNA synthetases associated domain protein
893	 54.05	0	1079320..1080603	-	427	192359648	aspC	CJA_0921	-	aspartate transaminase
894	 52.76	0	1080669..1082603	-	644	192360718	-	CJA_0922	-	Zn-dependent protease with chaperone function
895	 51.35	0	1082639..1083232	-	197	192361271	-	CJA_0923	-	hypothetical protein
896	 50.41	0	1083354..1083968	-	204	192360475	-	CJA_0924	-	21 kDa hemolysin precursor
897	 52.31	0	1083968..1084552	-	194	192360311	gmhA	CJA_0925	-	phosphoheptose isomerase
898	 52.23	0	1084664..1085044	-	126	192362210	-	CJA_0926	-	conserved hypothetical protein TIGR00252
899	 58.05	+1	1085047..1086972	-	641	192360844	-	CJA_0927	-	LppC putative lipoprotein
900	 57.40	0	1087030..1087935	+	301	192360024	-	CJA_0928	-	conserved hypothetical protein TIGR00096
901	 51.09	0	1087987..1090368	-	793	192358890	-	CJA_0929	-	putative TonB-dependent receptor
902	 40.62	-2	1090357..1090452	+	31	192361605	-	CJA_0930	-	hypothetical protein
903	 51.69	0	1091061..1091888	-	275	192361314	-	CJA_0931	-	hypothetical protein
904	 57.60	+1	1091971..1092312	-	113	192362119	-	CJA_0932	-	hypothetical protein
905	 51.74	0	1092309..1092509	-	66	192359634	-	CJA_0933	-	hypothetical protein
906	 52.32	0	1092475..1093206	+	243	192360514	-	CJA_0934	-	predicted transcriptional regulator
907	 60.43	+1	1093343..1093759	+	138	192359548	-	CJA_0935	-	glyoxylase I family protein
908	 54.15	0	1093800..1094726	+	308	192360605	-	CJA_0936	-	hypothetical protein
909	 49.37	0	1094756..1096258	+	500	192361659	-	CJA_0937	-	hypothetical protein
910	 48.88	0	1096460..1097437	+	325	192358941	-	CJA_0938	-	hypothetical protein
911	 49.88	0	1097507..1098364	-	285	192359997	-	CJA_0939	-	nitrate transporter system, ATPase component
912	 43.41	-1	1098363..1098491	+	42	192360993	-	CJA_0940	-	hypothetical protein
913	 50.87	0	1098795..1099946	+	383	192359108	-	CJA_0941	-	putative TPR domain protein
914	 57.14	0	1100197..1101015	+	272	192360143	-	CJA_0942	-	Domain of Unknown Function (DUF1080) superfamily
915	 55.23	0	1101067..1101582	+	171	192362439	-	CJA_0943	-	putative glutathione peroxidase
916	 54.92	0	1101614..1102660	+	348	192361661	-	CJA_0944	-	hypothetical protein
917	 47.89	0	1102712..1103515	+	267	192360217	-	CJA_0945	-	transmembrane protein
918	 49.97	0	1103502..1105160	+	552	192361436	-	CJA_0946	-	sulfatase
919	 58.90	+1	1106013..1107506	-	497	192361869	-	CJA_0947	-	hypothetical protein
920	 62.29	+1	1107559..1115991	-	2810	192359113	-	CJA_0948	-	RHS Repeat family
921	 49.77	0	1116074..1116937	-	287	192361637	-	CJA_0949	-	hypothetical protein
922	 48.89	0	1117155..1117289	-	44	192360580	-	CJA_0950	-	hypothetical protein
923	 58.33	+1	1117240..1117359	+	39	192362417	-	CJA_0952	-	hypothetical protein
924	 53.89	0	1117356..1118255	-	299	192361155	lpxO	CJA_0951	-	beta-hydroxylase
925	 59.11	+1	1118347..1119285	-	312	192360065	-	CJA_0953	-	two-component transcriptional regulator, LuxR family
926	 54.87	0	1119282..1122713	-	1143	192359445	-	CJA_0954	-	two-component hybrid sensor and regulator
927	 50.62	0	1122879..1123040	-	53	192360711	-	CJA_0955	-	hypothetical protein
928	 51.46	0	1123276..1124472	+	398	192360113	-	CJA_0956	-	amide-urea binding protein
929	 53.61	0	1124591..1125517	+	308	192359228	-	CJA_0957	-	amino acid/sugar ABC transporter, permease protein
930	 53.06	0	1125534..1126760	+	408	192361718	fmdF	CJA_0958	-	ABC transporter permease protein
931	 53.33	0	1126747..1127496	+	249	192359395	-	CJA_0959	-	ABC transporter ATP-binding protein
932	 51.30	0	1127519..1128208	+	229	192362358	-	CJA_0960	-	ABC transporter ATP-binding protein
933	 60.12	+1	1128301..1128621	-	106	192360660	-	CJA_0961	-	hypothetical protein
934	 52.69	0	1128749..1128841	+	30	192359496	-	CJA_0962	-	hypothetical protein
935	 52.72	0	1128876..1130108	+	410	192358995	fmdA	CJA_0963	-	amidase
936	 52.30	0	1130222..1130590	+	122	192361682	-	CJA_0964	-	putative formamidase regulatory protein FmdB
937	 55.16	0	1130680..1131357	-	225	192361987	-	CJA_0965	-	putative transcriptional regulator
938	 59.54	+1	1131840..1132583	+	247	192360317	-	CJA_0966	-	nodulin 21-like protein
939	 58.19	+1	1132606..1133301	-	231	192359717	-	CJA_0967	-	conserved proteinconserved protein
940	 60.65	+1	1133480..1133944	-	154	192361402	-	CJA_0968	-	LPXTG-motif cell wall anchor domain protein
941	 56.59	0	1133823..1135142	+	439	192360552	-	CJA_0969	-	ATP-dependent RNA helicase RhlB
942	 55.17	0	1135189..1136049	+	286	192360895	-	CJA_0970	-	hypothetical protein
943	 57.93	+1	1136076..1136876	+	266	192361680	-	CJA_0971	-	Catalytic LigB subunit of aromatic ring-opening dioxygenase
944	 50.04	0	1136943..1138211	+	422	192362372	rrpX	CJA_0973	-	response regulator protein
945	 50.07	0	1138208..1138954	-	248	192359412	-	CJA_0972	-	putative sulfate transporter
946	 54.15	0	1138966..1139604	-	212	192359219	-	CJA_0974	-	peptidase, rhomboid family
947	 46.29	-1	1139867..1146178	+	2103	192359982	-	CJA_0975	-	von Willebrand factor type A domain protein
948	 42.69	-1	1146245..1149406	+	1053	192360792	-	CJA_0976	-	hypothetical protein
949	 25.13	-2	1149607..1149801	+	64	192361638	-	CJA_0977	-	hypothetical protein
950	 41.63	-1	1150683..1151345	+	220	192358938	-	CJA_0978	-	hypothetical protein
951	 31.48	-2	1153869..1154354	+	161	192360011	-	CJA_0979	-	hypothetical protein
952	 55.39	0	1154650..1155048	+	132	192361556	-	CJA_0980	-	hypothetical protein
953	 53.86	0	1155076..1156590	+	504	192362378	-	CJA_0981	-	peptidase, M56 family
954	 51.36	0	1156704..1157363	+	219	192358984	-	CJA_0982	-	TonB2
955	 53.31	0	1157466..1158266	+	266	192359848	-	CJA_0983	-	hypothetical protein
956	 53.66	0	1158310..1159701	-	463	192362422	hemN	CJA_0984	-	oxygen-independent coproporphyrinogen III oxidase
957	 51.22	0	1159791..1160489	+	232	192359416	-	CJA_0985	-	SM-20 domain protein
958	 53.24	0	1160587..1162224	+	545	192360139	-	CJA_0986	-	Domain of unknown function (DUF404) family
959	 52.59	0	1162226..1163191	+	321	192360274	-	CJA_0987	-	Bacterial domain of unknown function (DUF403) superfamily
960	 53.16	0	1163789..1166461	+	890	192360511	chi18B	CJA_0988	-	endo-chitinase, putative, chi18B
961	 37.63	-2	1166471..1166563	-	30	192360712	-	CJA_0989	-	hypothetical protein
962	 40.40	-2	1166553..1166651	-	32	192361415	-	CJA_0990	-	hypothetical protein
963	 50.99	0	1166684..1168144	-	486	192361531	-	CJA_0991	-	cardiolipin synthase
964	 46.90	0	1168187..1168945	-	252	192362362	-	CJA_0992	-	hypothetical protein
965	 54.24	0	1168935..1169417	+	160	192361965	-	CJA_0993	-	cytosolic long-chain acyl-CoA thioester hydrolase family protein
966	 54.73	0	1169543..1170430	-	295	192360231	-	CJA_0994	-	Transglutaminase-like superfamily domain protein
967	 53.92	0	1170427..1173030	-	867	192361135	-	CJA_0995	-	Domain of unknown function (DUF404) family
968	 55.95	0	1173479..1174906	+	475	192361966	chi19A	CJA_0996	-	chitinase, putative, chi19A
969	 48.03	0	1175126..1175506	-	126	192358929	-	CJA_0997	-	hypothetical protein
970	 53.28	0	1175160..1177610	+	816	192359812	-	CJA_0998	-	putative lipoprotein
971	 60.20	+1	1177698..1181159	-	1153	192359058	-	CJA_0999	-	Transglutaminase-like superfamily domain protein
972	 52.57	0	1181363..1182568	+	401	192360496	-	CJA_1000	-	membrane protein, PerM family
973	 54.29	0	1182589..1183323	-	244	192361052	-	CJA_1001	-	hypothetical protein
974	 53.65	0	1183457..1184278	-	273	192361891	-	CJA_1002	-	small-conductance mechanosensitive channel
975	 52.72	0	1184305..1185021	-	238	192362170	-	CJA_1003	-	electron transport complex, RnfABCDGE type, E subunit
976	 54.78	0	1185018..1185665	-	215	192359703	-	CJA_1004	-	rnfE
977	 57.33	0	1185680..1186750	-	356	192361584	-	CJA_1005	-	Electron transport complex protein rnfD
978	 58.24	+1	1186751..1189111	-	786	192362376	-	CJA_1006	-	Electron transport complex protein RnfC
979	 58.18	+1	1189112..1189783	-	223	192358977	-	CJA_1007	-	Electron transport complex protein rnfB
52.09	MEAN

5.42	STD DEV
