IslandPathversion 1.0

IslandPath Analysis: Cellvibrio japonicus Ueda107

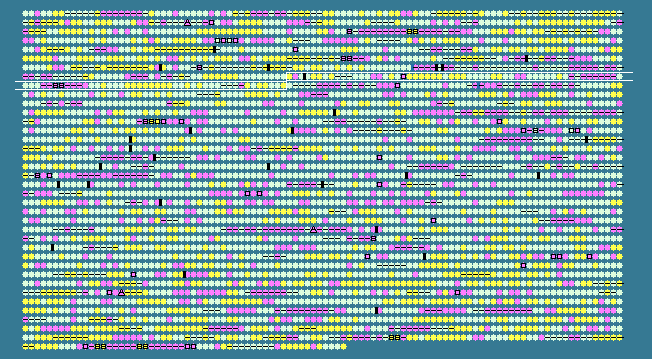

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
745	 55.62	0	894135..896885	+	916	192360854	-	CJA_0760	-	hypothetical protein
746	 47.59	0	897040..898224	+	394	192360258	-	CJA_0761	-	transcriptional regulator, AraC family
747	 53.27	0	898266..899519	-	417	192360183	-	CJA_0762	-	Molybdopterin biosynthesis enzyme
748	 54.99	0	899813..901714	-	633	192362484	rpoD	CJA_0764	-	transcription initiation factor sigma 70
749	 58.03	+1	901780..903864	-	694	192361440	dnaG	CJA_0765	-	DNA primase
750	 55.96	0	903932..904426	-	164	192359799	-	CJA_0766	-	GatB/Yqey domain superfamily
751	 53.24	0	904491..904706	-	71	192359130	rpsU	CJA_0767	-	ribosomal protein S21
752	 56.75	0	904920..905948	+	342	192361453	gcp	CJA_0768	-	O-sialoglycoprotein endopeptidase
753	 54.40	0	905959..906333	+	124	192360870	folB	CJA_0769	-	dihydroneopterin aldolase
754	 49.71	0	906330..906848	+	172	192362205	folK-2	CJA_0770	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
755	 52.32	0	906894..907862	-	322	192361349	-	CJA_0771	-	putative magnesium and cobalt transport protein CorA
756	 55.56	0	907879..908625	-	248	192362180	-	CJA_0772	-	oxidoreductase, short chain dehydrogenase/reductase family
757	 55.53	0	908648..909967	-	439	192361371	cca	CJA_0773	-	tRNA nucleotidyltransferase
758	 49.76	0	910258..911280	+	340	192360017	-	CJA_0774	-	Integral membrane protein DUF6 domain protein
759	 45.20	-1	911510..912175	+	221	192359119	-	CJA_0775	-	hypothetical protein
760	 39.60	-2	912269..914359	+	696	192359532	-	CJA_0776	-	hypothetical protein
761	 55.11	0	915128..916174	+	348	192360705	-	CJA_0777	-	UDP-glucose 4-epimerase
762	 57.17	0	916572..919772	+	1066	192361222	cbp32A	CJA_0778	-	carbohydrate binding protein, putative, cbp32A
763	 49.71	0	919862..920551	-	229	192360494	-	CJA_0779	-	hypothetical protein
764	 47.14	0	920545..921696	+	383	192361576	-	CJA_0780	-	ISCja2, transposase
765	 57.67	+1	922327..923715	-	462	192362360	phoQ	CJA_0781	-	Sensory transduction histidine kinase
766	 56.87	0	923718..924401	-	227	192359014	phoP	CJA_0782	-	DNA-binding response regulator
767	 57.38	0	924425..924844	-	139	192360100	-	CJA_0783	-	hypothetical protein
768	 60.85	+1	924915..925499	-	194	192360770	-	CJA_0784	-	hypothetical protein
769	 57.31	0	925770..927041	+	423	192361836	proA	CJA_0785	-	gamma-glutamyl phosphate reductase
770	 62.74	+1	927060..927695	+	211	192362352	nadD	CJA_0786	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
771	 53.12	0	927723..928091	+	122	192359651	-	CJA_0787	-	iojap domain protein
772	 56.84	0	928179..928697	+	172	192360291	-	CJA_0788	-	conserved hypothetical protein TIGR00246
773	 56.04	0	928733..930736	+	667	192360908	mrdA-2	CJA_0789	-	penicillin-binding protein 2
774	 56.97	0	930733..931887	+	384	192361472	rodA	CJA_0790	-	rod shape-determining protein RodA
775	 51.85	0	931910..932908	+	332	192361833	plt103A	CJA_0791	-	peptidoglycan lytic transglycosylase, putative, plt103A
776	 53.97	0	932946..933827	+	293	192359125	-	CJA_0792	-	Six5
777	 52.87	0	933931..935148	+	405	192360123	-	CJA_0793	-	D-alanyl-D-alanine carboxypeptidase family
778	 52.89	0	935217..935804	-	195	192362288	-	CJA_0794	-	thioredoxin family protein
779	 55.68	0	935895..936167	+	90	192359538	-	CJA_0795	-	hypothetical protein
780	 56.64	0	936168..936815	+	215	192360649	lipB	CJA_0796	-	lipoate-protein ligase B
781	 54.78	0	936876..937910	+	344	192360748	lipA	CJA_0797	-	lipoic acid synthetase
782	 54.00	0	938052..938564	+	170	192361785	-	CJA_0798	-	putative acetyltransferase, GNAT family
783	 47.46	0	938950..942375	+	1141	192359097	gly43E	CJA_0799	-	beta-xylosidase/alpha-L-arabinfuranosidase, putative, gly43E
784	 46.46	-1	942508..945333	+	941	192360025	-	CJA_0800	-	putative TonB-dependent receptor
785	 51.92	0	945654..947375	+	573	192359190	-	CJA_0801	-	methyl-accepting chemotaxis protein
786	 48.98	0	947394..947687	+	97	192361696	-	CJA_0802	-	hypothetical protein
787	 51.93	0	948041..950449	+	802	192360871	-	CJA_0803	-	hypothetical protein
788	 51.55	0	950553..950810	-	85	192361646	-	CJA_0804	-	hypothetical protein
789	 54.31	0	950916..951959	-	347	192360824	arb43A	CJA_0805	-	arabinanase and alpha-L-arabinofuranosidase, arb43A
790	 55.87	0	952169..953242	+	357	192360536	abf43L	CJA_0806	-	alpha-L-arabinfuranosidase, putative, abf43L
791	 55.02	0	953239..954303	+	354	192359696	-	CJA_0807	-	aldose 1-epimerase
792	 37.50	-2	954415..954870	-	151	192359167	-	CJA_0808	-	Peptidase C39 family superfamily
793	 53.88	0	957032..957289	-	85	192361355	-	CJA_0809	-	hypothetical protein
794	 42.36	-1	958342..959172	-	276	192359086	-	CJA_0810	-	hypothetical protein
795	 36.27	-2	959448..959549	+	33	192361625	-	CJA_0811	-	hypothetical protein
796	 42.64	-1	960000..960332	-	110	192359977	-	CJA_0812	-	hypothetical protein
797	 45.61	-1	961000..961113	-	37	192359094	-	CJA_0813	-	hypothetical protein
798	 36.04	-2	961865..962788	-	307	192362160	-	CJA_0814	-	hypothetical protein
799	 35.32	-2	962913..963716	-	267	192361165	-	CJA_0815	-	hypothetical protein
800	 54.73	0	964146..965510	+	454	192361746	gly43C	CJA_0816	-	beta-xylosidase/alpha-L-arabinfuranosidase, putative, gly43C
801	 55.54	0	965615..967555	+	646	192360666	agd97A	CJA_0817	-	alpha-glucosidase, putative, adg97A
802	 53.41	0	967618..969540	+	640	192360119	gly43D	CJA_0818	-	beta-xylosidase/alpha-L-arabinfuranosidase, putative, gly43D
803	 53.65	0	969737..971611	+	624	192359107	abf43M	CJA_0819	-	alpha-L-arabinfuranosidase, putative, abf43M
804	 43.07	-1	971650..972060	+	136	192361207	-	CJA_0820	-	hypothetical protein
805	 42.71	-1	972078..972461	+	127	192362287	-	CJA_0821	-	hypothetical protein
806	 47.92	0	972668..973510	-	280	192359546	-	CJA_0822	-	transposase
807	 44.81	-1	973507..973776	-	89	192360588	-	CJA_0823	-	transposase
808	 35.51	-2	974289..974930	-	213	192361800	-	CJA_0824	-	hypothetical protein
809	 43.25	-1	974930..975181	-	83	192359528	-	CJA_0825	-	hypothetical protein
810	 47.90	0	975579..975887	-	102	192359802	-	CJA_0826	-	ParB-like nuclease domain
811	 47.99	0	976207..977100	-	297	192361128	-	CJA_0827	-	ParB-like nuclease domain
812	 52.44	0	977856..980414	-	852	192361022	-	CJA_0828	-	putative lipoprotein
813	 50.91	0	980428..982236	-	602	192362083	-	CJA_0829	-	hypothetical protein
814	 56.96	0	982295..982768	-	157	192359077	-	CJA_0830	-	fibronectin type III domain protein
815	 55.45	0	983162..985078	+	638	192360396	-	CJA_0831	-	Cellulose or protein binding domain
816	 54.39	0	985332..986765	+	477	192360631	-	CJA_0832	-	Cip2
817	 54.71	0	986825..987535	-	236	192361443	-	CJA_0833	-	transcriptional regulator, GntR family
818	 58.24	+1	987717..990539	-	940	192360825	-	CJA_0834	-	Diguanylate cyclase/phosphodiesterase domain 2 (EAL)
819	 56.08	0	990848..992188	-	446	192361678	ndh	CJA_0835	-	NADH dehydrogenase
820	 60.17	+1	992252..993745	-	497	192359774	-	CJA_0836	-	hypothetical protein
821	 60.63	+1	993772..996009	-	745	192359870	-	CJA_0837	-	hypothetical protein
822	 61.52	+1	996071..997060	-	329	192362368	-	CJA_0838	-	hypothetical protein
823	 62.90	+1	997160..997822	-	220	192359322	-	CJA_0839	-	oxidoreductase, short chain dehydrogenase/reductase family
824	 59.59	+1	997993..999108	-	371	192361082	oruR	CJA_0840	-	transcriptional regulator, AraC family
825	 55.69	0	999122..1000141	-	339	192361941	-	CJA_0841	-	GGDEF domain protein
826	 53.01	0	1000498..1003302	+	934	192358993	cirA	CJA_0842	-	TonB-dependent receptor
827	 55.03	0	1003302..1005278	+	658	192359739	-	CJA_0843	-	phytase domain protein
828	 56.04	0	1005398..1007374	+	658	192362343	-	CJA_0844	-	Tat (twin-arginine translocation) pathway signal sequence domain protein
829	 53.06	0	1007423..1007716	-	97	192359117	-	CJA_0845	-	putative lipoprotein
830	 56.18	0	1007805..1008395	-	196	192361169	idnK	CJA_0846	-	gluconokinase
831	 55.20	0	1008600..1009637	+	345	192362255	-	CJA_0847	-	transcriptional regulatory protein
832	 52.61	0	1009665..1011314	+	549	192361747	-	CJA_0848	-	cation symporter
833	 52.93	0	1011455..1013827	+	790	192359066	cgs94A	CJA_0849	-	cyclic beta-1, 2- glucan synthetase, putative, cgs94A
834	 55.26	0	1013899..1014240	-	113	192362226	-	CJA_0850	-	hypothetical protein
835	 50.71	0	1014454..1014948	-	164	192359590	-	CJA_0851	-	hypothetical protein
836	 55.06	0	1015309..1015575	-	88	192359324	rpsT	CJA_0852	-	ribosomal protein S20
837	 45.16	-1	1015568..1015660	-	30	192360370	-	CJA_0853	-	hypothetical protein
838	 58.06	+1	1015849..1017951	+	700	192360923	-	CJA_0854	-	serine/threonine kinase
839	 53.74	0	1017991..1018671	+	226	192362008	-	CJA_0855	-	hypothetical protein
840	 59.29	+1	1018757..1019461	-	234	192361731	-	CJA_0856	-	nucleotidyltransferase family protein
841	 58.40	+1	1019458..1020522	-	354	192362529	-	CJA_0857	-	Domain of unknown function DUF227
842	 55.47	0	1020699..1023278	+	859	192360130	-	CJA_0858	-	putative organic solvent tolerance protein
843	 52.66	0	1023292..1024605	+	437	192358925	surA	CJA_0859	-	peptidyl-prolyl cis-trans isomerase SurA
844	 57.01	0	1024693..1025697	+	334	192360959	pdxA	CJA_0860	-	4-hydroxythreonine-4-phosphate dehydrogenase
52.09	MEAN

5.42	STD DEV
