IslandPath Analysis: Cellvibrio japonicus Ueda107

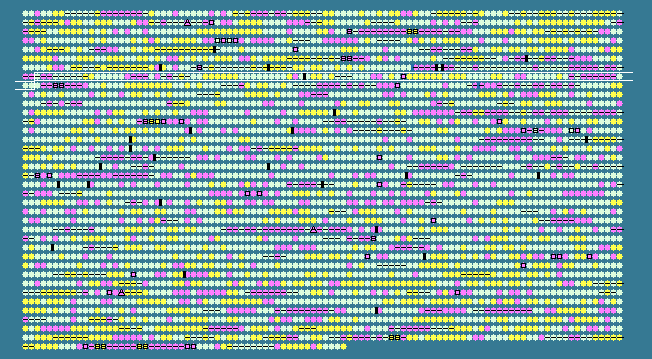

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
703	 49.66	0	843920..844354	+	144	192361117	rplO	CJA_0718	-	ribosomal protein L15
704	 47.01	0	844365..845702	+	445	192361952	-	CJA_0719	-	preprotein translocase, SecY subunit
705	 47.01	0	845725..845841	+	38	192360307	-	CJA_0720	-	ribosomal protein L36
706	 51.26	0	846063..846419	+	118	192360555	rpsM	CJA_0721	-	ribosomal protein S13p/S18e
707	 51.77	0	846471..846866	+	131	192359683	rpsK	CJA_0722	-	ribosomal protein S11
708	 48.63	0	846882..847502	+	206	192359460	rpsD	CJA_0723	-	ribosomal protein S4
709	 50.05	0	847529..848515	+	328	192362391	rpoA	CJA_0724	-	DNA-directed RNA polymerase, alpha subunit
710	 52.63	0	848612..849010	+	132	192360936	rplQ	CJA_0725	-	ribosomal protein L17
711	 55.72	0	849122..851971	-	949	192360278	uvrA	CJA_0726	-	excinuclease ABC, A subunit
712	 55.85	0	852127..853578	+	483	192360662	-	CJA_0727	-	major facilitator family transporter
713	 53.39	0	853596..854303	+	235	192360087	ssb	CJA_0728	-	single-stranded DNA-binding protein
714	 52.07	0	854494..855534	+	346	192359715	-	CJA_0729	-	transcriptional regulator, LacI family
715	 54.26	0	855637..857184	-	515	192361748	-	CJA_0730	-	transporter, major facilitator family
716	 54.48	0	857232..859643	-	803	192361369	gla15	CJA_0731	-	glucan 1,4-alpha-glucosidase, putative, gla15A
717	 51.57	0	860170..861792	+	540	192362528	glu13A	CJA_0732	-	oligo-1,6-glucosidase, putative, glu13A
718	 46.37	-1	862198..865020	+	940	192360869	-	CJA_0733	-	TonB-dependent receptor
719	 39.76	-2	865096..865344	+	82	192361663	-	CJA_0734	-	tryptophan halogenase
720	 44.59	-1	865368..867215	+	615	192359172	amy13E	CJA_0735	-	alpha-amylase, putative, amy13E
721	 48.27	0	867278..869353	+	691	192360008	adg97B	CJA_0736	-	alpha-glucosidase, putative, adg97B
722	 49.24	0	869444..871354	+	636	192359891	amy13D	CJA_0737	-	alpha amylase, putative, amy13D
723	 37.50	-2	871525..871620	+	31	192361495	-	CJA_0738	-	hypothetical protein
724	 51.36	0	871692..872168	+	158	192362105	-	CJA_0739	-	Adenylate cyclase
725	 48.28	0	872240..872500	+	86	192359657	-	CJA_0740	-	predicted membrane protein
726	 49.60	0	872535..873284	-	249	192358867	-	CJA_0741	-	Sec-independent protein translocase TatC
727	 59.05	+1	873281..873766	-	161	192359979	-	CJA_0742	-	TatB
728	 50.00	0	873780..874067	-	95	192359122	-	CJA_0743	-	twin arginine-targeting protein translocase, TatA/E family
729	 50.74	0	874090..874428	-	112	192360158	-	CJA_0744	-	phosphoribosyl-ATP pyrophosphohydrolase
730	 52.49	0	874431..874811	-	126	192361358	hisIE	CJA_0745	-	bifunctional protein phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase
731	 58.85	+1	874836..875654	-	272	192362228	-	CJA_0746	-	oxidoreductase, aldo/keto reductase family
732	 59.86	+1	875654..876946	-	430	192359482	-	CJA_0747	-	oxidoreductase, FAD-binding
733	 55.98	0	877081..877950	+	289	192358864	-	CJA_0748	-	dTDP-4-rhamnose reductase-related protein
734	 55.78	0	878026..879237	-	403	192360198	fabB	CJA_0749	-	beta-ketoacyl-ACP synthase I
735	 56.38	0	879356..879880	-	174	192361076	fabA	CJA_0750	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabA
736	 57.42	0	879990..880952	-	320	192361220	ispB	CJA_0751	-	octaprenyl-diphosphate synthase
737	 53.36	0	881148..881906	-	252	192358911	mtaA	CJA_0752	-	HetI
738	 53.21	0	882051..882548	+	165	192359861	-	CJA_0753	-	peptidyl-prolyl cis-trans isomerase, FkbP family
739	 52.48	0	882698..884974	+	758	192360747	-	CJA_0754	-	two-component hybrid sensor and regulator
740	 48.77	0	884959..887271	+	770	192361575	-	CJA_0755	-	TonB-dependent receptor
741	 50.06	0	887439..888281	+	280	192361091	-	CJA_0756	-	putative citrate synthase I
742	 49.83	0	888295..889155	+	286	192360316	-	CJA_0758	-	hypothetical protein
743	 53.84	0	889152..891755	-	867	192359514	-	CJA_0757	-	putative signal transduction protein
744	 55.44	0	891853..893625	-	590	192362487	-	CJA_0759	-	putative acetolactate synthase large subunit
745	 55.62	0	894135..896885	+	916	192360854	-	CJA_0760	-	hypothetical protein
746	 47.59	0	897040..898224	+	394	192360258	-	CJA_0761	-	transcriptional regulator, AraC family
747	 53.27	0	898266..899519	-	417	192360183	-	CJA_0762	-	Molybdopterin biosynthesis enzyme
748	 54.99	0	899813..901714	-	633	192362484	rpoD	CJA_0764	-	transcription initiation factor sigma 70
749	 58.03	+1	901780..903864	-	694	192361440	dnaG	CJA_0765	-	DNA primase
750	 55.96	0	903932..904426	-	164	192359799	-	CJA_0766	-	GatB/Yqey domain superfamily
751	 53.24	0	904491..904706	-	71	192359130	rpsU	CJA_0767	-	ribosomal protein S21
752	 56.75	0	904920..905948	+	342	192361453	gcp	CJA_0768	-	O-sialoglycoprotein endopeptidase
753	 54.40	0	905959..906333	+	124	192360870	folB	CJA_0769	-	dihydroneopterin aldolase
754	 49.71	0	906330..906848	+	172	192362205	folK-2	CJA_0770	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
755	 52.32	0	906894..907862	-	322	192361349	-	CJA_0771	-	putative magnesium and cobalt transport protein CorA
756	 55.56	0	907879..908625	-	248	192362180	-	CJA_0772	-	oxidoreductase, short chain dehydrogenase/reductase family
757	 55.53	0	908648..909967	-	439	192361371	cca	CJA_0773	-	tRNA nucleotidyltransferase
758	 49.76	0	910258..911280	+	340	192360017	-	CJA_0774	-	Integral membrane protein DUF6 domain protein
759	 45.20	-1	911510..912175	+	221	192359119	-	CJA_0775	-	hypothetical protein
760	 39.60	-2	912269..914359	+	696	192359532	-	CJA_0776	-	hypothetical protein
761	 55.11	0	915128..916174	+	348	192360705	-	CJA_0777	-	UDP-glucose 4-epimerase
762	 57.17	0	916572..919772	+	1066	192361222	cbp32A	CJA_0778	-	carbohydrate binding protein, putative, cbp32A
763	 49.71	0	919862..920551	-	229	192360494	-	CJA_0779	-	hypothetical protein
764	 47.14	0	920545..921696	+	383	192361576	-	CJA_0780	-	ISCja2, transposase
765	 57.67	+1	922327..923715	-	462	192362360	phoQ	CJA_0781	-	Sensory transduction histidine kinase
766	 56.87	0	923718..924401	-	227	192359014	phoP	CJA_0782	-	DNA-binding response regulator
767	 57.38	0	924425..924844	-	139	192360100	-	CJA_0783	-	hypothetical protein
768	 60.85	+1	924915..925499	-	194	192360770	-	CJA_0784	-	hypothetical protein
769	 57.31	0	925770..927041	+	423	192361836	proA	CJA_0785	-	gamma-glutamyl phosphate reductase
770	 62.74	+1	927060..927695	+	211	192362352	nadD	CJA_0786	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
771	 53.12	0	927723..928091	+	122	192359651	-	CJA_0787	-	iojap domain protein
772	 56.84	0	928179..928697	+	172	192360291	-	CJA_0788	-	conserved hypothetical protein TIGR00246
773	 56.04	0	928733..930736	+	667	192360908	mrdA-2	CJA_0789	-	penicillin-binding protein 2
774	 56.97	0	930733..931887	+	384	192361472	rodA	CJA_0790	-	rod shape-determining protein RodA
775	 51.85	0	931910..932908	+	332	192361833	plt103A	CJA_0791	-	peptidoglycan lytic transglycosylase, putative, plt103A
776	 53.97	0	932946..933827	+	293	192359125	-	CJA_0792	-	Six5
777	 52.87	0	933931..935148	+	405	192360123	-	CJA_0793	-	D-alanyl-D-alanine carboxypeptidase family
778	 52.89	0	935217..935804	-	195	192362288	-	CJA_0794	-	thioredoxin family protein
779	 55.68	0	935895..936167	+	90	192359538	-	CJA_0795	-	hypothetical protein
780	 56.64	0	936168..936815	+	215	192360649	lipB	CJA_0796	-	lipoate-protein ligase B
781	 54.78	0	936876..937910	+	344	192360748	lipA	CJA_0797	-	lipoic acid synthetase
782	 54.00	0	938052..938564	+	170	192361785	-	CJA_0798	-	putative acetyltransferase, GNAT family
783	 47.46	0	938950..942375	+	1141	192359097	gly43E	CJA_0799	-	beta-xylosidase/alpha-L-arabinfuranosidase, putative, gly43E
784	 46.46	-1	942508..945333	+	941	192360025	-	CJA_0800	-	putative TonB-dependent receptor
785	 51.92	0	945654..947375	+	573	192359190	-	CJA_0801	-	methyl-accepting chemotaxis protein
786	 48.98	0	947394..947687	+	97	192361696	-	CJA_0802	-	hypothetical protein
787	 51.93	0	948041..950449	+	802	192360871	-	CJA_0803	-	hypothetical protein
788	 51.55	0	950553..950810	-	85	192361646	-	CJA_0804	-	hypothetical protein
789	 54.31	0	950916..951959	-	347	192360824	arb43A	CJA_0805	-	arabinanase and alpha-L-arabinofuranosidase, arb43A
790	 55.87	0	952169..953242	+	357	192360536	abf43L	CJA_0806	-	alpha-L-arabinfuranosidase, putative, abf43L
791	 55.02	0	953239..954303	+	354	192359696	-	CJA_0807	-	aldose 1-epimerase
792	 37.50	-2	954415..954870	-	151	192359167	-	CJA_0808	-	Peptidase C39 family superfamily
793	 53.88	0	957032..957289	-	85	192361355	-	CJA_0809	-	hypothetical protein
794	 42.36	-1	958342..959172	-	276	192359086	-	CJA_0810	-	hypothetical protein
795	 36.27	-2	959448..959549	+	33	192361625	-	CJA_0811	-	hypothetical protein
796	 42.64	-1	960000..960332	-	110	192359977	-	CJA_0812	-	hypothetical protein
797	 45.61	-1	961000..961113	-	37	192359094	-	CJA_0813	-	hypothetical protein
798	 36.04	-2	961865..962788	-	307	192362160	-	CJA_0814	-	hypothetical protein
799	 35.32	-2	962913..963716	-	267	192361165	-	CJA_0815	-	hypothetical protein
800	 54.73	0	964146..965510	+	454	192361746	gly43C	CJA_0816	-	beta-xylosidase/alpha-L-arabinfuranosidase, putative, gly43C
801	 55.54	0	965615..967555	+	646	192360666	agd97A	CJA_0817	-	alpha-glucosidase, putative, adg97A
802	 53.41	0	967618..969540	+	640	192360119	gly43D	CJA_0818	-	beta-xylosidase/alpha-L-arabinfuranosidase, putative, gly43D
52.09	MEAN

5.42	STD DEV
