IslandPath Analysis: Cellvibrio japonicus Ueda107

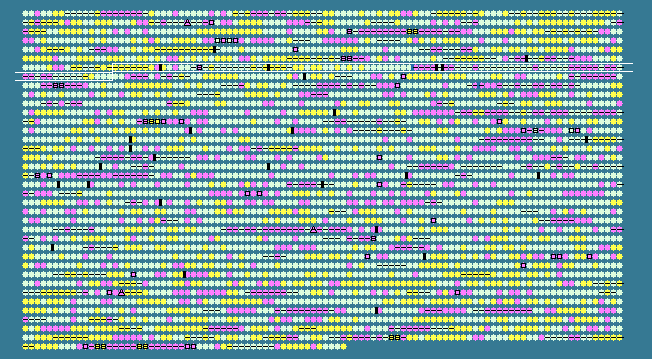

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
616	 61.21	+1	751641..752813	-	390	192361073	gt70A	CJA_0618	-	UDP-GlcA beta-glucuronosyltransferase, putative, gt70A
617	 62.96	+2	752845..753897	-	350	192360145	cel5H	CJA_0619	-	endo-1,4-beta glucanase, putative, cel5H
618	 62.13	+1	753894..755018	-	374	192362446	gt4J-2	CJA_0620	-	glycosyl transferase, putative, gt4J
619	 62.69	+1	755021..756301	-	426	192361422	-	CJA_0621	-	putative GumE protein
620	 66.12	+2	756327..757244	-	305	192360402	epsG	CJA_0622	-	EpsG
621	 60.53	+1	757284..758636	-	450	192359319	-	CJA_0623	-	putative chain length determinant protein EpsF
622	 62.01	+1	758682..759497	-	271	192362006	epsE	CJA_0624	-	EpsE
623	 47.75	0	759521..759631	+	36	192360694	-	CJA_0625	-	hypothetical protein
624	 57.81	+1	760137..761423	+	428	192361288	aroA	CJA_0627	-	3-phosphoshikimate 1-carboxyvinyltransferase
625	 52.38	0	761423..761842	+	139	192362303	-	CJA_0628	-	thioesterase family protein domain protein
626	 45.86	-1	762136..762678	+	180	192358953	-	CJA_0629	-	PEP-CTERM putative exosortase interaction domain protein
627	 52.68	0	762865..763536	-	223	192360159	-	CJA_0630	-	hypothetical protein
628	 51.13	0	763689..764576	-	295	192361789	-	CJA_0631	-	Domain of unknown function (306) family
629	 49.13	0	764567..766402	+	611	192362483	-	CJA_0632	-	putative DNA helicase II
630	 47.22	0	767378..768529	+	383	192360303	-	CJA_0634	-	ISCja2, transposase
631	 49.16	0	768417..769673	-	418	192359261	-	CJA_0633	-	Piwi domain protein
632	 55.77	0	769670..771541	-	623	192360229	-	CJA_0635	-	hypothetical protein
633	 49.66	0	771596..773983	-	795	192361516	-	CJA_0636	-	type I restriction-modification system, S subunit
634	 55.05	0	773976..775034	-	352	192362336	rhuM	CJA_0637	-	RhuM-like protein
635	 54.31	0	775031..776503	-	490	192360754	hsdM	CJA_0638	-	type I restriction-modification system, M subunit
636	 51.61	0	776516..778906	-	796	192359896	-	CJA_0639	-	type I restriction-modification system, R subunit
637	 55.04	0	778979..779236	-	85	192362493	-	CJA_0640	-	hypothetical protein
638	 54.85	0	779435..780526	-	363	192362469	ychF	CJA_0641	-	GTP-binding protein YchF
639	 58.47	+1	780594..781337	-	247	192361428	pth	CJA_0642	-	peptidyl-tRNA hydrolase
640	 53.43	0	781312..781923	-	203	192359843	-	CJA_0643	-	ribosomal protein L25, Ctc-form
641	 57.43	0	782022..782963	-	313	192358855	prs	CJA_0644	-	ribose-phosphate pyrophosphokinase
642	 56.74	0	783295..784140	-	281	192362184	ispE	CJA_0646	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
643	 62.25	+1	784143..784754	-	203	192361569	lolB	CJA_0647	-	outer membrane lipoprotein LolB
644	 61.14	+1	784754..786580	-	608	192359864	-	CJA_0648	-	TPR domain protein
645	 55.56	0	786672..786770	+	32	192360846	-	CJA_0649	-	hypothetical protein
646	 62.45	+1	786858..787403	-	181	192360456	-	CJA_0650	-	hypothetical protein
647	 56.26	0	787459..788832	+	457	192359597	hemA	CJA_0651	-	glutamyl-tRNA reductase
648	 55.12	0	788829..789911	+	360	192360464	prfA	CJA_0652	-	peptide chain release factor 1
649	 58.65	+1	789968..790765	+	265	192359316	-	CJA_0653	-	methyltransferase, HemK family
650	 60.13	+1	790768..791532	+	254	192362250	moeB	CJA_0654	-	molybdopterin biosynthesis MoeB protein
651	 51.19	0	791683..793026	+	447	192361233	-	CJA_0655	-	hypothetical protein
652	 53.91	0	793051..794289	+	412	192361033	-	CJA_0656	-	peptidase, M48 family
653	 55.69	0	794363..795364	-	333	192359960	-	CJA_0657	-	kinase, pfkB family
654	 50.67	0	795357..795506	+	49	192359581	-	CJA_0658	-	hypothetical protein
655	 55.71	0	795529..797865	+	778	192361085	gt51C	CJA_0659	-	murein polymerase, putative, gt51C
656	 55.42	0	798035..798754	+	239	192359705	-	CJA_0660	-	hypothetical protein
657	 56.83	0	798759..799307	+	182	192360493	algT	CJA_0661	-	RNA polymerase ECF-type sigma factor
658	 48.97	0	799334..799672	+	112	192361600	-	CJA_0662	-	hypothetical protein
659	 51.88	0	799770..800222	-	150	192360450	-	CJA_0663	-	hypothetical protein
660	 52.84	0	800619..802433	+	604	192361818	ilvB	CJA_0664	-	acetolactate synthase, large subunit, biosynthetic type
661	 52.24	0	802435..802926	+	163	192360784	ilvN	CJA_0665	-	acetolactate synthase, small subunit
662	 54.26	0	802990..803553	+	187	192361063	-	CJA_0666	-	possible DNA-3-methyladenine glycosidase
663	 53.04	0	803554..804492	-	312	192359936	-	CJA_0667	-	LysR substrate binding domain protein
664	 51.82	0	804589..805605	+	338	192359381	ilvC	CJA_0668	-	ketol-acid reductoisomerase
665	 50.18	0	805687..806541	+	284	192360686	pssA	CJA_0669	-	phosphatidylserine synthase
666	 44.12	-1	812609..813748	+	379	192360177	alr	CJA_0676	-	alanine racemase
667	 46.97	0	813752..814756	+	334	192359865	-	CJA_0677	-	biotin-[acetyl-CoA-carboxylase] ligase
668	 48.48	0	814753..815511	+	252	192358841	-	CJA_0678	-	transcriptional activator, putative, Baf family
669	 43.73	-1	815517..816218	+	233	192361510	-	CJA_0679	-	Sporulation related repeat family
670	 54.17	0	816845..818068	+	407	192360445	-	CJA_0684	-	translation elongation factor Tu
671	 46.88	0	818209..818577	+	122	192360407	secE	CJA_0686	-	preprotein translocase, SecE subunit
672	 46.25	-1	818585..819118	+	177	192359543	nusG	CJA_0687	-	transcription termination/antitermination factor NusG
673	 50.23	0	819275..819706	+	143	192362091	rplK	CJA_0688	-	ribosomal protein L11
674	 48.71	0	819709..820404	+	231	192361282	rplA	CJA_0689	-	ribosomal protein L1
675	 53.94	0	820628..821122	+	164	192362406	-	CJA_0690	-	50S ribosomal protein L10
676	 44.72	-1	821189..821557	+	122	192359450	rplL	CJA_0691	-	ribosomal protein L7/L12
677	 50.61	0	821813..825898	+	1361	192360775	rpoB	CJA_0692	-	DNA-directed RNA polymerase, beta subunit
678	 52.93	0	825925..830241	+	1438	192361594	rpoC	CJA_0693	-	DNA-directed RNA polymerase, beta' subunit
679	 52.45	0	830509..830895	+	128	192359064	rpsL	CJA_0694	-	ribosomal protein S12
680	 51.38	0	831020..831490	+	156	192359877	rpsG	CJA_0695	-	ribosomal protein S7
681	 52.29	0	831568..833688	+	706	192361290	-	CJA_0696	-	translation elongation factor G
682	 54.17	0	833725..834948	+	407	192362181	-	CJA_0697	-	translation elongation factor Tu
683	 49.04	0	835167..835478	+	103	192359612	rpsJ	CJA_0698	-	ribosomal protein S10
684	 51.01	0	835577..836221	+	214	192360421	rplC	CJA_0699	-	ribosomal protein L3
685	 49.11	0	836242..836856	+	204	192359371	rplD	CJA_0700	-	ribosomal protein L4/L1 family
686	 46.46	-1	836853..837149	+	98	192360193	rplW	CJA_0701	-	ribosomal protein L23
687	 51.09	0	837163..837990	+	275	192359072	rplB	CJA_0702	-	ribosomal protein L2
688	 50.54	0	838025..838303	+	92	192359760	rpsS	CJA_0703	-	ribosomal protein S19
689	 48.65	0	838316..838648	+	110	192361611	rplV	CJA_0704	-	ribosomal protein L22
690	 50.37	0	838660..839340	+	226	192362436	rpsC	CJA_0705	-	ribosomal protein S3
691	 51.21	0	839353..839766	+	137	192360491	rplP	CJA_0706	-	ribosomal protein L16
692	 43.59	-1	839763..839957	+	64	192361324	rpmC	CJA_0707	-	ribosomal protein L29
693	 44.19	-1	839959..840225	+	88	192361056	rpsQ	CJA_0708	-	ribosomal protein S17
694	 47.97	0	840263..840631	+	122	192361879	rplN	CJA_0709	-	ribosomal protein L14
695	 44.65	-1	840666..840983	+	105	192361783	rplX	CJA_0710	-	ribosomal protein L24
696	 47.41	0	840990..841529	+	179	192359103	rplE	CJA_0711	-	50S ribosomal protein L5
697	 50.98	0	841540..841845	+	101	192360599	rpsN	CJA_0712	-	ribosomal protein S14p/S29e
698	 48.09	0	841876..842268	+	130	192359508	rpsH	CJA_0713	-	ribosomal protein S8
699	 48.50	0	842282..842815	+	177	192360852	rplF	CJA_0714	-	50S ribosomal protein L6
700	 51.57	0	842825..843175	+	116	192359756	rplR	CJA_0715	-	ribosomal protein L18
701	 47.76	0	843185..843697	+	170	192359431	rpsE	CJA_0716	-	ribosomal protein S5
702	 46.88	0	843727..843918	+	63	192360262	rpmD	CJA_0717	-	ribosomal protein L30
703	 49.66	0	843920..844354	+	144	192361117	rplO	CJA_0718	-	ribosomal protein L15
704	 47.01	0	844365..845702	+	445	192361952	-	CJA_0719	-	preprotein translocase, SecY subunit
705	 47.01	0	845725..845841	+	38	192360307	-	CJA_0720	-	ribosomal protein L36
706	 51.26	0	846063..846419	+	118	192360555	rpsM	CJA_0721	-	ribosomal protein S13p/S18e
707	 51.77	0	846471..846866	+	131	192359683	rpsK	CJA_0722	-	ribosomal protein S11
708	 48.63	0	846882..847502	+	206	192359460	rpsD	CJA_0723	-	ribosomal protein S4
709	 50.05	0	847529..848515	+	328	192362391	rpoA	CJA_0724	-	DNA-directed RNA polymerase, alpha subunit
710	 52.63	0	848612..849010	+	132	192360936	rplQ	CJA_0725	-	ribosomal protein L17
711	 55.72	0	849122..851971	-	949	192360278	uvrA	CJA_0726	-	excinuclease ABC, A subunit
712	 55.85	0	852127..853578	+	483	192360662	-	CJA_0727	-	major facilitator family transporter
713	 53.39	0	853596..854303	+	235	192360087	ssb	CJA_0728	-	single-stranded DNA-binding protein
714	 52.07	0	854494..855534	+	346	192359715	-	CJA_0729	-	transcriptional regulator, LacI family
715	 54.26	0	855637..857184	-	515	192361748	-	CJA_0730	-	transporter, major facilitator family
52.09	MEAN

5.42	STD DEV
