IslandPath Analysis: Cellvibrio japonicus Ueda107

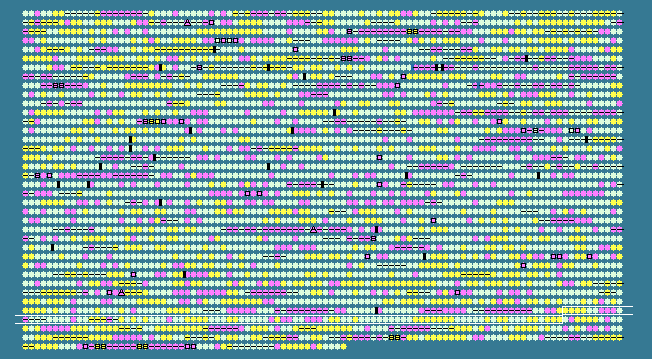

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3391	 58.77	+1	4150504..4151820	-	438	192358827	-	CJA_3461	-	efflux ABC transporter, permease protein
3392	 60.00	+1	4151820..4152554	-	244	192361725	-	CJA_3462	-	ABC transporter, ATP-binding protein
3393	 57.14	0	4152630..4153301	+	223	192361151	-	CJA_3463	-	hypothetical protein
3394	 56.34	0	4153311..4154336	-	341	192362243	-	CJA_3464	-	putative cobalamin synthesis protein
3395	 54.35	0	4154415..4155632	-	405	192359495	-	CJA_3465	-	predicted GTPase
3396	 51.05	0	4156093..4159152	+	1019	192360640	-	CJA_3466	-	putative TonB-dependent receptor
3397	 47.64	0	4159248..4160771	+	507	192359851	-	CJA_3467	-	tryptophan halogenase
3398	 46.57	-1	4160842..4162080	+	412	192361413	-	CJA_3468	-	Bacterial extracellular solute-binding protein
3399	 48.60	0	4162105..4164108	+	667	192361990	-	CJA_3469	-	product exhibits features of a methyl-accepting chemotaxis protein
3400	 50.66	0	4164250..4166742	-	830	192358812	man5C	CJA_3470	-	endo-1, 4-beta mannanase, man5C
3401	 21.30	-2	4167090..4167197	-	35	192360740	-	CJA_3471	-	hypothetical protein
3402	 55.43	0	4167284..4168822	-	512	192361895	-	CJA_3472	-	GGDEF domain protein
3403	 50.00	0	4168989..4169102	-	37	192360208	-	CJA_3473	-	hypothetical protein
3404	 49.31	0	4169099..4169749	-	216	192359563	dsbA	CJA_3474	-	DsbA
3405	 53.17	0	4169784..4169909	+	41	192360224	-	CJA_3475	-	hypothetical protein
3406	 54.68	0	4169947..4170630	-	227	192359374	-	CJA_3476	-	cytochrome c4
3407	 52.88	0	4170781..4171440	+	219	192361932	-	CJA_3477	-	putative GTPase, involved in coordination of cell cycle (EngB)
3408	 49.40	0	4171849..4174662	-	937	192361143	-	CJA_3478	-	DNA polymerase I
3409	 47.29	0	4175000..4175257	+	85	192359796	-	CJA_3479	-	hypothetical protein
3410	 49.82	0	4175576..4175860	+	94	192359463	-	CJA_3481	-	hypothetical protein
3411	 51.62	0	4175837..4176793	-	318	192358784	-	CJA_3480	-	high-affinity zinc uptake system protein ZnuA
3412	 57.34	0	4176827..4177330	+	167	192362339	np20	CJA_3482	-	transcriptional regulator np20
3413	 57.68	+1	4177297..4178097	+	266	192360961	znuC	CJA_3483	-	zinc ABC transporter, ATP-binding protein ZnuC
3414	 59.07	+1	4178069..4178884	+	271	192361992	znuB	CJA_3484	-	permease of ABC zinc transporter ZnuB
3415	 47.15	0	4179003..4179248	+	81	192358830	-	CJA_3485	-	hypothetical protein
3416	 54.61	0	4179315..4180226	+	303	192361482	-	CJA_3486	-	Metallo-phosphoesterase
3417	 57.65	+1	4180518..4181282	-	254	192362461	-	CJA_3487	-	putative integral membrane protein
3418	 52.90	0	4181279..4181692	-	137	192359250	-	CJA_3488	-	thioesterase family protein domain protein
3419	 56.32	0	4181712..4182494	-	260	192360299	-	CJA_3489	-	hydratase/decarboxylase family protein
3420	 54.58	0	4182590..4183996	-	468	192361359	-	CJA_3490	-	PA5346-like protein
3421	 58.02	+1	4184175..4186313	-	712	192362473	-	CJA_3491	-	ATP-dependent DNA helicase RecG
3422	 54.51	0	4186289..4187209	-	306	192358858	-	CJA_3492	-	transcriptional regulator, LysR family
3423	 54.33	0	4187276..4188142	+	288	192360600	-	CJA_3493	-	hypothetical protein
3424	 51.71	0	4188265..4189314	-	349	192362185	oprF	CJA_3494	-	OmpA domain protein
3425	 46.46	-1	4189472..4190164	-	230	192359400	trmB	CJA_3495	-	tRNA (guanine-N(7)-)-methyltransferase
3426	 54.26	0	4190253..4190639	-	128	192360907	-	CJA_3496	-	hypothetical protein
3427	 54.70	0	4190722..4191582	-	286	192362020	rpoH	CJA_3497	-	alternative sigma factor RpoH
3428	 60.76	+1	4191682..4192782	-	366	192362018	ftsX	CJA_3498	-	cell division protein FtsX
3429	 55.61	0	4192779..4193447	-	222	192359009	ftsE	CJA_3499	-	cell division ABC transporter, ATP-binding protein FtsE
3430	 55.82	0	4193460..4194584	-	374	192360531	ftsY	CJA_3500	-	signal recognition particle receptor FtsY
3431	 59.55	+1	4194713..4195330	+	205	192361410	-	CJA_3501	-	putative methyltransferase
3432	 53.33	0	4195331..4195960	-	209	192361821	-	CJA_3502	-	hypothetical protein
3433	 54.05	0	4196164..4196694	+	176	192359123	coaD	CJA_3503	-	pantetheine-phosphate adenylyltransferase
3434	 50.35	0	4196747..4197175	-	142	192360092	-	CJA_3504	-	transglycosylase associated gene
3435	 56.83	0	4197135..4197947	-	270	192360935	mutM	CJA_3505	-	formamidopyrimidine-DNA glycosylase
3436	 59.14	+1	4198139..4198231	-	30	192361276	-	CJA_3506	-	hypothetical protein
3437	 53.71	0	4198234..4198866	+	210	192362202	-	CJA_3507	-	PEP-CTERM putative exosortase interaction domain protein
3438	 49.53	0	4198936..4199781	-	281	192359617	-	CJA_3508	-	hypothetical protein
3439	 50.30	0	4199783..4200112	-	109	192360417	-	CJA_3509	-	hypothetical protein
3440	 53.46	0	4200105..4201520	-	471	192359718	-	CJA_3510	-	probable two-component sensor
3441	 50.00	0	4201517..4202176	-	219	192360483	-	CJA_3511	-	Response regulator receiver domain protein
3442	 47.62	0	4202171..4202296	+	41	192361720	-	CJA_3512	-	hypothetical protein
3443	 58.69	+1	4202403..4204370	-	655	192359007	kefB	CJA_3513	-	glutathione-regulated potassium-efflux system protein
3444	 46.15	-1	4204515..4204670	-	51	192360018	rpmG	CJA_3514	-	ribosomal protein L33
3445	 48.52	0	4204688..4204924	-	78	192361901	-	CJA_3515	-	ribosomal protein L28-related protein
3446	 54.05	0	4205349..4206212	+	287	192360221	-	CJA_3516	-	hypothetical protein
3447	 51.67	0	4206261..4206947	+	228	192359540	-	CJA_3518	-	hypothetical protein
3448	 43.18	-1	4206925..4207371	-	148	192361304	-	CJA_3517	-	putative lipoprotein
3449	 47.65	0	4207392..4209605	-	737	192358859	-	CJA_3519	-	putative adenylate cyclase
3450	 43.65	-1	4209665..4209790	+	41	192359915	-	CJA_3520	-	hypothetical protein
3451	 51.50	0	4209816..4210514	+	232	192359983	-	CJA_3521	-	cyclic AMP receptor protein
3452	 58.96	+1	4210525..4211199	-	224	192360376	-	CJA_3522	-	DNA repair protein RadC
3453	 58.96	+1	4211393..4212664	+	423	192359279	coaBC	CJA_3523	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
3454	 55.14	0	4212688..4215195	+	835	192362494	algC	CJA_3524	-	phosphomannomutase AlgC
3455	 52.98	0	4215218..4216123	+	301	192361466	argB	CJA_3525	-	acetylglutamate kinase
3456	 58.21	+1	4216173..4216787	+	204	192358988	-	CJA_3526	-	transcriptional regulator, TetR family
3457	 53.12	0	4216832..4217488	-	218	192361699	-	CJA_3527	-	hypothetical protein
3458	 53.40	0	4217502..4218149	-	215	192362114	pyrE	CJA_3528	-	orotate phosphoribosyltransferase
3459	 52.53	0	4218360..4219130	+	256	192360058	crc	CJA_3529	-	catabolite repression control protein
3460	 53.81	0	4219202..4219621	-	139	192360366	-	CJA_3530	-	Tat (twin-arginine translocation) pathway signal sequence domain protein
3461	 53.59	0	4219713..4221188	-	491	192358816	thiI	CJA_3531	-	thiazole biosynthesis protein ThiI
3462	 52.31	0	4221541..4222836	-	431	192362063	-	CJA_3532	-	transporter, monovalent cation:proton antiporter family
3463	 50.00	0	4222839..4223030	-	63	192360813	-	CJA_3533	-	hypothetical protein
3464	 53.18	0	4223311..4224711	+	466	192362103	glnA	CJA_3534	-	glutamine synthetase, type I
3465	 53.23	0	4224844..4225401	+	185	192361270	-	CJA_3535	-	hypothetical protein
3466	 55.90	0	4225552..4226628	+	358	192360080	-	CJA_3536	-	hypothetical protein
3467	 59.36	+1	4226612..4228048	+	478	192359227	ntrC	CJA_3537	-	nitrogen regulation protein NR(I)
3468	 56.00	0	4228397..4229887	+	496	192358822	-	CJA_3538	-	Methyl-accepting chemotaxis protein
3469	 55.67	0	4229934..4231097	-	387	192361775	-	CJA_3539	-	hypothetical protein
3470	 55.96	0	4231258..4231911	+	217	192360428	exoD	CJA_3540	-	ExoD
3471	 58.30	+1	4231930..4233507	+	525	192359619	-	CJA_3541	-	CBS domain protein
3472	 56.19	0	4233567..4233671	+	34	192361129	-	CJA_3542	-	hypothetical protein
3473	 54.91	0	4233749..4234318	+	189	192359343	-	CJA_3543	-	hypothetical protein
3474	 52.79	0	4234423..4235517	+	364	192358971	-	CJA_3544	-	hypothetical protein
3475	 51.77	0	4235514..4236332	+	272	192359779	-	CJA_3545	-	hypothetical protein
3476	 51.80	0	4236353..4237213	-	286	192361564	-	CJA_3546	-	Phytanoyl-CoA dioxygenase (PhyH) family
3477	 54.41	0	4237225..4239117	-	630	192362423	-	CJA_3547	-	ABC transporter, ATP-binding protein
3478	 56.31	0	4239116..4239646	+	176	192359361	-	CJA_3548	-	putative conserved hypothetical protein TIGR02444
3479	 54.73	0	4239745..4239987	-	80	192360213	-	CJA_3549	-	hypothetical protein
3480	 58.42	+1	4240171..4241043	-	290	192359430	-	CJA_3550	-	Divergent polysaccharide deacetylase family
3481	 56.71	0	4241012..4242457	-	481	192361261	-	CJA_3551	-	carboxyl-terminal protease
3482	 55.39	0	4242549..4243790	-	413	192362152	-	CJA_3552	-	peptidase, M23/M37 family
3483	 55.51	0	4243831..4245381	-	516	192359602	gpmI	CJA_3553	-	2,3-bisphosphoglycerate-independent phosphoglycerate mutase
3484	 54.07	0	4245457..4245726	-	89	192361494	-	CJA_3554	-	hypothetical protein
3485	 55.64	0	4245700..4246116	+	138	192358889	-	CJA_3555	-	rhodanese-like domain protein
3486	 56.98	0	4246142..4246399	+	85	192361825	grxC	CJA_3556	-	glutaredoxin 3
3487	 54.17	0	4246452..4246955	+	167	192360992	secB	CJA_3557	-	protein-export protein SecB
3488	 56.77	0	4247093..4248598	+	501	192360146	-	CJA_3558	-	exopolyphosphatase
3489	 59.60	+1	4248670..4251315	-	881	192359312	rgl11A	CJA_3559	-	rhamnogalacturonan lyase, rgl11A
3490	 56.14	0	4251562..4253661	-	699	192362302	ppk	CJA_3560	-	polyphosphate kinase
52.09	MEAN

5.42	STD DEV
