IslandPath Analysis: Cellvibrio japonicus Ueda107

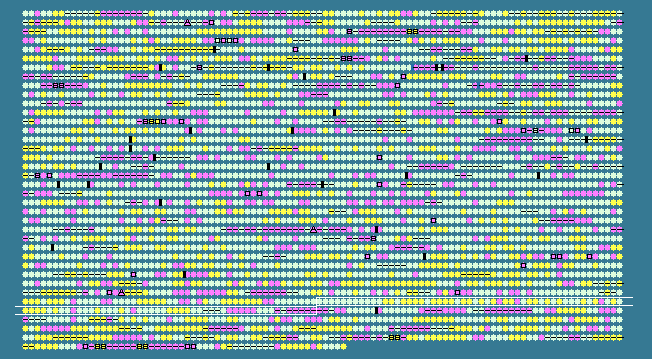

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3250	 54.06	0	3976244..3978226	-	660	192359437	-	CJA_3319	-	hypothetical protein
3251	 52.11	0	3978226..3978747	-	173	192361061	-	CJA_3320	-	hypothetical protein
3252	 53.60	0	3979073..3980059	-	328	192362049	-	CJA_3321	-	hypothetical protein
3253	 53.30	0	3980112..3980687	-	191	192362149	-	CJA_3322	-	hypothetical protein
3254	 54.87	0	3980966..3981448	-	160	192359702	gspM	CJA_3323	-	General secretion pathway protein M
3255	 54.67	0	3981459..3982733	-	424	192358999	gspL	CJA_3324	-	General secretion pathway protein L
3256	 52.85	0	3982828..3983985	-	385	192360242	gspK	CJA_3325	-	General secretion pathway protein K
3257	 54.49	0	3983954..3984643	-	229	192361501	gspJ	CJA_3326	-	General secretion pathway protein J
3258	 52.47	0	3984624..3985109	-	161	192361946	gspI	CJA_3327	-	General secretion pathway protein I
3259	 55.31	0	3985109..3985786	-	225	192359446	gspH	CJA_3328	-	General secretion pathway protein H
3260	 51.75	0	3985740..3986195	-	151	192360788	gspG	CJA_3329	-	General secretion pathway protein G
3261	 56.23	0	3986232..3987467	-	411	192361623	gspF	CJA_3330	-	General secretion pathway protein F
3262	 57.21	0	3987483..3989057	-	524	192360332	gspE	CJA_3331	-	General secretion pathway protein E
3263	 53.91	0	3989061..3991106	-	681	192361327	gspD	CJA_3332	-	General secretion pathway protein D
3264	 56.93	0	3991122..3992261	-	379	192360107	gspC	CJA_3333	-	General secretion pathway protein C
3265	 57.03	0	3992776..3993024	+	82	192361149	xseB	CJA_3334	-	exodeoxyribonuclease VII, small subunit
3266	 60.14	+1	3993021..3993908	+	295	192362196	ispA	CJA_3335	-	geranyltranstransferase
3267	 58.71	+1	3994013..3995923	+	636	192359149	dxs	CJA_3336	-	1-deoxy-D-xylulose-5-phosphate synthase
3268	 54.57	0	3996014..3997831	-	605	192359998	cel5E	CJA_3337	-	cellulase, putative, cel5E
3269	 56.23	0	3998478..3999770	+	430	192360830	man5A	CJA_3338	-	endo- 1,4-beta-mannanase man5A
3270	 55.87	0	4000143..4001003	-	286	192360892	cae1C	CJA_3339	-	carbohydrate esterase, putative, cae1C
3271	 57.39	0	4001019..4002128	-	369	192361685	adhC	CJA_3340	-	alcohol dehydrogenase C
3272	 59.44	+1	4002279..4003178	+	299	192360613	-	CJA_3341	-	transcriptional regulator, LysR family
3273	 52.92	0	4003211..4004425	-	404	192361474	nupG	CJA_3342	-	nucleoside-transport system protein
3274	 59.06	+1	4004593..4005735	-	380	192361579	-	CJA_3343	-	Oxidoreductase family, NAD-binding Rossmann fold domain protein
3275	 56.13	0	4005738..4006790	-	350	192358811	-	CJA_3344	-	AP endonuclease family 2 C terminus family
3276	 51.65	0	4006972..4007670	-	232	192358826	-	CJA_3345	-	CAAX amino terminal protease family protein
3277	 56.68	0	4007848..4008969	-	373	192359767	dnaJ	CJA_3346	-	chaperone protein DnaJ
3278	 53.77	0	4009089..4011011	-	640	192361066	dnaK	CJA_3347	-	chaperone protein DnaK
3279	 59.20	+1	4011189..4011764	-	191	192361899	grpE	CJA_3348	-	co-chaperone GrpE
3280	 35.42	-2	4012030..4012125	+	31	192360441	-	CJA_3349	-	hypothetical protein
3281	 56.67	0	4012225..4013844	+	539	192361242	-	CJA_3350	-	methyl-accepting chemotaxis protein
3282	 60.31	+1	4013924..4015591	+	555	192358991	recN	CJA_3351	-	DNA repair protein RecN
3283	 48.42	0	4015666..4016076	-	136	192359556	fur	CJA_3352	-	transcriptional regulator Fur
3284	 51.41	0	4016107..4016604	+	165	192360954	-	CJA_3353	-	Outer membrane lipoprotein omlA precursor
3285	 56.57	0	4016678..4018321	-	547	192359905	-	CJA_3354	-	GGDEF domain protein
3286	 59.68	+1	4018524..4020941	+	805	192360118	-	CJA_3355	-	sensory box/GGDEF family protein
3287	 54.38	0	4021047..4022267	+	406	192359047	-	CJA_3357	-	HD domain protein
3288	 55.90	0	4022261..4022650	-	129	192361926	-	CJA_3356	-	response regulator
3289	 53.19	0	4022647..4024932	-	761	192361097	-	CJA_3358	-	two-component hybrid sensor and regulator
3290	 55.95	0	4025046..4029011	-	1321	192362033	-	CJA_3359	-	two-component hybrid sensor and regulator
3291	 55.56	0	4029154..4029477	-	107	192360900	-	CJA_3360	-	Protein yfjF
3292	 54.94	0	4029504..4029938	-	144	192360500	-	CJA_3361	-	hypothetical protein
3293	 55.21	0	4030116..4030595	+	159	192358965	smpB	CJA_3362	-	SsrA-binding protein
3294	 59.41	+1	4030596..4031642	-	348	192358959	-	CJA_3363	-	transcriptional regulator, LuxR family
3295	 51.67	0	4031760..4031879	-	39	192361935	-	CJA_3364	-	hypothetical protein
3296	 62.83	+1	4031925..4032680	+	251	192362327	-	CJA_3365	-	hydrolase, alpha/beta fold family
3297	 48.39	0	4032758..4033873	+	371	192359800	-	CJA_3366	-	transcriptional regulator, LuxR family
3298	 50.80	0	4034071..4035954	+	627	192359311	-	CJA_3367	-	putative lipoprotein
3299	 56.21	0	4036024..4038279	+	751	192360235	-	CJA_3368	-	hypothetical protein
3300	 54.89	0	4038351..4039445	-	364	192359406	cel5C	CJA_3369	-	cellulase, putative, cel5C
3301	 61.02	+1	4039556..4043521	-	1321	192361873	-	CJA_3370	-	hypothetical protein
3302	 56.24	0	4043485..4045230	-	581	192360745	-	CJA_3371	-	outer membrane protein, OMP85 family
3303	 57.58	+1	4045370..4046227	+	285	192360807	-	CJA_3372	-	hypothetical protein
3304	 60.77	+1	4046248..4046637	+	129	192360071	-	CJA_3373	-	hypothetical protein
3305	 52.54	0	4046642..4046995	+	117	192359203	-	CJA_3374	-	hypothetical protein
3306	 55.61	0	4047100..4049016	+	638	192362208	-	CJA_3375	-	sensory box/GGDEF family protein
3307	 53.08	0	4049213..4049764	+	183	192361341	-	CJA_3376	-	hypothetical protein
3308	 49.17	0	4049805..4050347	-	180	192360518	rnk	CJA_3377	-	regulator of nucleoside diphosphate kinase
3309	 35.83	-2	4050506..4051627	-	373	192359689	-	CJA_3378	-	hypothetical protein
3310	 52.49	0	4051663..4053045	-	460	192361708	-	CJA_3379	-	MATE efflux family protein subfamily
3311	 53.71	0	4053079..4054344	-	421	192360847	-	CJA_3380	-	excitatory amino acid transporter
3312	 52.94	0	4054347..4055009	-	220	192360036	-	CJA_3381	-	hypothetical protein
3313	 60.26	+1	4055110..4057497	-	795	192360558	gt51B	CJA_3382	-	murein polymerase, putative, gt51B
3314	 55.50	0	4057501..4058709	-	402	192359509	-	CJA_3383	-	hemY protein
3315	 52.82	0	4058709..4059878	-	389	192358919	-	CJA_3384	-	putative uroporphyrinogen III methylase
3316	 55.40	0	4059872..4060705	-	277	192361669	hemD	CJA_3385	-	uroporphyrinogen-III synthase
3317	 59.49	+1	4060702..4061649	-	315	192360982	hemC	CJA_3386	-	porphobilinogen deaminase
3318	 51.53	0	4061767..4063200	-	477	192359811	-	CJA_3387	-	high affinity choline transporter
3319	 47.37	0	4063314..4063598	-	94	192358907	-	CJA_3388	-	hypothetical protein
3320	 53.27	0	4063605..4063925	-	106	192362073	-	CJA_3389	-	PA5285-like protein
3321	 50.15	0	4064326..4064664	-	112	192361217	-	CJA_3390	-	Nitrogen regulatory protein P-II
3322	 51.14	0	4064847..4066115	-	422	192360328	-	CJA_3391	-	ammonium transporter
3323	 53.39	0	4066147..4066485	-	112	192362245	-	CJA_3392	-	Nitrogen regulatory protein P-II
3324	 52.14	0	4066894..4067127	+	77	192360696	-	CJA_3393	-	hypothetical protein
3325	 59.79	+1	4067142..4068755	+	537	192359858	-	CJA_3394	-	Mg chelatase homolog
3326	 56.70	0	4068757..4070472	-	571	192359035	-	CJA_3395	-	EAL domain protein
3327	 56.12	0	4070690..4072708	+	672	192362002	rep	CJA_3396	-	ATP-dependent DNA helicase Rep
3328	 57.14	0	4072809..4073249	-	146	192362206	-	CJA_3397	-	Cytochrome c5
3329	 52.48	0	4073447..4075504	+	685	192361268	prsK	CJA_3398	-	putative PEP-CTERM system histidine kinase
3330	 52.54	0	4075501..4076895	+	464	192359614	prsR	CJA_3399	-	putative PEP-CTERM system response regulator
3331	 53.19	0	4076905..4077045	-	46	192360425	-	CJA_3400	-	hypothetical protein
3332	 50.40	0	4077157..4077900	+	247	192361427	-	CJA_3402	-	putative lipoprotein
3333	 53.15	0	4077240..4077350	-	36	192361763	-	CJA_3401	-	hypothetical protein
3334	 52.23	0	4078218..4078958	+	246	192360814	-	CJA_3403	-	PEP-CTERM putative exosortase interaction domain protein
3335	 47.68	0	4079167..4080546	+	459	192361630	-	CJA_3404	-	eight transmembrane protein EpsH (proposed exosortase)
3336	 45.61	-1	4080557..4081696	+	379	192359179	gt2M	CJA_3405	-	glycosyl transferase, putative, gt2M
3337	 46.96	0	4081708..4083057	+	449	192360068	cAPK	CJA_3406	-	capK related-protein
3338	 46.99	0	4083045..4083959	+	304	192360721	gt2I	CJA_3407	-	glycosyl transferase, putative, gt2I
3339	 47.96	0	4083960..4084964	+	334	192361787	pda4E	CJA_3408	-	polysaccharide deacetylase protein, putative, pda4E
3340	 50.12	0	4085014..4086669	+	551	192359408	-	CJA_3409	-	hypothetical protein
3341	 54.11	0	4086666..4087796	+	376	192360155	gt4B	CJA_3410	-	glycosyl transferase, putative, gt4B
3342	 52.56	0	4087875..4088909	+	344	192361549	gt4A	CJA_3411	-	glycosyl transferase, putative, gt4A
3343	 44.19	-1	4088906..4090195	+	429	192359666	-	CJA_3412	-	O-antigen polymerase family protein
3344	 48.98	0	4090258..4091184	+	308	192361642	-	CJA_3413	-	glycosyl transferase, group 1 family protein domain protein
3345	 46.83	0	4091305..4092378	+	357	192361039	-	CJA_3414	-	hypothetical protein
3346	 35.34	-2	4092553..4093746	-	397	192359925	-	CJA_3415	-	hypothetical protein
3347	 34.09	-2	4093736..4094656	-	306	192360326	gt2L	CJA_3416	-	glycosyl transferase, putative, gt2L
3348	 34.38	-2	4094660..4096189	-	509	192362089	-	CJA_3417	-	polysaccharide biosynthesis family protein
3349	 45.45	-1	4096186..4097208	-	340	192362475	-	CJA_3418	-	hypothetical protein
52.09	MEAN

5.42	STD DEV
