IslandPath Analysis: Cellvibrio japonicus Ueda107

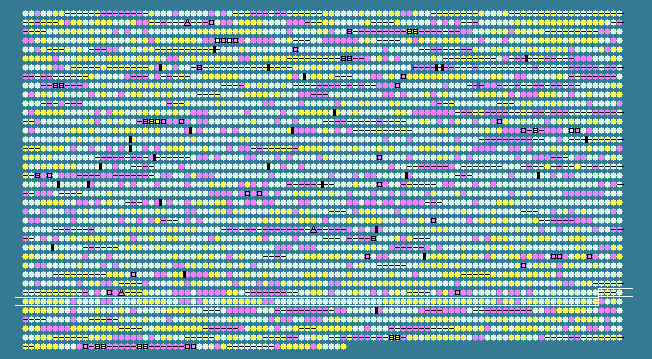

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3197	 55.56	0	3906523..3906747	-	74	192359660	-	CJA_3266	-	putative lipoprotein
3198	 56.71	0	3906744..3907235	-	163	192362411	-	CJA_3267	-	putative thiol:disulfide interchange protein DsbE
3199	 53.59	0	3907134..3907286	+	50	192359443	-	CJA_3268	-	hypothetical protein
3200	 52.16	0	3907306..3907953	-	215	192360319	-	CJA_3269	-	hypothetical protein
3201	 59.03	+1	3907908..3908666	+	252	192362389	-	CJA_3271	-	hypothetical protein
3202	 59.16	+1	3907923..3908708	-	261	192359456	-	CJA_3270	-	hypothetical protein
3203	 60.20	+1	3908731..3911622	-	963	192361517	-	CJA_3272	-	hypothetical protein
3204	 48.68	0	3912340..3912567	-	75	192359928	-	CJA_3273	-	hypothetical protein
3205	 60.43	+1	3912775..3914040	+	421	192361326	-	CJA_3274	-	hypothetical protein
3206	 61.68	+1	3914042..3916570	+	842	192361721	-	CJA_3275	-	putative lipoprotein
3207	 59.75	+1	3916591..3918180	+	529	192358808	-	CJA_3276	-	hypothetical protein
3208	 52.55	0	3918318..3919061	+	247	192359577	-	CJA_3277	-	hypothetical protein
3209	 45.32	-1	3919292..3920542	+	416	192360887	-	CJA_3278	-	transcriptional regulator, AraC family domain protein
3210	 50.64	0	3920850..3922502	+	550	192359338	xyn5A	CJA_3279	-	endo-1,4-beta-xylanase, putative, xyn5A
3211	 53.11	0	3922705..3924504	+	599	192360656	xyn10B	CJA_3280	-	endo-1,4-beta-xylanase, xyn10B
3212	 53.23	0	3924630..3926489	+	619	192361477	abf62A	CJA_3281	-	alpha-L-arabinofuranosidase, abf62A
3213	 55.15	0	3926638..3928365	+	575	192361809	fee1B	CJA_3282	-	ferruloyl esterase, putative, fee1B
3214	 45.24	-1	3928444..3928611	+	55	192358891	-	CJA_3283	-	hypothetical protein
3215	 42.14	-1	3928767..3929936	+	389	192359220	-	CJA_3284	-	transcriptional regulator, AraC family
3216	 49.55	0	3930177..3930287	+	36	192359489	-	CJA_3285	-	hypothetical protein
3217	 51.29	0	3930449..3933499	+	1016	192360834	ebg98	CJA_3286	-	endo-beta-galactosidase, putative, ebg98A
3218	 53.34	0	3933588..3935336	+	582	192361373	fee1A	CJA_3287	-	ferruloyl esterase, fee1A
3219	 55.20	0	3935460..3936401	-	313	192362212	xerC	CJA_3288	-	tyrosine recombinase XerC
3220	 57.33	0	3936423..3937118	-	231	192359180	-	CJA_3289	-	hypothetical protein
3221	 58.48	+1	3937129..3937959	-	276	192360012	dapF	CJA_3290	-	diaminopimelate epimerase
3222	 57.13	0	3937979..3939226	-	415	192360548	lysA	CJA_3291	-	diaminopimelate decarboxylase
3223	 57.58	+1	3939271..3939468	-	65	192361617	-	CJA_3292	-	hypothetical protein
3224	 56.27	0	3939508..3940728	-	406	192362267	-	CJA_3293	-	Sigma-54 interaction domain protein
3225	 55.40	0	3940844..3941917	+	357	192361386	-	CJA_3294	-	FHA domain protein
3226	 50.58	0	3941914..3944592	+	892	192360667	-	CJA_3295	-	putative serine/threonine protein kinase
3227	 48.24	0	3944628..3945137	-	169	192362433	-	CJA_3296	-	hypothetical protein
3228	 48.15	0	3945166..3945327	+	53	192359040	-	CJA_3297	-	hypothetical protein
3229	 52.98	0	3945339..3947567	-	742	192359832	-	CJA_3298	-	putative TonB-dependent receptor
3230	 46.82	0	3947578..3948756	-	392	192359999	-	CJA_3299	-	putative transcriptional regulator
3231	 56.55	0	3948944..3949111	+	55	192361040	cbp6C	CJA_3300	-	carbohydrate binding protein, putative, cbp6C
3232	 50.57	0	3949182..3949355	-	57	192359419	-	CJA_3301	-	hypothetical protein
3233	 55.56	0	3949352..3949486	-	44	192360462	-	CJA_3302	-	hypothetical protein
3234	 55.87	0	3949483..3949797	-	104	192359913	-	CJA_3303	-	hypothetical protein
3235	 59.23	+1	3950051..3952753	+	900	192359744	-	CJA_3304	-	TonB-dependent receptor
3236	 61.95	+1	3952859..3955489	+	876	192359137	glu5A	CJA_3305	-	glucan exo-1,3-beta glucosidase, putative, glu5A
3237	 56.48	0	3955656..3957098	+	480	192361845	gly30A	CJA_3306	-	glycoside hydrolase family 30, gly30A
3238	 58.60	+1	3957249..3958451	-	400	192361274	manC	CJA_3307	-	Mannose-6-phosphate isomerase-like protein
3239	 56.46	0	3958592..3958738	+	48	192361083	-	CJA_3308	-	hypothetical protein
3240	 57.20	0	3958900..3960219	-	439	192361921	-	CJA_3309	-	MATE efflux family protein
3241	 44.57	-1	3961652..3968389	-	2245	192358983	-	CJA_3310	-	RHS Repeat family
3242	 39.48	-2	3968493..3969338	-	281	192359795	-	CJA_3311	-	FG-GAP repeat domain protein
3243	 53.60	0	3969471..3970442	-	323	192361719	-	CJA_3312	-	TonB family C-terminal domain protein
3244	 53.07	0	3970444..3970965	-	173	192360985	-	CJA_3313	-	putative adventurous gliding motility protein S
3245	 49.63	0	3970962..3971507	-	181	192362279	-	CJA_3314	-	hypothetical protein
3246	 51.72	0	3971564..3972259	-	231	192358852	aglR	CJA_3315	-	adventurous gliding motility protein R
3247	 54.99	0	3972292..3972642	-	116	192360154	-	CJA_3316	-	hypothetical protein
3248	 53.33	0	3972632..3973366	-	244	192360457	-	CJA_3317	-	putative TPR domain protein
3249	 54.68	0	3973353..3976247	-	964	192361757	-	CJA_3318	-	tetratricopeptide repeat domain protein
3250	 54.06	0	3976244..3978226	-	660	192359437	-	CJA_3319	-	hypothetical protein
3251	 52.11	0	3978226..3978747	-	173	192361061	-	CJA_3320	-	hypothetical protein
3252	 53.60	0	3979073..3980059	-	328	192362049	-	CJA_3321	-	hypothetical protein
3253	 53.30	0	3980112..3980687	-	191	192362149	-	CJA_3322	-	hypothetical protein
3254	 54.87	0	3980966..3981448	-	160	192359702	gspM	CJA_3323	-	General secretion pathway protein M
3255	 54.67	0	3981459..3982733	-	424	192358999	gspL	CJA_3324	-	General secretion pathway protein L
3256	 52.85	0	3982828..3983985	-	385	192360242	gspK	CJA_3325	-	General secretion pathway protein K
3257	 54.49	0	3983954..3984643	-	229	192361501	gspJ	CJA_3326	-	General secretion pathway protein J
3258	 52.47	0	3984624..3985109	-	161	192361946	gspI	CJA_3327	-	General secretion pathway protein I
3259	 55.31	0	3985109..3985786	-	225	192359446	gspH	CJA_3328	-	General secretion pathway protein H
3260	 51.75	0	3985740..3986195	-	151	192360788	gspG	CJA_3329	-	General secretion pathway protein G
3261	 56.23	0	3986232..3987467	-	411	192361623	gspF	CJA_3330	-	General secretion pathway protein F
3262	 57.21	0	3987483..3989057	-	524	192360332	gspE	CJA_3331	-	General secretion pathway protein E
3263	 53.91	0	3989061..3991106	-	681	192361327	gspD	CJA_3332	-	General secretion pathway protein D
3264	 56.93	0	3991122..3992261	-	379	192360107	gspC	CJA_3333	-	General secretion pathway protein C
3265	 57.03	0	3992776..3993024	+	82	192361149	xseB	CJA_3334	-	exodeoxyribonuclease VII, small subunit
3266	 60.14	+1	3993021..3993908	+	295	192362196	ispA	CJA_3335	-	geranyltranstransferase
3267	 58.71	+1	3994013..3995923	+	636	192359149	dxs	CJA_3336	-	1-deoxy-D-xylulose-5-phosphate synthase
3268	 54.57	0	3996014..3997831	-	605	192359998	cel5E	CJA_3337	-	cellulase, putative, cel5E
3269	 56.23	0	3998478..3999770	+	430	192360830	man5A	CJA_3338	-	endo- 1,4-beta-mannanase man5A
3270	 55.87	0	4000143..4001003	-	286	192360892	cae1C	CJA_3339	-	carbohydrate esterase, putative, cae1C
3271	 57.39	0	4001019..4002128	-	369	192361685	adhC	CJA_3340	-	alcohol dehydrogenase C
3272	 59.44	+1	4002279..4003178	+	299	192360613	-	CJA_3341	-	transcriptional regulator, LysR family
3273	 52.92	0	4003211..4004425	-	404	192361474	nupG	CJA_3342	-	nucleoside-transport system protein
3274	 59.06	+1	4004593..4005735	-	380	192361579	-	CJA_3343	-	Oxidoreductase family, NAD-binding Rossmann fold domain protein
3275	 56.13	0	4005738..4006790	-	350	192358811	-	CJA_3344	-	AP endonuclease family 2 C terminus family
3276	 51.65	0	4006972..4007670	-	232	192358826	-	CJA_3345	-	CAAX amino terminal protease family protein
3277	 56.68	0	4007848..4008969	-	373	192359767	dnaJ	CJA_3346	-	chaperone protein DnaJ
3278	 53.77	0	4009089..4011011	-	640	192361066	dnaK	CJA_3347	-	chaperone protein DnaK
3279	 59.20	+1	4011189..4011764	-	191	192361899	grpE	CJA_3348	-	co-chaperone GrpE
3280	 35.42	-2	4012030..4012125	+	31	192360441	-	CJA_3349	-	hypothetical protein
3281	 56.67	0	4012225..4013844	+	539	192361242	-	CJA_3350	-	methyl-accepting chemotaxis protein
3282	 60.31	+1	4013924..4015591	+	555	192358991	recN	CJA_3351	-	DNA repair protein RecN
3283	 48.42	0	4015666..4016076	-	136	192359556	fur	CJA_3352	-	transcriptional regulator Fur
3284	 51.41	0	4016107..4016604	+	165	192360954	-	CJA_3353	-	Outer membrane lipoprotein omlA precursor
3285	 56.57	0	4016678..4018321	-	547	192359905	-	CJA_3354	-	GGDEF domain protein
3286	 59.68	+1	4018524..4020941	+	805	192360118	-	CJA_3355	-	sensory box/GGDEF family protein
3287	 54.38	0	4021047..4022267	+	406	192359047	-	CJA_3357	-	HD domain protein
3288	 55.90	0	4022261..4022650	-	129	192361926	-	CJA_3356	-	response regulator
3289	 53.19	0	4022647..4024932	-	761	192361097	-	CJA_3358	-	two-component hybrid sensor and regulator
3290	 55.95	0	4025046..4029011	-	1321	192362033	-	CJA_3359	-	two-component hybrid sensor and regulator
3291	 55.56	0	4029154..4029477	-	107	192360900	-	CJA_3360	-	Protein yfjF
3292	 54.94	0	4029504..4029938	-	144	192360500	-	CJA_3361	-	hypothetical protein
3293	 55.21	0	4030116..4030595	+	159	192358965	smpB	CJA_3362	-	SsrA-binding protein
3294	 59.41	+1	4030596..4031642	-	348	192358959	-	CJA_3363	-	transcriptional regulator, LuxR family
3295	 51.67	0	4031760..4031879	-	39	192361935	-	CJA_3364	-	hypothetical protein
3296	 62.83	+1	4031925..4032680	+	251	192362327	-	CJA_3365	-	hydrolase, alpha/beta fold family
52.09	MEAN

5.42	STD DEV
