IslandPath Analysis: Cellvibrio japonicus Ueda107

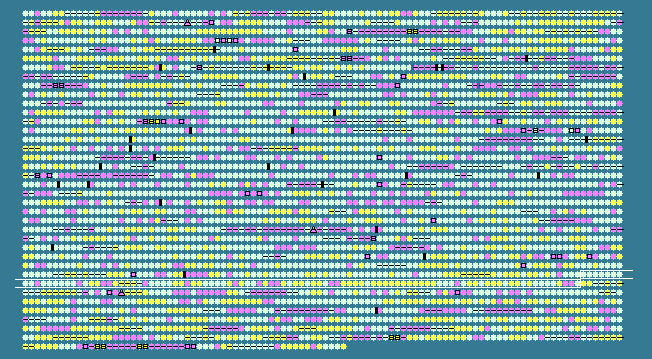

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2994	 54.59	0	3636343..3637203	+	286	192358846	nuhA	CJA_3063	-	Nudix hydrolase
2995	 54.76	0	3637320..3638873	+	517	192360007	xylE	CJA_3064	-	MFS transporter
2996	 52.80	0	3639042..3639380	-	112	192359899	-	CJA_3065	-	hypothetical protein
2997	 52.00	0	3639064..3640884	+	606	192360972	xyn10C	CJA_3066	-	endo-beta-1,4-xylanase, xyn10C
2998	 55.24	0	3640913..3642619	+	568	192361726	gly43J	CJA_3067	-	beta-xylosidase/alpha-L-arabinfuranosidase, putative, gly43J
2999	 54.49	0	3642600..3645548	+	982	192361118	-	CJA_3068	-	hypothetical protein
3000	 53.43	0	3645577..3646785	+	402	192362413	rspA	CJA_3069	-	Starvation sensing protein rspA
3001	 51.42	0	3646845..3647972	+	375	192358849	gly43G	CJA_3070	-	beta-xylosidase/alpha-L-arabinfuranosidase, putative, gly43G
3002	 49.23	0	3648182..3648766	+	194	192360928	-	CJA_3071	-	putative module of glucan-glucohydrolase
3003	 42.04	-1	3648886..3652353	-	1155	192362075	-	CJA_3072	-	TonB-dependent receptor
3004	 52.47	0	3652659..3653996	-	445	192359362	purA	CJA_3073	-	adenylosuccinate synthetase
3005	 54.58	0	3654004..3655194	-	396	192358954	hisZ	CJA_3074	-	ATP phosphoribosyltransferase, regulatory subunit
3006	 53.25	0	3655200..3655445	-	81	192360416	-	CJA_3075	-	hypothetical protein
3007	 50.80	0	3655548..3656423	-	291	192360991	hflC	CJA_3076	-	HflC protein
3008	 54.76	0	3656423..3657556	-	377	192360411	hflK	CJA_3077	-	HflK protein
3009	 53.74	0	3657584..3658921	-	445	192361241	-	CJA_3078	-	hypothetical protein
3010	 47.57	0	3658955..3659221	-	88	192362520	hfq	CJA_3079	-	Hfq protein
3011	 54.18	0	3659344..3660360	-	338	192358868	miaA	CJA_3080	-	tRNA delta(2)-isopentenylpyrophosphate transferase
3012	 57.10	0	3660364..3662244	-	626	192359923	mutL	CJA_3081	-	DNA mismatch repair protein MutL
3013	 57.16	0	3662241..3663629	-	462	192360903	-	CJA_3082	-	N-acetylmuramoyl-L-alanine amidase
3014	 43.65	-1	3663720..3663845	-	41	192361996	-	CJA_3083	-	hypothetical protein
3015	 43.39	-1	3663914..3664102	-	62	192362219	-	CJA_3084	-	hypothetical protein
3016	 57.14	0	3664107..3666320	-	737	192361865	-	CJA_3085	-	putative sensory box protein
3017	 60.62	+1	3666515..3666994	-	159	192360576	-	CJA_3086	-	conserved hypothetical protein TIGR00150
3018	 65.81	+2	3667004..3668518	-	504	192359898	-	CJA_3087	-	YjeF family protein
3019	 58.56	+1	3668594..3670321	+	575	192359187	-	CJA_3088	-	hypothetical protein
3020	 51.42	0	3670318..3670704	+	128	192361910	-	CJA_3089	-	hypothetical protein
3021	 43.75	-1	3670667..3670762	+	31	192359012	-	CJA_3091	-	hypothetical protein
3022	 50.34	0	3670755..3671483	-	242	192362264	-	CJA_3090	-	hypothetical protein
3023	 48.65	0	3671583..3672359	-	258	192362335	-	CJA_3092	-	hypothetical protein
3024	 53.62	0	3672568..3673755	+	395	192361608	-	CJA_3093	-	iron-sulfur cluster-binding protein
3025	 52.18	0	3673897..3675435	+	512	192362384	-	CJA_3094	-	hypothetical protein
3026	 56.61	0	3675466..3675972	+	168	192361160	-	CJA_3095	-	hypothetical protein
3027	 61.09	+1	3675983..3677971	+	662	192360342	-	CJA_3096	-	hypothetical protein
3028	 42.91	-1	3678805..3679671	+	288	192360426	-	CJA_3097	-	hypothetical protein
3029	 61.40	+1	3679777..3680592	+	271	192361976	-	CJA_3098	-	dehydrogenase subunit
3030	 56.49	0	3680891..3682345	+	484	192361140	gnd	CJA_3099	-	6-phosphogluconate dehydrogenase, decarboxylating
3031	 54.48	0	3683697..3684377	+	226	192359772	-	CJA_3100	-	hypothetical protein
3032	 54.87	0	3684415..3686160	+	581	192359001	-	CJA_3101	-	oxidoreductase, GMC family
3033	 53.77	0	3686196..3687071	+	291	192362496	-	CJA_3102	-	hypothetical protein
3034	 50.69	0	3687114..3688196	+	360	192361479	ce2C	CJA_3103	-	acetyl xylan esterase, putative, axe2A
3035	 55.79	0	3688296..3690245	-	649	192361673	pel10A	CJA_3104	-	pectate lyase, pel10A
3036	 39.58	-2	3690798..3690893	-	31	192360866	-	CJA_3105	-	hypothetical protein
3037	 56.49	0	3691018..3693474	+	818	192359995	cbp2B	CJA_3106	-	carbohydrate binding protein, putative, cbp2B
3038	 54.42	0	3693620..3695929	+	769	192359051	cbp2C	CJA_3107	-	carbohydrate binding protein, putative, cbp2C
3039	 52.41	0	3696043..3697059	-	338	192361803	-	CJA_3108	-	lipase family protein
3040	 44.96	-1	3697043..3697171	-	42	192360720	-	CJA_3109	-	hypothetical protein
3041	 57.45	0	3697261..3698139	+	292	192360512	-	CJA_3110	-	beta-lactamase
3042	 42.42	-1	3698280..3698444	-	54	192359494	-	CJA_3111	-	hypothetical protein
3043	 46.02	-1	3698344..3699336	+	330	192362222	-	CJA_3112	-	putative dipeptidyl peptidase IV
3044	 56.11	0	3699347..3699649	-	100	192361514	-	CJA_3113	-	hypothetical protein
3045	 52.52	0	3699751..3700068	-	105	192360124	-	CJA_3114	-	hypothetical protein
3046	 57.60	+1	3700121..3701113	-	330	192359052	-	CJA_3115	-	putative lipoprotein
3047	 56.31	0	3701180..3701401	-	73	192359592	pme8B	CJA_3116	-	pectin methylesterase putative, pme8B
3048	 55.56	0	3701677..3702234	-	185	192360800	orn	CJA_3117	-	oligoribonuclease
3049	 59.46	+1	3702330..3703370	+	346	192361423	-	CJA_3118	-	GTPase, YjeQ family
3050	 55.60	0	3703401..3704213	+	270	192360611	rhdA	CJA_3119	-	rhodanese
3051	 53.12	0	3704298..3706496	-	732	192359341	pel1G	CJA_3120	-	pectate lyase, putative, pel1G
3052	 35.40	-2	3706713..3707777	-	354	192362319	-	CJA_3121	-	hypothetical protein
3053	 34.30	-2	3707761..3708069	-	102	192361032	-	CJA_3122	-	hypothetical protein
3054	 57.70	+1	3708978..3710081	+	367	192359421	-	CJA_3123	-	hypothetical protein
3055	 60.61	+1	3710044..3710670	+	208	192361855	-	CJA_3124	-	hypothetical protein
3056	 58.90	+1	3710704..3711501	+	265	192361054	acm73A	CJA_3125	-	endo-beta-N-acetylglucosaminidase, putative, acm73A
3057	 56.89	0	3711848..3713668	+	606	192360380	amy13I	CJA_3126	-	alpha-amylase, putative, amy13I
3058	 55.23	0	3713767..3714876	-	369	192360938	pda4D	CJA_3127	-	polysaccharide deacetylase, putative, pda4D
3059	 56.27	0	3714952..3718317	-	1121	192362007	-	CJA_3128	-	hypothetical protein
3060	 59.88	+1	3717704..3717865	+	53	192358780	-	CJA_3129	-	hypothetical protein
3061	 62.71	+1	3717768..3717944	+	58	192360680	-	CJA_3130	-	hypothetical protein
3062	 57.41	0	3718406..3718675	-	89	192361767	-	CJA_3131	-	hypothetical protein
3063	 57.19	0	3718781..3721039	-	752	192362361	parC	CJA_3132	-	DNA topoisomerase IV, A subunit
3064	 55.69	0	3721112..3721612	-	166	192359558	-	CJA_3133	-	putative lipoprotein
3065	 57.21	0	3721680..3722081	+	133	192361491	-	CJA_3135	-	hypothetical protein
3066	 56.08	0	3722078..3722455	-	125	192362102	-	CJA_3134	-	hypothetical protein
3067	 61.32	+1	3722505..3723233	-	242	192362005	-	CJA_3136	-	hypothetical protein
3068	 59.88	+1	3723226..3723873	-	215	192358886	glob1	CJA_3137	-	metallo-beta-lactamase superfamily protein
3069	 58.22	+1	3723931..3724581	-	216	192360323	-	CJA_3138	-	hypothetical protein
3070	 54.54	0	3724666..3725679	-	337	192360917	cbp33/10B	CJA_3139	-	chitin binding protein, putative, cbp33/10B
3071	 54.65	0	3726695..3727543	+	282	192359308	psd	CJA_3140	-	phosphatidylserine decarboxylase
3072	 50.53	0	3727613..3728368	-	251	192360394	-	CJA_3141	-	Integral membrane protein TerC family superfamily
3073	 46.67	-1	3728381..3728500	-	39	192359876	-	CJA_3142	-	hypothetical protein
3074	 54.17	0	3728525..3729892	-	455	192362497	-	CJA_3143	-	HD domain protein
3075	 58.92	+1	3730103..3731173	-	356	192360733	hemE	CJA_3144	-	uroporphyrinogen decarboxylase
3076	 56.76	0	3731268..3732851	-	527	192361840	-	CJA_3145	-	Na/Pi cotransporter family protein
3077	 55.37	0	3732904..3734319	-	471	192362482	gltD	CJA_3146	-	glutamate synthase, small subunit
3078	 57.58	+1	3734342..3738796	-	1484	192361435	-	CJA_3147	-	glutamate synthase large chain precursor
3079	 57.30	0	3739053..3739511	-	152	192359831	-	CJA_3148	-	putative lipoprotein
3080	 60.12	+1	3739640..3740770	+	376	192358791	-	CJA_3149	-	hypothetical protein
3081	 55.16	0	3740776..3742287	-	503	192360965	-	CJA_3150	-	tryptophan halogenase
3082	 58.28	+1	3742312..3743253	-	313	192359878	-	CJA_3151	-	transcriptional regulator, LysR family
3083	 58.35	+1	3743474..3744784	+	436	192360400	-	CJA_3152	-	cation:proton antiporter
3084	 50.90	0	3744738..3745853	+	371	192359356	-	CJA_3153	-	PEP-CTERM putative exosortase interaction domain protein
3085	 59.86	+1	3745957..3746103	-	48	192358828	-	CJA_3154	-	hypothetical protein
3086	 55.38	0	3746242..3747012	+	256	192360752	-	CJA_3155	-	hypothetical protein
3087	 51.63	0	3747043..3748545	+	500	192362047	gt39A	CJA_3156	-	glycosyl transferase, putative, gt39A
3088	 51.61	0	3748548..3749105	+	185	192359296	-	CJA_3157	-	putative serine protease
3089	 51.20	0	3749171..3749797	-	208	192360339	-	CJA_3158	-	hypothetical protein
3090	 58.75	+1	3749844..3751901	-	685	192362247	-	CJA_3159	-	thiol-disulfide interchange protein DsbD homolog
3091	 45.07	-1	3752066..3755056	-	996	192361885	-	CJA_3160	-	tonB dependent receptor-related protein
3092	 47.27	0	3755132..3759652	-	1506	192358848	pul13B	CJA_3161	-	pullulanase, putative, pul13B
3093	 50.66	0	3760104..3761384	-	426	192359893	-	CJA_3162	-	hypothetical protein
52.09	MEAN

5.42	STD DEV
