IslandPath Analysis: Cellvibrio japonicus Ueda107

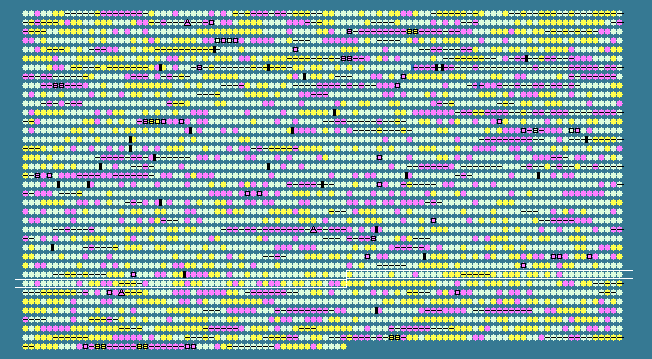

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2955	 60.96	+1	3582218..3583462	+	414	192361163	-	CJA_3024	-	RNA polymerase sigma factor, sigma-70 family
2956	 53.74	0	3583464..3583811	-	115	192359159	-	CJA_3025	-	hypothetical protein
2957	 53.72	0	3584065..3584427	+	120	192360115	-	CJA_3026	-	hypothetical protein
2958	 49.39	0	3584479..3584889	+	136	192360730	-	CJA_3027	-	hypothetical protein
2959	 54.26	0	3584921..3585307	+	128	192359252	-	CJA_3028	-	DGPF domain superfamily
2960	 51.83	0	3585279..3585797	+	172	192362516	-	CJA_3029	-	transcriptional regulatory protein
2961	 50.86	0	3585856..3588063	-	735	192360015	-	CJA_3030	-	hypothetical protein
2962	 57.79	+1	3588189..3590429	-	746	192359326	-	CJA_3031	-	cell wall degradation protein
2963	 54.95	0	3590466..3591233	+	255	192361645	-	CJA_3032	-	hypothetical protein
2964	 49.41	0	3591530..3593059	-	509	192361048	-	CJA_3033	-	Peptidase family S41B family
2965	 51.07	0	3594429..3603770	-	3113	192360205	-	CJA_3034	-	hypothetical protein
2966	 43.86	-1	3594517..3594630	+	37	192359112	-	CJA_3035	-	hypothetical protein
2967	 54.87	0	3603508..3603702	+	64	192361300	-	CJA_3037	-	hypothetical protein
2968	 49.84	0	3603692..3604636	-	314	192362367	-	CJA_3036	-	hypothetical protein
2969	 54.06	0	3604695..3606701	-	668	192362463	-	CJA_3038	-	putative AAA family ATPase
2970	 53.82	0	3606698..3608449	-	583	192361170	-	CJA_3039	-	hypothetical protein
2971	 57.57	+1	3608463..3612464	-	1333	192360393	-	CJA_3040	-	hypothetical protein
2972	 62.83	+1	3612555..3614276	-	573	192360026	-	CJA_3041	-	hypothetical protein
2973	 64.40	+2	3614315..3615241	-	308	192361934	-	CJA_3042	-	hypothetical protein
2974	 63.93	+2	3615270..3617756	-	828	192360695	-	CJA_3043	-	hypothetical protein
2975	 63.38	+2	3617769..3619931	-	720	192359888	-	CJA_3044	-	hypothetical protein
2976	 60.49	+1	3619959..3620363	-	134	192358799	-	CJA_3045	-	hypothetical protein
2977	 59.42	+1	3620369..3622078	-	569	192361842	-	CJA_3046	-	hypothetical protein
2978	 61.97	+1	3622078..3622737	-	219	192360310	-	CJA_3047	-	hypothetical protein
2979	 59.60	+1	3622725..3623771	-	348	192360195	-	CJA_3048	-	hypothetical protein
2980	 53.57	0	3623781..3623948	-	55	192361019	-	CJA_3049	-	hypothetical protein
2981	 56.84	0	3623969..3625036	-	355	192361886	-	CJA_3050	-	hypothetical protein
2982	 56.26	0	3625140..3625610	-	156	192359889	-	CJA_3051	-	conserved hypothetical phage tail region protein subfamily
2983	 59.20	+1	3625603..3627168	-	521	192360874	-	CJA_3052	-	hypothetical protein
2984	 53.03	0	3627207..3627668	-	153	192361672	-	CJA_3053	-	conserved hypothetical phage tail region protein subfamily
2985	 58.08	+1	3627712..3629295	-	527	192362398	-	CJA_3054	-	Phage tail sheath protein
2986	 57.23	0	3629338..3630153	-	271	192361577	-	CJA_3055	-	hypothetical protein
2987	 55.45	0	3630203..3630817	-	204	192362141	-	CJA_3056	-	hypothetical protein
2988	 56.88	0	3630821..3631147	-	108	192359073	-	CJA_3057	-	hypothetical protein
2989	 49.49	0	3631154..3631252	-	32	192361634	-	CJA_3058	-	hypothetical protein
2990	 46.76	0	3631300..3631515	-	71	192359297	-	CJA_3059	-	hypothetical protein
2991	 52.08	0	3631675..3633162	+	495	192360302	mopR	CJA_3060	-	MopR
2992	 53.00	0	3633292..3634623	-	443	192360940	xylA	CJA_3061	-	xylose isomerase
2993	 55.20	0	3634666..3636147	-	493	192362034	-	CJA_3062	-	xylulose kinase (xylulokinase)
2994	 54.59	0	3636343..3637203	+	286	192358846	nuhA	CJA_3063	-	Nudix hydrolase
2995	 54.76	0	3637320..3638873	+	517	192360007	xylE	CJA_3064	-	MFS transporter
2996	 52.80	0	3639042..3639380	-	112	192359899	-	CJA_3065	-	hypothetical protein
2997	 52.00	0	3639064..3640884	+	606	192360972	xyn10C	CJA_3066	-	endo-beta-1,4-xylanase, xyn10C
2998	 55.24	0	3640913..3642619	+	568	192361726	gly43J	CJA_3067	-	beta-xylosidase/alpha-L-arabinfuranosidase, putative, gly43J
2999	 54.49	0	3642600..3645548	+	982	192361118	-	CJA_3068	-	hypothetical protein
3000	 53.43	0	3645577..3646785	+	402	192362413	rspA	CJA_3069	-	Starvation sensing protein rspA
3001	 51.42	0	3646845..3647972	+	375	192358849	gly43G	CJA_3070	-	beta-xylosidase/alpha-L-arabinfuranosidase, putative, gly43G
3002	 49.23	0	3648182..3648766	+	194	192360928	-	CJA_3071	-	putative module of glucan-glucohydrolase
3003	 42.04	-1	3648886..3652353	-	1155	192362075	-	CJA_3072	-	TonB-dependent receptor
3004	 52.47	0	3652659..3653996	-	445	192359362	purA	CJA_3073	-	adenylosuccinate synthetase
3005	 54.58	0	3654004..3655194	-	396	192358954	hisZ	CJA_3074	-	ATP phosphoribosyltransferase, regulatory subunit
3006	 53.25	0	3655200..3655445	-	81	192360416	-	CJA_3075	-	hypothetical protein
3007	 50.80	0	3655548..3656423	-	291	192360991	hflC	CJA_3076	-	HflC protein
3008	 54.76	0	3656423..3657556	-	377	192360411	hflK	CJA_3077	-	HflK protein
3009	 53.74	0	3657584..3658921	-	445	192361241	-	CJA_3078	-	hypothetical protein
3010	 47.57	0	3658955..3659221	-	88	192362520	hfq	CJA_3079	-	Hfq protein
3011	 54.18	0	3659344..3660360	-	338	192358868	miaA	CJA_3080	-	tRNA delta(2)-isopentenylpyrophosphate transferase
3012	 57.10	0	3660364..3662244	-	626	192359923	mutL	CJA_3081	-	DNA mismatch repair protein MutL
3013	 57.16	0	3662241..3663629	-	462	192360903	-	CJA_3082	-	N-acetylmuramoyl-L-alanine amidase
3014	 43.65	-1	3663720..3663845	-	41	192361996	-	CJA_3083	-	hypothetical protein
3015	 43.39	-1	3663914..3664102	-	62	192362219	-	CJA_3084	-	hypothetical protein
3016	 57.14	0	3664107..3666320	-	737	192361865	-	CJA_3085	-	putative sensory box protein
3017	 60.62	+1	3666515..3666994	-	159	192360576	-	CJA_3086	-	conserved hypothetical protein TIGR00150
3018	 65.81	+2	3667004..3668518	-	504	192359898	-	CJA_3087	-	YjeF family protein
3019	 58.56	+1	3668594..3670321	+	575	192359187	-	CJA_3088	-	hypothetical protein
3020	 51.42	0	3670318..3670704	+	128	192361910	-	CJA_3089	-	hypothetical protein
3021	 43.75	-1	3670667..3670762	+	31	192359012	-	CJA_3091	-	hypothetical protein
3022	 50.34	0	3670755..3671483	-	242	192362264	-	CJA_3090	-	hypothetical protein
3023	 48.65	0	3671583..3672359	-	258	192362335	-	CJA_3092	-	hypothetical protein
3024	 53.62	0	3672568..3673755	+	395	192361608	-	CJA_3093	-	iron-sulfur cluster-binding protein
3025	 52.18	0	3673897..3675435	+	512	192362384	-	CJA_3094	-	hypothetical protein
3026	 56.61	0	3675466..3675972	+	168	192361160	-	CJA_3095	-	hypothetical protein
3027	 61.09	+1	3675983..3677971	+	662	192360342	-	CJA_3096	-	hypothetical protein
3028	 42.91	-1	3678805..3679671	+	288	192360426	-	CJA_3097	-	hypothetical protein
3029	 61.40	+1	3679777..3680592	+	271	192361976	-	CJA_3098	-	dehydrogenase subunit
3030	 56.49	0	3680891..3682345	+	484	192361140	gnd	CJA_3099	-	6-phosphogluconate dehydrogenase, decarboxylating
3031	 54.48	0	3683697..3684377	+	226	192359772	-	CJA_3100	-	hypothetical protein
3032	 54.87	0	3684415..3686160	+	581	192359001	-	CJA_3101	-	oxidoreductase, GMC family
3033	 53.77	0	3686196..3687071	+	291	192362496	-	CJA_3102	-	hypothetical protein
3034	 50.69	0	3687114..3688196	+	360	192361479	ce2C	CJA_3103	-	acetyl xylan esterase, putative, axe2A
3035	 55.79	0	3688296..3690245	-	649	192361673	pel10A	CJA_3104	-	pectate lyase, pel10A
3036	 39.58	-2	3690798..3690893	-	31	192360866	-	CJA_3105	-	hypothetical protein
3037	 56.49	0	3691018..3693474	+	818	192359995	cbp2B	CJA_3106	-	carbohydrate binding protein, putative, cbp2B
3038	 54.42	0	3693620..3695929	+	769	192359051	cbp2C	CJA_3107	-	carbohydrate binding protein, putative, cbp2C
3039	 52.41	0	3696043..3697059	-	338	192361803	-	CJA_3108	-	lipase family protein
3040	 44.96	-1	3697043..3697171	-	42	192360720	-	CJA_3109	-	hypothetical protein
3041	 57.45	0	3697261..3698139	+	292	192360512	-	CJA_3110	-	beta-lactamase
3042	 42.42	-1	3698280..3698444	-	54	192359494	-	CJA_3111	-	hypothetical protein
3043	 46.02	-1	3698344..3699336	+	330	192362222	-	CJA_3112	-	putative dipeptidyl peptidase IV
3044	 56.11	0	3699347..3699649	-	100	192361514	-	CJA_3113	-	hypothetical protein
3045	 52.52	0	3699751..3700068	-	105	192360124	-	CJA_3114	-	hypothetical protein
3046	 57.60	+1	3700121..3701113	-	330	192359052	-	CJA_3115	-	putative lipoprotein
3047	 56.31	0	3701180..3701401	-	73	192359592	pme8B	CJA_3116	-	pectin methylesterase putative, pme8B
3048	 55.56	0	3701677..3702234	-	185	192360800	orn	CJA_3117	-	oligoribonuclease
3049	 59.46	+1	3702330..3703370	+	346	192361423	-	CJA_3118	-	GTPase, YjeQ family
3050	 55.60	0	3703401..3704213	+	270	192360611	rhdA	CJA_3119	-	rhodanese
3051	 53.12	0	3704298..3706496	-	732	192359341	pel1G	CJA_3120	-	pectate lyase, putative, pel1G
3052	 35.40	-2	3706713..3707777	-	354	192362319	-	CJA_3121	-	hypothetical protein
3053	 34.30	-2	3707761..3708069	-	102	192361032	-	CJA_3122	-	hypothetical protein
3054	 57.70	+1	3708978..3710081	+	367	192359421	-	CJA_3123	-	hypothetical protein
52.09	MEAN

5.42	STD DEV
