IslandPath Analysis: Cellvibrio japonicus Ueda107

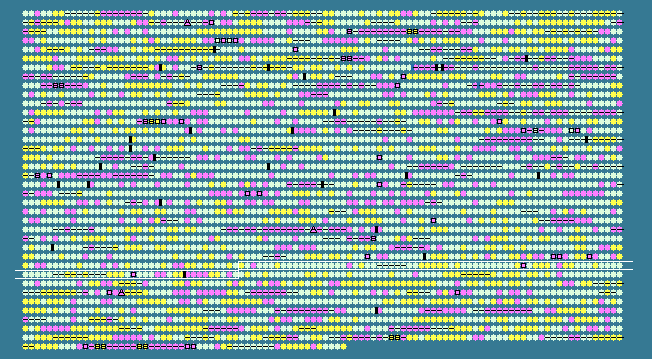

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2837	 56.08	0	3406047..3406622	-	191	192360503	-	CJA_2904	-	hypothetical protein
2838	 53.13	0	3406633..3407415	-	260	192361831	uvs099	CJA_2905	-	Uvs099
2839	 46.30	-1	3407530..3407637	-	35	192359805	-	CJA_2906	-	hypothetical protein
2840	 51.31	0	3407643..3408137	-	164	192361498	uvs098	CJA_2907	-	Uvs098
2841	 52.86	0	3408234..3408863	-	209	192362013	-	CJA_2908	-	conserved hypothetical protein TIGR00052
2842	 52.28	0	3408877..3410787	-	636	192359139	thiC	CJA_2909	-	thiamin biosynthesis protein ThiC
2843	 56.97	0	3410831..3411634	-	267	192359957	thiD	CJA_2910	-	phosphomethylpyrimidine kinase
2844	 54.21	0	3411859..3413094	-	411	192360894	-	CJA_2911	-	putative pH regulated Na(+)/H(+) antiporter
2845	 49.84	0	3413256..3414515	-	419	192360899	-	CJA_2912	-	putative Na+/H+ antiporter NhaD
2846	 52.78	0	3415047..3416465	+	472	192360104	opmH	CJA_2913	-	outer membrane efflux protein
2847	 49.26	0	3416834..3417781	+	315	192362104	pel3C	CJA_2914	-	pectate lyase, putative, pel3C
2848	 50.89	0	3417896..3420082	-	728	192361316	-	CJA_2915	-	BNR/Asp-box repeat domain protein
2849	 52.67	0	3420286..3421578	-	430	192360357	kdt30A	CJA_2916	-	KDO transferase, putative, kdt30A
2850	 54.99	0	3421582..3422532	-	316	192359573	-	CJA_2917	-	putative mutT protein
2851	 52.25	0	3422561..3423781	-	406	192362502	argJ	CJA_2918	-	arginine biosynthesis bifunctional protein ArgJ
2852	 51.42	0	3423878..3426625	-	915	192359411	secA	CJA_2919	-	preprotein translocase, SecA subunit
2853	 53.01	0	3426799..3427728	-	309	192359906	-	CJA_2920	-	peptidase
2854	 50.11	0	3428026..3428937	-	303	192361458	lpx11A	CJA_2921	-	UDP-3-0-acyl N-acetylglucosamine deacetylase, putative, lpx11A
2855	 43.83	-1	3429045..3429206	-	53	192360776	-	CJA_2922	-	hypothetical protein
2856	 49.55	0	3429113..3429223	+	36	192361794	-	CJA_2924	-	hypothetical protein
2857	 55.70	0	3429220..3430395	-	391	192359090	ftsZ	CJA_2923	-	cell division protein FtsZ
2858	 50.20	0	3430449..3431687	-	412	192360144	ftsA	CJA_2925	-	cell division protein FtsA
2859	 52.27	0	3431730..3432854	-	374	192361172	ftsQ	CJA_2926	-	FtsQ
2860	 51.47	0	3432858..3433844	-	328	192362236	-	CJA_2927	-	D-alanine--D-alanine ligase
2861	 52.35	0	3433881..3435305	-	474	192359638	murC	CJA_2928	-	UDP-N-acetylmuramate--alanine ligase
2862	 54.21	0	3435298..3436389	-	363	192360749	mur28A	CJA_2929	-	mur beta-N-acetylglucosaminyltransferase, putative, mur28A
2863	 49.83	0	3436386..3437585	-	399	192360597	ftsW	CJA_2930	-	cell division protein FtsW
2864	 54.17	0	3437582..3438949	-	455	192359523	murD	CJA_2931	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
2865	 52.72	0	3438954..3440036	-	360	192359109	mraY	CJA_2932	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
2866	 55.03	0	3440036..3441427	-	463	192361367	murF	CJA_2933	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
2867	 58.62	+1	3441424..3442989	-	521	192360758	murE	CJA_2934	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
2868	 60.34	+1	3442989..3444821	-	610	192360172	ftsI	CJA_2935	-	penicillin-binding protein 3 - Pseudomonas aeruginosa
2869	 57.14	0	3444821..3445135	-	104	192358781	-	CJA_2936	-	cell division protein FtsL
2870	 60.11	+1	3445201..3446130	-	309	192361777	mraW	CJA_2937	-	S-adenosyl-methyltransferase MraW
2871	 55.78	0	3446140..3446580	-	146	192361565	mraZ	CJA_2938	-	mraZ protein
2872	 55.26	0	3447022..3448248	-	408	192361904	-	CJA_2939	-	response regulator
2873	 57.35	0	3448245..3449285	-	346	192362380	cheB-1	CJA_2940	-	protein-glutamate methylesterase CheB
2874	 52.38	0	3449301..3449783	-	160	192359746	-	CJA_2941	-	putative cheB, glutamate methylesterase
2875	 50.06	0	3449793..3450623	-	276	192360833	-	CJA_2942	-	chemotaxis protein methyltransferase CheR
2876	 50.90	0	3450680..3452347	-	555	192361633	-	CJA_2943	-	methyl-accepting chemotaxis protein
2877	 50.10	0	3452393..3452899	-	168	192359177	-	CJA_2944	-	chemotaxis protein
2878	 53.03	0	3452896..3455103	-	735	192360109	cheA-1	CJA_2945	-	chemotaxis sensor histidine kinase CheA
2879	 50.00	0	3455116..3455421	-	101	192361462	-	CJA_2946	-	STAS domain protein
2880	 50.00	0	3455432..3455797	-	121	192360976	cheY-1	CJA_2947	-	chemotaxis protein CheY
2881	 54.07	0	3455869..3457122	-	417	192361529	-	CJA_2948	-	putative methyl-accepting chemotaxis protein
2882	 50.23	0	3457195..3457413	-	72	192361871	-	CJA_2949	-	hypothetical protein
2883	 58.07	+1	3457529..3460144	-	871	192361093	ppc	CJA_2950	-	phosphoenolpyruvate carboxylase
2884	 46.40	-1	3461142..3462710	-	522	192361925	-	CJA_2951	-	IS66 family element, transposase
2885	 51.11	0	3463088..3463402	-	104	192361534	-	CJA_2953	-	IS66 family element, Orf1 protein
2886	 57.60	+1	3463988..3468169	-	1393	192362333	-	CJA_2954	-	Molybdopterin oxidoreductase Fe4S4 domain family
2887	 58.24	+1	3468393..3470078	-	561	192361621	-	CJA_2955	-	methyl-accepting chemotaxis protein
2888	 59.35	+1	3470411..3472270	+	619	192359155	-	CJA_2956	-	hypothetical protein
2889	 53.52	0	3472413..3474641	+	742	192362086	-	CJA_2957	-	EAL domain protein
2890	 30.48	-2	3474670..3474774	+	34	192359428	-	CJA_2958	-	hypothetical protein
2891	 58.11	+1	3475025..3476695	+	556	192362355	cel5F	CJA_2959	-	cellulase, putative, cel5F
2892	 56.39	0	3476778..3478169	-	463	192361538	-	CJA_2960	-	ACT domain protein/phosphoserine phosphatase SerB
2893	 55.56	0	3478364..3479515	+	383	192362425	-	CJA_2961	-	hypothetical protein
2894	 52.96	0	3479677..3481398	+	573	192360717	-	CJA_2962	-	acyltransferase family protein
2895	 54.77	0	3481426..3482274	-	282	192359853	-	CJA_2963	-	hypothetical protein
2896	 57.33	0	3482552..3483943	+	463	192359036	mpl	CJA_2964	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-meso-diaminopimelate ligase
2897	 49.92	0	3484141..3484779	+	212	192361981	rpiB2	CJA_2965	-	sugar-phosphate isomerase
2898	 54.52	0	3484993..3485601	+	202	192361096	-	CJA_2966	-	3-polyprenyl-4-hydroxybenzoate decarboxylase
2899	 51.60	0	3485620..3486528	+	302	192361339	-	CJA_2967	-	hydroxymethylglutaryl-CoA lyase, (HMG-CoA lyase) (HL) (3-hydroxy-3-methylglutarate-CoA lyase)
2900	 52.81	0	3486571..3486873	+	100	192360843	-	CJA_2968	-	hypothetical protein
2901	 50.11	0	3486876..3487322	+	148	192359719	-	CJA_2969	-	acetyltransferase, GNAT family
2902	 49.88	0	3487343..3487753	+	136	192360519	-	CJA_2970	-	hypothetical protein
2903	 52.86	0	3487851..3488567	-	238	192360929	-	CJA_2971	-	Smr domain protein
2904	 55.52	0	3488545..3490482	-	645	192362197	acsA	CJA_2972	-	acetate--CoA ligase
2905	 50.00	0	3490671..3490916	-	81	192358842	-	CJA_2973	-	hypothetical protein
2906	 53.28	0	3491007..3491387	-	126	192360161	panD	CJA_2974	-	aspartate 1-decarboxylase
2907	 54.93	0	3491420..3492271	-	283	192360492	panC	CJA_2975	-	pantoate--beta-alanine ligase
2908	 56.21	0	3492398..3492904	-	168	192361841	-	CJA_2976	-	MOSC domain protein
2909	 56.08	0	3493066..3493320	+	84	192359892	-	CJA_2977	-	prevent-host-death family protein
2910	 53.18	0	3493313..3493579	+	88	192360983	-	CJA_2979	-	addiction module toxin, Txe/YoeB family
2911	 56.75	0	3493576..3494967	-	463	192362526	dnaB	CJA_2978	-	replicative DNA helicase
2912	 54.59	0	3495105..3495551	-	148	192359627	rplI	CJA_2980	-	ribosomal protein L9
2913	 51.32	0	3495566..3495793	-	75	192362397	rpsR	CJA_2981	-	ribosomal protein S18
2914	 52.70	0	3495797..3496240	-	147	192358927	rpsF	CJA_2982	-	30S ribosomal protein S6
2915	 59.14	+1	3496704..3498416	+	570	192360233	cel5B	CJA_2983	-	endo-1,4-beta glucanase, cel5B
2916	 59.82	+1	3498699..3501836	+	1045	192361571	glu16D	CJA_2984	-	beta glucanase, putative, glu16D
2917	 58.86	+1	3501997..3505581	+	1194	192361269	gly16A	CJA_2985	-	glycoside hydrolase, putative, gly16A
2918	 52.45	0	3505669..3506301	+	210	192362151	-	CJA_2986	-	PEP-CTERM putative exosortase interaction domain protein
2919	 47.22	0	3506355..3507506	-	383	192359768	-	CJA_2987	-	ISCja2, transposase
2920	 49.76	0	3507653..3508681	-	342	192360646	-	CJA_2988	-	hypothetical protein
2921	 49.46	0	3509103..3509654	+	183	192362379	-	CJA_2989	-	hypothetical protein
2922	 54.05	0	3509671..3510201	+	176	192361609	-	CJA_2990	-	putative lipoprotein
2923	 48.00	0	3510282..3511433	-	383	192360377	-	CJA_2991	-	putative DNA binding protein
2924	 45.36	-1	3511473..3511655	-	60	192361931	-	CJA_2992	-	hypothetical protein
2925	 53.97	0	3511820..3513433	-	537	192361989	chi18C	CJA_2993	-	endo-chitinase, putative, chi18C
2926	 59.20	+1	3513808..3514557	-	249	192360670	-	CJA_2994	-	RNA methyltransferase, TrmH family, group 3
2927	 56.39	0	3514706..3517606	-	966	192360091	-	CJA_2995	-	putative ribonuclease R
2928	 47.56	0	3518071..3518850	-	259	192359019	pchC	CJA_2997	-	pyochelin biosynthetic protein PchC
2929	 45.44	-1	3518881..3521226	-	781	192361164	pksE	CJA_2998	-	involved in polyketide synthesis
2930	 45.39	-1	3521243..3523000	-	585	192362122	halA	CJA_2999	-	halogenase A
2931	 47.85	0	3523065..3528740	-	1891	192361943	-	CJA_3000	-	MmpIV
2932	 56.28	0	3528737..3542806	-	4689	192360862	-	CJA_3001	-	Beta-ketoacyl synthase, N-terminal domain protein
2933	 56.31	0	3542803..3547968	-	1721	192359789	-	CJA_3002	-	oxidoreductase, zinc-binding dehydrogenase family
2934	 53.12	0	3547961..3554392	-	2143	192358782	-	CJA_3003	-	EpoC
2935	 46.60	-1	3554519..3558649	-	1376	192361741	-	CJA_3004	-	putative BarE protein
2936	 54.47	0	3559508..3560704	-	398	192361387	-	CJA_3005	-	hypothetical protein
52.09	MEAN

5.42	STD DEV
