IslandPathversion 1.0

IslandPath Analysis: Cellvibrio japonicus Ueda107

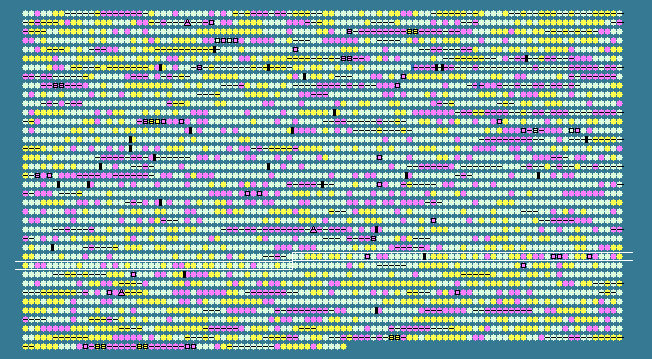

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2746	 54.95	0	3294408..3294680	+	90	192359737	pstH	CJA_2810	-	Phosphocarrier protein HPr (Histidine-containing protein)
2747	 52.60	0	3294747..3295265	+	172	192358834	-	CJA_2812	-	hypothetical protein
2748	 56.37	0	3295234..3299517	-	1427	192359882	-	CJA_2811	-	hypothetical protein
2749	 56.73	0	3299566..3301035	-	489	192362515	-	CJA_2813	-	ribonuclease, Rne/Rng family
2750	 60.47	+1	3301032..3301709	-	225	192361461	-	CJA_2814	-	septum formation protein Maf
2751	 52.47	0	3301664..3302149	-	161	192359560	-	CJA_2815	-	putative rod shape-determining protein MreD
2752	 57.76	+1	3302149..3302979	-	276	192362313	mreC	CJA_2816	-	rod shape-determining protein MreC
2753	 55.85	0	3303101..3304135	-	344	192362019	mreB	CJA_2817	-	rod shape-determining protein MreB
2754	 52.67	0	3304322..3304864	+	180	192360948	gatC	CJA_2818	-	aspartyl/glutamyl-tRNA(Asn/Gln) amidotransferase subunit C
2755	 57.39	0	3304947..3306401	+	484	192359738	gatA	CJA_2819	-	glutamyl-tRNA(Gln) amidotransferase subunit A
2756	 53.39	0	3306413..3307858	+	481	192362412	gatB	CJA_2820	-	glutamyl-tRNA(Gln) and/or aspartyl-tRNA(Asn) amidotransferase, B subunit subfamily
2757	 50.84	0	3307870..3308166	+	98	192359690	-	CJA_2821	-	hypothetical protein
2758	 47.22	0	3308302..3309453	+	383	192360697	-	CJA_2822	-	ISCja2, transposase
2759	 52.60	0	3309514..3310167	-	217	192360671	-	CJA_2823	-	OmpA family protein
2760	 47.62	0	3310459..3310983	+	174	192361944	inlE	CJA_2824	-	internalin E
2761	 47.92	0	3311019..3311162	-	47	192359204	-	CJA_2825	-	hypothetical protein
2762	 49.59	0	3311175..3311297	-	40	192360290	-	CJA_2826	-	hypothetical protein
2763	 49.79	0	3311495..3312205	-	236	192360737	purC	CJA_2827	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
2764	 55.38	0	3312242..3313012	-	256	192361468	-	CJA_2828	-	metallo-beta-lactamase superfamily domain protein
2765	 52.72	0	3313013..3314260	-	415	192359024	-	CJA_2829	-	putative lipoprotein
2766	 54.30	0	3314283..3315155	-	290	192359293	dapA	CJA_2830	-	dihydrodipicolinate synthase
2767	 54.73	0	3315276..3316331	-	351	192359175	nadA	CJA_2831	-	quinolinate synthetase complex, A subunit
2768	 51.98	0	3317059..3320979	+	1306	192359980	-	CJA_2834	-	sensory box protein
2769	 55.60	0	3320985..3321662	-	225	192361867	-	CJA_2835	-	exsB protein
2770	 55.99	0	3321699..3322457	-	252	192361070	-	CJA_2836	-	radical SAM domain protein
2771	 59.68	+1	3322519..3322833	+	104	192359299	-	CJA_2838	-	hypothetical protein
2772	 54.88	0	3322830..3323822	-	330	192362294	adrA	CJA_2837	-	YaiC/YhcK/ArdA family protein
2773	 54.02	0	3324065..3325021	-	318	192362266	corA	CJA_2839	-	magnesium and cobalt transport protein CorA
2774	 55.80	0	3325138..3326103	-	321	192361183	htrB	CJA_2840	-	lipid A biosynthesis lauroyl acyltransferase
2775	 54.48	0	3326237..3326515	-	92	192361007	-	CJA_2841	-	hypothetical protein
2776	 56.00	0	3326504..3326653	+	49	192361687	-	CJA_2842	-	hypothetical protein
2777	 51.89	0	3326683..3327000	-	105	192362108	-	CJA_2843	-	glutaredoxin homolog
2778	 46.08	-1	3327091..3327192	-	33	192361451	-	CJA_2844	-	hypothetical protein
2779	 57.86	+1	3327245..3328663	+	472	192360443	baeS	CJA_2845	-	Sensory transduction histidine kinase
2780	 52.94	0	3328685..3329347	+	220	192359567	baeR	CJA_2846	-	DNA-binding response regulator
2781	 52.45	0	3329453..3330310	+	285	192362256	-	CJA_2848	-	protocatechuate dioxygenase
2782	 59.59	+1	3330307..3332751	-	814	192360974	-	CJA_2847	-	putative HrpA-like helicase
2783	 58.20	+1	3332793..3336041	-	1082	192360000	-	CJA_2849	-	two-component system sensor histidine kinase/response regulator, hybrid (one-component system)
2784	 47.37	0	3336142..3336255	-	37	192358974	-	CJA_2850	-	hypothetical protein
2785	 56.62	0	3336264..3338165	-	633	192361712	-	CJA_2851	-	hypothetical protein
2786	 40.62	-2	3338423..3338518	+	31	192359749	-	CJA_2852	-	hypothetical protein
2787	 42.64	-1	3338546..3339652	+	368	192359369	-	CJA_2853	-	hypothetical protein
2788	 51.11	0	3339721..3340035	+	104	192361894	-	CJA_2854	-	IS66 family element, Orf1 protein
2789	 46.40	-1	3340413..3341981	+	522	192359788	-	CJA_2856	-	IS66 family element, transposase
2790	 47.22	0	3342147..3343298	+	383	192358976	-	CJA_2857	-	ISCja2, transposase
2791	 42.43	-1	3343796..3344938	+	380	192361338	-	CJA_2859	-	beta-lactamase
2792	 53.33	0	3344929..3345168	-	79	192359095	-	CJA_2858	-	hypothetical protein
2793	 60.67	+1	3345246..3345545	+	99	192359275	-	CJA_2861	-	hypothetical protein
2794	 59.88	+1	3345353..3345514	-	53	192361049	-	CJA_2860	-	hypothetical protein
2795	 46.40	-1	3345711..3347294	-	527	192360839	-	CJA_2862	-	IS66 family element, transposase
2796	 45.30	-1	3347333..3347683	-	116	192361407	-	CJA_2863	-	IS66 family element, Orf2 protein
2797	 51.11	0	3347680..3347994	-	104	192360173	-	CJA_2864	-	IS66 family element, Orf1 protein
2798	 51.53	0	3348089..3349726	-	545	192358957	-	CJA_2865	-	hypothetical protein
2799	 45.21	-1	3349822..3350259	+	145	192361127	-	CJA_2866	-	hypothetical protein
2800	 57.80	+1	3350400..3352271	-	623	192359939	-	CJA_2867	-	putative TonB-dependent receptor protein
2801	 58.42	+1	3352355..3353737	-	460	192358940	-	CJA_2868	-	Tat (twin-arginine translocation) pathway signal sequence domain protein
2802	 54.83	0	3353766..3360599	-	2277	192361849	cbp26A	CJA_2869	-	carbohydrate binding protein, putative, cbp26A
2803	 44.07	-1	3360659..3360835	+	58	192361137	-	CJA_2871	-	hypothetical protein
2804	 42.50	-1	3360747..3360866	-	39	192360061	-	CJA_2870	-	hypothetical protein
2805	 51.20	0	3361291..3363669	-	792	192361688	agd31A	CJA_2872	-	alpha-glucosidase, putative, adg31A
2806	 53.25	0	3363895..3365943	-	682	192361368	-	CJA_2873	-	iron transporter
2807	 51.48	0	3366047..3368350	-	767	192362415	-	CJA_2874	-	GGDEF domain protein
2808	 52.25	0	3368331..3368441	+	36	192359691	-	CJA_2875	-	hypothetical protein
2809	 55.27	0	3368630..3371095	+	821	192359807	-	CJA_2876	-	putative two-component, response regulator
2810	 56.62	0	3371369..3372532	+	387	192361807	-	CJA_2877	-	argD acetylornithine aminotransferase
2811	 54.03	0	3372580..3373497	+	305	192359088	argF	CJA_2878	-	ornithine carbamoyltransferase
2812	 49.58	0	3374020..3374493	+	157	192360181	-	CJA_2879	-	hypothetical protein
2813	 52.19	0	3374576..3375625	-	349	192359222	-	CJA_2880	-	hypothetical protein
2814	 47.39	0	3375796..3377310	-	504	192359954	-	CJA_2881	-	tryptophan halogenase
2815	 49.05	0	3377427..3380435	-	1002	192360688	-	CJA_2882	-	TonB-dependent receptor
2816	 45.83	-1	3380591..3380686	+	31	192359102	-	CJA_2883	-	hypothetical protein
2817	 54.37	0	3381373..3382128	-	251	192359859	lmt23D	CJA_2884	-	lytic murein transglycosylase, putative, lmt23D
2818	 58.88	+1	3382332..3382832	-	166	192360709	-	CJA_2885	-	hypothetical protein
2819	 54.19	0	3382948..3385344	-	798	192359630	-	CJA_2886	-	DNA polymerase II
2820	 53.34	0	3385495..3387693	-	732	192359625	gla67A	CJA_2887	-	alpha-glucuronidase, gla67A
2821	 51.36	0	3387875..3389011	+	378	192360437	xyn10D	CJA_2888	-	endo-1,4-beta-xylanase, xyn10D
2822	 49.91	0	3389049..3390152	-	367	192361297	axe2B	CJA_2889	-	acetyl xylan esterase, putative, axe2B
2823	 50.00	0	3390149..3390280	-	43	192360152	-	CJA_2890	-	hypothetical protein
2824	 56.26	0	3390304..3392493	-	729	192362281	-	CJA_2891	-	catalase/peroxidase HPI
2825	 49.93	0	3392729..3393445	-	238	192361227	ugpQ	CJA_2892	-	Glycerophosphoryl diester phosphodiesterase
2826	 40.86	-2	3393460..3393552	+	30	192361390	-	CJA_2893	-	hypothetical protein
2827	 45.26	-1	3393545..3394114	+	189	192360383	-	CJA_2894	-	Small-conductance mechanosensitive channel
2828	 57.46	0	3394193..3395572	-	459	192358888	maspC	CJA_2895	-	aspartate aminotransferase
2829	 58.95	+1	3395525..3396625	+	366	192359467	cobT	CJA_2896	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
2830	 51.94	0	3396652..3397398	+	248	192362163	cobS	CJA_2897	-	cobalamin 5'-phosphate synthase
2831	 58.17	+1	3397395..3398006	+	203	192360762	-	CJA_2898	-	fructose-2;6-bisphosphatase
2832	 57.46	0	3398041..3399474	+	477	192360921	-	CJA_2900	-	MATE efflux family protein
2833	 55.13	0	3399446..3400234	-	262	192360525	-	CJA_2899	-	HAD-superfamily subfamily IIA hydrolase, TIGR01458
2834	 54.80	0	3400415..3401467	+	350	192362191	hisC	CJA_2901	-	histidinol-phosphate aminotransferase
2835	 58.11	+1	3401530..3403878	-	782	192358829	-	CJA_2902	-	putative lipoprotein
2836	 52.70	0	3404118..3406007	-	629	192360165	parE	CJA_2903	-	DNA topoisomerase IV, B subunit
2837	 56.08	0	3406047..3406622	-	191	192360503	-	CJA_2904	-	hypothetical protein
2838	 53.13	0	3406633..3407415	-	260	192361831	uvs099	CJA_2905	-	Uvs099
2839	 46.30	-1	3407530..3407637	-	35	192359805	-	CJA_2906	-	hypothetical protein
2840	 51.31	0	3407643..3408137	-	164	192361498	uvs098	CJA_2907	-	Uvs098
2841	 52.86	0	3408234..3408863	-	209	192362013	-	CJA_2908	-	conserved hypothetical protein TIGR00052
2842	 52.28	0	3408877..3410787	-	636	192359139	thiC	CJA_2909	-	thiamin biosynthesis protein ThiC
2843	 56.97	0	3410831..3411634	-	267	192359957	thiD	CJA_2910	-	phosphomethylpyrimidine kinase
2844	 54.21	0	3411859..3413094	-	411	192360894	-	CJA_2911	-	putative pH regulated Na(+)/H(+) antiporter
2845	 49.84	0	3413256..3414515	-	419	192360899	-	CJA_2912	-	putative Na+/H+ antiporter NhaD
52.09	MEAN

5.42	STD DEV
