IslandPath Analysis: Cellvibrio japonicus Ueda107

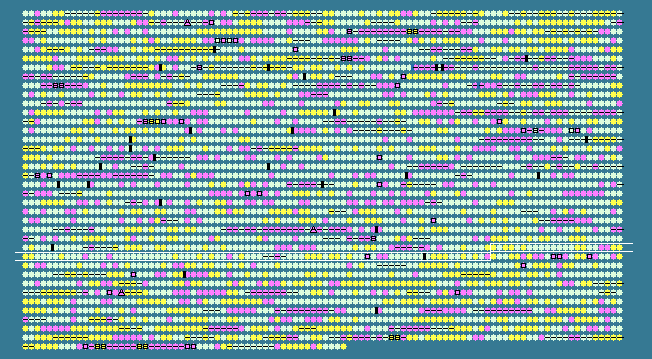

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2679	 56.84	0	3223460..3224986	+	508	192360079	-	CJA_2743	-	MJ0042 family finger-like domain protein
2680	 53.92	0	3225216..3226172	+	318	192359144	-	CJA_2744	-	hypothetical protein
2681	 56.26	0	3226410..3227399	+	329	192361714	-	CJA_2745	-	tRNA-dihydrouridine synthase
2682	 56.12	0	3227396..3227689	+	97	192360799	fis	CJA_2746	-	Hin recombinational enhancer binding protein
2683	 54.31	0	3227792..3229369	+	525	192360490	purH	CJA_2747	-	bifunctional purine biosynthesis protein PurH
2684	 55.68	0	3229379..3230716	+	445	192359687	purD	CJA_2748	-	phosphoribosylamine--glycine ligase
2685	 50.94	0	3230799..3231383	+	194	192362169	-	CJA_2749	-	hypothetical protein
2686	 52.49	0	3231404..3232489	-	361	192361365	-	CJA_2750	-	Zn-dependent protease
2687	 50.78	0	3232569..3233399	+	276	192358933	-	CJA_2751	-	nucleic acid binding protein
2688	 53.69	0	3233403..3234404	+	333	192359375	-	CJA_2753	-	oxidoreductase
2689	 51.89	0	3234390..3234971	-	193	192359732	-	CJA_2752	-	hypothetical protein
2690	 50.72	0	3234996..3235484	-	162	192362350	-	CJA_2754	-	hypothetical protein
2691	 53.26	0	3235547..3236098	+	183	192360075	-	CJA_2755	-	hypothetical protein
2692	 52.38	0	3236419..3236670	+	83	192359240	-	CJA_2756	-	oxaloacetate decarboxylase gamma chain
2693	 57.74	+1	3236684..3238465	+	593	192361727	oadA	CJA_2757	-	oxaloacetate decarboxylase alpha subunit
2694	 58.20	+1	3238476..3239786	+	436	192360791	-	CJA_2758	-	oxaloacetate decarboxylase beta chain
2695	 53.81	0	3239858..3241366	-	502	192360616	glu16F	CJA_2759	-	beta glucanase, putative, glu16F
2696	 54.45	0	3241840..3243591	-	583	192359399	cel5G	CJA_2760	-	cellulase, putative, cel5G
2697	 45.00	-1	3243796..3243915	-	39	192360179	-	CJA_2761	-	hypothetical protein
2698	 48.51	0	3243918..3245090	+	390	192361344	-	CJA_2762	-	transcriptional regulator, AraC family domain protein
2699	 58.24	+1	3245151..3249041	-	1296	192360544	glu16E	CJA_2763	-	beta glucanase, putative, gly16E
2700	 56.86	0	3249333..3250505	-	390	192359169	-	CJA_2764	-	glutathionylspermidine synthase family protein
2701	 60.28	+1	3250509..3251087	-	192	192362155	-	CJA_2765	-	putative lipoprotein
2702	 56.76	0	3251113..3251526	-	137	192359422	-	CJA_2766	-	predicted membrane protein
2703	 54.17	0	3251798..3252805	+	335	192360369	-	CJA_2767	-	PEP-CTERM putative exosortase interaction domain protein
2704	 52.85	0	3252939..3253850	+	303	192359781	cysK	CJA_2768	-	cysteine synthase A
2705	 54.57	0	3253936..3255489	-	517	192362501	abf51A	CJA_2769	-	alpha-L-arabinofuranosidase, abf51A
2706	 53.93	0	3255673..3256944	-	423	192359006	man26A	CJA_2770	-	endo-1, 4-beta mannanase, man26A
2707	 56.03	0	3257173..3257520	-	115	192359806	-	CJA_2771	-	pentapeptide repeat domain protein
2708	 54.66	0	3257984..3259399	+	471	192359962	uxaC	CJA_2772	-	Glucuronate isomerase
2709	 52.84	0	3259475..3260407	+	310	192359655	-	CJA_2774	-	hypothetical protein
2710	 54.30	0	3260370..3261275	-	301	192360760	-	CJA_2773	-	regucalcin
2711	 47.21	0	3261347..3262924	-	525	192360526	-	CJA_2775	-	sodium/glucose cotransport protein
2712	 54.58	0	3263075..3263860	-	261	192361404	-	CJA_2776	-	short chain dehydrogenase/reductase
2713	 54.43	0	3263922..3264632	-	236	192362231	-	CJA_2777	-	transcriptional regulator, GntR family
2714	 53.39	0	3264845..3265567	-	240	192359292	phoU	CJA_2778	-	phosphate transport system regulatory protein PhoU
2715	 48.59	0	3265588..3266400	-	270	192362353	pstB	CJA_2779	-	phosphate ABC transporter, ATP-binding protein
2716	 50.62	0	3266424..3268112	-	562	192361546	pstA	CJA_2780	-	phosphate ABC transporter, permease protein
2717	 50.44	0	3268142..3270427	-	761	192361176	pstC	CJA_2781	-	phosphate ABC transporter, permease protein
2718	 51.03	0	3270591..3271562	-	323	192360067	pstS	CJA_2782	-	phosphate binding protein
2719	 52.14	0	3271827..3272246	-	139	192359008	sspB	CJA_2783	-	stringent starvation protein B
2720	 52.06	0	3272349..3274586	-	745	192361817	petB	CJA_2784	-	ubiquinol--cytochrome c reductase, cytochrome b
2721	 53.50	0	3274588..3275187	-	199	192360698	petA	CJA_2785	-	ubiquinol-cytochrome c reductase, iron-sulfur subunit
2722	 54.20	0	3275437..3275829	-	130	192359611	rpsI	CJA_2786	-	ribosomal protein S9
2723	 48.72	0	3275843..3276271	-	142	192362308	rplM	CJA_2787	-	ribosomal protein L13
2724	 55.44	0	3276361..3277500	-	379	192361240	-	CJA_2788	-	Predicted ATPase
2725	 51.70	0	3277632..3278132	+	166	192359890	-	CJA_2790	-	hypothetical protein
2726	 55.60	0	3278129..3278806	-	225	192358843	-	CJA_2789	-	hypothetical protein
2727	 54.44	0	3278943..3279449	+	168	192360561	-	CJA_2791	-	hypothetical protein
2728	 54.31	0	3279547..3280671	+	374	192359504	algW	CJA_2792	-	AlgW protein
2729	 52.01	0	3280741..3282330	-	529	192359020	-	CJA_2793	-	ABC transporter, ATP-binding protein
2730	 56.24	0	3282407..3283777	-	456	192361752	hisD	CJA_2794	-	histidinol dehydrogenase
2731	 53.45	0	3283982..3284662	-	226	192361191	hisG	CJA_2795	-	ATP phosphoribosyltransferase
2732	 56.37	0	3284634..3285896	-	420	192362272	murA	CJA_2796	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
2733	 50.40	0	3285945..3286196	-	83	192362293	-	CJA_2797	-	BolA/YrbA family protein
2734	 49.37	0	3286388..3287023	-	211	192361198	-	CJA_2798	-	Toluene tolerance, Ttg2 superfamily
2735	 44.76	-1	3287231..3287335	-	34	192359566	-	CJA_2799	-	hypothetical protein
2736	 51.85	0	3287334..3288305	+	323	192362290	-	CJA_2800	-	sugar isomerase, KpsF/GutQ family subfamily
2737	 57.27	0	3288330..3288872	+	180	192361802	-	CJA_2801	-	phosphatase, YrbI family
2738	 52.87	0	3288875..3289483	+	202	192358832	-	CJA_2802	-	hypothetical protein
2739	 53.48	0	3289455..3289985	+	176	192360382	-	CJA_2803	-	OstA-like protein superfamily
2740	 52.58	0	3289942..3290715	+	257	192361409	-	CJA_2804	-	ABC transporter, ATP-binding protein
2741	 50.98	0	3290853..3290954	-	33	192359140	-	CJA_2805	-	hypothetical protein
2742	 51.93	0	3290956..3292584	+	542	192359257	rpoN	CJA_2806	-	RNA polymerase sigma-54 factor
2743	 44.33	-1	3292708..3292998	+	96	192360786	yfiA	CJA_2807	-	ribosomal subunit interface protein
2744	 55.26	0	3293076..3293522	+	148	192361781	ptsN	CJA_2808	-	phosphotransferase enzyme IIA
2745	 52.24	0	3293534..3294427	+	297	192359478	-	CJA_2809	-	hypothetical protein
2746	 54.95	0	3294408..3294680	+	90	192359737	pstH	CJA_2810	-	Phosphocarrier protein HPr (Histidine-containing protein)
2747	 52.60	0	3294747..3295265	+	172	192358834	-	CJA_2812	-	hypothetical protein
2748	 56.37	0	3295234..3299517	-	1427	192359882	-	CJA_2811	-	hypothetical protein
2749	 56.73	0	3299566..3301035	-	489	192362515	-	CJA_2813	-	ribonuclease, Rne/Rng family
2750	 60.47	+1	3301032..3301709	-	225	192361461	-	CJA_2814	-	septum formation protein Maf
2751	 52.47	0	3301664..3302149	-	161	192359560	-	CJA_2815	-	putative rod shape-determining protein MreD
2752	 57.76	+1	3302149..3302979	-	276	192362313	mreC	CJA_2816	-	rod shape-determining protein MreC
2753	 55.85	0	3303101..3304135	-	344	192362019	mreB	CJA_2817	-	rod shape-determining protein MreB
2754	 52.67	0	3304322..3304864	+	180	192360948	gatC	CJA_2818	-	aspartyl/glutamyl-tRNA(Asn/Gln) amidotransferase subunit C
2755	 57.39	0	3304947..3306401	+	484	192359738	gatA	CJA_2819	-	glutamyl-tRNA(Gln) amidotransferase subunit A
2756	 53.39	0	3306413..3307858	+	481	192362412	gatB	CJA_2820	-	glutamyl-tRNA(Gln) and/or aspartyl-tRNA(Asn) amidotransferase, B subunit subfamily
2757	 50.84	0	3307870..3308166	+	98	192359690	-	CJA_2821	-	hypothetical protein
2758	 47.22	0	3308302..3309453	+	383	192360697	-	CJA_2822	-	ISCja2, transposase
2759	 52.60	0	3309514..3310167	-	217	192360671	-	CJA_2823	-	OmpA family protein
2760	 47.62	0	3310459..3310983	+	174	192361944	inlE	CJA_2824	-	internalin E
2761	 47.92	0	3311019..3311162	-	47	192359204	-	CJA_2825	-	hypothetical protein
2762	 49.59	0	3311175..3311297	-	40	192360290	-	CJA_2826	-	hypothetical protein
2763	 49.79	0	3311495..3312205	-	236	192360737	purC	CJA_2827	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
2764	 55.38	0	3312242..3313012	-	256	192361468	-	CJA_2828	-	metallo-beta-lactamase superfamily domain protein
2765	 52.72	0	3313013..3314260	-	415	192359024	-	CJA_2829	-	putative lipoprotein
2766	 54.30	0	3314283..3315155	-	290	192359293	dapA	CJA_2830	-	dihydrodipicolinate synthase
2767	 54.73	0	3315276..3316331	-	351	192359175	nadA	CJA_2831	-	quinolinate synthetase complex, A subunit
2768	 51.98	0	3317059..3320979	+	1306	192359980	-	CJA_2834	-	sensory box protein
2769	 55.60	0	3320985..3321662	-	225	192361867	-	CJA_2835	-	exsB protein
2770	 55.99	0	3321699..3322457	-	252	192361070	-	CJA_2836	-	radical SAM domain protein
2771	 59.68	+1	3322519..3322833	+	104	192359299	-	CJA_2838	-	hypothetical protein
2772	 54.88	0	3322830..3323822	-	330	192362294	adrA	CJA_2837	-	YaiC/YhcK/ArdA family protein
2773	 54.02	0	3324065..3325021	-	318	192362266	corA	CJA_2839	-	magnesium and cobalt transport protein CorA
2774	 55.80	0	3325138..3326103	-	321	192361183	htrB	CJA_2840	-	lipid A biosynthesis lauroyl acyltransferase
2775	 54.48	0	3326237..3326515	-	92	192361007	-	CJA_2841	-	hypothetical protein
2776	 56.00	0	3326504..3326653	+	49	192361687	-	CJA_2842	-	hypothetical protein
2777	 51.89	0	3326683..3327000	-	105	192362108	-	CJA_2843	-	glutaredoxin homolog
2778	 46.08	-1	3327091..3327192	-	33	192361451	-	CJA_2844	-	hypothetical protein
52.09	MEAN

5.42	STD DEV
