IslandPath Analysis: Cellvibrio japonicus Ueda107

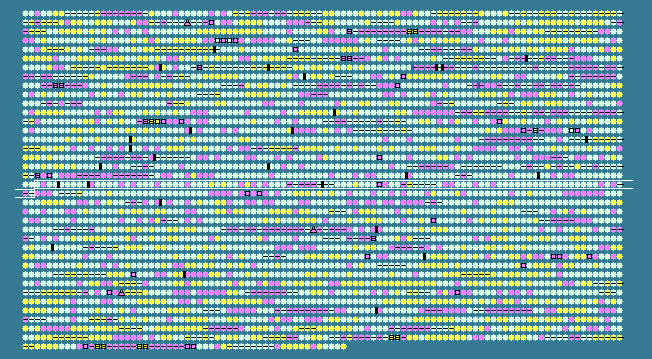

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1903	 54.49	0	2273975..2274442	-	155	192360147	sixA	CJA_1955	-	phosphohistidine phosphatase SixA
1904	 45.58	-1	2274442..2274792	-	116	192361211	-	CJA_1956	-	possible lipase
1905	 50.64	0	2274822..2275844	-	340	192362298	-	CJA_1957	-	NAD-dependent glycerol-3-phosphate dehydrogenase
1906	 49.80	0	2276380..2276877	-	165	192359574	-	CJA_1958	-	Potential flavoprotein oxygenase, DIM6/NTAB family
1907	 51.90	0	2277607..2279712	+	701	192361735	-	CJA_1963	-	outer membrane iron(III) dicitrate receptor
1908	 55.52	0	2279882..2280724	+	280	192358944	folD	CJA_1964	-	bifunctional protein 5,10-methylene-tetrahydrofolate dehydrogenase/5,10-methylene-tetrahydrofolate cyclohydrolase
1909	 55.56	0	2280759..2281523	+	254	192359752	-	CJA_1965	-	RNA pseudouridine synthase family protein
1910	 53.48	0	2281520..2282224	+	234	192361094	rsuA1	CJA_1966	-	ribosomal small subunit pseudouridine synthase A
1911	 54.00	0	2282205..2283278	+	357	192359393	-	CJA_1967	-	putative ribosomal RNA small subunit methyltransferase C
1912	 46.81	0	2283788..2284069	+	93	192360240	-	CJA_1969	-	hypothetical protein
1913	 51.71	0	2284173..2285750	-	525	192359387	-	CJA_1970	-	hydrolase, alpha/beta fold family domain protein
1914	 48.85	0	2285777..2286820	-	347	192360612	-	CJA_1971	-	pseudouridine synthase Rlu family protein
1915	 54.44	0	2286851..2287480	+	209	192359182	lacA	CJA_1972	-	acetyltransferase, CysE/LacA/LpxA/NodL family
1916	 49.87	0	2287514..2289055	+	513	192359733	-	CJA_1973	-	Ferredoxin-dependent glutamate synthase
1917	 47.11	0	2289083..2289670	+	195	192359652	-	CJA_1974	-	hypothetical protein
1918	 51.96	0	2289905..2290516	+	203	192362199	-	CJA_1975	-	Uncharacterized protein family UPF0016 family
1919	 46.90	0	2290610..2291029	-	139	192361258	-	CJA_1976	-	HIT-like protein
1920	 50.59	0	2291056..2291901	-	281	192359951	mal77A	CJA_1977	-	4-alpha-glucanotransferase, putative, mal77A
1921	 55.48	0	2291990..2292445	+	151	192359163	-	CJA_1978	-	YaiI/YqxD family protein superfamily
1922	 53.57	0	2292809..2294686	+	625	192361806	deaD-1	CJA_1979	-	ATP-dependent RNA helicase DeaD
1923	 45.04	-1	2294762..2295043	-	93	192362428	-	CJA_1980	-	hypothetical protein
1924	 55.11	0	2295057..2297990	-	977	192361560	hepA	CJA_1981	-	RNA polymerase-associated protein HepA
1925	 54.95	0	2298176..2299105	+	309	192360241	-	CJA_1982	-	aldose 1-epimerase family protein
1926	 53.56	0	2299174..2300157	-	327	192359373	mdh	CJA_1983	-	malate dehydrogenase
1927	 52.01	0	2300487..2302274	+	595	192360753	-	CJA_1985	-	sensory box/GGDEF family protein
1928	 47.44	0	2302271..2302894	-	207	192360191	dut	CJA_1984	-	dUTPase
1929	 53.36	0	2302933..2303736	-	267	192359359	-	CJA_1986	-	deoxyribonuclease, TatD family
1930	 50.33	0	2303741..2304040	-	99	192358962	-	CJA_1987	-	hypothetical protein
1931	 52.54	0	2304061..2304414	-	117	192361973	pilZ	CJA_1988	-	type 4 fimbrial biogenesis protein PilZ
1932	 59.76	+1	2304546..2305559	-	337	192360743	holB	CJA_1989	-	DNA polymerase III, delta prime subunit
1933	 53.15	0	2305563..2305673	-	36	192360430	-	CJA_1990	-	hypothetical protein
1934	 55.87	0	2305658..2306296	+	212	192358936	-	CJA_1991	-	ribosomal large subunit pseudouridine synthase A
1935	 53.94	0	2306477..2307631	+	384	192361643	-	CJA_1992	-	putative traF
1936	 55.45	0	2307713..2308354	-	213	192362258	tmk	CJA_1993	-	thymidylate kinase
1937	 47.76	0	2308439..2308930	+	163	192360620	ppiB-1	CJA_1994	-	peptidyl-prolyl cis-trans isomerase B
1938	 55.60	0	2308934..2309656	+	240	192361027	lpxH	CJA_1995	-	UDP-2,3-diacylglucosamine hydrolase
1939	 48.42	0	2309673..2310083	-	136	192361902	-	CJA_1996	-	hypothetical protein
1940	 51.89	0	2310150..2310758	-	202	192359353	miaE	CJA_1997	-	tRNA-(MS[2]IO[6]A)-hydroxylase subfamily
1941	 47.62	0	2310770..2311252	-	160	192361092	-	CJA_1998	-	hypothetical protein
1942	 51.72	0	2311259..2312890	-	543	192361391	tre37B	CJA_1999	-	trehalase, putative, tre37B
1943	 52.96	0	2312901..2313929	-	342	192362307	gnl	CJA_2000	-	gluconolactonase precursor
1944	 54.67	0	2314211..2316895	+	894	192360633	acnB	CJA_2001	-	aconitate hydratase 2
1945	 45.55	-1	2317050..2318915	-	621	192360723	-	CJA_2002	-	putative peptidyl-prolyl cis-trans isomerase D
1946	 49.45	0	2319146..2319418	-	90	192361790	-	CJA_2003	-	DNA-binding protein HU superfamily
1947	 47.35	0	2319663..2322080	-	805	192359285	lon	CJA_2004	-	ATP-dependent protease La
1948	 45.70	-1	2322219..2323520	-	433	192361200	clpX	CJA_2005	-	ATP-dependent Clp protease, ATP-binding subunit ClpX
1949	 46.67	-1	2323645..2324289	-	214	192360657	clpP	CJA_2006	-	ATP-dependent Clp protease, proteolytic subunit ClpP
1950	 48.63	0	2324459..2325772	-	437	192359587	tig	CJA_2007	-	trigger factor
1951	 49.35	0	2326073..2326609	-	178	192359147	-	CJA_2009	-	hypothetical protein
1952	 52.40	0	2326632..2329253	-	873	192360805	-	CJA_2010	-	putative DNA topoisomerase I
1953	 52.40	0	2329608..2330315	+	235	192361380	-	CJA_2013	-	hypothetical protein
1954	 55.21	0	2329614..2329709	-	31	192359518	-	CJA_2011	-	hypothetical protein
1955	 53.85	0	2330302..2330847	-	181	192362453	-	CJA_2012	-	hypothetical protein
1956	 56.36	0	2331001..2331456	+	151	192361362	-	CJA_2014	-	universal stress protein family
1957	 53.68	0	2331460..2333361	-	633	192361001	-	CJA_2015	-	ABC transporter, ATP-binding protein
1958	 53.33	0	2333451..2333615	-	54	192362069	-	CJA_2016	-	hypothetical protein
1959	 54.19	0	2333644..2335671	+	675	192358879	lmt23A	CJA_2017	-	lytic murein transglycosylase, putative, lmt23A
1960	 47.22	0	2335755..2336906	-	383	192359944	-	CJA_2018	-	ISCja2, transposase
1961	 43.17	-1	2337048..2337413	-	121	192359855	-	CJA_2019	-	hypothetical protein
1962	 48.96	0	2337486..2338400	-	304	192362347	-	CJA_2020	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type domain protein
1963	 53.58	0	2338442..2339419	-	325	192359409	-	CJA_2021	-	HPP family
1964	 47.92	0	2339456..2339551	+	31	192360192	-	CJA_2022	-	hypothetical protein
1965	 56.81	0	2339614..2339826	+	70	192359964	-	CJA_2023	-	hypothetical protein
1966	 54.41	0	2339798..2342089	+	763	192361277	-	CJA_2024	-	copper-translocating P-type ATPase
1967	 53.01	0	2342103..2342600	+	165	192360943	hmrR2	CJA_2025	-	MerR-family transcriptional regulator
1968	 50.51	0	2343124..2344485	+	453	192361982	-	CJA_2026	-	outer membrane efflux protein
1969	 54.44	0	2344478..2345884	+	468	192359541	-	CJA_2027	-	multicopper oxidase
1970	 51.16	0	2345963..2346091	-	42	192360608	-	CJA_2028	-	hypothetical protein
1971	 45.34	-1	2346119..2347609	-	496	192359736	-	CJA_2029	-	possible msrA, pms peptide methionine sulfoxide reductase
1972	 41.77	-1	2347602..2347850	+	82	192360809	narB	CJA_2030	-	assimilatory nitrate reductase
1973	 53.64	0	2347907..2349940	+	677	192361896	prrA	CJA_2031	-	TonB-dependent outer membrane receptor
1974	 54.52	0	2349950..2351233	+	427	192359195	-	CJA_2032	-	putative regulatory lipoprotein
1975	 53.13	0	2351230..2352588	+	452	192360638	-	CJA_2033	-	Predicted thiol oxidoreductase
1976	 48.15	0	2352635..2352796	+	53	192361244	-	CJA_2034	-	hypothetical protein
1977	 50.35	0	2352802..2354217	-	471	192361602	-	CJA_2035	-	putative lipoprotein
1978	 53.30	0	2354217..2356961	-	914	192359989	-	CJA_2036	-	hypothetical protein
1979	 47.21	0	2357001..2357663	-	220	192359391	-	CJA_2037	-	hypothetical protein
1980	 55.30	0	2357811..2359226	+	471	192361619	pabB	CJA_2038	-	para-aminobenzoate synthase, component I
1981	 54.85	0	2359290..2360042	+	250	192360836	-	CJA_2039	-	carboxymethylenebutenolidase
1982	 53.27	0	2360120..2362060	-	646	192360162	pel10B	CJA_2040	-	pectate lyase, putative, pel10B
1983	 49.51	0	2362251..2362868	-	205	192361644	-	CJA_2041	-	phosphoserine phosphatase/homoserine phosphotransferase bifunctional protein
1984	 52.07	0	2363078..2363803	+	241	192362414	cysH	CJA_2042	-	3'-phosphoadenylylsulfate reductase
1985	 54.82	0	2363816..2364448	-	210	192361568	-	CJA_2043	-	protein-methionine-S-oxide reductase
1986	 48.77	0	2364514..2365608	-	364	192359025	-	CJA_2044	-	possible protease SohB
1987	 48.62	0	2365643..2366296	-	217	192362022	-	CJA_2045	-	hypothetical protein
1988	 53.29	0	2366346..2367227	-	293	192362038	-	CJA_2046	-	hydrolase, NUDIX family
1989	 50.09	0	2367257..2368963	-	568	192360329	-	CJA_2047	-	PA1822-like protein
1990	 53.36	0	2369200..2369913	-	237	192359256	dnaQ	CJA_2048	-	DNA polymerase III, epsilon subunit
1991	 55.40	0	2369988..2370422	-	144	192361631	rnhA	CJA_2049	-	RNase H
1992	 54.53	0	2370397..2371302	-	301	192360820	-	CJA_2050	-	Generic methyl-transferase
1993	 48.96	0	2371390..2371485	-	31	192359473	-	CJA_2051	-	hypothetical protein
1994	 54.25	0	2371608..2372243	+	211	192362517	-	CJA_2052	-	hydroxyacylglutathione hydrolase
1995	 51.99	0	2372453..2374012	+	519	192361254	lmt23B	CJA_2053	-	lytic murein transglycosylase, putative, lmt23B
1996	 51.67	0	2374082..2375695	-	537	192362004	-	CJA_2054	-	peptide ABC transporter, ATP-binding protein
1997	 48.19	0	2375700..2376581	-	293	192359661	oppC	CJA_2055	-	oligopeptide ABC transporter, permease protein
1998	 50.64	0	2376581..2377516	-	311	192360499	oppB	CJA_2056	-	oligopeptide transport system permease protein oppB
1999	 47.29	0	2377528..2378265	-	245	192361776	-	CJA_2057	-	oligopeptide ABC transporter periplasmic oligopeptide-binding protein
2000	 49.56	0	2378235..2379134	-	299	192358787	-	CJA_2058	-	oligopeptide ABC transporter periplasmic oligopeptide-binding protein
2001	 46.87	0	2379215..2381305	-	696	192360108	-	CJA_2059	-	Peptidase family M3
2002	 49.84	0	2381678..2382295	+	205	192360904	-	CJA_2060	-	hypothetical protein
52.09	MEAN

5.42	STD DEV
