IslandPath Analysis: Cellvibrio japonicus Ueda107

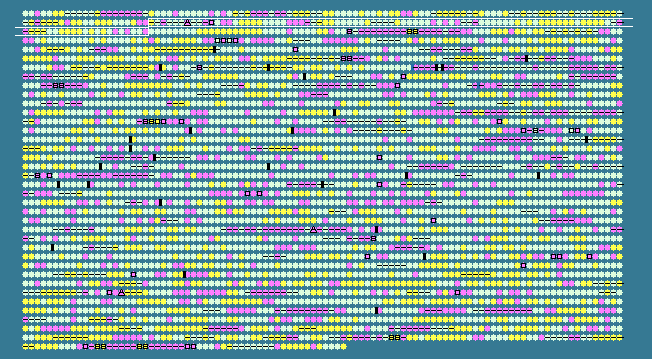

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
122	 56.55	0	160339..160941	+	200	192361716	rdgB	CJA_0122	-	non-canonical purine NTP pyrophosphatase, rdgB/HAM1 family
123	 52.12	0	160941..162122	+	393	192362341	-	CJA_0123	-	putative oxygen-independent coproporphyrinogen III oxidase
124	 43.97	-1	162194..164035	+	613	192359378	-	CJA_0124	-	hypothetical protein
125	 52.22	0	164022..165848	+	608	192360216	recQ	CJA_0125	-	ATP-dependent DNA helicase RecQ
126	 51.36	0	166129..166605	+	158	192362175	-	CJA_0126	-	hypothetical protein
127	 53.38	0	166720..177969	+	3749	192359225	-	CJA_0127	-	RHS Repeat family
128	 44.16	-1	178821..179771	-	316	192360063	-	CJA_0128	-	Integrase core domain protein
129	 55.51	0	179794..181146	+	450	192360884	-	CJA_0129	-	cytoplasmic membrane protein
130	 51.11	0	181215..181529	+	104	192360806	-	CJA_0130	-	IS66 family element, Orf1 protein
131	 46.44	-1	181526..181876	+	116	192361639	-	CJA_0131	-	IS66 family element, Orf2 protein
132	 46.40	-1	181909..183477	+	522	192360629	-	CJA_0132	-	IS66 family element, transposase
133	 52.24	0	183532..184044	+	170	192361470	-	CJA_0133	-	Rhs family protein
134	 48.24	0	184053..184817	+	254	192359384	-	CJA_0134	-	Rhs family protein
135	 37.82	-2	185163..185630	-	155	192359990	-	CJA_0135	-	hypothetical protein
136	 51.12	0	186606..188567	-	653	192360782	-	CJA_0136	-	phospholipase/carboxylesterase
137	 56.46	0	188809..189141	+	110	192361795	-	CJA_0137	-	Peptidase propeptide and YPEB domain protein
138	 59.12	+1	189162..189479	+	105	192359442	-	CJA_0138	-	Peptidase propeptide and YPEB domain protein
139	 58.56	+1	189479..190144	+	221	192361100	-	CJA_0139	-	DNA-binding response regulator
140	 63.98	+2	190141..191481	+	446	192359809	-	CJA_0140	-	sensor histidine kinase
141	 55.06	0	191519..193327	+	602	192358964	-	CJA_0141	-	ABC transporter, ATP-binding protein
142	 50.72	0	193338..194165	-	275	192362420	-	CJA_0142	-	metallo-beta-lactamase superfamily domain protein
143	 54.47	0	194224..195420	-	398	192361590	-	CJA_0143	-	drug resistance transporter, Bcr/CflA subfamily
144	 55.30	0	195719..196510	+	263	192360296	-	CJA_0144	-	probable partition-related protein
145	 43.48	-1	196552..196758	-	68	192359462	-	CJA_0145	-	hypothetical protein
146	 46.78	0	196789..197502	-	237	192360226	-	CJA_0146	-	hypothetical protein
147	 46.34	-1	197722..198336	-	204	192359307	-	CJA_0147	-	hypothetical protein
148	 44.28	-1	199015..201783	-	922	192359267	-	CJA_0148	-	hypothetical protein
149	 51.83	0	202110..203390	-	426	192360387	-	CJA_0149	-	phosphate regulon sensor protein PhoR
150	 55.65	0	203427..204125	-	232	192361393	phoB	CJA_0150	-	phosphate regulon transcriptional regulatory protein PhoB
151	 58.06	+1	204211..205140	-	309	192362449	ubiA	CJA_0151	-	4-hydroxybenzoate polyprenyl transferase
152	 62.75	+1	205161..205772	-	203	192358861	ubiC	CJA_0152	-	chorismate--pyruvate lyase
153	 54.35	0	205964..206239	+	91	192359929	hup	CJA_0153	-	DNA-binding protein HU
154	 52.19	0	206285..207652	+	455	192358823	-	CJA_0154	-	proton/glutamate symporter
155	 55.22	0	207682..208380	-	232	192359887	-	CJA_0155	-	hypothetical protein
156	 54.21	0	208615..209208	+	197	192360865	hisB	CJA_0156	-	imidazoleglycerol-phosphate dehydratase
157	 54.99	0	209230..209880	+	216	192361662	hisH	CJA_0157	-	imidazole glycerol phosphate synthase, glutamine amidotransferase subunit
158	 56.83	0	209938..210669	+	243	192359699	hisA	CJA_0158	-	phosphoribosylformimino-5-aminoimidazole carboxamide ribotide isomerase
159	 55.56	0	210683..211456	+	257	192360508	hisF	CJA_0159	-	imidazoleglycerol phosphate synthase, cyclase subunit
160	 52.30	0	211551..212267	-	238	192359846	-	CJA_0160	-	hypothetical protein
161	 51.78	0	212719..213450	+	243	192360773	-	CJA_0161	-	macrophage infectivity potentiator
162	 52.14	0	213613..214080	-	155	192362153	algQ	CJA_0162	-	transcriptional regulator AlgQ
163	 57.14	0	214176..214658	-	160	192359080	dsbH	CJA_0163	-	protein-disulfide reductase
164	 51.07	0	214932..215399	+	155	192360424	-	CJA_0165	-	Flagellar basal body-associated protein FliL
165	 55.56	0	215396..217006	-	536	192361486	gshA	CJA_0164	-	glutamate--cysteine ligase
166	 51.26	0	217091..217408	-	105	192362486	-	CJA_0166	-	hypothetical protein
167	 51.96	0	217441..218718	-	425	192361647	-	CJA_0167	-	transporter, small conductance mechanosensitive ion channel (MscS) family
168	 49.56	0	218879..219673	-	264	192361656	-	CJA_0168	-	Short-chain alcohol dehydrogenase family protein
169	 48.10	0	219686..220525	-	279	192360849	-	CJA_0169	-	4-deoxy-L-threo-5-hexosulose-uronate ketol-isomerase
170	 49.49	0	220653..223214	-	853	192360542	urh105A	CJA_0170	-	unsaturated rhamnogalacturonyl hydrolase, putative, urh105A
171	 45.10	-1	223310..226021	-	903	192359268	-	CJA_0171	-	TonB-dependent receptor
172	 54.22	0	226264..227733	-	489	192362237	pga28A	CJA_0172	-	polygalacturonase, putative, pga28A
173	 37.78	-2	227896..228030	-	44	192361905	-	CJA_0173	-	hypothetical protein
174	 52.07	0	228491..230011	+	506	192359350	-	CJA_0174	-	dehydratase
175	 55.30	0	230198..231358	+	386	192362509	-	CJA_0175	-	proton-translocating nicotinamide nucleotide transhydrogenase subunit PntAA
176	 47.37	0	231373..231657	+	94	192361450	pntA	CJA_0176	-	NAD(P) transhydrogenase, alpha subunit
177	 52.85	0	231673..233076	+	467	192359751	-	CJA_0177	-	proton-translocating nicotinamide nucleotide transhydrogenase subunit PntB
178	 51.63	0	233154..233552	+	132	192359092	-	CJA_0178	-	glyoxylase family protein
179	 53.99	0	233604..234692	-	362	192360178	kdgK	CJA_0179	-	ketodeoxygluconokinase
180	 50.57	0	234806..236284	+	492	192360295	-	CJA_0180	-	D-mannonate oxidoreductase
181	 52.68	0	236371..237471	+	366	192360184	pme8C	CJA_0181	-	pectin methylesterase, putative, pme8C
182	 54.42	0	237624..239966	+	780	192359031	-	CJA_0182	-	putative methyl-accepting chemotaxis protein
183	 56.28	0	239974..240945	-	323	192361813	fbp	CJA_0183	-	fructose-1,6-bisphosphatase
184	 52.69	0	240961..242040	-	359	192359871	fbaA	CJA_0184	-	fructose-bisphosphate aldolase, class II
185	 58.24	+1	242146..242916	-	256	192358825	-	CJA_0185	-	triosephosphate isomerase
186	 52.26	0	242903..243145	-	80	192362162	-	CJA_0186	-	hypothetical protein
187	 60.28	+1	243444..245024	-	526	192359424	-	CJA_0187	-	putative GGDEF domain protein
188	 58.27	+1	245027..245419	-	130	192360280	-	CJA_0188	-	hypothetical protein
189	 56.19	0	245455..246714	-	419	192361978	-	CJA_0189	-	hypothetical protein
190	 58.15	+1	246845..247678	-	277	192359842	-	CJA_0190	-	response regulator
191	 55.98	0	247757..248533	-	258	192361610	-	CJA_0191	-	hypothetical protein
192	 58.13	+1	248585..248959	-	124	192362435	-	CJA_0192	-	hypothetical protein
193	 53.06	0	248963..249109	+	48	192359529	-	CJA_0193	-	hypothetical protein
194	 59.10	+1	249136..250404	+	422	192359214	-	CJA_0194	-	Peptidase family M48 family
195	 58.65	+1	250575..251123	+	182	192360056	-	CJA_0195	-	TRAP transporter, DctQ-like membrane protein family
196	 55.75	0	251117..252499	+	460	192361832	-	CJA_0196	-	TRAP transporter, DctM subunit
197	 57.32	0	252577..252972	+	131	192360761	-	CJA_0197	-	acyl-CoA hydrolase
198	 52.88	0	253164..253823	+	219	192359365	-	CJA_0198	-	Cytochrome b561 homolog 2
199	 49.74	0	253895..254479	+	194	192360528	ycel3	CJA_0199	-	yceI-like protein, ycel3
200	 47.77	0	254812..255102	+	96	192361363	-	CJA_0200	-	hypothetical protein
201	 46.12	-1	255099..256349	+	416	192358854	-	CJA_0201	-	hypothetical protein
202	 59.77	+1	256425..257294	-	289	192359697	-	CJA_0202	-	conserved hypothetical protein TIGR00255
203	 60.56	+1	257434..258153	+	239	192362066	rph	CJA_0203	-	ribonuclease PH
204	 56.97	0	258427..261036	+	869	192361004	cel3A	CJA_0204	-	glucan 1,4-beta-glucosidase cel3A
205	 53.36	0	261130..261978	-	282	192359927	metF	CJA_0205	-	5,10-methylenetetrahydrofolate reductase
206	 54.28	0	262059..263447	-	462	192360318	ahcY	CJA_0206	-	adenosylhomocysteinase
207	 57.58	+1	263558..264712	-	384	192358797	metK	CJA_0207	-	S-adenosylmethionine synthetase
208	 58.67	+1	264784..265821	-	345	192362087	-	CJA_0208	-	transcriptional regulator, ArsR family
209	 60.66	+1	265919..266101	-	60	192358839	-	CJA_0209	-	hypothetical protein
210	 57.09	0	266158..268161	+	667	192361713	tkt	CJA_0210	-	transketolase
211	 55.16	0	268299..269471	+	390	192360860	pgk	CJA_0211	-	phosphoglycerate kinase
212	 56.11	0	269907..271052	+	381	192361487	pel3A	CJA_0212	-	pectate lyase, putative, pel3A
213	 51.39	0	271358..271501	-	47	192360650	-	CJA_0213	-	hypothetical protein
214	 59.23	+1	271521..275018	+	1165	192359354	glu81A	CJA_0214	-	glucan endo-1,3-beta-glucanase, putative, glu81A
215	 49.04	0	275369..278323	+	984	192361878	-	CJA_0215	-	TonB-dependent receptor
216	 44.67	-1	278418..279140	+	240	192361733	-	CJA_0216	-	hypothetical protein
217	 50.39	0	279153..280166	+	337	192360795	-	CJA_0217	-	Pass1-related protein
218	 48.34	0	280203..281681	+	492	192360438	-	CJA_0218	-	tryptophan halogenase
219	 50.33	0	281757..282215	-	152	192361301	-	CJA_0219	-	hypothetical protein
220	 55.24	0	281932..282036	+	34	192359968	-	CJA_0220	-	hypothetical protein
221	 47.91	0	282357..283049	-	230	192359593	-	CJA_0221	-	hypothetical protein
52.09	MEAN

5.42	STD DEV
