IslandPathversion 1.0

IslandPath Analysis: Cellvibrio japonicus Ueda107

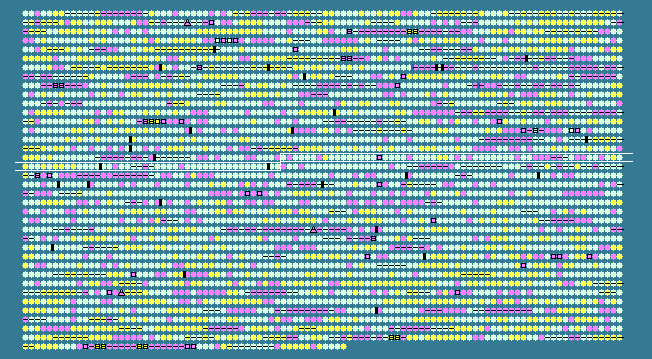

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1644	 50.74	0	1948196..1949884	+	562	192361601	sfcA1	CJA_1688	-	NAD-dependent malic enzyme
1645	 46.32	-1	1949896..1950534	+	212	192360947	-	CJA_1689	-	yecA family protein subfamily
1646	 50.96	0	1950718..1951080	+	120	192361035	-	CJA_1690	-	hypothetical protein
1647	 48.68	0	1951186..1951791	+	201	192359942	-	CJA_1691	-	aldehyde dehydrogenase
1648	 52.42	0	1954148..1955326	+	392	192361509	fadA	CJA_1693	-	acetyl-CoA C-acyltransferase FadA
1649	 49.97	0	1955447..1956901	+	484	192360257	-	CJA_1694	-	hypothetical protein
1650	 48.48	0	1956973..1957236	+	87	192359447	-	CJA_1695	-	hypothetical protein
1651	 56.86	0	1957349..1957756	-	135	192361863	-	CJA_1696	-	hypothetical protein
1652	 50.25	0	1957749..1958351	-	200	192361112	lexA	CJA_1697	-	LexA repressor
1653	 51.41	0	1958427..1958780	+	117	192358901	-	CJA_1699	-	hypothetical protein
1654	 53.17	0	1958457..1958819	-	120	192359818	-	CJA_1698	-	putative lipoprotein
1655	 51.02	0	1958930..1959760	-	276	192359704	-	CJA_1700	-	oxidoreductase, short chain dehydrogenase/reductase family
1656	 51.47	0	1959896..1960303	+	135	192361805	-	CJA_1701	-	flagellar protein FliS
1657	 50.18	0	1960313..1960597	+	94	192360777	-	CJA_1702	-	hypothetical protein
1658	 50.77	0	1960720..1961109	+	129	192360151	-	CJA_1703	-	flagellar protein FliS
1659	 50.24	0	1961367..1962821	+	484	192360348	fleQ	CJA_1704	-	regulatory protein
1660	 47.22	0	1962965..1964116	+	383	192359413	-	CJA_1705	-	ISCja2, transposase
1661	 54.53	0	1964186..1965610	-	474	192362464	-	CJA_1706	-	Superfamily II DNA and RNA helicase
1662	 50.69	0	1965785..1967080	-	431	192361465	-	CJA_1707	-	bicyclomycin resistance protein
1663	 54.02	0	1967438..1968718	+	426	192359837	fleS	CJA_1708	-	two-component sensor
1664	 53.15	0	1968734..1970257	+	507	192359170	fleR	CJA_1709	-	transcriptional activator
1665	 47.09	0	1970288..1970476	-	62	192360062	-	CJA_1710	-	hypothetical protein
1666	 48.84	0	1970484..1970741	-	85	192362349	-	CJA_1711	-	hypothetical protein
1667	 52.80	0	1970740..1971114	+	124	192361742	fliE	CJA_1712	-	flagellar hook-basal body complex protein (FliE)
1668	 54.44	0	1971193..1972902	+	569	192359622	fliF	CJA_1713	-	flagellar M-ring protein FliF
1669	 53.01	0	1972931..1973926	+	331	192360504	fliG	CJA_1714	-	flagellar motor switch protein FliG
1670	 56.45	0	1973945..1974766	+	273	192361340	fliH	CJA_1715	-	Flagellar assembly protein FliH
1671	 59.40	+1	1974729..1976159	+	476	192362186	fliI	CJA_1716	-	flagellum-specific ATP synthase FliI
1672	 50.88	0	1976168..1976623	+	151	192359835	-	CJA_1717	-	putative flagellar protein FliJ
1673	 44.77	-1	1976839..1977144	+	101	192360682	-	CJA_1718	-	hypothetical protein
1674	 52.22	0	1977206..1978984	+	592	192359685	-	CJA_1719	-	response regulator
1675	 47.78	0	1979000..1979359	+	119	192360724	-	CJA_1720	-	Hpt domain protein
1676	 53.94	0	1979532..1980914	+	460	192362472	-	CJA_1721	-	putative flagellar hook-length control protein FliK
1677	 49.65	0	1981105..1981674	+	189	192359510	-	CJA_1722	-	Flagellar basal body-associated protein FliL
1678	 51.96	0	1981686..1982705	+	339	192360300	fliM	CJA_1723	-	flagellar motor switch protein FliM
1679	 50.25	0	1982695..1983096	+	133	192361158	fliN	CJA_1724	-	flagellar protein
1680	 50.63	0	1983144..1983779	+	211	192359151	-	CJA_1725	-	flagellar protein FliO
1681	 49.88	0	1983790..1984629	+	279	192359973	fliP	CJA_1726	-	Flagellar biosynthetic protein fliP
1682	 51.85	0	1984642..1984911	+	89	192359213	fliQ	CJA_1727	-	flagellar biosynthetic protein FliQ
1683	 47.58	0	1984919..1985704	+	261	192359985	fliR	CJA_1728	-	flagellar biosynthetic protein FliR
1684	 48.86	0	1985704..1986843	+	379	192360845	flhB	CJA_1729	-	flagellar biosynthetic protein FlhB
1685	 50.14	0	1986948..1987667	+	239	192361189	-	CJA_1730	-	hypothetical protein
1686	 48.47	0	1987906..1988493	-	195	192362492	-	CJA_1731	-	putative lipoprotein
1687	 43.18	-1	1988752..1989015	+	87	192358951	-	CJA_1732	-	hypothetical protein
1688	 47.62	0	1989063..1991246	+	727	192359763	-	CJA_1733	-	Response regulator receiver domain protein
1689	 45.19	-1	1991291..1992100	-	269	192361651	xth	CJA_1734	-	exodeoxyribonuclease III
1690	 47.19	0	1992170..1994320	-	716	192359176	prc	CJA_1735	-	tail-specific protease
1691	 50.16	0	1994568..1995512	-	314	192359953	-	CJA_1736	-	hypothetical protein
1692	 49.18	0	1995625..1996053	-	142	192360210	-	CJA_1737	-	hypothetical protein
1693	 47.47	0	1995877..1995975	+	32	192362178	-	CJA_1738	-	hypothetical protein
1694	 37.50	-2	1996196..1996339	-	47	192359621	-	CJA_1739	-	hypothetical protein
1695	 50.84	0	1996371..1997438	-	355	192359620	-	CJA_1740	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1696	 51.72	0	1997706..1999913	+	735	192360384	-	CJA_1741	-	phospholipase, patatin family
1697	 46.88	0	2000001..2000753	-	250	192361204	-	CJA_1742	-	putative lipoprotein
1698	 53.09	0	2000797..2001717	-	306	192362059	-	CJA_1743	-	transcriptional regulator, LysR family
1699	 55.98	0	2001857..2003278	+	473	192360076	leuC	CJA_1744	-	3-isopropylmalate dehydratase, large subunit
1700	 49.38	0	2003291..2003938	+	215	192360888	leuD	CJA_1745	-	3-isopropylmalate dehydratase, small subunit
1701	 55.62	0	2003962..2005038	+	358	192359632	leuB	CJA_1746	-	3-isopropylmalate dehydrogenase
1702	 54.26	0	2005071..2006174	+	367	192360474	asd	CJA_1747	-	aspartate-semialdehyde dehydrogenase
1703	 53.59	0	2006536..2009595	+	1019	192360431	-	CJA_1748	-	hypothetical protein
1704	 55.89	0	2009671..2010570	+	299	192361259	truA	CJA_1749	-	tRNA pseudouridine synthase A
1705	 55.25	0	2010655..2011302	+	215	192359485	trpF	CJA_1750	-	N-(5'phosphoribosyl)anthranilate isomerase
1706	 56.40	0	2011306..2012532	+	408	192361834	trpB	CJA_1751	-	tryptophan synthase, beta subunit
1707	 57.16	0	2012599..2013408	+	269	192361186	trpA	CJA_1752	-	tryptophan synthase, alpha subunit
1708	 53.08	0	2013517..2014377	+	286	192360579	accD	CJA_1753	-	acetyl-CoA carboxylase, carboxyl transferase, beta subunit
1709	 55.76	0	2014386..2015678	+	430	192359076	folC	CJA_1754	-	folylpolyglutamate synthetase
1710	 55.50	0	2015696..2016286	+	196	192359303	-	CJA_1755	-	Sporulation related repeat family
1711	 53.64	0	2016417..2016938	+	173	192361113	cvpA	CJA_1756	-	CvpA family protein
1712	 53.74	0	2016990..2018513	+	507	192359978	purF	CJA_1757	-	amidophosphoribosyltransferase
1713	 53.95	0	2018557..2019783	+	408	192362427	metZ	CJA_1758	-	O-succinylhomoserine sulfhydrylase
1714	 50.55	0	2020211..2022115	+	634	192360864	-	CJA_1760	-	putative Hsp90 protein
1715	 51.61	0	2022232..2022696	+	154	192361953	mgsA	CJA_1761	-	methylglyoxal synthase
1716	 43.98	-1	2022999..2023214	+	71	192360401	-	CJA_1762	-	cold-shock domain family protein
1717	 52.96	0	2023277..2024122	-	281	192359912	-	CJA_1763	-	putative lipoprotein
1718	 52.07	0	2024182..2027736	-	1184	192358851	mfd	CJA_1764	-	transcription-repair coupling protein Mfd
1719	 53.94	0	2028304..2029647	+	447	192359833	nqrA	CJA_1765	-	NADH:ubiquinone oxidoreductase, Na(+)-translocating, A subunit
1720	 53.12	0	2029651..2030853	+	400	192358783	nqrB	CJA_1766	-	NADH:ubiquinone oxidoreductase, Na(+)-translocating, B subunit
1721	 47.62	0	2030846..2031622	+	258	192362189	nqrC	CJA_1767	-	NADH:ubiquinone oxidoreductase, Na(+)-translocating, C subunit
1722	 50.37	0	2031625..2032293	+	222	192361593	nqrD	CJA_1768	-	NADH:ubiquinone oxidoreductase, Na(+)-translocating, D subunit
1723	 49.92	0	2032293..2032901	+	202	192361014	nqrE	CJA_1769	-	NADH:ubiquinone oxidoreductase, Na(+)-translocating, E subunit
1724	 50.90	0	2032923..2034146	+	407	192359425	nqrF	CJA_1770	-	NADH:ubiquinone oxidoreductase, Na(+)-translocating, F subunit
1725	 50.96	0	2034237..2034497	+	86	192360276	-	CJA_1771	-	hypothetical protein
1726	 49.50	0	2034609..2036006	+	465	192361161	-	CJA_1772	-	soluble pyridine nucleotide transhydrogenase
1727	 48.22	0	2036100..2036408	-	102	192362400	-	CJA_1773	-	hypothetical protein
1728	 49.39	0	2036428..2037000	-	190	192359791	-	CJA_1774	-	hypothetical protein
1729	 53.18	0	2037067..2038371	+	434	192361053	-	CJA_1775	-	efflux ABC transporter, permease protein
1730	 54.13	0	2038381..2039082	+	233	192361922	-	CJA_1776	-	insulin-like growth factor I
1731	 52.62	0	2039079..2040317	+	412	192359404	-	CJA_1777	-	lipoprotein releasing system, permease protein
1732	 51.40	0	2040395..2042830	+	811	192360228	-	CJA_1778	-	DNA internalization-related competence protein ComEC/Rec2
1733	 48.71	0	2042916..2043611	+	231	192359531	-	CJA_1779	-	MotA/TolQ/ExbB proton channel family domain protein
1734	 52.11	0	2043624..2044049	+	141	192360658	-	CJA_1780	-	ExbD/TolR family protein
1735	 52.44	0	2044056..2045180	+	374	192359065	-	CJA_1781	-	tetraacyldisaccharide 4'-kinase
1736	 54.56	0	2045223..2045990	+	255	192361768	kdsB	CJA_1782	-	3-deoxy-D-manno-octulosonate cytidylyltransferase
1737	 51.27	0	2045987..2046460	+	157	192360665	-	CJA_1783	-	protein-tyrosine-phosphatase
1738	 53.47	0	2046472..2047494	+	340	192361480	murB	CJA_1784	-	UDP-N-acetylpyruvoylglucosamine reductase
1739	 48.78	0	2047740..2048393	+	217	192362451	gacA	CJA_1785	-	GacA
1740	 52.85	0	2048427..2050265	+	612	192361497	uvrC	CJA_1786	-	excinuclease ABC, C subunit
1741	 51.09	0	2050355..2050906	+	183	192360409	pgsA	CJA_1787	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1742	 51.67	0	2051279..2052058	-	259	192359318	-	CJA_1790	-	RNA methyltransferase, TrmH family
1743	 53.23	0	2052064..2052837	-	257	192359059	pdxJ	CJA_1791	-	Pyridoxal phosphate biosynthesis protein PdxJ
52.09	MEAN

5.42	STD DEV
