IslandPathversion 1.0

IslandPath Analysis: Cellvibrio japonicus Ueda107

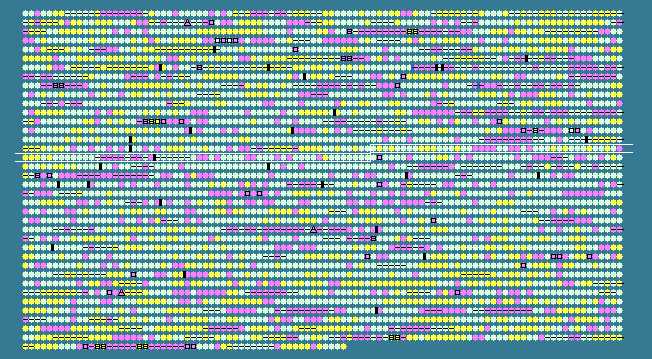

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1559	 51.22	0	1861175..1862035	+	286	192360988	purU	CJA_1602	-	formyltetrahydrofolate deformylase
1560	 58.31	+1	1862047..1863231	-	394	192362042	-	CJA_1603	-	transporter, major facilitator family
1561	 54.40	0	1863505..1865118	+	537	192360301	lctP	CJA_1604	-	L-lactate permease
1562	 55.86	0	1865189..1867705	-	838	192361441	gt35A	CJA_1605	-	carbohydrate phosphosrylase, putative, gt35A
1563	 51.86	0	1867766..1868758	-	330	192362477	-	CJA_1606	-	D-lactate dehydrogenase
1564	 52.45	0	1868860..1869471	-	203	192361811	-	CJA_1607	-	putative lipoprotein
1565	 49.23	0	1869440..1870414	-	324	192359021	-	CJA_1608	-	hypothetical protein
1566	 51.24	0	1870426..1871190	-	254	192362156	-	CJA_1609	-	ABC transporter, ATP-binding protein
1567	 58.07	+1	1871193..1872320	-	375	192359616	-	CJA_1610	-	ABC-type transport system, permease component
1568	 57.08	0	1872348..1872827	+	159	192361009	-	CJA_1612	-	hypothetical protein
1569	 57.76	+1	1872817..1873692	-	291	192361858	-	CJA_1611	-	putative pseudouridylate synthase
1570	 48.99	0	1873673..1874215	+	180	192361940	-	CJA_1613	-	hypothetical protein
1571	 54.01	0	1874187..1875980	+	597	192361064	recJ	CJA_1614	-	single-stranded-DNA-specific exonuclease RecJ
1572	 51.02	0	1875999..1876637	-	212	192359766	tesA	CJA_1615	-	acyl-CoA thioesterase I
1573	 56.58	0	1876705..1877388	+	227	192358986	-	CJA_1616	-	ABC transporter, ATP-binding protein
1574	 55.37	0	1877392..1879887	+	831	192359398	-	CJA_1617	-	efflux ABC transporter, permease protein
1575	 53.36	0	1879900..1881267	+	455	192362523	-	CJA_1618	-	MATE domain protein
1576	 40.72	-2	1881722..1882195	+	157	192361090	-	CJA_1619	-	GtrA-like protein family
1577	 45.12	-1	1882222..1883808	+	528	192362082	-	CJA_1620	-	FAD binding domain protein
1578	 45.64	-1	1883927..1885576	+	549	192359278	-	CJA_1621	-	hypothetical protein
1579	 48.37	0	1885578..1886561	-	327	192360485	gt2H	CJA_1622	-	glycosyl transferase, putative, gt2H
1580	 49.56	0	1887089..1887316	-	75	192362229	-	CJA_1623	-	hypothetical protein
1581	 54.46	0	1887649..1888074	+	141	192360032	hmrR	CJA_1624	-	heavy metal regulator HmrR
1582	 48.07	0	1888198..1888767	+	189	192361124	dcd	CJA_1625	-	deoxycytidine triphosphate deaminase
1583	 48.39	0	1888773..1888958	+	61	192359282	-	CJA_1626	-	hypothetical protein
1584	 52.47	0	1889027..1889512	-	161	192360344	-	CJA_1627	-	FKBP-type peptidyl-prolyl cis-trans isomerase
1585	 46.86	0	1889569..1890300	-	243	192360260	-	CJA_1628	-	hypothetical protein
1586	 55.46	0	1890338..1891015	-	225	192362478	purN	CJA_1629	-	phosphoribosylglycinamide formyltransferase
1587	 55.19	0	1891019..1892125	-	368	192359337	purM	CJA_1630	-	phosphoribosylformylglycinamidine cyclo-ligase
1588	 54.35	0	1892292..1893704	+	470	192360333	-	CJA_1631	-	hypothetical protein
1589	 56.81	0	1893713..1894432	+	239	192361067	-	CJA_1632	-	DnaA family protein
1590	 55.56	0	1894665..1896545	+	626	192361876	cel9B	CJA_1633	-	endo-1,4-beta glucanase, putative, cel9B
1591	 57.29	0	1896596..1897555	-	319	192360547	-	CJA_1634	-	putative ADA regulatory protein
1592	 54.24	0	1897661..1899205	-	514	192359773	cutE	CJA_1635	-	apolipoprotein N-acyltransferase
1593	 51.55	0	1899272..1900144	-	290	192361929	-	CJA_1636	-	magnesium and cobalt efflux protein CorC
1594	 54.12	0	1900164..1900697	-	177	192359229	-	CJA_1637	-	hypothetical protein
1595	 56.89	0	1900709..1901803	-	364	192360273	-	CJA_1638	-	PhoH-like protein
1596	 54.72	0	1901949..1902911	-	320	192359764	-	CJA_1639	-	hypothetical protein
1597	 52.95	0	1902961..1904331	-	456	192361583	miaB	CJA_1640	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
1598	 57.25	0	1904593..1906026	-	477	192362407	-	CJA_1641	-	ATP-dependent RNA helicase, DEAD box family
1599	 51.22	0	1906063..1906185	-	40	192359287	-	CJA_1642	-	hypothetical protein
1600	 47.95	0	1906221..1906562	+	113	192360331	-	CJA_1643	-	hypothetical protein
1601	 58.86	+1	1906684..1908207	+	507	192361844	-	CJA_1644	-	putative glycerol kinase
1602	 57.77	+1	1908271..1910631	-	786	192358876	ppkA	CJA_1645	-	serine/threonine protein kinase PpkA
1603	 57.79	+1	1910673..1911539	-	288	192360451	-	CJA_1646	-	protein phosphatase
1604	 54.84	0	1911578..1911670	-	30	192360804	-	CJA_1647	-	hypothetical protein
1605	 58.87	+1	1911714..1914701	-	995	192362280	-	CJA_1648	-	Peptidase M16 inactive domain family
1606	 50.72	0	1914655..1915275	-	206	192359589	-	CJA_1649	-	DTW domain protein
1607	 54.43	0	1915272..1915598	-	108	192362142	-	CJA_1650	-	GIY-YIG catalytic domain protein
1608	 50.00	0	1915727..1916572	+	281	192361318	smtA	CJA_1651	-	smtA protein
1609	 53.29	0	1916691..1917191	-	166	192361284	-	CJA_1652	-	DnaJ domain protein
1610	 50.06	0	1917335..1918990	+	551	192359603	-	CJA_1653	-	putative lipoprotein
1611	 54.68	0	1919000..1919608	+	202	192362346	-	CJA_1654	-	hypothetical protein
1612	 52.93	0	1919778..1920869	+	363	192361759	-	CJA_1655	-	peptidylarginine deiminase-related protein
1613	 55.07	0	1920856..1921752	+	298	192362035	-	CJA_1656	-	glycosyl hydrolase, family 10
1614	 48.61	0	1921884..1922603	+	239	192361108	-	CJA_1657	-	hypothetical protein
1615	 41.77	-1	1922669..1923142	+	157	192360325	bcp	CJA_1658	-	Bcp
1616	 47.07	0	1923361..1923804	+	147	192359315	-	CJA_1659	-	transcriptional regulator, AraC family
1617	 43.86	-1	1923904..1924245	+	113	192361058	-	CJA_1660	-	preprotein translocase, YajC subunit
1618	 48.63	0	1924317..1924682	-	121	192361890	-	CJA_1661	-	DsrC
1619	 46.60	-1	1924651..1924959	-	102	192361814	dsrH	CJA_1662	-	DsrH
1620	 45.90	-1	1924961..1925326	-	121	192359124	-	CJA_1663	-	DsrE/DsrF-like family
1621	 51.26	0	1925336..1925731	-	131	192359860	dsrE	CJA_1664	-	dsrE protein
1622	 47.95	0	1925799..1926482	-	227	192361433	-	CJA_1665	-	integral membrane protein
1623	 51.23	0	1926954..1929797	-	947	192361431	-	CJA_1667	-	ribonuclease, Rne/Rng family protein
1624	 53.97	0	1930523..1930648	+	41	192362395	-	CJA_1668	-	hypothetical protein
1625	 52.76	0	1930730..1931779	+	349	192359429	-	CJA_1669	-	pseudouridine synthase, RluA family subfamily
1626	 50.46	0	1931800..1932447	+	215	192359856	-	CJA_1670	-	HAD-superfamily hydrolase
1627	 51.37	0	1932455..1933036	-	193	192360385	-	CJA_1671	-	septum formation protein Maf
1628	 48.74	0	1933132..1933767	+	211	192359678	-	CJA_1672	-	predicted metal-binding/nucleic acid-binding protein
1629	 49.73	0	1933811..1933993	+	60	192361012	rpmF	CJA_1673	-	ribosomal protein L32
1630	 47.70	0	1934017..1935018	+	333	192359728	plsX	CJA_1674	-	fatty acid/phospholipid synthesis protein PlsX
1631	 47.92	0	1935040..1935978	+	312	192359314	fabD	CJA_1675	-	malonyl CoA-acyl carrier protein transacylase
1632	 49.73	0	1936003..1936746	+	247	192362071	fabG	CJA_1676	-	3-oxoacyl-(acyl-carrier-protein) reductase
1633	 41.77	-1	1936933..1937169	+	78	192361508	acpP	CJA_1677	-	acyl carrier protein
1634	 50.52	0	1937368..1938606	+	412	192360236	-	CJA_1678	-	Beta-ketoacyl synthase, N-terminal domain protein
1635	 50.74	0	1938690..1939568	+	292	192361812	pabC	CJA_1679	-	4-amino-4-deoxychorismate lyase
1636	 52.16	0	1939581..1940669	+	362	192362312	-	CJA_1680	-	Uncharacterized BCR, YceG family
1637	 49.63	0	1940795..1942531	+	578	192361969	glnS	CJA_1681	-	glutaminyl-tRNA synthetase
1638	 47.89	0	1942537..1943937	+	466	192361138	cysS	CJA_1682	-	cysteinyl-tRNA synthetase
1639	 43.08	-1	1943951..1944145	+	64	192359015	-	CJA_1683	-	hypothetical protein
1640	 50.31	0	1944463..1945275	-	270	192361942	-	CJA_1684	-	cytochrome C assembly protein
1641	 51.53	0	1945481..1946854	+	457	192361389	ffh	CJA_1685	-	signal recognition particle protein
1642	 48.70	0	1946919..1947341	-	140	192359850	-	CJA_1686	-	conserved hypothetical protein TIGR00149
1643	 46.56	-1	1947677..1948039	-	120	192362099	-	CJA_1687	-	type III effector HopPmaJ(Pto)
1644	 50.74	0	1948196..1949884	+	562	192361601	sfcA1	CJA_1688	-	NAD-dependent malic enzyme
1645	 46.32	-1	1949896..1950534	+	212	192360947	-	CJA_1689	-	yecA family protein subfamily
1646	 50.96	0	1950718..1951080	+	120	192361035	-	CJA_1690	-	hypothetical protein
1647	 48.68	0	1951186..1951791	+	201	192359942	-	CJA_1691	-	aldehyde dehydrogenase
1648	 52.42	0	1954148..1955326	+	392	192361509	fadA	CJA_1693	-	acetyl-CoA C-acyltransferase FadA
1649	 49.97	0	1955447..1956901	+	484	192360257	-	CJA_1694	-	hypothetical protein
1650	 48.48	0	1956973..1957236	+	87	192359447	-	CJA_1695	-	hypothetical protein
1651	 56.86	0	1957349..1957756	-	135	192361863	-	CJA_1696	-	hypothetical protein
1652	 50.25	0	1957749..1958351	-	200	192361112	lexA	CJA_1697	-	LexA repressor
1653	 51.41	0	1958427..1958780	+	117	192358901	-	CJA_1699	-	hypothetical protein
1654	 53.17	0	1958457..1958819	-	120	192359818	-	CJA_1698	-	putative lipoprotein
1655	 51.02	0	1958930..1959760	-	276	192359704	-	CJA_1700	-	oxidoreductase, short chain dehydrogenase/reductase family
1656	 51.47	0	1959896..1960303	+	135	192361805	-	CJA_1701	-	flagellar protein FliS
1657	 50.18	0	1960313..1960597	+	94	192360777	-	CJA_1702	-	hypothetical protein
1658	 50.77	0	1960720..1961109	+	129	192360151	-	CJA_1703	-	flagellar protein FliS
52.09	MEAN

5.42	STD DEV
