IslandPathversion 1.0

IslandPath Analysis: Cellvibrio japonicus Ueda107

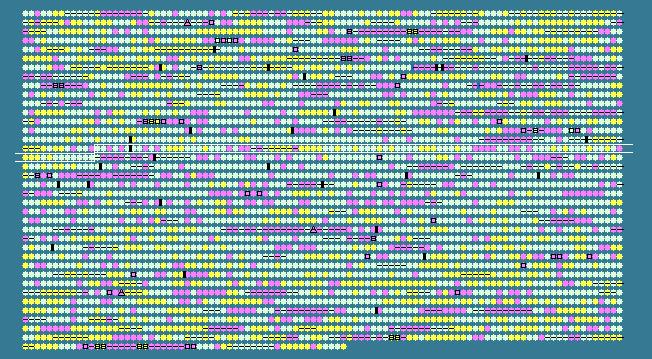

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1513	 51.76	0	1802064..1802888	+	274	192361267	-	CJA_1554	-	GTP cyclohydrolase I family protein
1514	 49.39	0	1802896..1804278	-	460	192360627	-	CJA_1555	-	probable adenylate cyclase
1515	 45.68	-1	1804257..1804418	+	53	192361820	-	CJA_1557	-	hypothetical protein
1516	 50.93	0	1804275..1804382	-	35	192359570	-	CJA_1556	-	hypothetical protein
1517	 48.08	0	1804420..1805667	-	415	192360668	-	CJA_1558	-	hypothetical protein
1518	 54.12	0	1805853..1806410	+	185	192362331	-	CJA_1559	-	nitroreductase family protein
1519	 50.71	0	1806988..1807338	-	116	192361525	-	CJA_1562	-	hypothetical protein
1520	 54.65	0	1807398..1808396	-	332	192360246	-	CJA_1563	-	Luciferase-like monooxygenase
1521	 44.63	-1	1808585..1808761	-	58	192361336	-	CJA_1564	-	hypothetical protein
1522	 51.14	0	1808775..1810925	+	716	192360057	-	CJA_1565	-	hypothetical protein
1523	 46.41	-1	1810993..1811451	-	152	192359242	-	CJA_1566	-	putative lipoprotein
1524	 50.00	0	1811646..1812065	-	139	192361624	-	CJA_1567	-	hypothetical protein
1525	 57.21	0	1812330..1813619	-	429	192360823	nrdB	CJA_1568	-	ribonucleoside reductase, beta subunit
1526	 57.17	0	1813771..1816707	-	978	192361574	nrdA	CJA_1569	-	ribonucleoside reductase, large chain
1527	 57.88	+1	1817548..1819584	-	678	192360282	-	CJA_1570	-	Tat (twin-arginine translocation) pathway signal sequence domain protein
1528	 49.77	0	1819788..1820663	+	291	192359376	-	CJA_1571	-	hypothetical protein
1529	 52.62	0	1821023..1823842	+	939	192361961	-	CJA_1572	-	putative TonB dependent receptor
1530	 53.13	0	1823913..1825301	+	462	192361125	-	CJA_1573	-	Ser/Thr protein phosphatase family protein family
1531	 60.09	+1	1825438..1826349	+	303	192359397	-	CJA_1574	-	ABC transporter substrate binding protein
1532	 53.61	0	1826485..1827426	-	313	192360232	-	CJA_1575	-	polyphosphate kinase family protein
1533	 52.67	0	1827946..1828338	+	130	192359867	-	CJA_1576	-	PIN (PilT N terminus) domain
1534	 53.68	0	1828473..1829612	+	379	192361471	-	CJA_1577	-	fic family protein
1535	 47.76	0	1829819..1831003	+	394	192361977	-	CJA_1578	-	putative ATP-dependent DNA helicase
1536	 49.04	0	1831000..1831986	+	328	192359043	-	CJA_1579	-	phage-related regulatory protein cII
1537	 45.08	-1	1832390..1833232	+	280	192360125	-	CJA_1580	-	hypothetical protein
1538	 47.31	0	1833421..1834257	+	278	192362123	mod	CJA_1581	-	type III restriction-modification system methyltransferase
1539	 51.20	0	1834257..1837268	+	1003	192359394	res	CJA_1582	-	type III restriction system endonuclease
1540	 45.95	-1	1837439..1838104	-	221	192360267	csm2	CJA_1583	-	CRISPR-associated protein, Csm2 family
1541	 49.18	0	1838117..1839397	-	426	192361329	rloA	CJA_1584	-	RloA protein
1542	 60.10	+1	1839659..1841197	+	512	192359002	-	CJA_1585	-	hypothetical protein
1543	 61.42	+1	1841200..1841961	+	253	192359586	-	CJA_1586	-	hypothetical protein
1544	 56.87	0	1841958..1845263	+	1101	192361080	-	CJA_1587	-	ATP synthase, Delta/Epsilon chain, long alpha-helix domain
1545	 56.81	0	1845247..1846392	+	381	192361667	-	CJA_1588	-	hypothetical protein
1546	 41.64	-1	1846479..1847549	+	356	192359305	-	CJA_1589	-	hypothetical protein
1547	 66.89	+2	1847583..1849370	-	595	192360359	afuB_2	CJA_1590	-	ABC transporter permease protein
1548	 63.70	+2	1849437..1850414	-	325	192361403	-	CJA_1591	-	ABC transporter, substrate binding protein
1549	 57.52	+1	1850748..1851884	-	378	192361106	-	CJA_1592	-	ABC transporter ATP-binding protein
1550	 58.51	+1	1852020..1853894	-	624	192361654	-	CJA_1593	-	hypothetical protein
1551	 52.29	0	1853929..1854081	+	50	192359414	-	CJA_1594	-	hypothetical protein
1552	 51.18	0	1854362..1855504	-	380	192360288	-	CJA_1595	-	hypothetical protein
1553	 58.82	+1	1855605..1856636	-	343	192361606	-	CJA_1596	-	hypothetical protein
1554	 51.04	0	1856652..1857131	-	159	192362431	-	CJA_1597	-	hypothetical protein
1555	 52.53	0	1857253..1858143	+	296	192361406	-	CJA_1598	-	Auxin Efflux Carrier superfamily
1556	 56.51	0	1858157..1858747	-	196	192362440	cysC	CJA_1599	-	adenylylsulfate kinase
1557	 52.38	0	1859053..1859703	+	216	192359926	-	CJA_1600	-	Aspartyl/Asparaginyl beta-hydroxylase family
1558	 49.03	0	1859748..1860881	+	377	192362028	-	CJA_1601	-	hypothetical protein
1559	 51.22	0	1861175..1862035	+	286	192360988	purU	CJA_1602	-	formyltetrahydrofolate deformylase
1560	 58.31	+1	1862047..1863231	-	394	192362042	-	CJA_1603	-	transporter, major facilitator family
1561	 54.40	0	1863505..1865118	+	537	192360301	lctP	CJA_1604	-	L-lactate permease
1562	 55.86	0	1865189..1867705	-	838	192361441	gt35A	CJA_1605	-	carbohydrate phosphosrylase, putative, gt35A
1563	 51.86	0	1867766..1868758	-	330	192362477	-	CJA_1606	-	D-lactate dehydrogenase
1564	 52.45	0	1868860..1869471	-	203	192361811	-	CJA_1607	-	putative lipoprotein
1565	 49.23	0	1869440..1870414	-	324	192359021	-	CJA_1608	-	hypothetical protein
1566	 51.24	0	1870426..1871190	-	254	192362156	-	CJA_1609	-	ABC transporter, ATP-binding protein
1567	 58.07	+1	1871193..1872320	-	375	192359616	-	CJA_1610	-	ABC-type transport system, permease component
1568	 57.08	0	1872348..1872827	+	159	192361009	-	CJA_1612	-	hypothetical protein
1569	 57.76	+1	1872817..1873692	-	291	192361858	-	CJA_1611	-	putative pseudouridylate synthase
1570	 48.99	0	1873673..1874215	+	180	192361940	-	CJA_1613	-	hypothetical protein
1571	 54.01	0	1874187..1875980	+	597	192361064	recJ	CJA_1614	-	single-stranded-DNA-specific exonuclease RecJ
1572	 51.02	0	1875999..1876637	-	212	192359766	tesA	CJA_1615	-	acyl-CoA thioesterase I
1573	 56.58	0	1876705..1877388	+	227	192358986	-	CJA_1616	-	ABC transporter, ATP-binding protein
1574	 55.37	0	1877392..1879887	+	831	192359398	-	CJA_1617	-	efflux ABC transporter, permease protein
1575	 53.36	0	1879900..1881267	+	455	192362523	-	CJA_1618	-	MATE domain protein
1576	 40.72	-2	1881722..1882195	+	157	192361090	-	CJA_1619	-	GtrA-like protein family
1577	 45.12	-1	1882222..1883808	+	528	192362082	-	CJA_1620	-	FAD binding domain protein
1578	 45.64	-1	1883927..1885576	+	549	192359278	-	CJA_1621	-	hypothetical protein
1579	 48.37	0	1885578..1886561	-	327	192360485	gt2H	CJA_1622	-	glycosyl transferase, putative, gt2H
1580	 49.56	0	1887089..1887316	-	75	192362229	-	CJA_1623	-	hypothetical protein
1581	 54.46	0	1887649..1888074	+	141	192360032	hmrR	CJA_1624	-	heavy metal regulator HmrR
1582	 48.07	0	1888198..1888767	+	189	192361124	dcd	CJA_1625	-	deoxycytidine triphosphate deaminase
1583	 48.39	0	1888773..1888958	+	61	192359282	-	CJA_1626	-	hypothetical protein
1584	 52.47	0	1889027..1889512	-	161	192360344	-	CJA_1627	-	FKBP-type peptidyl-prolyl cis-trans isomerase
1585	 46.86	0	1889569..1890300	-	243	192360260	-	CJA_1628	-	hypothetical protein
1586	 55.46	0	1890338..1891015	-	225	192362478	purN	CJA_1629	-	phosphoribosylglycinamide formyltransferase
1587	 55.19	0	1891019..1892125	-	368	192359337	purM	CJA_1630	-	phosphoribosylformylglycinamidine cyclo-ligase
1588	 54.35	0	1892292..1893704	+	470	192360333	-	CJA_1631	-	hypothetical protein
1589	 56.81	0	1893713..1894432	+	239	192361067	-	CJA_1632	-	DnaA family protein
1590	 55.56	0	1894665..1896545	+	626	192361876	cel9B	CJA_1633	-	endo-1,4-beta glucanase, putative, cel9B
1591	 57.29	0	1896596..1897555	-	319	192360547	-	CJA_1634	-	putative ADA regulatory protein
1592	 54.24	0	1897661..1899205	-	514	192359773	cutE	CJA_1635	-	apolipoprotein N-acyltransferase
1593	 51.55	0	1899272..1900144	-	290	192361929	-	CJA_1636	-	magnesium and cobalt efflux protein CorC
1594	 54.12	0	1900164..1900697	-	177	192359229	-	CJA_1637	-	hypothetical protein
1595	 56.89	0	1900709..1901803	-	364	192360273	-	CJA_1638	-	PhoH-like protein
1596	 54.72	0	1901949..1902911	-	320	192359764	-	CJA_1639	-	hypothetical protein
1597	 52.95	0	1902961..1904331	-	456	192361583	miaB	CJA_1640	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
1598	 57.25	0	1904593..1906026	-	477	192362407	-	CJA_1641	-	ATP-dependent RNA helicase, DEAD box family
1599	 51.22	0	1906063..1906185	-	40	192359287	-	CJA_1642	-	hypothetical protein
1600	 47.95	0	1906221..1906562	+	113	192360331	-	CJA_1643	-	hypothetical protein
1601	 58.86	+1	1906684..1908207	+	507	192361844	-	CJA_1644	-	putative glycerol kinase
1602	 57.77	+1	1908271..1910631	-	786	192358876	ppkA	CJA_1645	-	serine/threonine protein kinase PpkA
1603	 57.79	+1	1910673..1911539	-	288	192360451	-	CJA_1646	-	protein phosphatase
1604	 54.84	0	1911578..1911670	-	30	192360804	-	CJA_1647	-	hypothetical protein
1605	 58.87	+1	1911714..1914701	-	995	192362280	-	CJA_1648	-	Peptidase M16 inactive domain family
1606	 50.72	0	1914655..1915275	-	206	192359589	-	CJA_1649	-	DTW domain protein
1607	 54.43	0	1915272..1915598	-	108	192362142	-	CJA_1650	-	GIY-YIG catalytic domain protein
1608	 50.00	0	1915727..1916572	+	281	192361318	smtA	CJA_1651	-	smtA protein
1609	 53.29	0	1916691..1917191	-	166	192361284	-	CJA_1652	-	DnaJ domain protein
1610	 50.06	0	1917335..1918990	+	551	192359603	-	CJA_1653	-	putative lipoprotein
1611	 54.68	0	1919000..1919608	+	202	192362346	-	CJA_1654	-	hypothetical protein
1612	 52.93	0	1919778..1920869	+	363	192361759	-	CJA_1655	-	peptidylarginine deiminase-related protein
52.09	MEAN

5.42	STD DEV
