IslandPath Analysis: Cellvibrio japonicus Ueda107

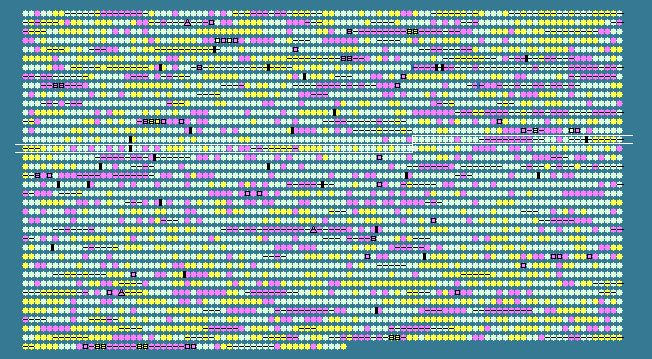

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1466	 54.15	0	1738188..1739960	+	590	192362080	sdhA	CJA_1503	-	succinate dehydrogenase, flavoprotein subunit
1467	 50.07	0	1739975..1740679	+	234	192358883	sdhB	CJA_1504	-	succinate dehydrogenase, iron-sulfur protein
1468	 52.05	0	1740878..1743709	+	943	192359900	sucA	CJA_1505	-	2-oxoglutarate dehydrogenase, E1 component
1469	 53.22	0	1743769..1744965	+	398	192359922	sucB	CJA_1506	-	2-oxoglutarate dehydrogenase, E2 component, dihydrolipoamide succinyltransferase
1470	 52.71	0	1745069..1746508	+	479	192361694	-	CJA_1507	-	dihydrolipoamide dehydrogenase
1471	 52.56	0	1746583..1747794	+	403	192359200	sucC	CJA_1508	-	succinyl-CoA synthetase beta chain
1472	 53.49	0	1747805..1748677	+	290	192360780	-	CJA_1510	-	succinyl-CoA synthetase alpha chain
1473	 45.74	-1	1748664..1748792	-	42	192360027	-	CJA_1509	-	hypothetical protein
1474	 49.61	0	1749054..1750976	+	640	192358903	speA	CJA_1511	-	arginine decarboxylase
1475	 48.75	0	1751009..1752208	+	399	192359525	-	CJA_1512	-	saccharopine dehydrogenase
1476	 49.92	0	1752186..1753409	+	407	192360578	nspC	CJA_1513	-	carboxynorspermidine decarboxylase
1477	 51.83	0	1753438..1755075	-	545	192361197	-	CJA_1514	-	Na+/H+ antiporter
1478	 41.38	-1	1755295..1756599	+	434	192360227	-	CJA_1515	-	putative membrane-fusion protein
1479	 40.44	-2	1756599..1758752	+	717	192361580	-	CJA_1516	-	putative toxin secretion ABC transporter, ATP-binding subunit/permease protein
1480	 43.14	-1	1758944..1759198	+	84	192361892	-	CJA_1517	-	hypothetical protein
1481	 27.12	-2	1759277..1760113	+	278	192359366	-	CJA_1518	-	hypothetical protein
1482	 28.29	-2	1760161..1761012	+	283	192359280	-	CJA_1519	-	hypothetical protein
1483	 29.34	-2	1761060..1761911	+	283	192362441	-	CJA_1520	-	hypothetical protein
1484	 35.64	-2	1761877..1763700	+	607	192362489	-	CJA_1521	-	hypothetical protein
1485	 33.11	-2	1764176..1765993	+	605	192360861	amy13B	CJA_1522	-	alpha amylase, putative, amy13B
1486	 51.83	0	1766437..1768269	-	610	192359817	-	CJA_1523	-	ABC-type multidrug efflux pump
1487	 50.89	0	1768470..1768862	+	130	192358800	-	CJA_1524	-	hypothetical protein
1488	 52.76	0	1768874..1769398	+	174	192360956	-	CJA_1525	-	hypothetical protein
1489	 49.81	0	1769454..1770479	-	341	192359583	-	CJA_1526	-	hypothetical protein
1490	 47.61	0	1770590..1771843	-	417	192362521	-	CJA_1527	-	hypothetical protein
1491	 52.07	0	1772441..1773454	+	337	192361303	nahO	CJA_1528	-	acetaldehyde dehydrogenase
1492	 53.42	0	1773493..1774149	-	218	192360473	-	CJA_1529	-	hypothetical protein
1493	 49.69	0	1774603..1776864	+	753	192360072	-	CJA_1530	-	fatty acid cis/trans isomerase
1494	 50.98	0	1776873..1777739	-	288	192362285	-	CJA_1531	-	hypothetical protein
1495	 49.55	0	1778430..1778540	-	36	192361729	-	CJA_1536	-	hypothetical protein
1496	 56.24	0	1778562..1779674	-	370	192359231	-	CJA_1537	-	hypothetical protein
1497	 56.90	0	1779715..1783113	-	1132	192360562	-	CJA_1538	-	hypothetical protein
1498	 56.50	0	1783124..1783723	-	199	192361418	-	CJA_1539	-	hypothetical protein
1499	 56.72	0	1783723..1785210	-	495	192362220	-	CJA_1540	-	hypothetical protein
1500	 55.31	0	1785321..1786667	-	448	192359254	-	CJA_1541	-	hypothetical protein
1501	 57.20	0	1786664..1786927	-	87	192359188	-	CJA_1542	-	Putative transcriptional regulator
1502	 58.72	+1	1787375..1788544	-	389	192361295	-	CJA_1543	-	hypothetical protein
1503	 58.23	+1	1788569..1789492	-	307	192361830	-	CJA_1544	-	dienelactone hydrolase domain protein
1504	 58.20	+1	1789627..1790547	+	306	192359615	-	CJA_1545	-	putative HTH-type transcriptional regulator YcjZ
1505	 54.24	0	1790708..1792945	-	745	192361043	norB	CJA_1546	-	nitric oxide reductase qNor type
1506	 58.93	+1	1793063..1793437	+	124	192361838	-	CJA_1547	-	hypothetical protein
1507	 55.67	0	1793507..1794670	+	387	192362238	-	CJA_1548	-	NnrS protein superfamily
1508	 49.28	0	1794654..1795136	+	160	192359950	-	CJA_1549	-	rrf2 family protein
1509	 40.47	-2	1795167..1797899	-	910	192361152	-	CJA_1550	-	hypothetical protein
1510	 55.34	0	1797890..1800088	-	732	192362232	-	CJA_1551	-	putative signaling protein
1511	 49.16	0	1800312..1801259	+	315	192359502	-	CJA_1552	-	ABC transporter, ATP-binding protein
1512	 46.64	-1	1801256..1802029	+	257	192359063	-	CJA_1553	-	ABC-type multidrug transport system, permease component
1513	 51.76	0	1802064..1802888	+	274	192361267	-	CJA_1554	-	GTP cyclohydrolase I family protein
1514	 49.39	0	1802896..1804278	-	460	192360627	-	CJA_1555	-	probable adenylate cyclase
1515	 45.68	-1	1804257..1804418	+	53	192361820	-	CJA_1557	-	hypothetical protein
1516	 50.93	0	1804275..1804382	-	35	192359570	-	CJA_1556	-	hypothetical protein
1517	 48.08	0	1804420..1805667	-	415	192360668	-	CJA_1558	-	hypothetical protein
1518	 54.12	0	1805853..1806410	+	185	192362331	-	CJA_1559	-	nitroreductase family protein
1519	 50.71	0	1806988..1807338	-	116	192361525	-	CJA_1562	-	hypothetical protein
1520	 54.65	0	1807398..1808396	-	332	192360246	-	CJA_1563	-	Luciferase-like monooxygenase
1521	 44.63	-1	1808585..1808761	-	58	192361336	-	CJA_1564	-	hypothetical protein
1522	 51.14	0	1808775..1810925	+	716	192360057	-	CJA_1565	-	hypothetical protein
1523	 46.41	-1	1810993..1811451	-	152	192359242	-	CJA_1566	-	putative lipoprotein
1524	 50.00	0	1811646..1812065	-	139	192361624	-	CJA_1567	-	hypothetical protein
1525	 57.21	0	1812330..1813619	-	429	192360823	nrdB	CJA_1568	-	ribonucleoside reductase, beta subunit
1526	 57.17	0	1813771..1816707	-	978	192361574	nrdA	CJA_1569	-	ribonucleoside reductase, large chain
1527	 57.88	+1	1817548..1819584	-	678	192360282	-	CJA_1570	-	Tat (twin-arginine translocation) pathway signal sequence domain protein
1528	 49.77	0	1819788..1820663	+	291	192359376	-	CJA_1571	-	hypothetical protein
1529	 52.62	0	1821023..1823842	+	939	192361961	-	CJA_1572	-	putative TonB dependent receptor
1530	 53.13	0	1823913..1825301	+	462	192361125	-	CJA_1573	-	Ser/Thr protein phosphatase family protein family
1531	 60.09	+1	1825438..1826349	+	303	192359397	-	CJA_1574	-	ABC transporter substrate binding protein
1532	 53.61	0	1826485..1827426	-	313	192360232	-	CJA_1575	-	polyphosphate kinase family protein
1533	 52.67	0	1827946..1828338	+	130	192359867	-	CJA_1576	-	PIN (PilT N terminus) domain
1534	 53.68	0	1828473..1829612	+	379	192361471	-	CJA_1577	-	fic family protein
1535	 47.76	0	1829819..1831003	+	394	192361977	-	CJA_1578	-	putative ATP-dependent DNA helicase
1536	 49.04	0	1831000..1831986	+	328	192359043	-	CJA_1579	-	phage-related regulatory protein cII
1537	 45.08	-1	1832390..1833232	+	280	192360125	-	CJA_1580	-	hypothetical protein
1538	 47.31	0	1833421..1834257	+	278	192362123	mod	CJA_1581	-	type III restriction-modification system methyltransferase
1539	 51.20	0	1834257..1837268	+	1003	192359394	res	CJA_1582	-	type III restriction system endonuclease
1540	 45.95	-1	1837439..1838104	-	221	192360267	csm2	CJA_1583	-	CRISPR-associated protein, Csm2 family
1541	 49.18	0	1838117..1839397	-	426	192361329	rloA	CJA_1584	-	RloA protein
1542	 60.10	+1	1839659..1841197	+	512	192359002	-	CJA_1585	-	hypothetical protein
1543	 61.42	+1	1841200..1841961	+	253	192359586	-	CJA_1586	-	hypothetical protein
1544	 56.87	0	1841958..1845263	+	1101	192361080	-	CJA_1587	-	ATP synthase, Delta/Epsilon chain, long alpha-helix domain
1545	 56.81	0	1845247..1846392	+	381	192361667	-	CJA_1588	-	hypothetical protein
1546	 41.64	-1	1846479..1847549	+	356	192359305	-	CJA_1589	-	hypothetical protein
1547	 66.89	+2	1847583..1849370	-	595	192360359	afuB_2	CJA_1590	-	ABC transporter permease protein
1548	 63.70	+2	1849437..1850414	-	325	192361403	-	CJA_1591	-	ABC transporter, substrate binding protein
1549	 57.52	+1	1850748..1851884	-	378	192361106	-	CJA_1592	-	ABC transporter ATP-binding protein
1550	 58.51	+1	1852020..1853894	-	624	192361654	-	CJA_1593	-	hypothetical protein
1551	 52.29	0	1853929..1854081	+	50	192359414	-	CJA_1594	-	hypothetical protein
1552	 51.18	0	1854362..1855504	-	380	192360288	-	CJA_1595	-	hypothetical protein
1553	 58.82	+1	1855605..1856636	-	343	192361606	-	CJA_1596	-	hypothetical protein
1554	 51.04	0	1856652..1857131	-	159	192362431	-	CJA_1597	-	hypothetical protein
1555	 52.53	0	1857253..1858143	+	296	192361406	-	CJA_1598	-	Auxin Efflux Carrier superfamily
1556	 56.51	0	1858157..1858747	-	196	192362440	cysC	CJA_1599	-	adenylylsulfate kinase
1557	 52.38	0	1859053..1859703	+	216	192359926	-	CJA_1600	-	Aspartyl/Asparaginyl beta-hydroxylase family
1558	 49.03	0	1859748..1860881	+	377	192362028	-	CJA_1601	-	hypothetical protein
1559	 51.22	0	1861175..1862035	+	286	192360988	purU	CJA_1602	-	formyltetrahydrofolate deformylase
1560	 58.31	+1	1862047..1863231	-	394	192362042	-	CJA_1603	-	transporter, major facilitator family
1561	 54.40	0	1863505..1865118	+	537	192360301	lctP	CJA_1604	-	L-lactate permease
1562	 55.86	0	1865189..1867705	-	838	192361441	gt35A	CJA_1605	-	carbohydrate phosphosrylase, putative, gt35A
1563	 51.86	0	1867766..1868758	-	330	192362477	-	CJA_1606	-	D-lactate dehydrogenase
1564	 52.45	0	1868860..1869471	-	203	192361811	-	CJA_1607	-	putative lipoprotein
1565	 49.23	0	1869440..1870414	-	324	192359021	-	CJA_1608	-	hypothetical protein
52.09	MEAN

5.42	STD DEV
