IslandPath Analysis: Cellvibrio japonicus Ueda107

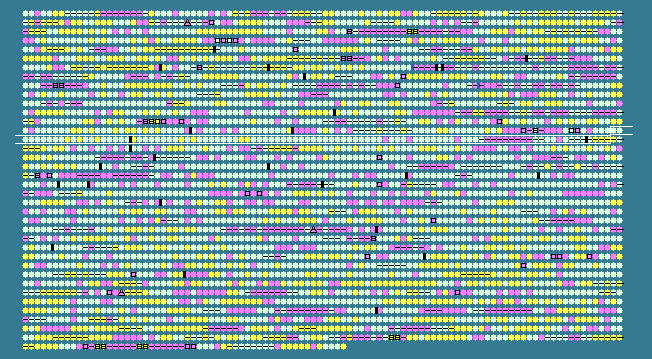

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1399	 50.65	0	1667967..1668503	+	178	192360672	rimM	CJA_1434	-	16S rRNA processing protein RimM
1400	 54.70	0	1668500..1669276	+	258	192359118	trmD	CJA_1435	-	tRNA (guanine-N1)-methyltransferase
1401	 49.29	0	1669309..1669659	+	116	192360163	rplS	CJA_1436	-	ribosomal protein L19
1402	 52.67	0	1669735..1670634	+	299	192360546	xerD	CJA_1437	-	tyrosine recombinase XerD
1403	 52.70	0	1670670..1671485	+	271	192361175	dsbC	CJA_1438	-	thiol:disulfide interchange protein DsbC
1404	 51.30	0	1671635..1672942	+	435	192358857	hom	CJA_1439	-	homoserine dehydrogenase
1405	 53.65	0	1672964..1674361	+	465	192361770	thrC	CJA_1440	-	threonine synthase
1406	 51.83	0	1674447..1675295	+	282	192360534	-	CJA_1441	-	thioredoxin-like protein
1407	 51.69	0	1675573..1676373	+	266	192361897	-	CJA_1442	-	hypothetical protein
1408	 55.70	0	1676525..1677463	-	312	192362386	-	CJA_1443	-	predicted GTPase
1409	 51.26	0	1677470..1677787	-	105	192361173	-	CJA_1444	-	hypothetical protein
1410	 56.33	0	1677916..1679124	+	402	192359520	-	CJA_1446	-	Sugar efflux transporter A
1411	 55.35	0	1679105..1679767	-	220	192359777	-	CJA_1445	-	hypothetical protein
1412	 49.76	0	1679785..1680204	-	139	192361958	holC	CJA_1447	-	DNA polymerase III, chi subunit
1413	 59.31	+1	1680228..1681817	-	529	192360702	-	CJA_1448	-	cytosol aminopeptidase
1414	 55.04	0	1682057..1683157	+	366	192359904	-	CJA_1449	-	putative permease, YjgP/YjgQ family superfamily
1415	 52.22	0	1683150..1684208	+	352	192358887	-	CJA_1450	-	putative permease, YjgP/YjgQ family
1416	 53.04	0	1684233..1684709	-	158	192362032	-	CJA_1451	-	putative RDD family
1417	 53.85	0	1684725..1685621	-	298	192360313	-	CJA_1452	-	hypothetical protein
1418	 53.33	0	1685618..1685722	-	34	192361660	-	CJA_1453	-	hypothetical protein
1419	 55.89	0	1685985..1687079	+	364	192360885	queA	CJA_1456	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1420	 54.97	0	1687122..1688258	+	378	192360495	tgt	CJA_1457	-	queuine tRNA-ribosyltransferase
1421	 50.59	0	1688443..1690320	+	625	192359607	secD	CJA_1458	-	protein-export membrane protein SecD
1422	 49.23	0	1690333..1691496	+	387	192362116	secF	CJA_1459	-	protein-export membrane protein SecF
1423	 49.70	0	1691483..1691647	+	54	192362131	-	CJA_1460	-	hypothetical protein
1424	 48.88	0	1691666..1693672	+	668	192360040	-	CJA_1461	-	two-component hybrid sensor and regulator
1425	 50.49	0	1694107..1696350	+	747	192359027	cel5A	CJA_1462	-	endo-1,4-beta glucanase, cel5A
1426	 53.36	0	1696431..1697234	-	267	192361503	suhB	CJA_1463	-	extragenic suppressor protein SuhB
1427	 56.56	0	1697479..1698339	+	286	192360664	-	CJA_1464	-	RNA methyltransferase, TrmH family, group 1
1428	 54.60	0	1698538..1699026	+	162	192359869	iscR	CJA_1465	-	iron-sulfur cluster assembly transcription factor IscR
1429	 57.30	0	1699047..1700210	+	387	192360188	-	CJA_1466	-	cysteine desulfurase used in synthesis of Fe-S cluster (tRNA 4-thiouridine sulfurtransferase )
1430	 50.94	0	1700238..1701674	+	478	192359328	sufB	CJA_1467	-	FeS assembly protein SufB
1431	 50.98	0	1701726..1702490	+	254	192362310	sufC	CJA_1468	-	FeS assembly ATPase SufC
1432	 53.95	0	1702494..1703798	+	434	192361506	sufD	CJA_1469	-	FeS assembly protein SufD
1433	 53.24	0	1703795..1705060	+	421	192359601	-	CJA_1470	-	selenocysteine lyase
1434	 53.23	0	1705075..1705446	+	123	192358912	-	CJA_1471	-	HesB protein
1435	 54.98	0	1705519..1706040	+	173	192361887	-	CJA_1472	-	Domain of unknown function domain protein
1436	 54.60	0	1706086..1706715	-	209	192361253	-	CJA_1473	-	transcriptional regulator, TetR family
1437	 56.18	0	1706828..1709974	-	1048	192358947	acrB	CJA_1474	-	AcrB/AcrD/AcrF family protein
1438	 58.01	+1	1709978..1711144	-	388	192359524	acrA	CJA_1475	-	multidrug resistance protein
1439	 53.33	0	1711365..1711799	+	144	192361068	-	CJA_1476	-	Fe-S metabolism associated domain protein
1440	 53.52	0	1712013..1712438	+	141	192359340	ndk	CJA_1477	-	nucleotide diphosphate kinase
1441	 52.94	0	1712477..1713685	+	402	192359958	-	CJA_1478	-	radical SAM enzyme, Cfr family
1442	 49.11	0	1713713..1714498	+	261	192361665	pilF	CJA_1479	-	type IV pilus biogenesis protein PilF
1443	 51.96	0	1714554..1715498	+	314	192360405	-	CJA_1480	-	putative DNA-binding protein
1444	 50.76	0	1715570..1716694	+	374	192358785	ispG	CJA_1481	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1445	 51.89	0	1716717..1717988	+	423	192360368	hisS	CJA_1482	-	histidyl-tRNA synthetase
1446	 50.43	0	1718054..1718755	+	233	192361013	-	CJA_1483	-	hypothetical protein
1447	 50.98	0	1718752..1719981	+	409	192361515	-	CJA_1484	-	PQQ enzyme repeat domain protein
1448	 51.75	0	1720107..1721507	+	466	192362315	-	CJA_1485	-	GTP-binding protein EngA
1449	 51.27	0	1721598..1722818	+	406	192359794	-	CJA_1486	-	response regulator
1450	 48.65	0	1722815..1723297	+	160	192360609	-	CJA_1487	-	anti-anti-sigma factor
1451	 49.67	0	1723340..1723798	-	152	192361202	-	CJA_1488	-	hypothetical protein
1452	 51.83	0	1723788..1724744	-	318	192362065	tal	CJA_1489	-	transaldolase
1453	 55.56	0	1724913..1725938	-	341	192359553	-	CJA_1490	-	tRNA-dihydrouridine synthase A
1454	 53.86	0	1726076..1726567	+	163	192361857	moaC	CJA_1491	-	molybdenum cofactor biosynthesis protein C
1455	 49.40	0	1726564..1726812	+	82	192361144	moaDE	CJA_1492	-	molybdenum cofactor biosynthesis protein D/E
1456	 49.78	0	1726815..1727270	+	151	192359605	-	CJA_1493	-	molybdenum cofactor biosynthesis protein E
1457	 50.57	0	1727316..1728632	-	438	192362514	-	CJA_1494	-	Glucose/galactose transporter
1458	 51.31	0	1728881..1729987	+	368	192360127	-	CJA_1495	-	transcriptional regulator, LacI family
1459	 50.95	0	1730045..1731043	-	332	192359017	glk	CJA_1496	-	glucokinase
1460	 51.16	0	1731380..1733842	+	820	192359181	cel3B	CJA_1497	-	glucan 1,4-beta-glucosidase, putative, cel3B
1461	 45.94	-1	1734298..1735503	+	401	192360915	-	CJA_1498	-	hypothetical protein
1462	 51.76	0	1735580..1736860	-	426	192360292	gltA	CJA_1499	-	citrate synthase I
1463	 54.47	0	1737045..1737167	+	40	192361481	-	CJA_1500	-	hypothetical protein
1464	 49.87	0	1737437..1737823	+	128	192362455	-	CJA_1501	-	Succinate dehydrogenase cytochrome b subunit
1465	 48.12	0	1737817..1738188	+	123	192360343	-	CJA_1502	-	succinate dehydrogenase hydrophobic membrane anchor protein
1466	 54.15	0	1738188..1739960	+	590	192362080	sdhA	CJA_1503	-	succinate dehydrogenase, flavoprotein subunit
1467	 50.07	0	1739975..1740679	+	234	192358883	sdhB	CJA_1504	-	succinate dehydrogenase, iron-sulfur protein
1468	 52.05	0	1740878..1743709	+	943	192359900	sucA	CJA_1505	-	2-oxoglutarate dehydrogenase, E1 component
1469	 53.22	0	1743769..1744965	+	398	192359922	sucB	CJA_1506	-	2-oxoglutarate dehydrogenase, E2 component, dihydrolipoamide succinyltransferase
1470	 52.71	0	1745069..1746508	+	479	192361694	-	CJA_1507	-	dihydrolipoamide dehydrogenase
1471	 52.56	0	1746583..1747794	+	403	192359200	sucC	CJA_1508	-	succinyl-CoA synthetase beta chain
1472	 53.49	0	1747805..1748677	+	290	192360780	-	CJA_1510	-	succinyl-CoA synthetase alpha chain
1473	 45.74	-1	1748664..1748792	-	42	192360027	-	CJA_1509	-	hypothetical protein
1474	 49.61	0	1749054..1750976	+	640	192358903	speA	CJA_1511	-	arginine decarboxylase
1475	 48.75	0	1751009..1752208	+	399	192359525	-	CJA_1512	-	saccharopine dehydrogenase
1476	 49.92	0	1752186..1753409	+	407	192360578	nspC	CJA_1513	-	carboxynorspermidine decarboxylase
1477	 51.83	0	1753438..1755075	-	545	192361197	-	CJA_1514	-	Na+/H+ antiporter
1478	 41.38	-1	1755295..1756599	+	434	192360227	-	CJA_1515	-	putative membrane-fusion protein
1479	 40.44	-2	1756599..1758752	+	717	192361580	-	CJA_1516	-	putative toxin secretion ABC transporter, ATP-binding subunit/permease protein
1480	 43.14	-1	1758944..1759198	+	84	192361892	-	CJA_1517	-	hypothetical protein
1481	 27.12	-2	1759277..1760113	+	278	192359366	-	CJA_1518	-	hypothetical protein
1482	 28.29	-2	1760161..1761012	+	283	192359280	-	CJA_1519	-	hypothetical protein
1483	 29.34	-2	1761060..1761911	+	283	192362441	-	CJA_1520	-	hypothetical protein
1484	 35.64	-2	1761877..1763700	+	607	192362489	-	CJA_1521	-	hypothetical protein
1485	 33.11	-2	1764176..1765993	+	605	192360861	amy13B	CJA_1522	-	alpha amylase, putative, amy13B
1486	 51.83	0	1766437..1768269	-	610	192359817	-	CJA_1523	-	ABC-type multidrug efflux pump
1487	 50.89	0	1768470..1768862	+	130	192358800	-	CJA_1524	-	hypothetical protein
1488	 52.76	0	1768874..1769398	+	174	192360956	-	CJA_1525	-	hypothetical protein
1489	 49.81	0	1769454..1770479	-	341	192359583	-	CJA_1526	-	hypothetical protein
1490	 47.61	0	1770590..1771843	-	417	192362521	-	CJA_1527	-	hypothetical protein
1491	 52.07	0	1772441..1773454	+	337	192361303	nahO	CJA_1528	-	acetaldehyde dehydrogenase
1492	 53.42	0	1773493..1774149	-	218	192360473	-	CJA_1529	-	hypothetical protein
1493	 49.69	0	1774603..1776864	+	753	192360072	-	CJA_1530	-	fatty acid cis/trans isomerase
1494	 50.98	0	1776873..1777739	-	288	192362285	-	CJA_1531	-	hypothetical protein
1495	 49.55	0	1778430..1778540	-	36	192361729	-	CJA_1536	-	hypothetical protein
1496	 56.24	0	1778562..1779674	-	370	192359231	-	CJA_1537	-	hypothetical protein
1497	 56.90	0	1779715..1783113	-	1132	192360562	-	CJA_1538	-	hypothetical protein
1498	 56.50	0	1783124..1783723	-	199	192361418	-	CJA_1539	-	hypothetical protein
52.09	MEAN

5.42	STD DEV
