IslandPath Analysis: Cellvibrio japonicus Ueda107

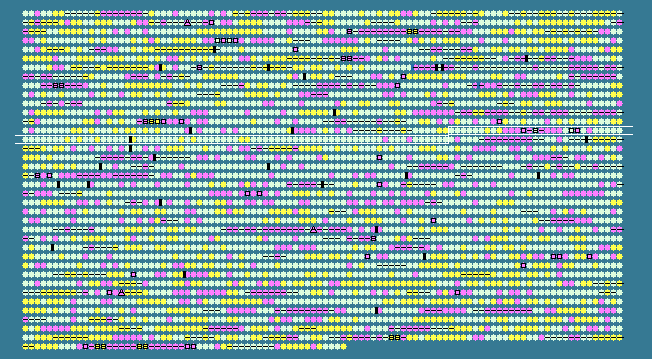

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1372	 54.48	0	1642773..1644200	+	475	192358981	creC	CJA_1407	-	two-component sensor CreC
1373	 52.19	0	1644275..1645621	+	448	192359931	creD	CJA_1408	-	inner membrane protein CreD
1374	 54.41	0	1645888..1646907	-	339	192360126	-	CJA_1409	-	oxidoreductase, aldo/keto reductase family
1375	 49.64	0	1647008..1647418	-	136	192361166	-	CJA_1410	-	hypothetical protein
1376	 53.78	0	1647591..1648832	+	413	192361691	-	CJA_1411	-	Short-chain alcohol dehydrogenase superfamily
1377	 52.21	0	1648897..1649802	+	301	192360768	-	CJA_1412	-	acyltransferase family protein
1378	 56.00	0	1649913..1650137	+	74	192361758	-	CJA_1413	-	hypothetical protein
1379	 52.31	0	1650364..1651143	+	259	192359565	-	CJA_1414	-	putative outer membrane protein
1380	 58.17	+1	1651218..1652135	+	305	192360556	-	CJA_1415	-	lipid A biosynthesis lauroyl acyltransferase
1381	 35.02	-2	1653154..1653390	-	78	192361162	-	CJA_1416	-	hypothetical protein
1382	 42.09	-1	1653472..1654008	+	178	192362254	-	CJA_1417	-	hypothetical protein
1383	 40.00	-2	1654071..1654175	+	34	192361846	-	CJA_1418	-	hypothetical protein
1384	 45.79	-1	1654208..1655764	+	518	192359156	-	CJA_1419	-	Transposase IS4 family
1385	 36.65	-2	1655933..1656775	+	280	192359901	-	CJA_1420	-	hypothetical protein
1386	 52.70	0	1656785..1657579	-	264	192360835	-	CJA_1421	-	IS3 family element, transposase orfB
1387	 41.06	-2	1657839..1659029	-	396	192361126	-	CJA_1422	-	relative of glycosyl transferase family GT1, gt*A
1388	 40.09	-2	1659042..1659899	-	285	192362134	-	CJA_1423	-	hypothetical protein
1389	 43.64	-1	1660182..1660928	+	248	192359533	-	CJA_1424	-	SapC family protein
1390	 46.46	-1	1660934..1661032	+	32	192360567	-	CJA_1425	-	hypothetical protein
1391	 51.11	0	1661036..1661350	-	104	192361732	-	CJA_1426	-	putative sigma 54 modulation protein
1392	 50.88	0	1661561..1662415	-	284	192359039	-	CJA_1427	-	transposase
1393	 46.33	-1	1662412..1662711	-	99	192360140	-	CJA_1428	-	transposase
1394	 53.76	0	1662869..1663798	+	309	192361213	-	CJA_1429	-	conserved hypothetical protein TIGR01777
1395	 47.50	0	1663946..1664425	+	159	192362218	-	CJA_1430	-	16 kDa heat shock protein A
1396	 49.70	0	1664476..1665483	-	335	192359511	-	CJA_1431	-	transcriptional regulator, AraC family
1397	 53.78	0	1665609..1667525	+	638	192359688	-	CJA_1432	-	probable beta-ketoacyl synthase
1398	 52.04	0	1667659..1667952	+	97	192360102	rpsP	CJA_1433	-	ribosomal protein S16
1399	 50.65	0	1667967..1668503	+	178	192360672	rimM	CJA_1434	-	16S rRNA processing protein RimM
1400	 54.70	0	1668500..1669276	+	258	192359118	trmD	CJA_1435	-	tRNA (guanine-N1)-methyltransferase
1401	 49.29	0	1669309..1669659	+	116	192360163	rplS	CJA_1436	-	ribosomal protein L19
1402	 52.67	0	1669735..1670634	+	299	192360546	xerD	CJA_1437	-	tyrosine recombinase XerD
1403	 52.70	0	1670670..1671485	+	271	192361175	dsbC	CJA_1438	-	thiol:disulfide interchange protein DsbC
1404	 51.30	0	1671635..1672942	+	435	192358857	hom	CJA_1439	-	homoserine dehydrogenase
1405	 53.65	0	1672964..1674361	+	465	192361770	thrC	CJA_1440	-	threonine synthase
1406	 51.83	0	1674447..1675295	+	282	192360534	-	CJA_1441	-	thioredoxin-like protein
1407	 51.69	0	1675573..1676373	+	266	192361897	-	CJA_1442	-	hypothetical protein
1408	 55.70	0	1676525..1677463	-	312	192362386	-	CJA_1443	-	predicted GTPase
1409	 51.26	0	1677470..1677787	-	105	192361173	-	CJA_1444	-	hypothetical protein
1410	 56.33	0	1677916..1679124	+	402	192359520	-	CJA_1446	-	Sugar efflux transporter A
1411	 55.35	0	1679105..1679767	-	220	192359777	-	CJA_1445	-	hypothetical protein
1412	 49.76	0	1679785..1680204	-	139	192361958	holC	CJA_1447	-	DNA polymerase III, chi subunit
1413	 59.31	+1	1680228..1681817	-	529	192360702	-	CJA_1448	-	cytosol aminopeptidase
1414	 55.04	0	1682057..1683157	+	366	192359904	-	CJA_1449	-	putative permease, YjgP/YjgQ family superfamily
1415	 52.22	0	1683150..1684208	+	352	192358887	-	CJA_1450	-	putative permease, YjgP/YjgQ family
1416	 53.04	0	1684233..1684709	-	158	192362032	-	CJA_1451	-	putative RDD family
1417	 53.85	0	1684725..1685621	-	298	192360313	-	CJA_1452	-	hypothetical protein
1418	 53.33	0	1685618..1685722	-	34	192361660	-	CJA_1453	-	hypothetical protein
1419	 55.89	0	1685985..1687079	+	364	192360885	queA	CJA_1456	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1420	 54.97	0	1687122..1688258	+	378	192360495	tgt	CJA_1457	-	queuine tRNA-ribosyltransferase
1421	 50.59	0	1688443..1690320	+	625	192359607	secD	CJA_1458	-	protein-export membrane protein SecD
1422	 49.23	0	1690333..1691496	+	387	192362116	secF	CJA_1459	-	protein-export membrane protein SecF
1423	 49.70	0	1691483..1691647	+	54	192362131	-	CJA_1460	-	hypothetical protein
1424	 48.88	0	1691666..1693672	+	668	192360040	-	CJA_1461	-	two-component hybrid sensor and regulator
1425	 50.49	0	1694107..1696350	+	747	192359027	cel5A	CJA_1462	-	endo-1,4-beta glucanase, cel5A
1426	 53.36	0	1696431..1697234	-	267	192361503	suhB	CJA_1463	-	extragenic suppressor protein SuhB
1427	 56.56	0	1697479..1698339	+	286	192360664	-	CJA_1464	-	RNA methyltransferase, TrmH family, group 1
1428	 54.60	0	1698538..1699026	+	162	192359869	iscR	CJA_1465	-	iron-sulfur cluster assembly transcription factor IscR
1429	 57.30	0	1699047..1700210	+	387	192360188	-	CJA_1466	-	cysteine desulfurase used in synthesis of Fe-S cluster (tRNA 4-thiouridine sulfurtransferase )
1430	 50.94	0	1700238..1701674	+	478	192359328	sufB	CJA_1467	-	FeS assembly protein SufB
1431	 50.98	0	1701726..1702490	+	254	192362310	sufC	CJA_1468	-	FeS assembly ATPase SufC
1432	 53.95	0	1702494..1703798	+	434	192361506	sufD	CJA_1469	-	FeS assembly protein SufD
1433	 53.24	0	1703795..1705060	+	421	192359601	-	CJA_1470	-	selenocysteine lyase
1434	 53.23	0	1705075..1705446	+	123	192358912	-	CJA_1471	-	HesB protein
1435	 54.98	0	1705519..1706040	+	173	192361887	-	CJA_1472	-	Domain of unknown function domain protein
1436	 54.60	0	1706086..1706715	-	209	192361253	-	CJA_1473	-	transcriptional regulator, TetR family
1437	 56.18	0	1706828..1709974	-	1048	192358947	acrB	CJA_1474	-	AcrB/AcrD/AcrF family protein
1438	 58.01	+1	1709978..1711144	-	388	192359524	acrA	CJA_1475	-	multidrug resistance protein
1439	 53.33	0	1711365..1711799	+	144	192361068	-	CJA_1476	-	Fe-S metabolism associated domain protein
1440	 53.52	0	1712013..1712438	+	141	192359340	ndk	CJA_1477	-	nucleotide diphosphate kinase
1441	 52.94	0	1712477..1713685	+	402	192359958	-	CJA_1478	-	radical SAM enzyme, Cfr family
1442	 49.11	0	1713713..1714498	+	261	192361665	pilF	CJA_1479	-	type IV pilus biogenesis protein PilF
1443	 51.96	0	1714554..1715498	+	314	192360405	-	CJA_1480	-	putative DNA-binding protein
1444	 50.76	0	1715570..1716694	+	374	192358785	ispG	CJA_1481	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1445	 51.89	0	1716717..1717988	+	423	192360368	hisS	CJA_1482	-	histidyl-tRNA synthetase
1446	 50.43	0	1718054..1718755	+	233	192361013	-	CJA_1483	-	hypothetical protein
1447	 50.98	0	1718752..1719981	+	409	192361515	-	CJA_1484	-	PQQ enzyme repeat domain protein
1448	 51.75	0	1720107..1721507	+	466	192362315	-	CJA_1485	-	GTP-binding protein EngA
1449	 51.27	0	1721598..1722818	+	406	192359794	-	CJA_1486	-	response regulator
1450	 48.65	0	1722815..1723297	+	160	192360609	-	CJA_1487	-	anti-anti-sigma factor
1451	 49.67	0	1723340..1723798	-	152	192361202	-	CJA_1488	-	hypothetical protein
1452	 51.83	0	1723788..1724744	-	318	192362065	tal	CJA_1489	-	transaldolase
1453	 55.56	0	1724913..1725938	-	341	192359553	-	CJA_1490	-	tRNA-dihydrouridine synthase A
1454	 53.86	0	1726076..1726567	+	163	192361857	moaC	CJA_1491	-	molybdenum cofactor biosynthesis protein C
1455	 49.40	0	1726564..1726812	+	82	192361144	moaDE	CJA_1492	-	molybdenum cofactor biosynthesis protein D/E
1456	 49.78	0	1726815..1727270	+	151	192359605	-	CJA_1493	-	molybdenum cofactor biosynthesis protein E
1457	 50.57	0	1727316..1728632	-	438	192362514	-	CJA_1494	-	Glucose/galactose transporter
1458	 51.31	0	1728881..1729987	+	368	192360127	-	CJA_1495	-	transcriptional regulator, LacI family
1459	 50.95	0	1730045..1731043	-	332	192359017	glk	CJA_1496	-	glucokinase
1460	 51.16	0	1731380..1733842	+	820	192359181	cel3B	CJA_1497	-	glucan 1,4-beta-glucosidase, putative, cel3B
1461	 45.94	-1	1734298..1735503	+	401	192360915	-	CJA_1498	-	hypothetical protein
1462	 51.76	0	1735580..1736860	-	426	192360292	gltA	CJA_1499	-	citrate synthase I
1463	 54.47	0	1737045..1737167	+	40	192361481	-	CJA_1500	-	hypothetical protein
1464	 49.87	0	1737437..1737823	+	128	192362455	-	CJA_1501	-	Succinate dehydrogenase cytochrome b subunit
1465	 48.12	0	1737817..1738188	+	123	192360343	-	CJA_1502	-	succinate dehydrogenase hydrophobic membrane anchor protein
1466	 54.15	0	1738188..1739960	+	590	192362080	sdhA	CJA_1503	-	succinate dehydrogenase, flavoprotein subunit
1467	 50.07	0	1739975..1740679	+	234	192358883	sdhB	CJA_1504	-	succinate dehydrogenase, iron-sulfur protein
1468	 52.05	0	1740878..1743709	+	943	192359900	sucA	CJA_1505	-	2-oxoglutarate dehydrogenase, E1 component
1469	 53.22	0	1743769..1744965	+	398	192359922	sucB	CJA_1506	-	2-oxoglutarate dehydrogenase, E2 component, dihydrolipoamide succinyltransferase
1470	 52.71	0	1745069..1746508	+	479	192361694	-	CJA_1507	-	dihydrolipoamide dehydrogenase
1471	 52.56	0	1746583..1747794	+	403	192359200	sucC	CJA_1508	-	succinyl-CoA synthetase beta chain
52.09	MEAN

5.42	STD DEV
