IslandPath Analysis: Cellvibrio japonicus Ueda107

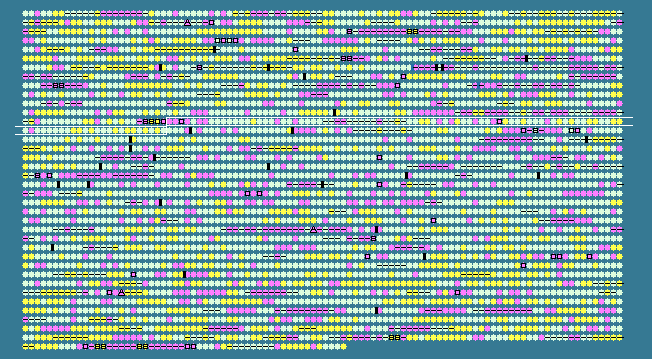

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1225	 34.26	-2	1466360..1466467	-	35	192360237	-	CJA_1258	-	hypothetical protein
1226	 43.87	-1	1466825..1468570	-	581	192360622	-	CJA_1259	-	ParB-like nuclease domain
1227	 46.81	0	1468772..1470337	-	521	192361400	-	CJA_1260	-	IS66 family element, transposase
1228	 46.72	0	1470370..1470720	-	116	192362462	-	CJA_1261	-	IS66 family element, Orf2 protein
1229	 52.38	0	1470717..1471031	-	104	192361385	-	CJA_1262	-	IS66 family element, Orf1 protein
1230	 44.60	-1	1471062..1471718	-	218	192360264	-	CJA_1263	-	hypothetical protein
1231	 41.30	-1	1471735..1473504	-	589	192362081	-	CJA_1264	-	hypothetical protein
1232	 52.35	0	1474498..1476816	-	772	192360999	-	CJA_1265	-	sensory box/GGDEF family protein
1233	 53.24	0	1477356..1478003	+	215	192360134	-	CJA_1266	-	hypothetical protein
1234	 48.90	0	1478101..1479051	+	316	192359679	-	CJA_1267	-	hypothetical protein
1235	 54.78	0	1479048..1480418	+	456	192361779	radA	CJA_1269	-	DNA repair protein RadA
1236	 50.58	0	1480415..1481272	-	285	192362113	-	CJA_1268	-	hypothetical protein
1237	 53.91	0	1481286..1481669	-	127	192362357	-	CJA_1270	-	hypothetical protein
1238	 53.44	0	1481685..1482062	-	125	192362371	-	CJA_1271	-	hypothetical protein
1239	 57.87	+1	1482291..1483211	+	306	192361502	-	CJA_1272	-	probable NAGC-like transcription regulator yajF
1240	 50.21	0	1483279..1483758	+	159	192360381	-	CJA_1273	-	hypothetical protein
1241	 51.83	0	1483752..1484789	+	345	192361972	-	CJA_1274	-	oxidoreductase
1242	 48.90	0	1484866..1485366	+	166	192360169	-	CJA_1276	-	hypothetical protein
1243	 40.40	-2	1485363..1485461	-	32	192358850	-	CJA_1275	-	hypothetical protein
1244	 52.06	0	1485468..1486994	-	508	192362344	pelC	CJA_1277	-	pectate lyase III
1245	 53.39	0	1487363..1488115	+	250	192361522	-	CJA_1278	-	oxidoreductase, short chain dehydrogenase/reductase family
1246	 48.60	0	1488407..1488943	+	178	192361540	-	CJA_1279	-	flavodoxin
1247	 54.08	0	1489039..1489491	+	150	192361317	-	CJA_1280	-	hypothetical protein
1248	 49.79	0	1489622..1489858	+	78	192359389	-	CJA_1281	-	hypothetical protein
1249	 53.93	0	1489874..1490611	+	245	192362370	-	CJA_1282	-	hypothetical protein
1250	 51.21	0	1490781..1492313	+	510	192361552	-	CJA_1283	-	hypothetical protein
1251	 51.01	0	1492628..1493170	+	180	192360801	-	CJA_1284	-	Spore Coat Protein U domain protein
1252	 51.04	0	1493194..1493724	+	176	192358979	-	CJA_1285	-	putative type 1 pili pilus subunit
1253	 47.87	0	1493757..1494506	+	249	192361945	fimC	CJA_1286	-	type 1 pilus chaperone FimC
1254	 47.66	0	1494493..1496796	+	767	192361029	fimD	CJA_1287	-	type 1 pili usher protein FimD
1255	 50.05	0	1496810..1497790	+	326	192360265	-	CJA_1288	-	putative type 1 pili tip component
1256	 50.50	0	1497823..1498626	-	267	192362167	-	CJA_1289	-	polysaccharide deacetylase
1257	 54.55	0	1498855..1499184	+	109	192359085	-	CJA_1290	-	putative type 1 pili tip component
1258	 49.96	0	1499307..1500581	+	424	192361442	uvs045	CJA_1291	-	Uvs045
1259	 53.42	0	1500652..1505775	-	1707	192360769	-	CJA_1292	-	cartilage oligomeric matrix protein
1260	 47.92	0	1505803..1506837	-	344	192359273	ompA	CJA_1293	-	outer membrane protein A
1261	 48.96	0	1507334..1508440	-	368	192360523	-	CJA_1294	-	Regulatory P domain of the subtilisin-like proprotein
1262	 54.09	0	1509162..1509479	-	105	192360898	-	CJA_1295	-	hypothetical protein
1263	 57.01	0	1509476..1511101	-	541	192362174	-	CJA_1296	-	Uncharacterized iron-regulated membrane protein DUF337
1264	 55.45	0	1511098..1511418	-	106	192358831	-	CJA_1297	-	conserved membrane-spanning domain protein
1265	 51.87	0	1511595..1513844	-	749	192359883	-	CJA_1298	-	ferripyoverdine receptor
1266	 52.66	0	1514066..1514479	-	137	192360914	exbD	CJA_1299	-	ExbD
1267	 57.78	+1	1514483..1515202	-	239	192362375	exbB	CJA_1300	-	ExbB
1268	 59.56	+1	1515239..1515871	-	210	192359415	uvs044	CJA_1301	-	Uvs044
1269	 51.08	0	1516170..1517888	+	572	192360271	amy13J	CJA_1302	-	alpha amylase, putative, amy13J
1270	 48.29	0	1517961..1518602	-	213	192361954	-	CJA_1303	-	hypothetical protein
1271	 53.72	0	1518725..1519651	-	308	192359194	-	CJA_1304	-	hypothetical protein
1272	 44.44	-1	1519971..1520087	-	38	192359992	-	CJA_1305	-	hypothetical protein
1273	 56.53	0	1520096..1522444	-	782	192360853	-	CJA_1306	-	TonB-dependent receptor
1274	 54.92	0	1522636..1523988	-	450	192359185	chrA	CJA_1307	-	chromate transporter
1275	 52.39	0	1524127..1526262	-	711	192359966	-	CJA_1308	-	TonB-dependent receptor
1276	 48.15	0	1526455..1527291	-	278	192360513	-	CJA_1309	-	hypothetical protein
1277	 49.81	0	1527462..1528517	+	351	192359129	-	CJA_1310	-	hypothetical protein
1278	 51.11	0	1528594..1528908	+	104	192360726	-	CJA_1311	-	IS66 family element, Orf1 protein
1279	 45.30	-1	1528905..1529255	+	116	192360009	-	CJA_1312	-	IS66 family element, Orf2 protein
1280	 46.40	-1	1529294..1530877	+	527	192360541	-	CJA_1313	-	IS66 family element, transposase
1281	 57.16	0	1531126..1532997	-	623	192359604	-	CJA_1314	-	probable ATP-binding component of ABC transporter
1282	 52.23	0	1533077..1534669	+	530	192361528	-	CJA_1315	-	transport protein
1283	 51.03	0	1534705..1535721	+	338	192360510	gly43F	CJA_1316	-	beta-xylosidase/alpha-L-arabinfuranosidase, putative, gly43F
1284	 57.69	+1	1535785..1537311	-	508	192359385	-	CJA_1317	-	putative lipoprotein
1285	 54.75	0	1537494..1538240	+	248	192362084	minC	CJA_1318	-	septum site-determining protein MinC
1286	 51.17	0	1538272..1539084	+	270	192360095	minD	CJA_1319	-	septum site-determining protein MinD
1287	 49.22	0	1539084..1539341	+	85	192360023	minE	CJA_1320	-	cell division topological specificity factor MinE
1288	 48.11	0	1539347..1540009	+	220	192360841	ycel4	CJA_1321	-	yceI-like protein, yceI4
1289	 54.47	0	1540028..1541569	+	513	192361739	-	CJA_1322	-	hypothetical protein
1290	 57.10	0	1541638..1544082	-	814	192359956	-	CJA_1323	-	radical SAM domain protein
1291	 54.90	0	1544182..1544640	-	152	192361146	-	CJA_1324	-	hypothetical protein
1292	 57.32	0	1544637..1544957	-	106	192359317	-	CJA_1325	-	phage shock protein
1293	 54.56	0	1545047..1545583	-	178	192360371	-	CJA_1326	-	hypothetical protein
1294	 54.32	0	1545868..1546110	-	80	192360322	-	CJA_1327	-	hypothetical protein
1295	 58.79	+1	1546113..1546442	-	109	192361396	-	CJA_1328	-	putative translation initation factor SUI1
1296	 58.86	+1	1546526..1547716	+	396	192361683	-	CJA_1329	-	beta-lactamase
1297	 54.34	0	1547716..1547934	+	72	192360094	-	CJA_1330	-	host factor for lysis of phiX174 infection-related protein
1298	 51.66	0	1548126..1550678	+	850	192359880	-	CJA_1331	-	sensory box/GGDEF domain/EAL domain protein
1299	 56.01	0	1550709..1552181	-	490	192359545	-	CJA_1332	-	Peptidase family M48 family
1300	 55.79	0	1552376..1552660	+	94	192362215	-	CJA_1333	-	Uncharacterized protein family UPF0033 family
1301	 52.35	0	1552757..1555738	+	993	192361196	-	CJA_1334	-	putative peptidase, insulinase family
1302	 38.33	-2	1555761..1555880	+	39	192360185	-	CJA_1335	-	hypothetical protein
1303	 53.32	0	1556163..1558814	+	883	192362251	aceE	CJA_1336	-	pyruvate dehydrogenase (acetyl-transferring), homodimeric type
1304	 54.98	0	1558901..1560466	+	521	192361641	gt4H	CJA_1337	-	glycosyl transferase, putative, gt4H
1305	 53.81	0	1560523..1561113	-	196	192360763	-	CJA_1338	-	hypothetical protein
1306	 50.51	0	1561139..1561528	-	129	192360817	-	CJA_1339	-	hypothetical protein
1307	 55.56	0	1561597..1562280	-	227	192361532	mobA	CJA_1340	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1308	 55.04	0	1562546..1563190	+	214	192361882	pdxH	CJA_1341	-	pyridoxamine 5'-phosphate oxidase
1309	 56.54	0	1563200..1564177	+	325	192359405	-	CJA_1342	-	alcohol dehydrogenase, zinc-containing
1310	 56.33	0	1564174..1565373	+	399	192361044	-	CJA_1343	-	CAIB/BAIF family protein
1311	 52.75	0	1565370..1565642	+	90	192361967	-	CJA_1344	-	hypothetical protein
1312	 56.60	0	1565626..1566231	+	201	192359003	-	CJA_1345	-	Cytidine and deoxycytidylate deaminase zinc-binding region domain protein
1313	 49.57	0	1566539..1567948	-	469	192359804	-	CJA_1346	-	decarboxylase family protein
1314	 49.91	0	1568087..1569178	-	363	192359260	hyl84	CJA_1347	-	hyaluronidase, putative, hyl84A
1315	 52.97	0	1569625..1571289	+	554	192360593	pgi	CJA_1348	-	glucose-6-phosphate isomerase
1316	 56.74	0	1571421..1573364	+	647	192361243	edd	CJA_1349	-	phosphogluconate dehydratase
1317	 53.56	0	1573472..1574959	+	495	192362519	zwf	CJA_1350	-	glucose-6-phosphate 1-dehydrogenase
1318	 57.59	+1	1574953..1575657	+	234	192359347	pgl	CJA_1351	-	6-phosphogluconolactonase
1319	 58.14	+1	1575688..1576320	+	210	192360358	kdgA	CJA_1352	-	KHG/KDPG aldolase
1320	 51.59	0	1576406..1577413	+	335	192360926	gap	CJA_1353	-	glyceraldehyde-3-phosphate dehydrogenase, type I
1321	 55.81	0	1577431..1578876	+	481	192362030	pyk	CJA_1354	-	pyruvate kinase
1322	 48.81	0	1578860..1579027	+	55	192360818	-	CJA_1355	-	hypothetical protein
1323	 55.79	0	1579040..1579885	+	281	192362027	-	CJA_1356	-	peptidase, M23/M37 family
1324	 52.17	0	1579914..1581734	+	606	192360643	-	CJA_1357	-	MORN repeat family protein
52.09	MEAN

5.42	STD DEV
