IslandPath Analysis: Cellvibrio japonicus Ueda107

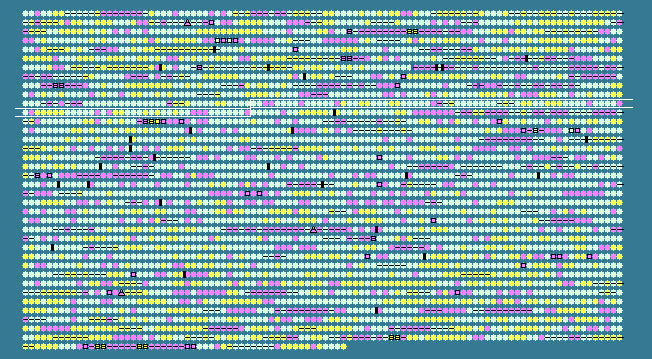

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.09 STD DEV: 5.42
Cellvibrio japonicus Ueda107, complete genome - 1..4576573
3754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1039	 53.07	0	1258249..1258851	+	200	192361205	-	CJA_1067	-	probable peroxidase
1040	 51.72	0	1259032..1259640	+	202	192360624	ung	CJA_1068	-	uracil-DNA glycosylase
1041	 47.72	0	1259961..1263080	+	1039	192359564	-	CJA_1069	-	putative TonB-dependent receptor
1042	 46.47	-1	1263166..1264665	+	499	192361347	-	CJA_1070	-	tryptophan halogenase
1043	 54.82	0	1265164..1266294	+	376	192360540	-	CJA_1071	-	phosphoserine aminotransferase
1044	 51.45	0	1266400..1267575	+	391	192359656	-	CJA_1072	-	D-isomer specific 2-hydroxyacid dehydrogenase
1045	 55.56	0	1267580..1267894	+	104	192361313	-	CJA_1073	-	hypothetical protein
1046	 54.83	0	1267866..1268507	+	213	192359075	-	CJA_1074	-	hydrolase, NUDIX family
1047	 48.13	0	1268838..1270466	+	542	192362139	fadD1	CJA_1075	-	long-chain-fatty-acid--CoA ligase
1048	 49.57	0	1270552..1271481	+	309	192360756	-	CJA_1076	-	hypothetical protein
1049	 49.69	0	1271490..1271966	+	158	192359952	-	CJA_1077	-	hypothetical protein
1050	 53.95	0	1271979..1273118	+	379	192361705	uvs083	CJA_1078	-	Uvs083
1051	 54.96	0	1273187..1273690	-	167	192360436	-	CJA_1079	-	hypothetical protein
1052	 55.18	0	1273674..1275440	-	588	192359000	cysI	CJA_1080	-	sulphite reductase
1053	 45.83	-1	1275443..1275562	+	39	192359821	-	CJA_1081	-	hypothetical protein
1054	 56.31	0	1275607..1276272	+	221	192361541	-	CJA_1082	-	ribosomal large subunit pseudouridine synthase A
1055	 53.97	0	1276334..1277467	+	377	192362394	-	CJA_1083	-	hypothetical protein
1056	 51.10	0	1277531..1278391	-	286	192359444	-	CJA_1084	-	Integral membrane protein DUF6 domain protein
1057	 55.84	0	1278624..1280276	-	550	192360277	-	CJA_1085	-	sodium:solute symporter family protein
1058	 57.01	0	1280276..1280596	-	106	192359757	-	CJA_1086	-	hypothetical protein
1059	 55.44	0	1280780..1281376	-	198	192361059	-	CJA_1087	-	DNA-binding response regulator, LuxR family
1060	 54.41	0	1281386..1282486	-	366	192362474	-	CJA_1088	-	two-component system sensor protein
1061	 49.12	0	1282685..1283197	+	170	192362209	-	CJA_1089	-	conserved hypothetical protein TIGR00645
1062	 56.59	0	1283277..1285151	-	624	192359192	-	CJA_1090	-	FAD binding domain protein
1063	 55.81	0	1285352..1286512	-	386	192362295	dapE	CJA_1091	-	succinyl-diaminopimelate desuccinylase
1064	 54.15	0	1286658..1287248	-	196	192359029	hspC2	CJA_1092	-	small heat shock protein
1065	 55.13	0	1287348..1287815	-	155	192360651	-	CJA_1093	-	16 kDa heat shock protein A
1066	 54.75	0	1288298..1289254	+	318	192361190	-	CJA_1094	-	ABC transporter domain protein
1067	 54.32	0	1289244..1292135	+	963	192360856	-	CJA_1095	-	hypothetical protein
1068	 52.35	0	1292151..1293149	+	332	192361740	-	CJA_1096	-	hypothetical protein
1069	 43.88	-1	1293198..1293434	-	78	192359210	-	CJA_1097	-	hypothetical protein
1070	 44.36	-1	1293431..1293811	-	126	192360035	-	CJA_1098	-	hypothetical protein
1071	 55.27	0	1293996..1294697	-	233	192361072	-	CJA_1099	-	conserved hypothetical protein TIGR01033
1072	 58.24	+1	1294762..1295793	-	343	192359735	dapD	CJA_1100	-	tetrahydrodipicolinate N-succinyltransferase
1073	 48.99	0	1295832..1296176	-	114	192360728	-	CJA_1101	-	Protein yffB
1074	 52.58	0	1296173..1296889	-	238	192360120	-	CJA_1102	-	endonuclease III
1075	 55.08	0	1296841..1298040	-	399	192359079	-	CJA_1103	-	aminotransferase, class I
1076	 52.65	0	1298071..1300788	-	905	192362270	glnD	CJA_1104	-	protein-P-II uridylyltransferase
1077	 54.67	0	1300861..1301652	-	263	192361188	map	CJA_1105	-	methionine aminopeptidase, type I
1078	 53.37	0	1301943..1302431	+	162	192360565	-	CJA_1106	-	hypothetical protein
1079	 55.50	0	1302483..1303109	+	208	192361632	-	CJA_1107	-	superoxide dismutase
1080	 53.75	0	1303109..1304029	+	306	192360798	-	CJA_1108	-	gufA protein
1081	 60.34	+1	1304097..1305314	-	405	192362286	uxuA	CJA_1109	-	mannonate dehydratase
1082	 52.09	0	1305699..1306439	+	246	192361500	rpsB	CJA_1110	-	ribosomal protein S2
1083	 53.38	0	1306564..1307436	+	290	192361153	tsf	CJA_1111	-	translation elongation factor Ts
1084	 55.58	0	1307571..1309094	+	507	192362481	-	CJA_1112	-	hypothetical protein
1085	 56.48	0	1309151..1309690	+	179	192359646	-	CJA_1113	-	hypothetical protein
1086	 53.74	0	1309813..1310547	+	244	192360684	pyrH	CJA_1114	-	uridylate kinase
1087	 53.64	0	1310652..1311104	+	150	192360685	frr	CJA_1115	-	ribosome recycling factor
1088	 55.60	0	1311223..1311972	+	249	192361948	uppS	CJA_1116	-	undecaprenyl diphosphate synthase
1089	 56.31	0	1311965..1312804	+	279	192359237	cdsA	CJA_1117	-	phosphatidate cytidylyltransferase
1090	 56.64	0	1312813..1314009	+	398	192360022	dxr	CJA_1118	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1091	 52.77	0	1314036..1315409	+	457	192359199	-	CJA_1119	-	putative membrane-associated zinc metalloprotease
1092	 48.77	0	1315480..1318122	+	880	192359801	-	CJA_1120	-	outer membrane protein, bacterial surface antigen family
1093	 48.62	0	1318239..1318709	+	156	192359665	-	CJA_1121	-	putative outer membrane protein OmpH
1094	 54.09	0	1318728..1319753	+	341	192360259	lpxD	CJA_1122	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1095	 46.80	0	1319788..1320225	+	145	192359935	fabZ	CJA_1123	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabZ
1096	 49.16	0	1320300..1321070	+	256	192362392	lpxA	CJA_1124	-	acyl-[acyl-carrier-protein]--UDP-N-acetylglucosamine O-acyltransferase
1097	 50.91	0	1321138..1322292	+	384	192362074	lpx19A	CJA_1125	-	lipid-A-disaccharide synthase, putative, lpx19A
1098	 52.36	0	1322289..1322903	+	204	192358895	rnhB	CJA_1126	-	ribonuclease HII
1099	 53.03	0	1322930..1326463	+	1177	192360327	dnaE	CJA_1127	-	DNA polymerase III, alpha subunit
1100	 45.61	-1	1326631..1327086	+	151	192360989	-	CJA_1128	-	CBS domain protein
1101	 54.01	0	1327453..1328400	+	315	192361884	accA	CJA_1129	-	acetyl-CoA carboxylase, carboxyl transferase, alpha subunit
1102	 33.33	-2	1328634..1328726	+	30	192358980	-	CJA_1130	-	hypothetical protein
1103	 57.88	+1	1328865..1330025	-	386	192359218	lldD	CJA_1131	-	L-lactate dehydrogenase
1104	 56.06	0	1330234..1331544	+	436	192361229	fucP	CJA_1132	-	L-fucose permease
1105	 60.30	+1	1331541..1332419	+	292	192362289	-	CJA_1133	-	Amidohydrolase family superfamily
1106	 56.24	0	1332517..1333341	+	274	192359551	kdgR	CJA_1134	-	transcriptional regulator kdgR
1107	 59.75	+1	1333537..1334649	+	370	192359521	-	CJA_1135	-	D-threo-aldose 1-dehydrogenase-like protein
1108	 53.74	0	1334646..1334993	+	115	192360589	-	CJA_1136	-	hydrolase, UxaA family
1109	 55.01	0	1334990..1336207	+	405	192360842	uxaA	CJA_1137	-	hydrolase, UxaA family
1110	 52.40	0	1336281..1337009	+	242	192361927	-	CJA_1138	-	oxidoreductase UCPA
1111	 52.72	0	1337034..1337879	+	281	192362262	-	CJA_1139	-	putative fumarylacetoacetate hydrolase family protein
1112	 51.87	0	1337925..1341134	+	1069	192359054	cel3D	CJA_1140	-	putative 1,4-beta-D-glucan glucohydrolase cel3D
1113	 47.15	0	1341418..1341909	+	163	192359038	-	CJA_1141	-	hypothetical protein
1114	 49.62	0	1342050..1343780	+	576	192360106	-	CJA_1142	-	OmpA family protein
1115	 45.97	-1	1343825..1344196	-	123	192361218	-	CJA_1143	-	hypothetical protein
1116	 57.08	0	1344236..1345309	-	357	192362503	purK	CJA_1144	-	phosphoribosylaminoimidazole carboxylase, ATPase subunit
1117	 56.91	0	1345336..1345827	-	163	192360478	purE	CJA_1145	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
1118	 54.85	0	1346009..1346947	-	312	192359827	-	CJA_1146	-	sodium bicarbonate cotransporter
1119	 53.47	0	1347009..1348016	+	335	192360757	rbcR	CJA_1147	-	rubisco operon transcriptional regulator
1120	 53.59	0	1348030..1349100	-	356	192362094	-	CJA_1148	-	apbE family protein
1121	 57.00	0	1349232..1350959	+	575	192362147	sul1	CJA_1149	-	sulfate permease family protein
1122	 52.58	0	1350962..1351912	-	316	192362021	rdgC	CJA_1150	-	recombinaison associated protein
1123	 55.88	0	1352051..1352671	-	206	192361350	fklB	CJA_1151	-	peptidylprolyl cis-trans isomerase
1124	 53.44	0	1352732..1353895	-	387	192360560	-	CJA_1152	-	hypothetical protein
1125	 52.57	0	1353973..1354944	+	323	192358792	-	CJA_1153	-	hypothetical protein
1126	 56.06	0	1355128..1356984	-	618	192362445	feoB	CJA_1154	-	ferrous iron transport protein B
1127	 55.02	0	1357033..1357341	-	102	192360969	-	CJA_1155	-	ferrous iron transport protein
1128	 50.06	0	1357591..1358439	+	282	192359917	-	CJA_1156	-	hypothetical protein
1129	 48.48	0	1358777..1361404	+	875	192360309	-	CJA_1157	-	TonB-dependent receptor
1130	 47.19	0	1361484..1363013	+	509	192359265	-	CJA_1159	-	tryptophan halogenase
1131	 46.22	-1	1363010..1363630	-	206	192361311	-	CJA_1158	-	hypothetical protein
1132	 54.65	0	1364143..1365066	+	307	192362337	-	CJA_1160	-	BadF/BadG/BcrA/BcrD ATPase family superfamily
1133	 50.75	0	1365168..1366499	+	443	192358969	gluP	CJA_1161	-	glucose/galactose transporter
1134	 50.33	0	1366462..1367661	+	399	192359631	-	CJA_1162	-	hypothetical protein
1135	 53.84	0	1367692..1368837	+	381	192360623	nag9A	CJA_1163	-	N-acetylhexosamine 6-phosphate deacetylase, putative, nag9A
1136	 49.24	0	1368872..1369663	+	263	192359522	nagB	CJA_1164	-	glucosamine-6-phosphate isomerase
1137	 55.25	0	1369848..1370933	-	361	192361788	-	CJA_1165	-	transcriptional regulator, LacI family
1138	 48.05	0	1371204..1372073	+	289	192359093	-	CJA_1166	-	periplasmic ATP/GTP-binding protein
52.09	MEAN

5.42	STD DEV
