IslandPath Analysis: Caulobacter sp. K31

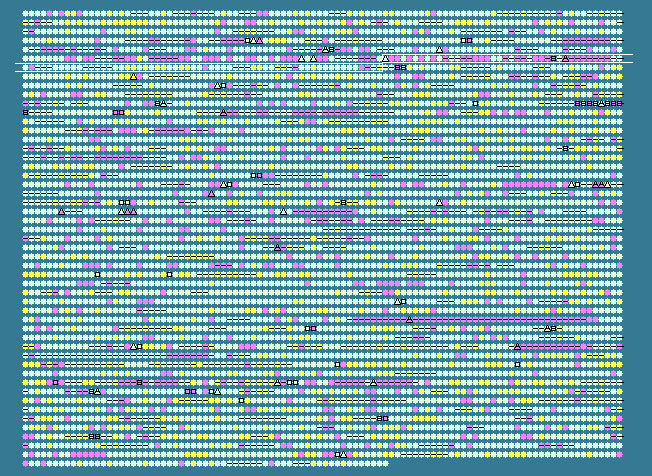

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
561	 68.46	0	615348..616853	-	501	167644534	-	Caul_0566	-	integrase catalytic region
562	 60.36	-1	616905..617126	-	73	167644535	-	Caul_0567	-	hypothetical protein
563	 63.98	0	617676..618158	-	160	167644536	-	Caul_0568	-	hypothetical protein
564	 68.82	0	618326..618418	+	30	167644537	-	Caul_0569	-	hypothetical protein
565	 61.35	-1	618488..619804	-	438	167644538	-	Caul_0570	-	beta-lactamase
566	 64.46	0	620098..621318	-	406	167644539	-	Caul_0571	-	beta-lactamase
567	 59.95	-2	621332..623608	-	758	167644540	-	Caul_0572	-	TonB-dependent receptor
568	 64.88	0	623795..624577	-	260	167644541	-	Caul_0573	-	short-chain dehydrogenase/reductase SDR
569	 63.36	-1	624677..625582	+	301	167644542	-	Caul_0574	-	LysR family transcriptional regulator
570	 64.95	0	625900..626715	-	271	167644543	-	Caul_0575	-	shikimate dehydrogenase substrate binding subunit
571	 63.06	-1	626940..628076	-	378	167644544	-	Caul_0576	-	hypothetical protein
572	 64.91	0	628301..629041	-	246	167644545	-	Caul_0577	-	short-chain dehydrogenase/reductase SDR
573	 64.45	0	629193..630005	+	270	167644546	-	Caul_0578	-	IclR family transcriptional regulator
574	 63.73	-1	630437..632002	+	521	167644547	-	Caul_0579	-	AMP-dependent synthetase and ligase
575	 63.34	-1	632054..633496	-	480	167644548	-	Caul_0580	-	succinic semialdehyde dehydrogenase
576	 61.62	-1	633516..634763	-	415	167644549	-	Caul_0581	-	pyruvate dehydrogenase complex dihydrolipoamide acetyltransferase
577	 63.64	-1	634781..636925	-	714	167644550	-	Caul_0582	-	dehydrogenase E1 component
578	 62.88	-1	637112..638512	-	466	167644551	-	Caul_0583	-	citrate transporter
579	 67.11	0	638674..640257	-	527	167644552	-	Caul_0584	-	carboxylesterase type B
580	 66.97	0	640273..641901	-	542	167644553	-	Caul_0585	-	major facilitator transporter
581	 59.19	-2	641898..642218	-	106	167644554	-	Caul_0586	-	NIPSNAP family protein
582	 66.81	0	642215..644257	-	680	167644555	-	Caul_0587	-	dehydrogenase E1 component
583	 61.37	-1	644893..645723	-	276	167644556	-	Caul_0588	-	TetR family transcriptional regulator
584	 63.63	-1	646375..647691	+	438	167644557	-	Caul_0589	-	beta-lactamase
585	 64.90	0	648327..649685	+	452	167644558	-	Caul_0590	-	beta-lactamase
586	 62.73	-1	650054..653152	+	1032	167644559	-	Caul_0591	-	TonB-dependent receptor
587	 63.76	-1	653273..654202	+	309	167644560	-	Caul_0592	-	3-hydroxyacyl-CoA dehydrogenase NAD-binding
588	 63.77	-1	654195..655853	+	552	167644561	-	Caul_0593	-	feruloyl esterase
589	 60.34	-1	656144..656380	-	78	167644562	-	Caul_0594	-	transposase, IS4
590	 68.23	0	656533..657108	+	191	167644563	-	Caul_0595	-	protein tyrosine phosphatase-like protein
591	 62.73	-1	657118..658665	-	515	167644564	-	Caul_0596	-	integrase family protein
592	 58.90	-2	659079..659387	+	102	167644565	-	Caul_0597	-	hypothetical protein
593	 59.79	-2	660200..661522	+	440	167644566	-	Caul_0598	-	DNA-cytosine methyltransferase
594	 54.07	-2	661526..662605	+	359	167644567	-	Caul_0599	-	hypothetical protein
595	 47.31	-2	662618..663118	-	166	167644568	-	Caul_0600	-	hypothetical protein
596	 49.11	-2	663118..664245	-	375	167644569	-	Caul_0601	-	hypothetical protein
597	 53.24	-2	664446..665294	+	282	167644570	-	Caul_0602	-	cobyrinic acid ac-diamide synthase
598	 61.60	-1	666626..666862	-	78	167644571	-	Caul_0603	-	XRE family transcriptional regulator
599	 65.32	0	666994..667512	+	172	167644572	-	Caul_0604	-	hypothetical protein
600	 64.68	0	667549..667800	+	83	167644573	-	Caul_0605	-	hypothetical protein
601	 67.98	0	667789..669306	-	505	167644574	-	Caul_0606	-	hypothetical protein
602	 62.03	-1	670289..670762	-	157	167644575	-	Caul_0607	-	resolvase domain-containing protein
603	 68.53	0	671152..672333	+	393	167644576	-	Caul_0608	-	two component transcriptional regulator
604	 68.50	0	672419..672799	+	126	167644577	-	Caul_0609	-	hypothetical protein
605	 66.67	0	673277..673603	+	108	167644578	-	Caul_0610	-	sulfate transporter/antisigma-factor antagonist STAS
606	 66.12	0	673600..673965	+	121	167644579	-	Caul_0611	-	response regulator receiver protein
607	 69.98	0	673962..675920	+	652	167644580	-	Caul_0612	-	CheA signal transduction histidine kinase
608	 66.48	0	675920..676447	+	175	167644581	-	Caul_0613	-	CheW protein
609	 67.86	0	676464..678146	+	560	167644582	-	Caul_0614	-	methyl-accepting chemotaxis sensory transducer
610	 68.33	0	678195..679994	+	599	167644583	-	Caul_0615	-	methyl-accepting chemotaxis sensory transducer
611	 68.50	0	679994..680485	+	163	167644584	-	Caul_0616	-	CheW protein
612	 64.45	0	680528..681385	+	285	167644585	-	Caul_0617	-	MCP methyltransferase, CheR-type
613	 69.98	0	681390..682505	+	371	167644586	-	Caul_0618	-	response regulator receiver modulated CheB methylesterase
614	 71.26	0	682588..684327	-	579	167644587	-	Caul_0619	-	hypothetical protein
615	 69.20	0	684376..686313	-	645	167644588	-	Caul_0620	-	PAS/PAC sensor hybrid histidine kinase
616	 68.86	0	686521..687159	-	212	167644589	-	Caul_0621	-	two component LuxR family transcriptional regulator
617	 68.90	0	687161..690202	-	1013	167644590	-	Caul_0622	-	histidine kinase
618	 72.88	+1	690364..690717	+	117	167644591	-	Caul_0623	-	hypothetical protein
619	 71.33	0	690822..691721	+	299	167644592	-	Caul_0624	-	AraC family transcriptional regulator
620	 69.99	0	691725..692747	-	340	167644593	-	Caul_0625	-	gluconolactonase
621	 71.53	0	693630..694781	-	383	167644594	-	Caul_0626	-	L-carnitine dehydratase/bile acid-inducible protein F
622	 70.27	0	694778..695941	-	387	167644595	-	Caul_0627	-	L-carnitine dehydratase/bile acid-inducible protein F
623	 72.32	+1	696090..696938	+	282	167644596	-	Caul_0628	-	aldose 1-epimerase
624	 71.60	0	697169..697816	-	215	167644597	-	Caul_0629	-	transcriptional regulator FixK
625	 70.41	0	697952..698566	-	204	167644598	-	Caul_0630	-	response regulator FixJ
626	 70.58	0	698559..700064	-	501	167644599	-	Caul_0631	-	multi-sensor signal transduction histidine kinase
627	 75.36	+1	700071..701783	-	570	167644600	-	Caul_0632	-	ABC transporter related
628	 76.28	+2	701780..703423	-	547	167644601	-	Caul_0633	-	cysteine ABC transporter permease/ATP-binding protein
629	 65.15	0	703547..705127	+	526	167644602	-	Caul_0634	-	cytochrome bd ubiquinol oxidase subunit I
630	 68.76	0	705140..706285	+	381	167644603	-	Caul_0635	-	cytochrome d ubiquinol oxidase, subunit II
631	 59.35	-2	706298..706420	+	40	167644604	-	Caul_0636	-	cyd operon protein YbgT
632	 67.11	0	706750..707202	+	150	167644605	-	Caul_0637	-	CheW protein
633	 68.88	0	707426..707923	-	165	167644606	-	Caul_0638	-	hypothetical protein
634	 67.75	0	708164..708808	-	214	167644607	-	Caul_0639	-	GTPase EngB
635	 64.45	0	708808..710700	-	630	167644608	-	Caul_0640	-	putative inner membrane protein translocase component YidC
636	 67.11	0	710708..711154	-	148	167644609	-	Caul_0641	-	ribonuclease P protein component
637	 68.15	0	711271..711405	-	44	167644610	-	Caul_0642	-	ribosomal protein L34
638	 67.22	0	711588..712130	+	180	167644611	-	Caul_0643	-	hypothetical protein
639	 71.49	0	712127..713122	-	331	167644612	-	Caul_0644	-	alcohol dehydrogenase
640	 71.90	+1	713267..714316	-	349	167644613	-	Caul_0645	-	alpha/beta hydrolase domain-containing protein
641	 69.16	0	714434..715075	-	213	167644614	-	Caul_0646	-	TetR family transcriptional regulator
642	 66.74	0	715283..716665	-	460	167644615	-	Caul_0647	-	flavin-containing monooxygenase FMO
643	 73.79	+1	716756..717064	-	102	167644616	-	Caul_0648	-	hypothetical protein
644	 72.41	+1	717234..718139	-	301	167644617	-	Caul_0649	-	LysR family transcriptional regulator
645	 70.81	0	718229..719242	+	337	167644618	-	Caul_0650	-	NAD-dependent epimerase/dehydratase
646	 63.77	-1	719373..720131	-	252	167644619	-	Caul_0651	-	hypothetical protein
647	 65.04	0	720298..720666	+	122	167644620	-	Caul_0652	-	RelE-like cytotoxic translational repressor of toxin-antitoxin stability system
648	 68.33	0	720671..720970	+	99	167644621	-	Caul_0653	-	XRE family transcriptional regulator
649	 71.56	0	721018..722406	-	462	167644622	-	Caul_0654	-	L-serine dehydratase 1
650	 67.57	0	722576..724228	-	550	167644623	-	Caul_0655	-	peptidase M28
651	 70.76	0	724414..725391	-	325	167644624	-	Caul_0656	-	pyridoxal-5'-phosphate-dependent protein beta subunit
652	 65.85	0	725491..726099	+	202	167644625	-	Caul_0657	-	hypothetical protein
653	 67.91	0	726220..727506	+	428	167644626	-	Caul_0658	-	adenylosuccinate synthetase
654	 70.34	0	727609..729321	+	570	167644627	-	Caul_0659	-	integral membrane sensor hybrid histidine kinase
655	 66.50	0	729346..730521	+	391	167644628	-	Caul_0660	-	hypothetical protein
656	 70.44	0	730611..731405	+	264	167644629	-	Caul_0661	-	response regulator receiver protein
657	 63.29	-1	731489..732376	-	295	167644630	-	Caul_0662	-	RNA polymerase factor sigma-32
658	 58.16	-2	732367..732648	-	93	167644631	-	Caul_0663	-	hypothetical protein
659	 68.35	0	732683..733039	+	118	167644632	-	Caul_0664	-	membrane protein of unknown function
660	 72.24	+1	733069..733803	-	244	167644633	-	Caul_0665	-	tetratricopeptide TPR_4
67.78	MEAN

3.85	STD DEV
