IslandPath Analysis: Caulobacter sp. K31

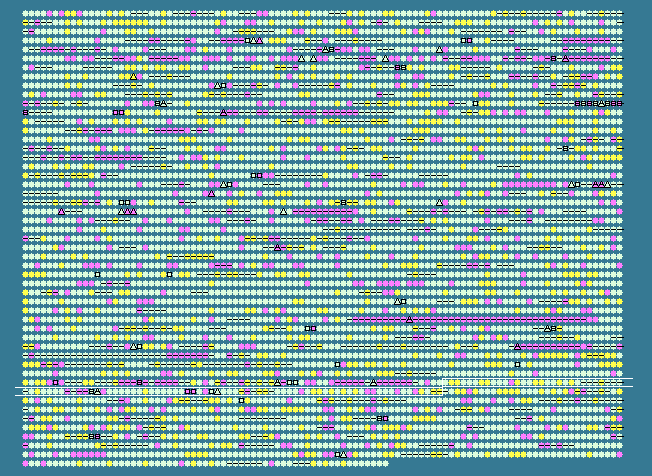

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4171	 67.71	0	4550198..4551160	-	320	167648144	-	Caul_4185	-	ABC transporter related
4172	 74.83	+1	4551305..4551598	+	97	167648145	-	Caul_4186	-	hypothetical protein
4173	 71.69	+1	4551608..4552045	+	145	167648146	-	Caul_4187	-	thioesterase superfamily protein
4174	 66.57	0	4552217..4553203	-	328	167648147	-	Caul_4188	-	type II secretion system protein
4175	 66.46	0	4553215..4554192	-	325	167648148	-	Caul_4189	-	type II secretion system protein
4176	 67.92	0	4554196..4555710	-	504	167648149	-	Caul_4190	-	type II secretion system protein E
4177	 72.15	+1	4555715..4557301	-	528	167648150	-	Caul_4191	-	pilus assembly protein CpaE
4178	 72.06	+1	4557301..4558005	-	234	167648151	-	Caul_4192	-	pilus biogenesis lipoprotein CpaD
4179	 68.56	0	4558016..4559653	-	545	167648152	-	Caul_4193	-	type II and III secretion system protein
4180	 71.04	0	4559650..4560540	-	296	167648153	-	Caul_4194	-	Flp pilus assembly protein CpaB
4181	 69.98	0	4560739..4561251	-	170	167648154	-	Caul_4195	-	peptidase A24A prepilin type IV
4182	 62.37	-1	4561420..4561605	-	61	167648155	-	Caul_4196	-	Flp/Fap pilin component
4183	 72.73	+1	4561916..4562311	+	131	167648156	-	Caul_4197	-	hypothetical protein
4184	 67.19	0	4562420..4562995	+	191	167648157	-	Caul_4198	-	TadE family protein
4185	 67.02	0	4562986..4563552	+	188	167648158	-	Caul_4199	-	hypothetical protein
4186	 75.00	+1	4563549..4564316	-	255	167648159	-	Caul_4200	-	aminotransferase class IV
4187	 73.43	+1	4564313..4565701	-	462	167648160	-	Caul_4201	-	para-aminobenzoate synthase component I
4188	 69.44	0	4565729..4567168	-	479	167648161	-	Caul_4202	-	hypothetical protein
4189	 69.90	0	4567274..4568047	-	257	167648162	-	Caul_4203	-	protein tyrosine/serine phosphatase
4190	 73.50	+1	4568109..4568927	+	272	167648163	-	Caul_4204	-	alpha/beta hydrolase fold
4191	 68.30	0	4569079..4571043	-	654	167648164	-	Caul_4205	-	1A family penicillin-binding protein
4192	 71.91	+1	4571343..4573229	+	628	167648165	-	Caul_4206	-	ATP-dependent DNA helicase RecQ
4193	 67.64	0	4573329..4573637	+	102	167648166	-	Caul_4207	-	hypothetical protein
4194	 69.93	0	4573651..4574109	-	152	167648167	-	Caul_4208	-	hypothetical protein
4195	 71.11	0	4574295..4576817	-	840	167648168	-	Caul_4209	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
4196	 68.21	0	4576845..4577687	-	280	167648169	-	Caul_4210	-	UspA domain-containing protein
4197	 71.76	+1	4577782..4578978	-	398	167648170	-	Caul_4211	-	RND family efflux transporter MFP subunit
4198	 69.96	0	4578981..4581350	-	789	167648171	-	Caul_4212	-	hypothetical protein
4199	 67.34	0	4581347..4582084	-	245	167648172	-	Caul_4213	-	ABC transporter related
4200	 65.86	0	4582179..4582550	-	123	167648173	-	Caul_4214	-	hypothetical protein
4201	 67.97	0	4582569..4583414	-	281	167648174	-	Caul_4215	-	UspA domain-containing protein
4202	 69.55	0	4583574..4584614	+	346	167648175	-	Caul_4216	-	hypothetical protein
4203	 72.04	+1	4584569..4585201	-	210	167648176	-	Caul_4217	-	HdeD protein
4204	 66.36	0	4585393..4585713	+	106	167648177	-	Caul_4218	-	hypothetical protein
4205	 66.52	0	4586033..4586728	+	231	167648178	-	Caul_4219	-	GntR family transcriptional regulator
4206	 64.93	0	4586731..4587075	-	114	167648179	-	Caul_4220	-	hypothetical protein
4207	 68.48	0	4587101..4588534	-	477	167648180	-	Caul_4221	-	PepSY-associated TM helix domain-containing protein
4208	 62.68	-1	4591124..4591399	+	91	167648181	-	Caul_4224	-	hypothetical protein
4209	 65.25	0	4591408..4592538	+	376	167648182	-	Caul_4225	-	high-affinity nickel-transporter
4210	 64.08	0	4592769..4593194	-	141	167648183	-	Caul_4226	-	hypothetical protein
4211	 52.84	-2	4593497..4594270	-	257	167648184	-	Caul_4227	-	hypothetical protein
4212	 66.67	0	4594593..4594907	+	104	167648185	-	Caul_4228	-	transposase IS3/IS911 family protein
4213	 67.83	0	4594904..4595764	+	286	167648186	-	Caul_4229	-	integrase catalytic region
4214	 61.64	-1	4595840..4596157	+	105	167648187	-	Caul_4230	-	heat shock protein Hsp20
4215	 67.71	0	4596302..4597069	-	255	167648188	-	Caul_4231	-	short-chain dehydrogenase/reductase SDR
4216	 65.12	0	4597293..4597937	+	214	167648189	-	Caul_4232	-	nitroreductase
4217	 69.26	0	4597934..4600591	+	885	167648190	-	Caul_4233	-	erythromycin esterase
4218	 66.36	0	4601373..4602020	-	215	167648191	-	Caul_4234	-	transport-associated
4219	 70.31	0	4602681..4603229	+	182	167648192	-	Caul_4235	-	hypothetical protein
4220	 66.19	0	4604370..4605200	+	276	167648193	-	Caul_4236	-	K potassium transporter
4221	 71.90	+1	4605082..4605654	-	190	167648194	-	Caul_4237	-	putative transmembrane protein
4222	 65.35	0	4605767..4606447	-	226	167648195	-	Caul_4238	-	two component transcriptional regulator
4223	 69.65	0	4606453..4609137	-	894	167648196	-	Caul_4239	-	osmosensitive K+ channel signal transduction histidine kinase
4224	 70.73	0	4609141..4609731	-	196	167648197	-	Caul_4240	-	potassium-transporting ATPase, C subunit
4225	 68.65	0	4609791..4611860	-	689	167648198	-	Caul_4241	-	K+-transporting ATPase, B subunit
4226	 67.84	0	4611880..4613589	-	569	167648199	-	Caul_4242	-	potassium-transporting ATPase subunit A
4227	 64.78	0	4613692..4614009	-	105	167648200	-	Caul_4243	-	hypothetical protein
4228	 60.21	-1	4614775..4615161	-	128	167648201	-	Caul_4244	-	transposase IS4 family protein
4229	 63.14	-1	4615158..4615526	-	122	167648202	-	Caul_4245	-	transposase and inactivated derivative
4230	 66.17	0	4615650..4617269	-	539	167648203	-	Caul_4246	-	hemolysin-type calcium-binding region
4231	 55.21	-2	4618176..4618463	-	95	167648204	-	Caul_4248	-	hypothetical protein
4232	 66.67	0	4618500..4618814	+	104	167648205	-	Caul_4249	-	transposase IS3/IS911 family protein
4233	 67.71	0	4618811..4619671	+	286	167648206	-	Caul_4250	-	integrase catalytic region
4234	 66.46	0	4619932..4620408	-	158	167648207	-	Caul_4251	-	activator of Hsp90 ATPase 1 family protein
4235	 65.81	0	4620401..4620751	-	116	167648208	-	Caul_4252	-	ArsR family transcriptional regulator
4236	 67.24	0	4620942..4623227	+	761	167648209	-	Caul_4253	-	excinuclease ABC subunit B
4237	 72.52	+1	4623565..4623957	+	130	167648210	-	Caul_4254	-	hypothetical protein
4238	 48.90	-2	4624046..4625722	+	558	167648211	-	Caul_4255	-	hypothetical protein
4239	 69.13	0	4627212..4627820	-	202	167648212	-	Caul_4256	-	hypothetical protein
4240	 74.22	+1	4627910..4628425	+	171	167648213	-	Caul_4257	-	hypothetical protein
4241	 74.12	+1	4628485..4629021	+	178	167648214	-	Caul_4258	-	hypothetical protein
4242	 70.19	0	4629152..4629463	+	103	167648215	-	Caul_4259	-	hypothetical protein
4243	 70.18	0	4629529..4630611	+	360	167648216	-	Caul_4260	-	glycerophosphoryl diester phosphodiesterase
4244	 69.96	0	4630673..4631734	-	353	167648217	-	Caul_4261	-	hypothetical protein
4245	 70.01	0	4631931..4632827	+	298	167648218	-	Caul_4262	-	hypothetical protein
4246	 70.98	0	4633112..4635037	+	641	167648219	-	Caul_4263	-	DNA primase
4247	 58.68	-2	4635219..4635506	-	95	167648220	-	Caul_4264	-	excinuclease ABC subunit C
4248	 64.67	0	4636092..4638041	+	649	167648221	-	Caul_4265	-	RNA polymerase sigma factor RpoD
4249	 77.30	+2	4638181..4639026	-	281	167648222	-	Caul_4266	-	hypothetical protein
4250	 75.04	+1	4639121..4640410	-	429	167648223	-	Caul_4267	-	peptidase S8 and S53 subtilisin kexin sedolisin
4251	 69.46	0	4640542..4641042	+	166	167648224	-	Caul_4268	-	ECF subfamily RNA polymerase sigma-24 factor
4252	 74.76	+1	4641039..4641866	+	275	167648225	-	Caul_4269	-	putative transmembrane anti-sigma factor
4253	 65.38	0	4641951..4642184	-	77	167648226	-	Caul_4270	-	hypothetical protein
4254	 73.63	+1	4642343..4642543	-	66	167648227	-	Caul_4271	-	hypothetical protein
4255	 67.87	0	4642819..4644477	+	552	167648228	-	Caul_4272	-	peptidase M28
4256	 71.82	+1	4644573..4645232	+	219	167648229	-	Caul_4273	-	hypothetical protein
4257	 65.72	0	4645297..4645929	-	210	167648230	-	Caul_4274	-	hypothetical protein
4258	 59.60	-2	4645978..4646274	+	98	167648231	-	Caul_4275	-	hypothetical protein
4259	 58.06	-2	4646271..4646549	+	92	167648232	-	Caul_4276	-	plasmid stabilization system protein
4260	 67.87	0	4646569..4648473	+	634	167648233	-	Caul_4277	-	excinuclease ABC subunit C
4261	 70.87	0	4648596..4649762	-	388	167648234	-	Caul_4278	-	saccharopine dehydrogenase
4262	 70.80	0	4649886..4651166	-	426	167648235	-	Caul_4279	-	major facilitator transporter
4263	 62.27	-1	4651408..4652454	+	348	167648236	-	Caul_4280	-	TonB family protein
4264	 67.64	0	4652488..4653105	+	205	167648237	-	Caul_4281	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
4265	 71.25	0	4653505..4653744	-	79	167648238	-	Caul_4282	-	hypothetical protein
4266	 62.32	-1	4654054..4654260	+	68	167648239	-	Caul_4283	-	cold-shock DNA-binding domain-containing protein
4267	 71.93	+1	4654453..4655649	+	398	167648240	-	Caul_4284	-	patatin
4268	 67.66	0	4655976..4659293	+	1105	167648241	-	Caul_4285	-	carbamoyl phosphate synthase large subunit
4269	 73.48	+1	4659590..4659985	+	131	167648242	-	Caul_4286	-	hypothetical protein
4270	 71.35	0	4660164..4661039	-	291	167648243	-	Caul_4287	-	restriction endonuclease
67.78	MEAN

3.85	STD DEV
