IslandPathversion 1.0

IslandPath Analysis: Caulobacter sp. K31

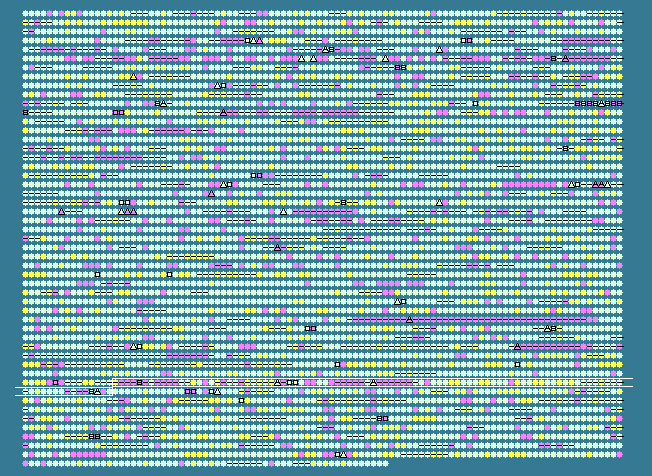

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4116	 72.38	+1	4485508..4486224	+	238	167648089	-	Caul_4130	-	hypothetical protein
4117	 58.22	-2	4486243..4486467	-	74	167648090	-	Caul_4131	-	hypothetical protein
4118	 49.04	-2	4486776..4487297	-	173	167648091	-	Caul_4132	-	hypothetical protein
4119	 55.56	-2	4487294..4487527	-	77	167648092	-	Caul_4133	-	hypothetical protein
4120	 61.39	-1	4488096..4489100	-	334	167648093	-	Caul_4134	-	putative transposase
4121	 59.26	-2	4489267..4489563	+	98	167648094	-	Caul_4135	-	hypothetical protein
4122	 66.67	0	4489544..4489780	-	78	167648095	-	Caul_4136	-	XRE family transcriptional regulator
4123	 62.59	-1	4489840..4490403	+	187	167648096	-	Caul_4137	-	hypothetical protein
4124	 52.85	-2	4491471..4492295	+	274	167648097	-	Caul_4138	-	hypothetical protein
4125	 58.59	-2	4492938..4493234	-	98	167648098	-	Caul_4139	-	hypothetical protein
4126	 60.61	-1	4493578..4494039	-	153	167648099	-	Caul_4140	-	hypothetical protein
4127	 68.38	0	4494354..4494644	-	96	167648100	-	Caul_4141	-	hypothetical protein
4128	 67.00	0	4494986..4495285	-	99	167648101	-	Caul_4142	-	hypothetical protein
4129	 71.75	+1	4495611..4496672	-	353	167648102	-	Caul_4143	-	hypothetical protein
4130	 70.94	0	4496669..4498612	-	647	167648103	-	Caul_4144	-	cobalt chelatase, pCobT subunit
4131	 63.06	-1	4498689..4498910	+	73	167648104	-	Caul_4145	-	hypothetical protein
4132	 68.30	0	4499065..4500228	-	387	167648105	-	Caul_4146	-	hypothetical protein
4133	 72.38	+1	4500457..4500771	-	104	167648106	-	Caul_4147	-	hypothetical protein
4134	 62.79	-1	4500837..4500965	-	42	167648107	-	Caul_4148	-	hypothetical protein
4135	 64.53	0	4501094..4501327	-	77	167648108	-	Caul_4149	-	hypothetical protein
4136	 65.09	0	4501482..4503128	-	548	167648109	-	Caul_4150	-	chaperonin GroEL
4137	 61.51	-1	4503186..4503476	-	96	167648110	-	Caul_4151	-	co-chaperonin GroES
4138	 73.93	+1	4503698..4504096	+	132	167648111	-	Caul_4152	-	hypothetical protein
4139	 70.42	0	4504096..4504521	+	141	167648112	-	Caul_4153	-	glyoxalase/bleomycin resistance protein/dioxygenase
4140	 73.29	+1	4504544..4504996	+	150	167648113	-	Caul_4154	-	hypothetical protein
4141	 68.84	0	4505027..4505533	-	168	167648114	-	Caul_4155	-	hypothetical protein
4142	 72.69	+1	4505874..4506554	+	226	167648115	-	Caul_4156	-	peptidyl-prolyl cis-trans isomerase cyclophilin type
4143	 65.43	0	4507044..4508342	+	432	167648116	-	Caul_4157	-	integrase family protein
4144	 64.28	0	4508728..4512324	-	1198	167648117	-	Caul_4158	-	YD repeat-containing protein
4145	 69.68	0	4512321..4512851	-	176	167648118	-	Caul_4159	-	putative transposase
4146	 66.67	0	4512848..4513162	-	104	167648119	-	Caul_4160	-	transposase IS3/IS911 family protein
4147	 65.78	0	4513597..4514163	-	188	167648120	-	Caul_4161	-	RTX toxin-activating protein C
4148	 63.74	-1	4514164..4528227	-	4687	167648121	-	Caul_4162	-	outer membrane adhesin like proteiin
4149	 48.13	-2	4528224..4529000	-	258	167648122	-	Caul_4163	-	hypothetical protein
4150	 70.43	0	4528997..4530406	-	469	167648123	-	Caul_4164	-	HlyD family type I secretion membrane fusion protein
4151	 68.68	0	4530403..4532583	-	726	167648124	-	Caul_4165	-	type I secretion system ATPase
4152	 57.38	-2	4532986..4533459	-	157	167648125	-	Caul_4166	-	hypothetical protein
4153	 60.47	-1	4533468..4534193	-	241	167648126	-	Caul_4167	-	hypothetical protein
4154	 62.66	-1	4534338..4535036	-	232	167648127	-	Caul_4168	-	hypothetical protein
4155	 63.98	0	4535039..4535410	-	123	167648128	-	Caul_4169	-	hypothetical protein
4156	 55.46	-2	4536096..4536443	-	115	167648129	-	Caul_4170	-	hypothetical protein
4157	 60.83	-1	4536825..4537184	-	119	167648130	-	Caul_4171	-	hypothetical protein
4158	 66.67	0	4537364..4538092	-	242	167648131	-	Caul_4172	-	IstB ATP binding domain-containing protein
4159	 68.06	0	4538079..4539587	-	502	167648132	-	Caul_4173	-	integrase catalytic region
4160	 57.79	-2	4539670..4540401	-	243	167648133	-	Caul_4174	-	serine/threonine protein kinase
4161	 58.02	-2	4540401..4540874	-	157	167648134	-	Caul_4175	-	hypothetical protein
4162	 58.55	-2	4540946..4541869	-	307	167648135	-	Caul_4176	-	hypothetical protein
4163	 50.78	-2	4541919..4542239	-	106	167648136	-	Caul_4177	-	XRE family transcriptional regulator
4164	 59.57	-2	4543285..4543707	-	140	167648137	-	Caul_4178	-	hypothetical protein
4165	 59.50	-2	4544433..4544711	-	92	167648138	-	Caul_4179	-	XRE family transcriptional regulator
4166	 67.62	0	4544801..4545322	+	173	167648139	-	Caul_4180	-	hypothetical protein
4167	 67.17	0	4545425..4545622	+	65	167648140	-	Caul_4181	-	hypothetical protein
4168	 64.08	0	4545638..4547377	+	579	167648141	-	Caul_4182	-	resolvase domain-containing protein
4169	 68.26	0	4547550..4548866	-	438	167648142	-	Caul_4183	-	xanthine/uracil/vitamin C permease
4170	 70.31	0	4548869..4549939	-	356	167648143	-	Caul_4184	-	purine nucleoside permease
4171	 67.71	0	4550198..4551160	-	320	167648144	-	Caul_4185	-	ABC transporter related
4172	 74.83	+1	4551305..4551598	+	97	167648145	-	Caul_4186	-	hypothetical protein
4173	 71.69	+1	4551608..4552045	+	145	167648146	-	Caul_4187	-	thioesterase superfamily protein
4174	 66.57	0	4552217..4553203	-	328	167648147	-	Caul_4188	-	type II secretion system protein
4175	 66.46	0	4553215..4554192	-	325	167648148	-	Caul_4189	-	type II secretion system protein
4176	 67.92	0	4554196..4555710	-	504	167648149	-	Caul_4190	-	type II secretion system protein E
4177	 72.15	+1	4555715..4557301	-	528	167648150	-	Caul_4191	-	pilus assembly protein CpaE
4178	 72.06	+1	4557301..4558005	-	234	167648151	-	Caul_4192	-	pilus biogenesis lipoprotein CpaD
4179	 68.56	0	4558016..4559653	-	545	167648152	-	Caul_4193	-	type II and III secretion system protein
4180	 71.04	0	4559650..4560540	-	296	167648153	-	Caul_4194	-	Flp pilus assembly protein CpaB
4181	 69.98	0	4560739..4561251	-	170	167648154	-	Caul_4195	-	peptidase A24A prepilin type IV
4182	 62.37	-1	4561420..4561605	-	61	167648155	-	Caul_4196	-	Flp/Fap pilin component
4183	 72.73	+1	4561916..4562311	+	131	167648156	-	Caul_4197	-	hypothetical protein
4184	 67.19	0	4562420..4562995	+	191	167648157	-	Caul_4198	-	TadE family protein
4185	 67.02	0	4562986..4563552	+	188	167648158	-	Caul_4199	-	hypothetical protein
4186	 75.00	+1	4563549..4564316	-	255	167648159	-	Caul_4200	-	aminotransferase class IV
4187	 73.43	+1	4564313..4565701	-	462	167648160	-	Caul_4201	-	para-aminobenzoate synthase component I
4188	 69.44	0	4565729..4567168	-	479	167648161	-	Caul_4202	-	hypothetical protein
4189	 69.90	0	4567274..4568047	-	257	167648162	-	Caul_4203	-	protein tyrosine/serine phosphatase
4190	 73.50	+1	4568109..4568927	+	272	167648163	-	Caul_4204	-	alpha/beta hydrolase fold
4191	 68.30	0	4569079..4571043	-	654	167648164	-	Caul_4205	-	1A family penicillin-binding protein
4192	 71.91	+1	4571343..4573229	+	628	167648165	-	Caul_4206	-	ATP-dependent DNA helicase RecQ
4193	 67.64	0	4573329..4573637	+	102	167648166	-	Caul_4207	-	hypothetical protein
4194	 69.93	0	4573651..4574109	-	152	167648167	-	Caul_4208	-	hypothetical protein
4195	 71.11	0	4574295..4576817	-	840	167648168	-	Caul_4209	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
4196	 68.21	0	4576845..4577687	-	280	167648169	-	Caul_4210	-	UspA domain-containing protein
4197	 71.76	+1	4577782..4578978	-	398	167648170	-	Caul_4211	-	RND family efflux transporter MFP subunit
4198	 69.96	0	4578981..4581350	-	789	167648171	-	Caul_4212	-	hypothetical protein
4199	 67.34	0	4581347..4582084	-	245	167648172	-	Caul_4213	-	ABC transporter related
4200	 65.86	0	4582179..4582550	-	123	167648173	-	Caul_4214	-	hypothetical protein
4201	 67.97	0	4582569..4583414	-	281	167648174	-	Caul_4215	-	UspA domain-containing protein
4202	 69.55	0	4583574..4584614	+	346	167648175	-	Caul_4216	-	hypothetical protein
4203	 72.04	+1	4584569..4585201	-	210	167648176	-	Caul_4217	-	HdeD protein
4204	 66.36	0	4585393..4585713	+	106	167648177	-	Caul_4218	-	hypothetical protein
4205	 66.52	0	4586033..4586728	+	231	167648178	-	Caul_4219	-	GntR family transcriptional regulator
4206	 64.93	0	4586731..4587075	-	114	167648179	-	Caul_4220	-	hypothetical protein
4207	 68.48	0	4587101..4588534	-	477	167648180	-	Caul_4221	-	PepSY-associated TM helix domain-containing protein
4208	 62.68	-1	4591124..4591399	+	91	167648181	-	Caul_4224	-	hypothetical protein
4209	 65.25	0	4591408..4592538	+	376	167648182	-	Caul_4225	-	high-affinity nickel-transporter
4210	 64.08	0	4592769..4593194	-	141	167648183	-	Caul_4226	-	hypothetical protein
4211	 52.84	-2	4593497..4594270	-	257	167648184	-	Caul_4227	-	hypothetical protein
4212	 66.67	0	4594593..4594907	+	104	167648185	-	Caul_4228	-	transposase IS3/IS911 family protein
4213	 67.83	0	4594904..4595764	+	286	167648186	-	Caul_4229	-	integrase catalytic region
4214	 61.64	-1	4595840..4596157	+	105	167648187	-	Caul_4230	-	heat shock protein Hsp20
4215	 67.71	0	4596302..4597069	-	255	167648188	-	Caul_4231	-	short-chain dehydrogenase/reductase SDR
67.78	MEAN

3.85	STD DEV
