IslandPath Analysis: Caulobacter sp. K31

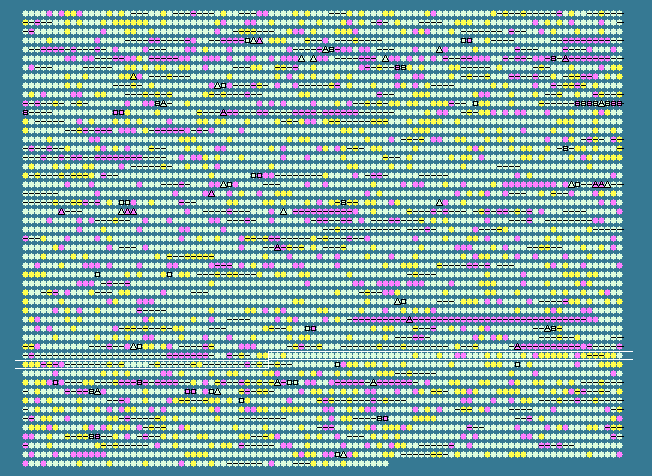

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3842	 65.97	0	4169708..4169995	+	95	167647815	-	Caul_3854	-	thiamineS protein
3843	 70.35	0	4169998..4170567	+	189	167647816	-	Caul_3855	-	molybdenum cofactor biosynthesis protein B
3844	 71.89	+1	4170564..4171751	+	395	167647817	-	Caul_3856	-	molybdenum cofactor synthesis domain-containing protein
3845	 66.67	0	4171785..4172384	-	199	167647818	-	Caul_3857	-	hemerythrin HHE cation binding domain-containing protein
3846	 69.66	0	4172571..4174805	+	744	167647819	-	Caul_3858	-	ribonucleoside-diphosphate reductase, adenosylcobalamin-dependent
3847	 70.41	0	4174879..4176054	+	391	167647820	-	Caul_3859	-	NnrS family protein
3848	 67.89	0	4176239..4177216	+	325	167647821	-	Caul_3860	-	molybdenum cofactor biosynthesis protein A
3849	 67.70	0	4177227..4177997	-	256	167647822	-	Caul_3861	-	transcriptional activator FtrB
3850	 68.28	0	4178267..4179628	+	453	167647823	-	Caul_3862	-	major facilitator transporter
3851	 67.02	0	4179625..4181058	+	477	167647824	-	Caul_3863	-	major facilitator transporter
3852	 65.51	0	4181055..4184786	+	1243	167647825	-	Caul_3864	-	nitrate reductase, alpha subunit
3853	 65.16	0	4184783..4186306	+	507	167647826	-	Caul_3865	-	nitrate reductase, beta subunit
3854	 69.58	0	4186311..4187030	+	239	167647827	-	Caul_3866	-	nitrate reductase molybdenum cofactor assembly chaperone
3855	 65.63	0	4187033..4187806	+	257	167647828	-	Caul_3867	-	respiratory nitrate reductase, gamma subunit
3856	 71.13	0	4187810..4188928	+	372	167647829	-	Caul_3868	-	PpiC-type peptidyl-prolyl cis-trans isomerase
3857	 68.86	0	4188935..4190122	+	395	167647830	-	Caul_3869	-	hypothetical protein
3858	 68.83	0	4190151..4190705	+	184	167647831	-	Caul_3870	-	hypothetical protein
3859	 68.30	0	4190702..4191376	+	224	167647832	-	Caul_3871	-	carbonic anhydrase
3860	 69.50	0	4191553..4192965	+	470	167647833	-	Caul_3872	-	oxygen-independent coproporphyrinogen III oxidase
3861	 70.35	0	4192997..4194217	-	406	167647834	-	Caul_3873	-	acyl-CoA dehydrogenase domain-containing protein
3862	 69.85	0	4194496..4194903	+	135	167647835	-	Caul_3874	-	hypothetical protein
3863	 68.44	0	4194930..4196279	+	449	167647836	-	Caul_3875	-	membrane dipeptidase
3864	 67.29	0	4196404..4197045	-	213	167647837	-	Caul_3876	-	putative sulfite oxidase subunit YedZ
3865	 66.34	0	4197045..4197965	-	306	167647838	-	Caul_3877	-	putative sulfite oxidase subunit YedY
3866	 71.75	+1	4198162..4201035	-	957	167647839	-	Caul_3878	-	(glutamate--ammonia-ligase) adenylyltransferase
3867	 66.02	0	4201068..4201529	-	153	167647840	-	Caul_3879	-	GCN5-related N-acetyltransferase
3868	 68.15	0	4201581..4202723	-	380	167647841	-	Caul_3880	-	aromatic amino acid beta-eliminating lyase/threonine aldolase
3869	 65.31	0	4203710..4204078	+	122	167647842	-	Caul_3882	-	CopY family transcriptional regulator
3870	 73.22	+1	4204068..4204967	+	299	167647843	-	Caul_3883	-	peptidase M56 BlaR1
3871	 69.86	0	4205070..4205633	+	187	167647844	-	Caul_3884	-	hypothetical protein
3872	 70.65	0	4205648..4207054	-	468	167647845	-	Caul_3885	-	integral membrane sensor signal transduction histidine kinase
3873	 61.27	-1	4207058..4207372	-	104	167647846	-	Caul_3886	-	plasmid stabilization system protein
3874	 58.11	-2	4207372..4207593	-	73	167647847	-	Caul_3887	-	hypothetical protein
3875	 66.82	0	4207650..4208321	-	223	167647848	-	Caul_3888	-	two component transcriptional regulator
3876	 68.25	0	4208454..4210028	-	524	167647849	-	Caul_3889	-	protease Do
3877	 66.45	0	4210175..4210630	-	151	167647850	-	Caul_3890	-	cytochrome C biogenesis protein
3878	 71.32	0	4210804..4212780	-	658	167647851	-	Caul_3891	-	cytochrome c-type biogenesis protein CcmF
3879	 67.66	0	4212929..4213429	-	166	167647852	-	Caul_3892	-	CcmE/CycJ protein
3880	 73.87	+1	4213426..4214550	-	374	167647853	-	Caul_3893	-	cytochrome c-type biogenesis protein CcmI
3881	 70.62	0	4214649..4215989	-	446	167647854	-	Caul_3894	-	hypothetical protein
3882	 70.86	0	4216197..4217579	-	460	167647855	-	Caul_3895	-	integral membrane sensor signal transduction histidine kinase
3883	 69.75	0	4217743..4218423	-	226	167647856	-	Caul_3896	-	two component transcriptional regulator
3884	 73.90	+1	4218443..4218760	-	105	167647857	-	Caul_3897	-	peptidase
3885	 68.77	0	4218944..4219276	-	110	167647858	-	Caul_3898	-	toxin ChpA
3886	 62.50	-1	4219276..4219539	-	87	167647859	-	Caul_3899	-	transcriptional regulator/antitoxin, MazE
3887	 71.66	+1	4219589..4220530	-	313	167647860	-	Caul_3900	-	heat shock protein DnaJ domain-containing protein
3888	 74.56	+1	4220611..4224450	-	1279	167647861	-	Caul_3901	-	gene transfer agent (GTA) orfg15, like protein
3889	 71.85	+1	4224462..4225040	-	192	167647862	-	Caul_3902	-	NlpC/P60 family phage cell wall peptidase
3890	 72.50	+1	4225037..4225687	-	216	167647863	-	Caul_3903	-	hypothetical protein
3891	 74.72	+1	4225687..4226319	-	210	167647864	-	Caul_3904	-	hypothetical protein
3892	 68.41	0	4226608..4227066	+	152	167647865	-	Caul_3905	-	hypothetical protein
3893	 58.92	-2	4227133..4227558	+	141	167647866	-	Caul_3906	-	excinuclease ABC subunit C
3894	 77.02	+2	4227575..4228105	-	176	167647867	-	Caul_3907	-	hypothetical protein
3895	 75.24	+1	4228105..4228314	-	69	167647868	-	Caul_3908	-	hypothetical protein
3896	 74.43	+1	4228301..4228609	-	102	167647869	-	Caul_3909	-	hypothetical protein
3897	 72.90	+1	4228658..4229074	-	138	167647870	-	Caul_3910	-	TP901-1 family phage major tail protein
3898	 75.06	+1	4229237..4229641	-	134	167647871	-	Caul_3911	-	hypothetical protein
3899	 76.30	+2	4229638..4229907	-	89	167647872	-	Caul_3912	-	uncharacterized phage protein
3900	 69.60	0	4230066..4231292	-	408	167647873	-	Caul_3913	-	HK97 family phage major capsid protein
3901	 73.33	+1	4231459..4231878	-	139	167647874	-	Caul_3914	-	HK97 family phage prohead protease
3902	 77.37	+2	4232021..4232263	-	80	167647875	-	Caul_3915	-	hypothetical protein
3903	 73.33	+1	4232397..4233551	-	384	167647876	-	Caul_3916	-	HK97 family phage portal protein
3904	 64.09	0	4233672..4234136	+	154	167647877	-	Caul_3917	-	hypothetical protein
3905	 71.82	+1	4234138..4235457	-	439	167647878	-	Caul_3918	-	hypothetical protein
3906	 64.18	0	4236069..4236632	+	187	167647879	-	Caul_3919	-	hypothetical protein
3907	 63.39	-1	4236776..4237264	-	162	167647880	-	Caul_3920	-	hypothetical protein
3908	 71.06	0	4237332..4239470	+	712	167647881	-	Caul_3921	-	1A family penicillin-binding protein
3909	 65.93	0	4240152..4242998	+	948	167647882	-	Caul_3922	-	TonB-dependent receptor
3910	 68.63	0	4243251..4245083	+	610	167647883	-	Caul_3923	-	ABC transporter related
3911	 69.52	0	4245340..4245549	+	69	167647884	-	Caul_3924	-	hypothetical protein
3912	 69.13	0	4245641..4246573	+	310	167647885	-	Caul_3925	-	hypothetical protein
3913	 69.06	0	4246622..4248547	-	641	167647886	-	Caul_3926	-	K potassium transporter
3914	 65.67	0	4248728..4248928	+	66	167647887	-	Caul_3927	-	hypothetical protein
3915	 72.52	+1	4249598..4250503	+	301	167647888	-	Caul_3928	-	hypothetical protein
3916	 70.46	0	4250541..4251173	-	210	167647889	-	Caul_3929	-	TetR family transcriptional regulator
3917	 76.11	+2	4251421..4252479	+	352	167647890	-	Caul_3930	-	RND family efflux transporter MFP subunit
3918	 70.46	0	4252718..4255798	+	1026	167647891	-	Caul_3931	-	acriflavin resistance protein
3919	 69.07	0	4256058..4256597	-	179	167647892	-	Caul_3932	-	TetR family transcriptional regulator
3920	 66.36	0	4256709..4257353	+	214	167647893	-	Caul_3933	-	glutathione S-transferase domain-containing protein
3921	 68.97	0	4257557..4259206	+	549	167647894	-	Caul_3934	-	FAD dependent oxidoreductase
3922	 67.62	0	4259376..4260533	+	385	167647895	-	Caul_3935	-	Rieske (2Fe-2S) domain-containing protein
3923	 75.76	+2	4260678..4261271	+	197	167647896	-	Caul_3936	-	TetR family transcriptional regulator
3924	 69.29	0	4261268..4261801	+	177	167647897	-	Caul_3937	-	GCN5-related N-acetyltransferase
3925	 71.25	0	4261798..4262037	-	79	167647898	-	Caul_3938	-	hypothetical protein
3926	 64.52	0	4262297..4262482	-	61	167647899	-	Caul_3939	-	hypothetical protein
3927	 70.35	0	4262541..4263923	-	460	167647900	-	Caul_3940	-	amino acid permease-associated region
3928	 64.73	0	4264170..4266548	-	792	167647901	-	Caul_3941	-	TonB-dependent receptor
3929	 71.32	0	4266675..4268696	-	673	167647902	-	Caul_3942	-	sulfotransferase
3930	 71.87	+1	4268876..4270162	-	428	167647903	-	Caul_3943	-	FAD dependent oxidoreductase
3931	 66.95	0	4270301..4271701	-	466	167647904	-	Caul_3944	-	glutamate--putrescine ligase
3932	 65.86	0	4271736..4271984	+	82	167647905	-	Caul_3945	-	hypothetical protein
3933	 67.67	0	4272088..4273488	-	466	167647906	-	Caul_3946	-	putative aminotransferase
3934	 70.74	0	4273606..4274391	-	261	167647907	-	Caul_3947	-	peptidase C26
3935	 68.17	0	4274546..4275679	-	377	167647908	-	Caul_3948	-	spermidine/putrescine ABC transporter ATPase subunit
3936	 67.25	0	4275809..4276672	-	287	167647909	-	Caul_3949	-	ornithine carbamoyltransferase
3937	 65.99	0	4276827..4277714	-	295	167647910	-	Caul_3950	-	binding-protein-dependent transport systems inner membrane component
3938	 62.22	-1	4277860..4278960	-	366	167647911	-	Caul_3951	-	extracellular solute-binding protein
3939	 69.42	0	4279190..4280569	-	459	167647912	-	Caul_3952	-	glutamine synthetase catalytic region
3940	 71.78	+1	4280757..4282124	-	455	167647913	-	Caul_3953	-	aminotransferase
3941	 69.50	0	4282315..4283760	-	481	167647914	-	Caul_3954	-	succinic semialdehyde dehydrogenase
67.78	MEAN

3.85	STD DEV
