IslandPath Analysis: Caulobacter sp. K31

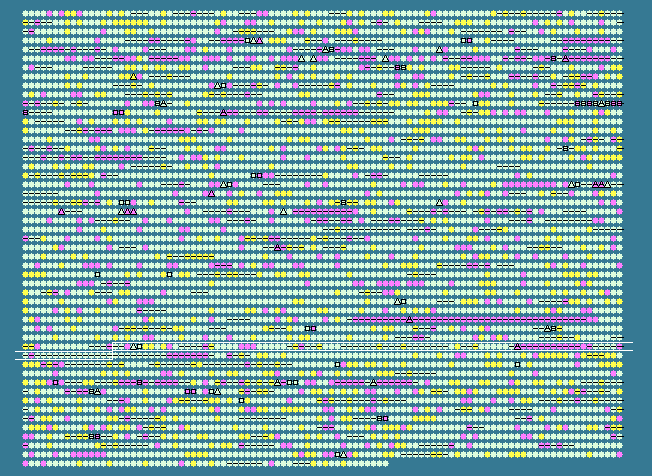

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3716	 67.06	0	4038844..4039854	+	336	167647689	-	Caul_3727	-	HfaB protein
3717	 69.20	0	4039832..4041013	+	393	167647690	-	Caul_3728	-	hypothetical protein
3718	 60.54	-1	4041881..4042468	-	195	167647691	-	Caul_3729	-	hypothetical protein
3719	 67.94	0	4042695..4043555	-	286	167647692	-	Caul_3730	-	integrase catalytic region
3720	 66.67	0	4043552..4043866	-	104	167647693	-	Caul_3731	-	transposase IS3/IS911 family protein
3721	 74.94	+1	4044568..4044978	+	136	167647694	-	Caul_3732	-	CopY family transcriptional regulator
3722	 76.38	+2	4044975..4046765	+	596	167647695	-	Caul_3733	-	peptidase M56 BlaR1
3723	 70.12	0	4046903..4049827	+	974	167647696	-	Caul_3734	-	peptidase M16 domain-containing protein
3724	 72.97	+1	4050195..4051130	+	311	167647697	-	Caul_3735	-	LysR family transcriptional regulator
3725	 60.48	-1	4051217..4051426	+	69	167647698	-	Caul_3736	-	hypothetical protein
3726	 68.41	0	4051692..4052378	+	228	167647699	-	Caul_3737	-	GCN5-related N-acetyltransferase
3727	 69.63	0	4052590..4054578	-	662	167647700	-	Caul_3738	-	OPT family oligopeptide transporter
3728	 65.37	0	4054723..4055031	-	102	167647701	-	Caul_3739	-	hypothetical protein
3729	 66.67	0	4055130..4055435	-	101	167647702	-	Caul_3740	-	hypothetical protein
3730	 66.67	0	4055587..4056360	-	257	167647703	-	Caul_3741	-	PhoH family protein
3731	 61.96	-1	4056705..4057235	+	176	167647704	-	Caul_3742	-	transferase family protein
3732	 72.97	+1	4057280..4059454	+	724	167647705	-	Caul_3743	-	integral membrane sensor hybrid histidine kinase
3733	 68.65	0	4059489..4061153	+	554	167647706	-	Caul_3744	-	choline dehydrogenase
3734	 69.42	0	4061365..4062309	+	314	167647707	-	Caul_3745	-	aldo/keto reductase
3735	 69.40	0	4062619..4063167	-	182	167647708	-	Caul_3746	-	hypothetical protein
3736	 71.06	0	4063353..4064285	+	310	167647709	-	Caul_3747	-	hypothetical protein
3737	 63.43	-1	4064393..4064608	+	71	167647710	-	Caul_3748	-	hypothetical protein
3738	 64.03	0	4064648..4065292	+	214	167647711	-	Caul_3749	-	glyoxalase/bleomycin resistance protein/dioxygenase
3739	 63.22	-1	4065379..4065639	+	86	167647712	-	Caul_3750	-	prevent-host-death family protein
3740	 67.36	0	4065643..4066077	+	144	167647713	-	Caul_3751	-	hypothetical protein
3741	 69.32	0	4066185..4067051	-	288	167647714	-	Caul_3752	-	serine O-acetyltransferase
3742	 67.95	0	4067100..4067720	-	206	167647715	-	Caul_3753	-	NUDIX hydrolase
3743	 71.04	0	4067878..4068495	+	205	167647716	-	Caul_3754	-	nitroreductase
3744	 69.06	0	4068771..4071608	+	945	167647717	-	Caul_3755	-	TonB-dependent receptor plug
3745	 68.20	0	4071851..4072306	-	151	167647718	-	Caul_3756	-	7-cyano-7-deazaguanine reductase
3746	 72.76	+1	4072399..4073202	+	267	167647719	-	Caul_3757	-	short-chain dehydrogenase/reductase SDR
3747	 63.22	-1	4073457..4074182	+	241	167647720	-	Caul_3758	-	hypothetical protein
3748	 70.65	0	4074248..4075501	-	417	167647721	-	Caul_3759	-	major facilitator transporter
3749	 67.12	0	4075691..4078099	-	802	167647722	-	Caul_3760	-	TonB-dependent receptor
3750	 71.91	+1	4078372..4079115	-	247	167647723	-	Caul_3761	-	GntR family transcriptional regulator
3751	 66.38	0	4079383..4080444	+	353	167647724	-	Caul_3762	-	signal transduction histidine kinase
3752	 68.86	0	4080561..4081061	+	166	167647725	-	Caul_3763	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
3753	 65.04	0	4081058..4081855	-	265	167647726	-	Caul_3764	-	NLPA lipoprotein
3754	 67.45	0	4082014..4082268	+	84	167647727	-	Caul_3765	-	hypothetical protein
3755	 67.49	0	4082299..4082661	-	120	167647728	-	Caul_3766	-	hypothetical protein
3756	 69.37	0	4082823..4083488	-	221	167647729	-	Caul_3767	-	binding-protein-dependent transport systems inner membrane component
3757	 70.48	0	4083485..4084480	-	331	167647730	-	Caul_3768	-	ABC transporter related
3758	 70.23	0	4084595..4086727	-	710	167647731	-	Caul_3769	-	multi-sensor hybrid histidine kinase
3759	 64.62	0	4087257..4088186	-	309	167647732	-	Caul_3770	-	amidohydrolase 2
3760	 71.63	0	4088199..4088984	-	261	167647733	-	Caul_3771	-	HpcH/HpaI aldolase
3761	 68.51	0	4088984..4089904	-	306	167647734	-	Caul_3772	-	hypothetical protein
3762	 64.43	0	4089934..4090380	-	148	167647735	-	Caul_3773	-	hypothetical protein
3763	 68.30	0	4090480..4091766	-	428	167647736	-	Caul_3774	-	major facilitator transporter
3764	 71.39	0	4091939..4092784	-	281	167647737	-	Caul_3775	-	amidohydrolase 2
3765	 70.19	0	4092820..4093557	-	245	167647738	-	Caul_3776	-	short-chain dehydrogenase/reductase SDR
3766	 66.35	0	4093606..4094541	-	311	167647739	-	Caul_3777	-	hypothetical protein
3767	 70.41	0	4094551..4096020	-	489	167647740	-	Caul_3778	-	aldehyde dehydrogenase
3768	 67.65	0	4096200..4097219	-	339	167647741	-	Caul_3779	-	AraC family transcriptional regulator
3769	 68.02	0	4097351..4098088	-	245	167647742	-	Caul_3780	-	GntR family transcriptional regulator
3770	 70.77	0	4098346..4099539	+	397	167647743	-	Caul_3781	-	iron-containing alcohol dehydrogenase
3771	 68.49	0	4099640..4100188	-	182	167647744	-	Caul_3782	-	hypothetical protein
3772	 66.50	0	4100419..4103382	-	987	167647745	-	Caul_3783	-	TonB-dependent receptor plug
3773	 71.38	0	4103794..4104705	+	303	167647746	-	Caul_3784	-	hypothetical protein
3774	 67.12	0	4104732..4105829	+	365	167647747	-	Caul_3785	-	oxidoreductase domain-containing protein
3775	 65.28	0	4105890..4106393	-	167	167647748	-	Caul_3786	-	hypothetical protein
3776	 72.81	+1	4106437..4106778	-	113	167647749	-	Caul_3787	-	hypothetical protein
3777	 65.83	0	4106997..4107353	-	118	167647750	-	Caul_3788	-	hypothetical protein
3778	 66.92	0	4107840..4108229	+	129	167647751	-	Caul_3790	-	XRE family transcriptional regulator
3779	 70.07	0	4108280..4109044	-	254	167647752	-	Caul_3791	-	molybdopterin binding domain-containing protein
3780	 66.53	0	4109096..4109809	+	237	167647753	-	Caul_3792	-	sugar fermentation stimulation protein
3781	 67.15	0	4109820..4110650	+	276	167647754	-	Caul_3793	-	methionine aminopeptidase, type I
3782	 67.68	0	4110754..4111344	+	196	167647755	-	Caul_3794	-	DNA repair protein RadC
3783	 60.47	-1	4111503..4112744	+	413	167647756	-	Caul_3795	-	integrase family protein
3784	 62.38	-1	4112741..4113160	+	139	167647757	-	Caul_3796	-	hypothetical protein
3785	 54.92	-2	4113202..4113567	+	121	167647758	-	Caul_3797	-	hypothetical protein
3786	 60.75	-1	4113572..4113943	+	123	167647759	-	Caul_3798	-	helix-turn-helix domain-containing protein
3787	 61.67	-1	4113940..4115259	+	439	167647760	-	Caul_3799	-	hypothetical protein
3788	 58.76	-2	4115259..4115789	+	176	167647761	-	Caul_3800	-	hypothetical protein
3789	 62.76	-1	4115786..4117834	+	682	167647762	-	Caul_3801	-	SMC domain-containing protein
3790	 59.81	-2	4117831..4120149	+	772	167647763	-	Caul_3802	-	hypothetical protein
3791	 57.83	-2	4120364..4123894	+	1176	167647764	-	Caul_3803	-	helicase-like protein
3792	 60.00	-2	4124317..4125441	-	374	167647765	-	Caul_3804	-	TIR protein
3793	 59.78	-2	4125487..4126110	-	207	167647766	-	Caul_3805	-	hypothetical protein
3794	 60.72	-1	4126107..4127873	-	588	167647767	-	Caul_3806	-	DNA helicase II
3795	 59.44	-2	4127866..4129941	-	691	167647768	-	Caul_3807	-	hypothetical protein
3796	 65.37	0	4130621..4132705	+	694	167647769	-	Caul_3808	-	nuclease
3797	 65.28	0	4132925..4133356	+	143	167647770	-	Caul_3809	-	hypothetical protein
3798	 64.42	0	4134020..4134331	+	103	167647771	-	Caul_3810	-	hypothetical protein
3799	 64.32	0	4134716..4135906	+	396	167647772	-	Caul_3811	-	hypothetical protein
3800	 58.23	-2	4136085..4136321	-	78	167647773	-	Caul_3812	-	XRE family transcriptional regulator
3801	 64.39	0	4136508..4136771	+	87	167647774	-	Caul_3813	-	hypothetical protein
3802	 61.69	-1	4136898..4137098	+	66	167647775	-	Caul_3814	-	hypothetical protein
3803	 67.47	0	4137235..4137609	+	124	167647776	-	Caul_3815	-	hypothetical protein
3804	 68.79	0	4137748..4138029	+	93	167647777	-	Caul_3816	-	putative transcriptional regulator
3805	 67.34	0	4138041..4138925	+	294	167647778	-	Caul_3817	-	putative plasmid replication protein A
3806	 70.42	0	4139137..4139775	+	212	167647779	-	Caul_3818	-	cobyrinic acid ac-diamide synthase
3807	 67.84	0	4139772..4140026	+	84	167647780	-	Caul_3819	-	hypothetical protein
3808	 67.62	0	4140023..4140544	+	173	167647781	-	Caul_3820	-	hypothetical protein
3809	 66.67	0	4140541..4141086	+	181	167647782	-	Caul_3821	-	putative conjugal transfer protein precursor
3810	 65.48	0	4141132..4141467	+	111	167647783	-	Caul_3822	-	hypothetical protein
3811	 66.77	0	4141472..4142404	+	310	167647784	-	Caul_3823	-	lytic transglycosylase catalytic
3812	 68.51	0	4142649..4144388	+	579	167647785	-	Caul_3824	-	hypothetical protein
3813	 65.27	0	4144420..4146420	+	666	167647786	-	Caul_3825	-	TRAG family protein
3814	 68.05	0	4146428..4146862	+	144	167647787	-	Caul_3826	-	hypothetical protein
3815	 69.05	0	4147079..4148044	+	321	167647788	-	Caul_3827	-	P-type conjugative transfer ATPase TrbB
67.78	MEAN

3.85	STD DEV
