IslandPath Analysis: Caulobacter sp. K31

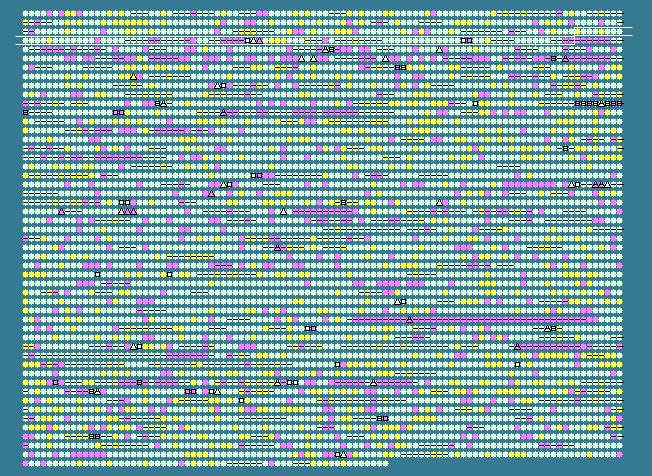

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
293	 72.81	+1	327313..329835	+	840	167644266	-	Caul_0294	-	phosphoenolpyruvate-protein phosphotransferase
294	 70.54	0	329841..331646	+	601	167644267	-	Caul_0295	-	PTS system, N-acetylglucosamine-specific IIBC subunit
295	 67.81	0	331678..333252	+	524	167644268	-	Caul_0296	-	tryptophan halogenase
296	 67.98	0	333249..334847	+	532	167644269	-	Caul_0297	-	tryptophan halogenase
297	 71.85	+1	334844..335596	+	250	167644270	-	Caul_0298	-	hypothetical protein
298	 66.57	0	335734..336765	+	343	167644271	-	Caul_0299	-	alpha/beta hydrolase fold
299	 66.67	0	336868..337638	+	256	167644272	-	Caul_0300	-	prolipoprotein diacylglyceryl transferase
300	 64.87	0	337544..338989	+	481	167644273	-	Caul_0301	-	radical SAM domain-containing protein
301	 65.02	0	338986..339228	+	80	167644274	-	Caul_0302	-	hypothetical protein
302	 67.50	0	339215..340888	-	557	167644275	-	Caul_0303	-	alpha amylase catalytic region
303	 70.42	0	340981..341940	-	319	167644276	-	Caul_0304	-	inosine/uridine-preferring nucleoside hydrolase
304	 70.35	0	341937..342587	-	216	167644277	-	Caul_0305	-	hypothetical protein
305	 74.26	+1	342698..343606	+	302	167644278	-	Caul_0306	-	ribokinase-like domain-containing protein
306	 68.10	0	343629..344888	-	419	167644279	-	Caul_0307	-	Na+ dependent nucleoside transporter
307	 67.05	0	345170..347545	+	791	167644280	-	Caul_0308	-	TonB-dependent receptor
308	 69.78	0	347677..348705	+	342	167644281	-	Caul_0309	-	LacI family transcription regulator
309	 68.59	0	348777..349814	+	345	167644282	-	Caul_0310	-	hypothetical protein
310	 70.86	0	349911..351008	-	365	167644283	-	Caul_0311	-	phospho-2-dehydro-3-deoxyheptonate aldolase
311	 65.16	0	351521..352315	+	264	167644284	-	Caul_0312	-	DeoR family transcriptional regulator
312	 67.29	0	352321..354231	-	636	167644285	-	Caul_0313	-	Alpha-galactosidase
313	 63.24	-1	354246..355355	-	369	167644286	-	Caul_0314	-	amidohydrolase 2
314	 66.47	0	355491..357575	+	694	167644287	-	Caul_0315	-	glycoside hydrolase clan GH-D
315	 65.23	0	357572..358477	+	301	167644288	-	Caul_0316	-	hypothetical protein
316	 66.82	0	358649..359947	+	432	167644289	-	Caul_0317	-	D-tagatose-bisphosphate aldolase, class II, non-catalytic subunit
317	 66.07	0	359940..361103	+	387	167644290	-	Caul_0318	-	sugar isomerase (SIS)
318	 68.81	0	361103..362080	+	325	167644291	-	Caul_0319	-	ATPase BadF/BadG/BcrA/BcrD type
319	 68.46	0	362073..362798	+	241	167644292	-	Caul_0320	-	HAD family hydrolase
320	 64.60	0	363036..365840	+	934	167644293	-	Caul_0321	-	TonB-dependent receptor
321	 67.22	0	366020..367459	+	479	167644294	-	Caul_0322	-	hypothetical protein
322	 55.47	-2	367848..369329	-	493	167644295	-	Caul_0323	-	hypothetical protein
323	 51.77	-2	369308..371281	-	657	167644296	-	Caul_0324	-	N-6 DNA methylase
324	 67.10	0	371588..372277	-	229	167644297	-	Caul_0325	-	hypothetical protein
325	 69.43	0	372287..375145	-	952	167644298	-	Caul_0326	-	Ti-type conjugative transfer relaxase TraA
326	 64.42	0	375317..375583	+	88	167644299	-	Caul_0327	-	putative conjugal transfert protein, TraC
327	 67.96	0	375567..375875	+	102	167644300	-	Caul_0328	-	conjugal transfer TraD family protein
328	 63.18	-1	375896..376411	-	171	167644301	-	Caul_0329	-	XRE family transcriptional regulator
329	 60.14	-1	376484..376759	+	91	167644302	-	Caul_0330	-	hypothetical protein
330	 66.67	0	377404..377898	-	164	167644303	-	Caul_0331	-	hypothetical protein
331	 65.50	0	377891..378232	-	113	167644304	-	Caul_0332	-	ECF subfamily RNA polymerase sigma-24 factor
332	 67.32	0	378232..378693	-	153	167644305	-	Caul_0333	-	hypothetical protein
333	 68.27	0	378690..379187	-	165	167644306	-	Caul_0334	-	hypothetical protein
334	 58.52	-2	379256..379525	+	89	167644307	-	Caul_0335	-	DNA-binding protein
335	 62.19	-1	379731..379931	+	66	167644308	-	Caul_0336	-	phage transcriptional regulator, AlpA
336	 63.45	-1	379976..380566	-	196	167644309	-	Caul_0337	-	hypothetical protein
337	 62.12	-1	380570..381031	-	153	167644310	-	Caul_0338	-	DNA binding domain-containing protein
338	 66.98	0	381331..381645	+	104	167644311	-	Caul_0339	-	transposase IS3/IS911 family protein
339	 67.83	0	381642..382502	+	286	167644312	-	Caul_0340	-	integrase catalytic region
340	 64.30	0	382624..383934	-	436	167644313	-	Caul_0341	-	integrase family protein
341	 70.78	0	384311..384772	-	153	167644314	-	Caul_0342	-	thioesterase superfamily protein
342	 72.72	+1	384864..385706	-	280	167644315	-	Caul_0343	-	beta-lactamase domain-containing protein
343	 73.09	+1	385805..386551	-	248	167644316	-	Caul_0344	-	hypothetical protein
344	 73.11	+1	386647..387702	-	351	167644317	-	Caul_0345	-	RluA family pseudouridine synthase
345	 67.30	0	387801..390311	+	836	167644318	-	Caul_0346	-	TonB-dependent receptor
346	 65.02	0	390364..390666	-	100	167644319	-	Caul_0347	-	hypothetical protein
347	 70.43	0	390744..392468	+	574	167644320	-	Caul_0348	-	alkaline phosphatase
348	 74.29	+1	392520..393149	-	209	167644321	-	Caul_0349	-	lysine exporter protein LysE/YggA
349	 70.01	0	393189..393995	-	268	167644322	-	Caul_0350	-	hypothetical protein
350	 66.67	0	394153..394557	-	134	167644323	-	Caul_0351	-	phosphoribosyl-AMP cyclohydrolase
351	 61.90	-1	394647..394940	-	97	167644324	-	Caul_0352	-	transcriptional modulator of MazE/toxin, MazF
352	 65.56	0	394958..395227	-	89	167644325	-	Caul_0353	-	transcriptional regulator/antitoxin, MazE
353	 67.58	0	395262..396800	-	512	167644326	-	Caul_0354	-	UbiD family decarboxylase
354	 69.34	0	396932..398686	+	584	167644327	-	Caul_0355	-	hypothetical protein
355	 70.18	0	398818..400608	-	596	167644328	-	Caul_0356	-	ABC transporter related
356	 72.89	+1	400629..400901	-	90	167644329	-	Caul_0357	-	hypothetical protein
357	 70.09	0	401617..401850	-	77	167644330	-	Caul_0358	-	hypothetical protein
358	 71.14	0	402074..403012	+	312	167644331	-	Caul_0359	-	4-hydroxybenzoate polyprenyl transferase
359	 68.08	0	403168..403521	-	117	167644332	-	Caul_0360	-	hypothetical protein
360	 68.08	0	403574..404566	+	330	167644333	-	Caul_0361	-	fatty acid desaturase
361	 65.51	0	404572..405003	-	143	167644334	-	Caul_0362	-	translation initiation factor 2, gamma subunit, GTPase
362	 67.56	0	405103..405774	+	223	167644335	-	Caul_0363	-	hypothetical protein
363	 67.54	0	405818..406162	+	114	167644336	-	Caul_0364	-	glyoxalase/bleomycin resistance protein/dioxygenase
364	 66.86	0	406244..406765	+	173	167644337	-	Caul_0365	-	hypothetical protein
365	 70.96	0	406866..407750	-	294	167644338	-	Caul_0366	-	NAD-dependent epimerase/dehydratase
366	 64.62	0	407797..408138	+	113	167644339	-	Caul_0367	-	hypothetical protein
367	 68.57	0	408255..409094	+	279	167644340	-	Caul_0368	-	aldo/keto reductase
368	 66.93	0	409098..409859	-	253	167644341	-	Caul_0369	-	hypothetical protein
369	 70.85	0	409906..410622	+	238	167644342	-	Caul_0370	-	hypothetical protein
370	 67.59	0	410630..411823	-	397	167644343	-	Caul_0371	-	hypothetical protein
371	 65.71	0	412119..413477	+	452	167644344	-	Caul_0372	-	glutamate--cysteine ligase
372	 66.31	0	413763..414320	-	185	167644345	-	Caul_0373	-	hypothetical protein
373	 65.07	0	414507..416390	+	627	167644346	-	Caul_0374	-	amino acid/peptide transporter
374	 65.88	0	416478..416858	+	126	167644347	-	Caul_0375	-	putative transposase of insertion sequence ISRm2011-2, orfA protein
375	 63.10	-1	416920..417423	+	167	167644348	-	Caul_0376	-	transposase and inactivated derivatives-like protein
376	 69.46	0	417519..417983	-	154	167644349	-	Caul_0377	-	hypothetical protein
377	 67.60	0	417980..418726	-	248	167644350	-	Caul_0378	-	hydroxyacylglutathione hydrolase
378	 71.58	0	418808..419641	+	277	167644351	-	Caul_0379	-	methyltransferase type 11
379	 67.83	0	419656..420000	+	114	167644352	-	Caul_0380	-	nitrogen regulatory protein P-II
380	 68.98	0	420005..421561	-	518	167644353	-	Caul_0381	-	major facilitator transporter
381	 67.97	0	421654..423186	+	510	167644354	-	Caul_0382	-	phospholipase D/transphosphatidylase
382	 66.17	0	423119..423919	-	266	167644355	-	Caul_0383	-	endonuclease/exonuclease/phosphatase
383	 70.55	0	423916..424584	-	222	167644356	-	Caul_0384	-	methionine biosynthesis protein MetW
384	 68.40	0	424650..425801	-	383	167644357	-	Caul_0385	-	homoserine O-acetyltransferase
385	 70.96	0	425879..426391	+	170	167644358	-	Caul_0386	-	putative phosphohistidine phosphatase, SixA
386	 66.96	0	426388..426732	+	114	167644359	-	Caul_0387	-	hypothetical protein
387	 70.61	0	426729..427793	+	354	167644360	-	Caul_0388	-	dihydroorotate dehydrogenase 2
388	 68.43	0	427790..428527	+	245	167644361	-	Caul_0389	-	SNARE associated Golgi protein
389	 70.44	0	428537..430045	+	502	167644362	-	Caul_0390	-	integral membrane sensor signal transduction histidine kinase
390	 70.22	0	430098..431816	-	572	167644363	-	Caul_0391	-	gamma-glutamyltransferase
391	 58.90	-2	432277..432585	+	102	167644364	-	Caul_0392	-	hypothetical protein
392	 54.55	-2	432971..433300	+	109	167644365	-	Caul_0393	-	hypothetical protein
67.78	MEAN

3.85	STD DEV
