IslandPath Analysis: Caulobacter sp. K31

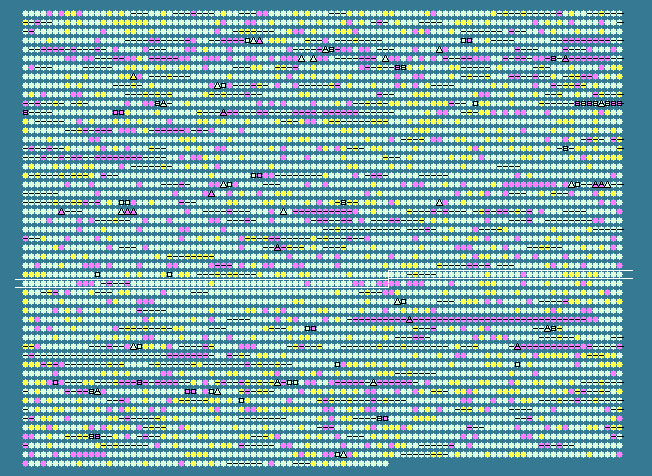

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2962	 69.94	0	3229372..3231903	+	843	167646935	-	Caul_2973	-	magnesium-translocating P-type ATPase
2963	 68.79	0	3232045..3232845	-	266	167646936	-	Caul_2974	-	UspA domain-containing protein
2964	 67.42	0	3233120..3233782	+	220	167646937	-	Caul_2975	-	Crp/FNR family transcriptional regulator
2965	 68.42	0	3233966..3234421	-	151	167646938	-	Caul_2976	-	hypothetical protein
2966	 74.30	+1	3234496..3235701	+	401	167646939	-	Caul_2977	-	RND family efflux transporter MFP subunit
2967	 69.60	0	3235698..3236957	+	419	167646940	-	Caul_2978	-	hypothetical protein
2968	 69.90	0	3236954..3237634	+	226	167646941	-	Caul_2979	-	ABC transporter related
2969	 69.65	0	3237783..3238352	+	189	167646942	-	Caul_2980	-	nitroreductase
2970	 66.35	0	3238595..3239866	+	423	167646943	-	Caul_2981	-	putative manganese transport protein
2971	 69.17	0	3239983..3240822	-	279	167646944	-	Caul_2982	-	UspA domain-containing protein
2972	 69.46	0	3241080..3241937	+	285	167646945	-	Caul_2983	-	UspA domain-containing protein
2973	 67.92	0	3241956..3242993	+	345	167646946	-	Caul_2984	-	hypothetical protein
2974	 67.72	0	3243034..3244359	-	441	167646947	-	Caul_2985	-	hypothetical protein
2975	 66.39	0	3244462..3245178	-	238	167646948	-	Caul_2986	-	GntR family transcriptional regulator
2976	 69.25	0	3245363..3247489	+	708	167646949	-	Caul_2987	-	phospholipase C, phosphocholine-specific
2977	 69.24	0	3247522..3248103	+	193	167646950	-	Caul_2988	-	hypothetical protein
2978	 71.96	+1	3248158..3248970	-	270	167646951	-	Caul_2989	-	phosphonoacetaldehyde hydrolase
2979	 70.37	0	3248967..3250100	-	377	167646952	-	Caul_2990	-	FAD dependent oxidoreductase
2980	 67.49	0	3250106..3251080	-	324	167646953	-	Caul_2991	-	aspartyl/asparaginyl beta-hydroxylase
2981	 67.40	0	3251084..3252988	-	634	167646954	-	Caul_2992	-	sulfotransferase
2982	 68.73	0	3252985..3253614	-	209	167646955	-	Caul_2993	-	hypothetical protein
2983	 65.41	0	3253611..3254249	-	212	167646956	-	Caul_2994	-	hypothetical protein
2984	 62.03	-1	3254322..3257123	-	933	167646957	-	Caul_2995	-	TonB-dependent receptor
2985	 70.73	0	3257580..3259328	-	582	167646958	-	Caul_2996	-	acid phosphatase
2986	 68.89	0	3259583..3261697	+	704	167646959	-	Caul_2997	-	phospholipase C, phosphocholine-specific
2987	 67.65	0	3261698..3263122	-	474	167646960	-	Caul_2998	-	XRE family transcriptional regulator
2988	 66.41	0	3263261..3264793	+	510	167646961	-	Caul_2999	-	carboxyl transferase
2989	 67.91	0	3264802..3266811	+	669	167646962	-	Caul_3000	-	carbamoyl-phosphate synthase L chain ATP-binding
2990	 67.25	0	3266808..3267317	+	169	167646963	-	Caul_3001	-	MerR family transcriptional regulator
2991	 71.64	+1	3267664..3269070	+	468	167646964	-	Caul_3002	-	FAD linked oxidase domain-containing protein
2992	 72.84	+1	3269067..3270605	+	512	167646965	-	Caul_3003	-	hypothetical protein
2993	 72.59	+1	3270739..3271278	+	179	167646966	-	Caul_3004	-	putative lipid carrier protein-like protein
2994	 70.49	0	3271278..3272270	+	330	167646967	-	Caul_3005	-	peptidase U32
2995	 71.29	0	3272267..3273175	+	302	167646968	-	Caul_3006	-	peptidase U32
2996	 72.65	+1	3273172..3274374	+	400	167646969	-	Caul_3007	-	FAD dependent oxidoreductase
2997	 66.67	0	3274578..3274883	-	101	167646970	-	Caul_3008	-	ETC complex I subunit region
2998	 68.80	0	3275070..3275585	-	171	167646971	-	Caul_3009	-	hypothetical protein
2999	 66.50	0	3275697..3276302	-	201	167646972	-	Caul_3010	-	cold-shock DNA-binding domain-containing protein
3000	 70.63	0	3276749..3278566	-	605	167646973	-	Caul_3011	-	single-stranded-DNA-specific exonuclease RecJ
3001	 65.75	0	3278995..3280527	+	510	167646974	-	Caul_3012	-	hemolysin-type calcium-binding region
3002	 68.11	0	3280689..3281657	-	322	167646975	-	Caul_3013	-	fructose-1,6-bisphosphatase
3003	 68.87	0	3281705..3282658	-	317	167646976	-	Caul_3014	-	fructose 1,6-bisphosphatase II
3004	 69.84	0	3282712..3284001	-	429	167646977	-	Caul_3015	-	homoserine dehydrogenase
3005	 65.68	0	3284059..3285279	-	406	167646978	-	Caul_3016	-	aminotransferase
3006	 70.32	0	3285389..3285853	-	154	167646979	-	Caul_3017	-	hypothetical protein
3007	 66.42	0	3285949..3287961	+	670	167646980	-	Caul_3018	-	poly(R)-hydroxyalkanoic acid synthase, class I
3008	 70.48	0	3288014..3288223	+	69	167646981	-	Caul_3019	-	hypothetical protein
3009	 69.07	0	3288208..3288747	+	179	167646982	-	Caul_3020	-	HlyD family secretion protein
3010	 62.68	-1	3288795..3289823	+	342	167646983	-	Caul_3021	-	hypothetical protein
3011	 62.12	-1	3289990..3290253	+	87	167646984	-	Caul_3022	-	SpoVT/AbrB domain-containing protein
3012	 61.24	-1	3290250..3290636	+	128	167646985	-	Caul_3023	-	PilT domain-containing protein
3013	 68.67	0	3290650..3291597	-	315	167646986	-	Caul_3024	-	N-acetyl-gamma-glutamyl-phosphate reductase
3014	 66.46	0	3291688..3292161	-	157	167646987	-	Caul_3025	-	30S ribosomal protein S9
3015	 62.66	-1	3292165..3292638	-	157	167646988	-	Caul_3026	-	50S ribosomal protein L13
3016	 69.79	0	3292851..3294356	-	501	167646989	-	Caul_3027	-	alkaline phosphatase
3017	 69.48	0	3294444..3295475	-	343	167646990	-	Caul_3028	-	cytochrome oxidase assembly
3018	 64.02	0	3295631..3295894	+	87	167646991	-	Caul_3029	-	transglycosylase-associated protein
3019	 65.32	0	3295891..3296112	+	73	167646992	-	Caul_3030	-	hypothetical protein
3020	 69.93	0	3296494..3296922	-	142	167646993	-	Caul_3031	-	MerR family transcriptional regulator
3021	 66.01	0	3296937..3297239	-	100	167646994	-	Caul_3032	-	integration host factor, alpha subunit
3022	 69.73	0	3297430..3298407	-	325	167646995	-	Caul_3033	-	3-oxoacyl-(acyl carrier protein) synthase III
3023	 68.54	0	3298404..3299471	-	355	167646996	-	Caul_3034	-	putative glycerol-3-phosphate acyltransferase PlsX
3024	 69.78	0	3299614..3300159	-	181	167646997	-	Caul_3035	-	hypothetical protein
3025	 69.49	0	3300156..3300686	-	176	167646998	-	Caul_3036	-	hypothetical protein
3026	 65.64	0	3300807..3301295	+	162	167646999	-	Caul_3037	-	SmpA/OmlA domain-containing protein
3027	 64.94	0	3301460..3301981	+	173	167647000	-	Caul_3038	-	response regulator receiver protein
3028	 68.63	0	3301991..3303775	-	594	167647001	-	Caul_3039	-	TrkA domain-containing protein
3029	 69.72	0	3303974..3304333	+	119	167647002	-	Caul_3040	-	hypothetical protein
3030	 67.41	0	3304562..3306700	-	712	167647003	-	Caul_3041	-	membrane-bound proton-translocating pyrophosphatase
3031	 68.95	0	3307093..3307617	-	174	167647004	-	Caul_3042	-	hypothetical protein
3032	 73.56	+1	3307670..3308743	-	357	167647005	-	Caul_3043	-	thiamine-monophosphate kinase
3033	 68.18	0	3308727..3309188	-	153	167647006	-	Caul_3044	-	transcription antitermination protein NusB
3034	 66.23	0	3309185..3309646	-	153	167647007	-	Caul_3045	-	67-dimethyl-8-ribityllumazine synthase
3035	 64.98	0	3309765..3310238	-	157	167647008	-	Caul_3046	-	transcriptional regulator NrdR
3036	 68.20	0	3310270..3311574	-	434	167647009	-	Caul_3047	-	glycine hydroxymethyltransferase
3037	 64.58	0	3311775..3312206	+	143	167647010	-	Caul_3048	-	MucR family transcriptional regulator
3038	 66.83	0	3312252..3313478	-	408	167647011	-	Caul_3049	-	5-aminolevulinate synthase
3039	 70.68	0	3313659..3314555	-	298	167647012	-	Caul_3050	-	3-hydroxyisobutyrate dehydrogenase
3040	 69.78	0	3314726..3315529	-	267	167647013	-	Caul_3051	-	hypothetical protein
3041	 67.05	0	3315587..3316639	-	350	167647014	-	Caul_3052	-	enoyl-CoA hydratase/isomerase
3042	 65.26	0	3316636..3317061	-	141	167647015	-	Caul_3053	-	PilT domain-containing protein
3043	 69.93	0	3317058..3317333	-	91	167647016	-	Caul_3054	-	prevent-host-death family protein
3044	 67.11	0	3317375..3318514	-	379	167647017	-	Caul_3055	-	acyl-CoA dehydrogenase domain-containing protein
3045	 65.05	0	3318725..3319156	+	143	167647018	-	Caul_3056	-	hypothetical protein
3046	 69.45	0	3319232..3320236	+	334	167647019	-	Caul_3057	-	delta-aminolevulinic acid dehydratase
3047	 70.62	0	3320233..3320637	+	134	167647020	-	Caul_3058	-	NUDIX hydrolase
3048	 62.64	-1	3320712..3320984	+	90	167647021	-	Caul_3059	-	hypothetical protein
3049	 70.06	0	3321694..3322548	-	284	167647022	-	Caul_3060	-	6-phosphogluconate dehydrogenase NAD-binding
3050	 67.00	0	3322665..3323564	+	299	167647023	-	Caul_3061	-	OmpA/MotB domain-containing protein
3051	 69.60	0	3323689..3324540	+	283	167647024	-	Caul_3062	-	arginyl-tRNA-protein transferase
3052	 67.57	0	3324549..3325319	-	256	167647025	-	Caul_3063	-	short-chain dehydrogenase/reductase SDR
3053	 68.27	0	3325332..3326267	-	311	167647026	-	Caul_3064	-	2-nitropropane dioxygenase NPD
3054	 68.00	0	3326264..3327241	-	325	167647027	-	Caul_3065	-	alcohol dehydrogenase
3055	 66.29	0	3327287..3328603	-	438	167647028	-	Caul_3066	-	beta-lactamase
3056	 64.20	0	3328938..3331649	-	903	167647029	-	Caul_3067	-	TonB-dependent receptor
3057	 63.41	-1	3331850..3332494	+	214	167647030	-	Caul_3068	-	TetR family transcriptional regulator
3058	 65.33	0	3332510..3332734	-	74	167647031	-	Caul_3069	-	hypothetical protein
3059	 67.98	0	3333307..3333762	+	151	167647032	-	Caul_3070	-	hypothetical protein
3060	 64.30	0	3333759..3334181	+	140	167647033	-	Caul_3071	-	hypothetical protein
3061	 62.34	-1	3334247..3334777	+	176	167647034	-	Caul_3072	-	GCN5-related N-acetyltransferase
67.78	MEAN

3.85	STD DEV
