IslandPath Analysis: Caulobacter sp. K31

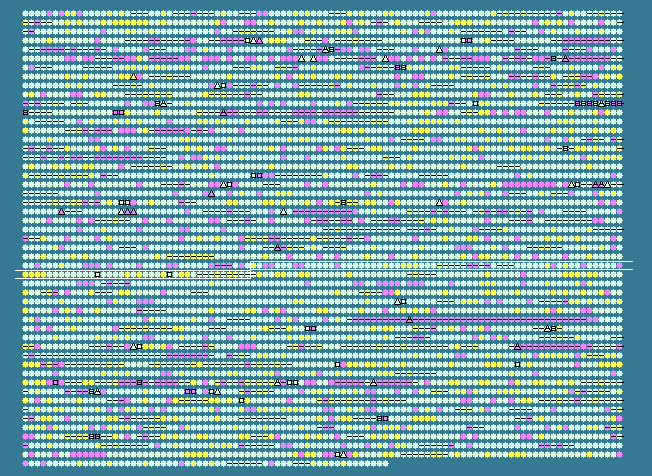

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2839	 73.39	+1	3090762..3092219	-	485	167646812	-	Caul_2850	-	carbohydrate kinase, YjeF related protein
2840	 71.05	0	3092232..3092801	-	189	167646813	-	Caul_2851	-	phosphoglycerate mutase
2841	 60.47	-1	3093307..3093645	+	112	167646814	-	Caul_2852	-	nitrogen regulatory protein P-II
2842	 62.55	-1	3093685..3095094	+	469	167646815	-	Caul_2853	-	glutamine synthetase, type I
2843	 69.26	0	3095634..3098291	-	885	167646816	-	Caul_2854	-	erythromycin esterase
2844	 65.45	0	3098288..3098863	-	191	167646817	-	Caul_2855	-	nitroreductase
2845	 67.71	0	3099156..3099923	+	255	167646818	-	Caul_2856	-	short-chain dehydrogenase/reductase SDR
2846	 62.26	-1	3100068..3100544	-	158	167646819	-	Caul_2857	-	heat shock protein Hsp20
2847	 62.67	-1	3101205..3102356	+	383	167646820	-	Caul_2858	-	AraC family transcriptional regulator
2848	 66.89	0	3102719..3105427	+	902	167646821	-	Caul_2859	-	TonB-dependent receptor
2849	 67.60	0	3105588..3107195	+	535	167646822	-	Caul_2860	-	AMP-dependent synthetase and ligase
2850	 67.59	0	3107176..3108042	+	288	167646823	-	Caul_2861	-	3-hydroxybutyryl-CoA dehydrogenase
2851	 65.33	0	3108039..3109385	+	448	167646824	-	Caul_2862	-	major facilitator transporter
2852	 67.21	0	3109385..3111046	+	553	167646825	-	Caul_2863	-	carboxylesterase type B
2853	 62.02	-1	3111311..3111826	-	171	167646826	-	Caul_2864	-	cupin 2 domain-containing protein
2854	 69.36	0	3111926..3112333	-	135	167646827	-	Caul_2865	-	antibiotic biosynthesis monooxygenase
2855	 71.16	0	3112521..3112898	-	125	167646828	-	Caul_2866	-	proteinase inhibitor I1 Kazal
2856	 68.83	0	3113058..3115181	+	707	167646829	-	Caul_2867	-	DNA topoisomerase IV subunit B
2857	 68.11	0	3115943..3116497	-	184	167646830	-	Caul_2868	-	TetR family transcriptional regulator
2858	 66.14	0	3116676..3117428	+	250	167646831	-	Caul_2869	-	short-chain dehydrogenase/reductase SDR
2859	 65.24	0	3117523..3118011	-	162	167646832	-	Caul_2870	-	pantetheine-phosphate adenylyltransferase
2860	 67.53	0	3118052..3120820	-	922	167646833	-	Caul_2871	-	DNA gyrase subunit A
2861	 73.92	+1	3120944..3121453	+	169	167646834	-	Caul_2872	-	superoxide dismutase copper/zinc binding
2862	 71.01	0	3121646..3122542	-	298	167646835	-	Caul_2873	-	hypothetical protein
2863	 71.25	0	3122555..3123841	-	428	167646836	-	Caul_2874	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
2864	 72.22	+1	3123916..3125067	+	383	167646837	-	Caul_2875	-	8-amino-7-oxononanoate synthase
2865	 72.29	+1	3125067..3125759	+	230	167646838	-	Caul_2876	-	dethiobiotin synthase
2866	 72.82	+1	3125756..3126649	+	297	167646839	-	Caul_2877	-	oxidoreductase domain-containing protein
2867	 68.86	0	3126692..3127786	-	364	167646840	-	Caul_2878	-	fatty acid desaturase
2868	 68.27	0	3128130..3128627	-	165	167646841	-	Caul_2879	-	single-strand binding protein
2869	 65.89	0	3128767..3129153	-	128	167646842	-	Caul_2880	-	hypothetical protein
2870	 72.02	+1	3129175..3129846	-	223	167646843	-	Caul_2881	-	hypothetical protein
2871	 67.30	0	3129939..3132791	-	950	167646844	-	Caul_2882	-	regulatory protein FlaEY
2872	 69.73	0	3132872..3133426	-	184	167646845	-	Caul_2883	-	GCN5-related N-acetyltransferase
2873	 64.76	0	3133486..3134325	-	279	167646846	-	Caul_2884	-	flagellin domain-containing protein
2874	 66.96	0	3134499..3134834	-	111	167646847	-	Caul_2885	-	hypothetical protein
2875	 62.17	-1	3134942..3135763	-	273	167646848	-	Caul_2886	-	flagellin domain-containing protein
2876	 60.56	-1	3136085..3136903	-	272	167646849	-	Caul_2887	-	flagellin domain-containing protein
2877	 66.12	0	3137150..3137512	-	120	167646850	-	Caul_2888	-	flagellar biosynthesis regulatory protein FlaF
2878	 59.85	-2	3137502..3137897	-	131	167646851	-	Caul_2889	-	flagellar biosynthesis repressor FlbT
2879	 68.17	0	3138082..3139881	+	599	167646852	-	Caul_2890	-	TPR repeat-containing protein
2880	 68.75	0	3139968..3140687	+	239	167646853	-	Caul_2891	-	acylneuraminate cytidylyltransferase
2881	 67.17	0	3140684..3141277	+	197	167646854	-	Caul_2892	-	GCN5-related N-acetyltransferase
2882	 64.55	0	3141490..3141867	+	125	167646855	-	Caul_2893	-	hypothetical protein
2883	 64.94	0	3142144..3143013	+	289	167646856	-	Caul_2894	-	ATPase
2884	 70.86	0	3143093..3143950	+	285	167646857	-	Caul_2895	-	hypothetical protein
2885	 69.09	0	3144096..3144467	-	123	167646858	-	Caul_2896	-	hypothetical protein
2886	 70.97	0	3144495..3145307	-	270	167646859	-	Caul_2897	-	UspA domain-containing protein
2887	 67.67	0	3145519..3146115	+	198	167646860	-	Caul_2898	-	metal dependent phosphohydrolase
2888	 75.10	+1	3146112..3147119	+	335	167646861	-	Caul_2899	-	hypothetical protein
2889	 56.78	-2	3147327..3147761	-	144	167646862	-	Caul_2900	-	hypothetical protein
2890	 65.95	0	3147803..3148783	-	326	167646863	-	Caul_2901	-	fatty acid hydroxylase
2891	 74.63	+1	3148780..3149181	-	133	167646864	-	Caul_2902	-	hypothetical protein
2892	 67.05	0	3149322..3149846	-	174	167646865	-	Caul_2903	-	hypothetical protein
2893	 65.41	0	3150163..3151278	+	371	167646866	-	Caul_2904	-	3-oxoacyl-(acyl carrier protein) synthase III
2894	 64.23	0	3151286..3151696	-	136	167646867	-	Caul_2905	-	hypothetical protein
2895	 67.49	0	3151693..3151935	-	80	167646868	-	Caul_2906	-	hypothetical protein
2896	 68.53	0	3151982..3153163	-	393	167646869	-	Caul_2907	-	peptidase M48 Ste24p
2897	 67.42	0	3153337..3154134	+	265	167646870	-	Caul_2908	-	cystine transporter subunit
2898	 68.95	0	3154287..3154943	+	218	167646871	-	Caul_2909	-	polar amino acid ABC transporter, inner membrane subunit
2899	 66.94	0	3154940..3155680	+	246	167646872	-	Caul_2910	-	ABC transporter related
2900	 63.37	-1	3155744..3156046	+	100	167646873	-	Caul_2911	-	hypothetical protein
2901	 71.58	0	3156199..3158274	+	691	167646874	-	Caul_2912	-	DEAD/DEAH box helicase domain-containing protein
2902	 73.52	+1	3158308..3159285	+	325	167646875	-	Caul_2913	-	aminoglycoside phosphotransferase
2903	 73.77	+1	3159282..3159647	+	121	167646876	-	Caul_2914	-	hypothetical protein
2904	 71.43	0	3159813..3160946	-	377	167646877	-	Caul_2915	-	hypothetical protein
2905	 68.83	0	3160998..3162200	-	400	167646878	-	Caul_2916	-	acetyl-CoA acetyltransferase
2906	 68.75	0	3162211..3163698	-	495	167646879	-	Caul_2917	-	hypothetical protein
2907	 64.77	0	3163903..3164904	-	333	167646880	-	Caul_2918	-	ADP-L-glycero-D-manno-heptose-6-epimerase
2908	 69.94	0	3164981..3166417	+	478	167646881	-	Caul_2919	-	deoxyribodipyrimidine photo-lyase
2909	 67.07	0	3166505..3167740	+	411	167646882	-	Caul_2920	-	cyclopropane-fatty-acyl-phospholipid synthase
2910	 66.31	0	3167826..3168107	+	93	167646883	-	Caul_2921	-	hypothetical protein
2911	 67.16	0	3168224..3169234	+	336	167646884	-	Caul_2922	-	cysteine synthase A
2912	 64.92	0	3169344..3169916	+	190	167646885	-	Caul_2923	-	N-acetylmuramoyl-L-alanine amidase
2913	 70.18	0	3169968..3170906	-	312	167646886	-	Caul_2924	-	transposase IS116/IS110/IS902 family protein
2914	 70.89	0	3171287..3172138	+	283	167646887	-	Caul_2925	-	rhodanese domain-containing protein
2915	 69.07	0	3172386..3173552	+	388	167646888	-	Caul_2926	-	cystathionine beta-lyase
2916	 69.43	0	3173760..3174302	+	180	167646889	-	Caul_2927	-	hypothetical protein
2917	 68.29	0	3174396..3174764	+	122	167646890	-	Caul_2928	-	CopY family transcriptional regulator
2918	 73.43	+1	3174754..3176526	+	590	167646891	-	Caul_2929	-	peptidase M56 BlaR1
2919	 70.20	0	3176569..3178125	+	518	167646892	-	Caul_2930	-	glucose-methanol-choline oxidoreductase
2920	 75.50	+2	3178122..3178472	+	116	167646893	-	Caul_2931	-	hypothetical protein
2921	 69.36	0	3178575..3179909	-	444	167646894	-	Caul_2932	-	hypothetical protein
2922	 69.23	0	3180094..3181656	+	520	167646895	-	Caul_2933	-	hypothetical protein
2923	 68.49	0	3181653..3182696	+	347	167646896	-	Caul_2934	-	hypothetical protein
2924	 71.69	+1	3182724..3183320	+	198	167646897	-	Caul_2935	-	hypothetical protein
2925	 70.18	0	3183423..3184361	-	312	167646898	-	Caul_2936	-	transposase IS116/IS110/IS902 family protein
2926	 67.37	0	3184661..3186796	-	711	167646899	-	Caul_2937	-	glucose-methanol-choline oxidoreductase
2927	 72.07	+1	3186928..3187815	+	295	167646900	-	Caul_2938	-	stearoyl-CoA 9-desaturase
2928	 71.87	+1	3187801..3189414	-	537	167646901	-	Caul_2939	-	hypothetical protein
2929	 66.03	0	3189411..3189722	-	103	167646902	-	Caul_2940	-	phosphopantetheine-binding
2930	 66.96	0	3189898..3190926	+	342	167646903	-	Caul_2941	-	fatty acid desaturase
2931	 68.39	0	3190923..3191444	+	173	167646904	-	Caul_2942	-	hypothetical protein
2932	 69.74	0	3191441..3192643	+	400	167646905	-	Caul_2943	-	aminotransferase class I and II
2933	 72.72	+1	3192640..3193515	+	291	167646906	-	Caul_2944	-	short-chain dehydrogenase/reductase SDR
2934	 65.59	0	3193512..3193790	+	92	167646907	-	Caul_2945	-	phosphopantetheine-binding
2935	 72.51	+1	3193774..3196647	+	957	167646908	-	Caul_2946	-	aminotransferase class-III
2936	 71.58	0	3196644..3198839	+	731	167646909	-	Caul_2947	-	molydopterin dinucleotide-binding region
2937	 67.47	0	3198848..3200098	+	416	167646910	-	Caul_2948	-	acyl-CoA dehydrogenase domain-containing protein
2938	 64.55	0	3200144..3200521	+	125	167646911	-	Caul_2949	-	hypothetical protein
67.78	MEAN

3.85	STD DEV
