IslandPath Analysis: Caulobacter sp. K31

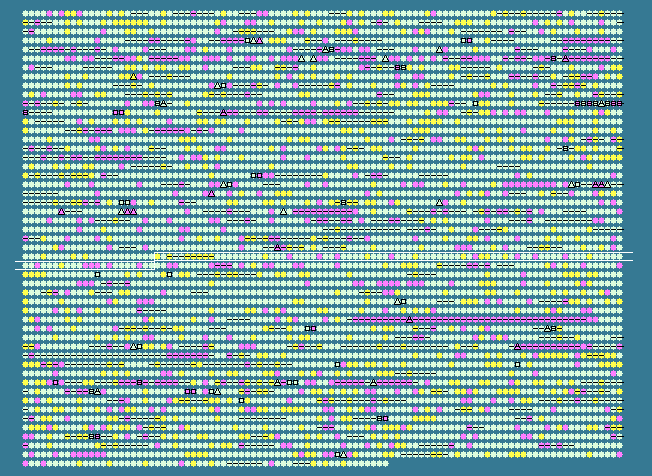

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2723	 72.87	+1	2969741..2970256	-	171	167646696	-	Caul_2734	-	adenosylcobinamide kinase
2724	 68.69	0	2970604..2972529	+	641	167646697	-	Caul_2735	-	TonB-dependent receptor
2725	 73.25	+1	2972532..2973518	+	328	167646698	-	Caul_2736	-	L-threonine-O-3-phosphate decarboxylase
2726	 64.69	0	2973515..2974120	+	201	167646699	-	Caul_2737	-	cob(I)alamin adenosyltransferase
2727	 71.20	0	2974156..2974971	+	271	167646700	-	Caul_2738	-	periplasmic binding protein
2728	 72.05	+1	2974968..2975951	+	327	167646701	-	Caul_2739	-	transport system permease protein
2729	 74.47	+1	2975948..2976742	+	264	167646702	-	Caul_2740	-	ABC transporter related
2730	 74.32	+1	2976777..2977691	+	304	167646703	-	Caul_2741	-	cobalamin biosynthesis protein CobD
2731	 73.54	+1	2977720..2978766	+	348	167646704	-	Caul_2742	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
2732	 73.25	+1	2978766..2979524	+	252	167646705	-	Caul_2743	-	cobalamin 5'-phosphate synthase
2733	 70.96	0	2979521..2980033	+	170	167646706	-	Caul_2744	-	hypothetical protein
2734	 70.88	0	2980111..2981463	+	450	167646707	-	Caul_2745	-	hypothetical protein
2735	 70.15	0	2981572..2983608	+	678	167646708	-	Caul_2746	-	DEAD/DEAH box helicase domain-containing protein
2736	 65.82	0	2984288..2985820	-	510	167646709	-	Caul_2747	-	aldehyde dehydrogenase
2737	 66.76	0	2985921..2986979	+	352	167646710	-	Caul_2748	-	diguanylate cyclase
2738	 69.28	0	2987093..2987896	+	267	167646711	-	Caul_2749	-	enoyl-CoA hydratase
2739	 65.56	0	2987976..2988428	-	150	167646712	-	Caul_2750	-	cyclase/dehydrase
2740	 66.95	0	2988435..2989490	-	351	167646713	-	Caul_2751	-	lipoyl synthase
2741	 71.63	0	2989522..2990589	+	355	167646714	-	Caul_2752	-	lysophospholipase L2, putative
2742	 66.02	0	2990732..2992285	+	517	167646715	-	Caul_2753	-	AMP-dependent synthetase and ligase
2743	 66.92	0	2992415..2992810	+	131	167646716	-	Caul_2754	-	DoxX family protein
2744	 68.24	0	2992886..2994286	-	466	167646717	-	Caul_2755	-	dihydrolipoamide dehydrogenase
2745	 63.10	-1	2994367..2994843	-	158	167646718	-	Caul_2756	-	glutathione peroxidase
2746	 69.79	0	2994963..2996273	-	436	167646719	-	Caul_2757	-	pyruvate dehydrogenase complex dihydrolipoamide acetyltransferase
2747	 68.72	0	2996286..2996723	-	145	167646720	-	Caul_2758	-	glutathione-dependent formaldehyde-activating GFA
2748	 67.47	0	2996779..2998143	-	454	167646721	-	Caul_2759	-	pyruvate dehydrogenase subunit beta
2749	 65.79	0	2998140..2999171	-	343	167646722	-	Caul_2760	-	pyruvate dehydrogenase (acetyl-transferring) E1 component, alpha subunit
2750	 63.30	-1	2999337..2999633	-	98	167646723	-	Caul_2761	-	septum formation initiator
2751	 64.72	0	2999986..3001266	-	426	167646724	-	Caul_2762	-	phosphopyruvate hydratase
2752	 69.68	0	3001380..3002408	-	342	167646725	-	Caul_2763	-	peptidase A2A
2753	 63.12	-1	3002605..3002745	-	46	167646726	-	Caul_2764	-	ribosomal protein L32
2754	 65.09	0	3002904..3004556	-	550	167646727	-	Caul_2765	-	CTP synthetase
2755	 69.80	0	3004634..3005143	-	169	167646728	-	Caul_2766	-	preprotein translocase, SecG subunit
2756	 68.59	0	3005297..3005815	+	172	167646729	-	Caul_2767	-	GCN5-related N-acetyltransferase
2757	 65.07	0	3006612..3007613	+	333	167646730	-	Caul_2768	-	signal transduction histidine kinase
2758	 71.74	+1	3007714..3008502	-	262	167646731	-	Caul_2769	-	Triose-phosphate isomerase
2759	 70.07	0	3008635..3010602	+	655	167646732	-	Caul_2770	-	rotamase family protein
2760	 70.12	0	3010599..3012134	+	511	167646733	-	Caul_2771	-	anthranilate synthase component I
2761	 70.32	0	3012189..3012407	-	72	167646734	-	Caul_2772	-	hypothetical protein
2762	 63.49	-1	3012434..3012874	-	146	167646735	-	Caul_2773	-	hypothetical protein
2763	 67.78	0	3012871..3013500	-	209	167646736	-	Caul_2774	-	hypothetical protein
2764	 64.87	0	3013481..3014149	-	222	167646737	-	Caul_2775	-	hypothetical protein
2765	 66.67	0	3014280..3014876	+	198	167646738	-	Caul_2776	-	anthranilate synthase component II
2766	 71.65	+1	3014879..3015922	+	347	167646739	-	Caul_2777	-	anthranilate phosphoribosyltransferase
2767	 70.47	0	3015919..3016707	+	262	167646740	-	Caul_2778	-	indole-3-glycerol-phosphate synthase
2768	 69.58	0	3016673..3018010	+	445	167646741	-	Caul_2779	-	beta-lactamase
2769	 67.67	0	3018017..3018616	-	199	167646742	-	Caul_2780	-	isoprenylcysteine carboxyl methyltransferase
2770	 65.67	0	3018785..3019486	-	233	167646743	-	Caul_2781	-	hypothetical protein
2771	 67.94	0	3019759..3020466	+	235	167646744	-	Caul_2782	-	LexA repressor
2772	 69.65	0	3020586..3020987	-	133	167646745	-	Caul_2783	-	glutathione-dependent formaldehyde-activating GFA
2773	 68.33	0	3021019..3021681	-	220	167646746	-	Caul_2784	-	glutathione S-transferase domain-containing protein
2774	 74.05	+1	3021684..3023864	-	726	167646747	-	Caul_2785	-	ComEC/Rec2-related protein
2775	 68.28	0	3023899..3025323	+	474	167646748	-	Caul_2786	-	glutamyl-tRNA synthetase
2776	 63.08	-1	3025391..3026671	+	426	167646749	-	Caul_2787	-	citrate synthase I
2777	 71.43	0	3026728..3027000	-	90	167646750	-	Caul_2788	-	flhB-related protein
2778	 75.03	+1	3026997..3028622	-	541	167646751	-	Caul_2789	-	hypothetical protein
2779	 69.81	0	3028749..3030527	+	592	167646752	-	Caul_2790	-	integral membrane sensor hybrid histidine kinase
2780	 70.83	0	3030531..3031730	-	399	167646753	-	Caul_2791	-	lipid-A-disaccharide synthase
2781	 72.65	+1	3031727..3032578	-	283	167646754	-	Caul_2792	-	hypothetical protein
2782	 66.67	0	3032578..3033372	-	264	167646755	-	Caul_2793	-	UDP-N-acetylglucosamine acyltransferase
2783	 62.40	-1	3033369..3033860	-	163	167646756	-	Caul_2794	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabZ
2784	 71.07	0	3033857..3034879	-	340	167646757	-	Caul_2795	-	UDP-3-O-(3-hydroxymyristoyl) glucosamine N-acyltransferase
2785	 68.57	0	3034931..3035560	-	209	167646758	-	Caul_2796	-	outer membrane chaperone Skp (OmpH)
2786	 63.66	-1	3035566..3037923	-	785	167646759	-	Caul_2797	-	outer membrane protein assembly complex, YaeT protein
2787	 67.07	0	3037941..3039425	-	494	167646760	-	Caul_2798	-	membrane-associated zinc metalloprotease
2788	 69.57	0	3039445..3040650	-	401	167646761	-	Caul_2799	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
2789	 68.51	0	3040647..3041513	-	288	167646762	-	Caul_2800	-	phosphatidate cytidylyltransferase
2790	 67.31	0	3041491..3042270	-	259	167646763	-	Caul_2801	-	undecaprenyl diphosphate synthase
2791	 62.26	-1	3042317..3042883	-	188	167646764	-	Caul_2802	-	ribosome recycling factor
2792	 65.45	0	3042909..3043646	-	245	167646765	-	Caul_2803	-	uridylate kinase
2793	 67.52	0	3043847..3044785	-	312	167646766	-	Caul_2804	-	elongation factor Ts
2794	 67.09	0	3044945..3045886	-	313	167646767	-	Caul_2805	-	30S ribosomal protein S2
2795	 71.58	0	3046224..3046874	+	216	167646768	-	Caul_2806	-	hypothetical protein
2796	 67.81	0	3046882..3047232	-	116	167646769	-	Caul_2807	-	glutathione-dependent formaldehyde-activating GFA
2797	 67.25	0	3047358..3050789	-	1143	167646770	-	Caul_2808	-	DNA polymerase III subunit alpha
2798	 68.44	0	3051066..3052025	+	319	167646771	-	Caul_2809	-	inosine/uridine-preferring nucleoside hydrolase
2799	 69.84	0	3052044..3052736	-	230	167646772	-	Caul_2810	-	ABC transporter related
2800	 66.12	0	3052729..3054003	-	424	167646773	-	Caul_2811	-	LolC/E family lipoprotein releasing system, transmembrane protein
2801	 67.49	0	3054003..3055340	-	445	167646774	-	Caul_2812	-	prolyl-tRNA synthetase
2802	 64.37	0	3055672..3055932	-	86	167646775	-	Caul_2813	-	hypothetical protein
2803	 62.59	-1	3055932..3056348	-	138	167646776	-	Caul_2814	-	methylmalonyl-CoA epimerase
2804	 68.04	0	3056419..3057144	-	241	167646777	-	Caul_2815	-	rhomboid family protein
2805	 67.85	0	3057152..3058846	-	564	167646778	-	Caul_2816	-	beta-lactamase domain-containing protein
2806	 64.63	0	3058843..3059628	-	261	167646779	-	Caul_2817	-	pantothenate kinase
2807	 72.11	+1	3059628..3060380	-	250	167646780	-	Caul_2818	-	biotin--acetyl-CoA-carboxylase ligase
2808	 69.15	0	3060382..3061833	-	483	167646781	-	Caul_2819	-	NADH dehydrogenase subunit N
2809	 64.31	0	3061842..3063326	-	494	167646782	-	Caul_2820	-	NADH dehydrogenase subunit M
2810	 65.04	0	3063340..3065424	-	694	167646783	-	Caul_2821	-	NADH dehydrogenase subunit L
2811	 61.11	-1	3065430..3065735	-	101	167646784	-	Caul_2822	-	NADH dehydrogenase subunit K
2812	 64.22	0	3065732..3066343	-	203	167646785	-	Caul_2823	-	NADH dehydrogenase subunit J
2813	 64.24	0	3066423..3066917	-	164	167646786	-	Caul_2824	-	NADH dehydrogenase subunit I
2814	 65.08	0	3066914..3067165	-	83	167646787	-	Caul_2825	-	hypothetical protein
2815	 61.82	-1	3067162..3068235	-	357	167646788	-	Caul_2826	-	NADH dehydrogenase subunit H
2816	 67.78	0	3068241..3070301	-	686	167646789	-	Caul_2827	-	NADH dehydrogenase subunit G
2817	 65.53	0	3070308..3071627	-	439	167646790	-	Caul_2828	-	NADH dehydrogenase I subunit F
2818	 64.79	0	3071631..3071897	-	88	167646791	-	Caul_2829	-	hypothetical protein
2819	 66.67	0	3071894..3072010	-	38	167646792	-	Caul_2830	-	hypothetical protein
2820	 63.76	-1	3072010..3072696	-	228	167646793	-	Caul_2831	-	NADH dehydrogenase subunit E
2821	 65.17	0	3072693..3073025	-	110	167646794	-	Caul_2832	-	hypothetical protein
2822	 64.35	0	3073022..3074272	-	416	167646795	-	Caul_2833	-	NADH dehydrogenase subunit D
67.78	MEAN

3.85	STD DEV
