IslandPath Analysis: Caulobacter sp. K31

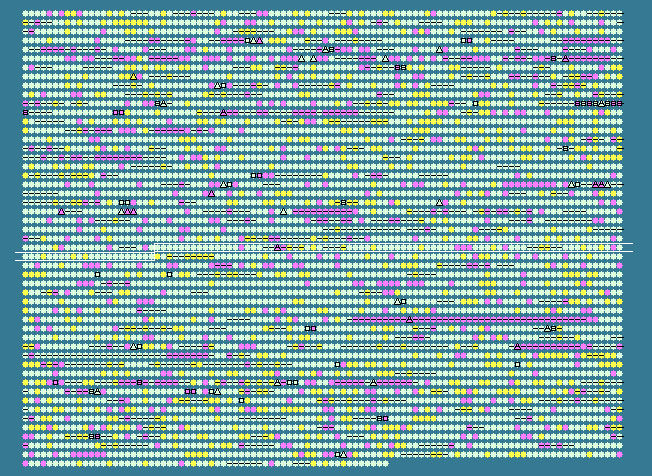

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2623	 68.91	0	2856181..2856894	-	237	167646596	-	Caul_2634	-	N-formylglutamate amidohydrolase
2624	 65.60	0	2856968..2857903	+	311	167646597	-	Caul_2635	-	transglutaminase domain-containing protein
2625	 65.30	0	2858025..2858903	+	292	167646598	-	Caul_2636	-	transglutaminase domain-containing protein
2626	 68.35	0	2859032..2862307	+	1091	167646599	-	Caul_2637	-	transglutaminase domain-containing protein
2627	 68.88	0	2862297..2864828	+	843	167646600	-	Caul_2638	-	hypothetical protein
2628	 67.67	0	2864825..2865724	+	299	167646601	-	Caul_2639	-	transglutaminase domain-containing protein
2629	 68.08	0	2865893..2866882	+	329	167646602	-	Caul_2640	-	AraC family transcriptional regulator
2630	 69.72	0	2866876..2867562	-	228	167646603	-	Caul_2641	-	ThiJ/PfpI domain-containing protein
2631	 67.07	0	2867577..2868806	-	409	167646604	-	Caul_2642	-	di-haem cytochrome c peroxidase
2632	 66.45	0	2868803..2869258	-	151	167646605	-	Caul_2643	-	hypothetical protein
2633	 67.83	0	2869683..2870111	+	142	167646606	-	Caul_2644	-	hypothetical protein
2634	 69.70	0	2870291..2871412	+	373	167646607	-	Caul_2645	-	ThiJ/PfpI domain-containing protein
2635	 65.20	0	2871511..2873826	-	771	167646608	-	Caul_2646	-	TonB-dependent receptor plug
2636	 68.16	0	2873929..2876472	-	847	167646609	-	Caul_2647	-	TonB-dependent receptor
2637	 61.43	-1	2876748..2877320	+	190	167646610	-	Caul_2648	-	ECF subfamily RNA polymerase sigma-24 factor
2638	 69.29	0	2877274..2878302	+	342	167646611	-	Caul_2649	-	anti-FecI sigma factor, FecR
2639	 66.20	0	2878378..2881173	-	931	167646612	-	Caul_2650	-	hypothetical protein
2640	 67.81	0	2881383..2882864	+	493	167646613	-	Caul_2651	-	amidohydrolase
2641	 66.67	0	2882961..2883173	+	70	167646614	-	Caul_2652	-	hypothetical protein
2642	 64.52	0	2883225..2884202	+	325	167646615	-	Caul_2653	-	sodium:dicarboxylate symporter
2643	 63.66	-1	2884683..2885981	+	432	167646616	-	Caul_2654	-	integrase catalytic region
2644	 60.81	-1	2887266..2887538	-	90	167646617	-	Caul_2655	-	hypothetical protein
2645	 71.58	0	2888391..2889224	-	277	167646618	-	Caul_2656	-	LysR family transcriptional regulator
2646	 69.63	0	2889368..2890177	+	269	167646619	-	Caul_2657	-	binding-protein-dependent transport systems inner membrane component
2647	 72.43	+1	2890180..2890995	+	271	167646620	-	Caul_2658	-	ABC transporter related
2648	 71.01	0	2890992..2892164	+	390	167646621	-	Caul_2659	-	acyl-CoA dehydrogenase type 2
2649	 71.61	0	2892161..2893111	+	316	167646622	-	Caul_2660	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
2650	 68.21	0	2893123..2893965	+	280	167646623	-	Caul_2661	-	class II aldolase/adducin family protein
2651	 68.67	0	2893965..2894963	+	332	167646624	-	Caul_2662	-	extracellular solute-binding protein
2652	 66.03	0	2895087..2897273	+	728	167646625	-	Caul_2663	-	TonB-dependent receptor
2653	 69.23	0	2897278..2897901	+	207	167646626	-	Caul_2664	-	cysteine dioxygenase type I
2654	 72.05	+1	2897898..2899475	+	525	167646627	-	Caul_2665	-	rhodanese domain-containing protein
2655	 69.42	0	2899487..2900140	+	217	167646628	-	Caul_2666	-	glutathione S-transferase domain-containing protein
2656	 69.22	0	2900235..2901329	+	364	167646629	-	Caul_2667	-	alkanesulfonate monooxygenase
2657	 71.26	0	2901334..2901921	+	195	167646630	-	Caul_2668	-	flavin reductase domain-containing protein
2658	 65.48	0	2901975..2902565	-	196	167646631	-	Caul_2669	-	hypothetical protein
2659	 71.32	0	2902650..2903744	-	364	167646632	-	Caul_2670	-	ribonuclease Z
2660	 67.99	0	2903852..2904760	+	302	167646633	-	Caul_2671	-	haloalkane dehalogenase
2661	 65.47	0	2904774..2905190	+	138	167646634	-	Caul_2672	-	hypothetical protein
2662	 71.12	0	2905289..2906344	-	351	167646635	-	Caul_2673	-	hypothetical protein
2663	 65.77	0	2906332..2908011	-	559	167646636	-	Caul_2674	-	sulfatase
2664	 67.95	0	2908103..2908492	-	129	167646637	-	Caul_2675	-	hypothetical protein
2665	 66.67	0	2908599..2909276	+	225	167646638	-	Caul_2676	-	DSBA oxidoreductase
2666	 65.09	0	2909504..2911783	+	759	167646639	-	Caul_2677	-	TonB-dependent receptor plug
2667	 72.39	+1	2911780..2912967	+	395	167646640	-	Caul_2678	-	putative MFS transporter
2668	 66.38	0	2913036..2913737	+	233	167646641	-	Caul_2679	-	TetR family transcriptional regulator
2669	 67.84	0	2913779..2915053	+	424	167646642	-	Caul_2680	-	FAD-linked oxidoreductase
2670	 70.31	0	2915067..2916218	+	383	167646643	-	Caul_2681	-	alanine racemase domain-containing protein
2671	 67.31	0	2916229..2916846	-	205	167646644	-	Caul_2682	-	hypothetical protein
2672	 69.28	0	2916985..2917674	-	229	167646645	-	Caul_2683	-	ECF subfamily RNA polymerase sigma-24 factor
2673	 63.97	0	2918067..2918660	-	197	167646646	-	Caul_2684	-	twin-arginine translocation pathway signal
2674	 63.08	-1	2919004..2919672	+	222	167646647	-	Caul_2685	-	two component LuxR family transcriptional regulator
2675	 60.57	-1	2919952..2920197	-	81	167646648	-	Caul_2686	-	hypothetical protein
2676	 70.79	0	2920448..2921416	-	322	167646649	-	Caul_2687	-	LysR family transcriptional regulator
2677	 70.35	0	2921565..2922650	+	361	167646650	-	Caul_2688	-	secretion protein HlyD family protein
2678	 64.97	0	2922647..2924182	+	511	167646651	-	Caul_2689	-	EmrB/QacA family drug resistance transporter
2679	 73.05	+1	2924166..2925623	+	485	167646652	-	Caul_2690	-	RND efflux system outer membrane lipoprotein
2680	 69.86	0	2925835..2926053	+	72	167646653	-	Caul_2691	-	hypothetical protein
2681	 61.75	-1	2926050..2926232	+	60	167646654	-	Caul_2692	-	hypothetical protein
2682	 65.17	0	2926233..2926433	+	66	167646655	-	Caul_2693	-	hypothetical protein
2683	 67.09	0	2926487..2927194	-	235	167646656	-	Caul_2694	-	two component transcriptional regulator
2684	 70.82	0	2927202..2929895	-	897	167646657	-	Caul_2695	-	osmosensitive K+ channel signal transduction histidine kinase
2685	 68.90	0	2930025..2930831	-	268	167646658	-	Caul_2696	-	hypothetical protein
2686	 67.04	0	2930828..2931622	-	264	167646659	-	Caul_2697	-	TatD family hydrolase
2687	 72.14	+1	2931627..2932631	-	334	167646660	-	Caul_2698	-	DNA polymerase III, delta prime subunit
2688	 71.61	0	2932634..2933260	-	208	167646661	-	Caul_2699	-	dTMP kinase
2689	 69.59	0	2933315..2934271	-	318	167646662	-	Caul_2700	-	rare lipoprotein A
2690	 65.68	0	2934574..2936199	+	541	167646663	-	Caul_2701	-	zinc finger SWIM domain-containing protein
2691	 64.83	0	2936171..2936713	-	180	167646664	-	Caul_2702	-	hypothetical protein
2692	 70.15	0	2936867..2937784	+	305	167646665	-	Caul_2703	-	methyltransferase small
2693	 68.29	0	2937781..2938518	+	245	167646666	-	Caul_2704	-	pseudouridine synthase
2694	 73.17	+1	2938511..2938756	+	81	167646667	-	Caul_2705	-	SirA family protein
2695	 66.26	0	2938728..2939720	-	330	167646668	-	Caul_2706	-	ribonuclease BN
2696	 69.50	0	2939976..2941103	-	375	167646669	-	Caul_2707	-	L-carnitine dehydratase/bile acid-inducible protein F
2697	 71.57	0	2941310..2942635	+	441	167646670	-	Caul_2708	-	response regulator receiver protein
2698	 67.13	0	2942785..2943429	+	214	167646671	-	Caul_2709	-	DSBA oxidoreductase
2699	 63.36	-1	2943527..2944222	-	231	167646672	-	Caul_2710	-	TetR family transcriptional regulator
2700	 65.62	0	2944435..2946735	-	766	167646673	-	Caul_2711	-	TonB-dependent receptor
2701	 64.31	0	2947011..2947817	+	268	167646674	-	Caul_2712	-	glucose-1-phosphate cytidylyltransferase
2702	 66.99	0	2947833..2948765	-	310	167646675	-	Caul_2713	-	N-acylneuraminate-9-phosphate synthase
2703	 70.07	0	2948894..2949862	+	322	167646676	-	Caul_2714	-	NAD-dependent epimerase/dehydratase
2704	 72.12	+1	2949814..2950914	-	366	167646677	-	Caul_2715	-	CDP-glucose 4,6-dehydratase
2705	 67.30	0	2951011..2952429	+	472	167646678	-	Caul_2716	-	DegT/DnrJ/EryC1/StrS aminotransferase
2706	 64.37	0	2952447..2953580	+	377	167646679	-	Caul_2717	-	glycosyl transferase family protein
2707	 68.76	0	2953640..2954785	-	381	167646680	-	Caul_2718	-	FkbM family methyltransferase
2708	 69.21	0	2954782..2955606	-	274	167646681	-	Caul_2719	-	short-chain dehydrogenase/reductase SDR
2709	 74.32	+1	2955631..2956401	-	256	167646682	-	Caul_2720	-	short-chain dehydrogenase/reductase SDR
2710	 68.80	0	2956398..2957240	-	280	167646683	-	Caul_2721	-	xylose isomerase domain-containing protein
2711	 72.24	+1	2957237..2957989	-	250	167646684	-	Caul_2722	-	short-chain dehydrogenase/reductase SDR
2712	 70.97	0	2957998..2959788	-	596	167646685	-	Caul_2723	-	thiamine pyrophosphate protein central region
2713	 69.24	0	2959975..2960751	-	258	167646686	-	Caul_2724	-	hypothetical protein
2714	 66.79	0	2960764..2961600	-	278	167646687	-	Caul_2725	-	glycosyl transferase family protein
2715	 68.55	0	2961724..2964213	-	829	167646688	-	Caul_2726	-	TonB-dependent receptor plug
2716	 69.43	0	2964285..2965262	-	325	167646689	-	Caul_2727	-	anti-FecI sigma factor, FecR
2717	 66.27	0	2965360..2965857	-	165	167646690	-	Caul_2728	-	ECF subfamily RNA polymerase sigma-24 factor
2718	 67.52	0	2966103..2966570	+	155	167646691	-	Caul_2729	-	hypothetical protein
2719	 67.71	0	2966592..2967071	-	159	167646692	-	Caul_2730	-	hypothetical protein
2720	 71.16	0	2967081..2967881	-	266	167646693	-	Caul_2731	-	ModE family transcriptional regulator
2721	 68.30	0	2968027..2968698	+	223	167646694	-	Caul_2732	-	molybdate ABC transporter, inner membrane subunit
2722	 66.78	0	2968761..2969648	-	295	167646695	-	Caul_2733	-	taurine dioxygenase
67.78	MEAN

3.85	STD DEV
