IslandPath Analysis: Caulobacter sp. K31

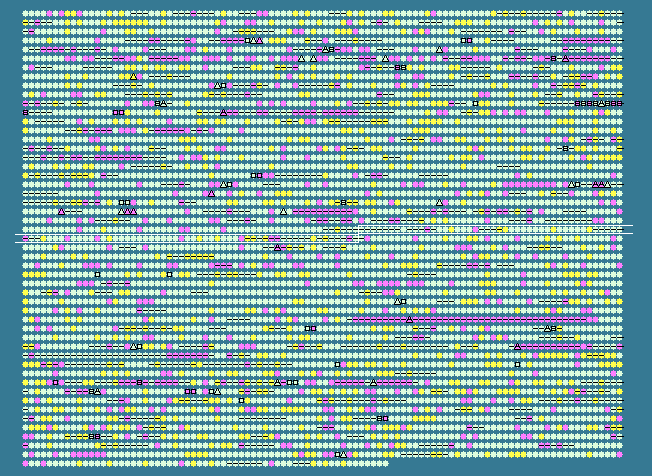

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2457	 70.08	0	2686567..2686947	+	126	167646430	-	Caul_2468	-	cytochrome c class I
2458	 67.98	0	2687077..2687838	-	253	167646431	-	Caul_2469	-	hypothetical protein
2459	 66.88	0	2687838..2688785	-	315	167646432	-	Caul_2470	-	beta-lactamase domain-containing protein
2460	 69.90	0	2688861..2689634	+	257	167646433	-	Caul_2471	-	hypothetical protein
2461	 68.06	0	2689650..2690009	-	119	167646434	-	Caul_2472	-	ArsR family transcriptional regulator
2462	 67.95	0	2690030..2693230	-	1066	167646435	-	Caul_2473	-	acriflavin resistance protein
2463	 70.63	0	2693227..2694261	-	344	167646436	-	Caul_2474	-	RND family efflux transporter MFP subunit
2464	 68.50	0	2694298..2694624	-	108	167646437	-	Caul_2475	-	rhodanese domain-containing protein
2465	 68.47	0	2694624..2694956	-	110	167646438	-	Caul_2476	-	ArsR family transcriptional regulator
2466	 65.18	0	2695076..2696356	+	426	167646439	-	Caul_2477	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
2467	 70.13	0	2696373..2696834	+	153	167646440	-	Caul_2478	-	thioredoxin domain-containing protein
2468	 62.75	-1	2696837..2697040	+	67	167646441	-	Caul_2479	-	hypothetical protein
2469	 67.24	0	2697081..2698133	-	350	167646442	-	Caul_2480	-	histidine kinase
2470	 64.40	0	2698178..2698618	-	146	167646443	-	Caul_2481	-	peptidase M15A
2471	 68.60	0	2698770..2699339	+	189	167646444	-	Caul_2482	-	2'-5' RNA ligase
2472	 72.26	+1	2699465..2700877	-	470	167646445	-	Caul_2483	-	transcriptional regulator
2473	 68.42	0	2700913..2701311	+	132	167646446	-	Caul_2484	-	hypothetical protein
2474	 64.50	0	2701395..2702132	-	245	167646447	-	Caul_2485	-	protein of unknown function DUF899 thioredoxin family protein
2475	 68.90	0	2702209..2702655	+	148	167646448	-	Caul_2486	-	MarR family transcriptional regulator
2476	 63.31	-1	2702773..2703129	+	118	167646449	-	Caul_2487	-	arsenate reductase and related
2477	 68.48	0	2703130..2703789	+	219	167646450	-	Caul_2488	-	HAD family hydrolase
2478	 65.10	0	2703833..2704024	+	63	167646451	-	Caul_2489	-	hypothetical protein
2479	 65.02	0	2704064..2704489	+	141	167646452	-	Caul_2490	-	hypothetical protein
2480	 72.48	+1	2704489..2705004	+	171	167646453	-	Caul_2491	-	ECF subfamily RNA polymerase sigma-24 factor
2481	 72.33	+1	2705001..2705300	+	99	167646454	-	Caul_2492	-	hypothetical protein
2482	 64.63	0	2705469..2705861	+	130	167646455	-	Caul_2493	-	hypothetical protein
2483	 67.86	0	2705893..2706480	+	195	167646456	-	Caul_2494	-	ECF subfamily RNA polymerase sigma-24 factor
2484	 69.77	0	2706932..2707768	+	278	167646457	-	Caul_2495	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2485	 69.15	0	2707955..2708719	+	254	167646458	-	Caul_2496	-	TPR repeat-containing protein
2486	 68.98	0	2708716..2710143	+	475	167646459	-	Caul_2497	-	Pyrrolo-quinoline quinone
2487	 68.21	0	2710252..2712060	+	602	167646460	-	Caul_2498	-	GTP-binding protein EngA
2488	 70.87	0	2712057..2712959	-	300	167646461	-	Caul_2499	-	thioredoxin-disulfide reductase
2489	 72.91	+1	2713092..2713844	-	250	167646462	-	Caul_2500	-	short-chain dehydrogenase/reductase SDR
2490	 67.49	0	2713886..2714860	-	324	167646463	-	Caul_2501	-	bile acid:sodium symporter
2491	 68.13	0	2715008..2716510	-	500	167646464	-	Caul_2502	-	amidophosphoribosyltransferase
2492	 69.07	0	2716507..2717130	-	207	167646465	-	Caul_2503	-	colicin V production protein
2493	 69.63	0	2717127..2718509	-	460	167646466	-	Caul_2504	-	DNA repair protein RadA
2494	 65.91	0	2718682..2719869	+	395	167646467	-	Caul_2505	-	hypothetical protein
2495	 72.58	+1	2719942..2721024	-	360	167646468	-	Caul_2506	-	alanine racemase
2496	 69.88	0	2721091..2721774	-	227	167646469	-	Caul_2507	-	multiple antibiotic resistance (MarC)-related protein
2497	 67.54	0	2721877..2723358	-	493	167646470	-	Caul_2508	-	replicative DNA helicase
2498	 66.83	0	2723571..2725982	-	803	167646471	-	Caul_2509	-	TonB-dependent receptor
2499	 64.62	0	2726181..2726765	-	194	167646472	-	Caul_2510	-	50S ribosomal protein L9
2500	 67.03	0	2726779..2727057	-	92	167646473	-	Caul_2511	-	30S ribosomal protein S18
2501	 61.68	-1	2727073..2727453	-	126	167646474	-	Caul_2512	-	ribosomal protein S6
2502	 67.92	0	2727713..2728432	+	239	167646475	-	Caul_2513	-	hypothetical protein
2503	 65.92	0	2728436..2729239	-	267	167646476	-	Caul_2514	-	fatty acid hydroxylase
2504	 71.30	0	2729311..2730432	-	373	167646477	-	Caul_2515	-	AraC family transcriptional regulator
2505	 68.12	0	2730523..2731074	-	183	167646478	-	Caul_2516	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
2506	 70.58	0	2731302..2732246	+	314	167646479	-	Caul_2517	-	malonyl CoA-acyl carrier protein transacylase
2507	 68.42	0	2732390..2733130	+	246	167646480	-	Caul_2518	-	3-oxoacyl-(acyl-carrier-protein) reductase
2508	 57.92	-2	2733319..2733558	+	79	167646481	-	Caul_2519	-	acyl carrier protein
2509	 67.45	0	2733731..2735011	+	426	167646482	-	Caul_2520	-	3-oxoacyl-(acyl carrier protein) synthase II
2510	 70.78	0	2735008..2736126	+	372	167646483	-	Caul_2521	-	aminodeoxychorismate lyase
2511	 69.39	0	2736128..2737009	+	293	167646484	-	Caul_2522	-	hypothetical protein
2512	 66.36	0	2736999..2737643	+	214	167646485	-	Caul_2523	-	guanylate kinase
2513	 58.70	-2	2737685..2737960	+	91	167646486	-	Caul_2524	-	hypothetical protein
2514	 69.09	0	2738236..2739102	-	288	167646487	-	Caul_2525	-	dimethyladenosine transferase
2515	 72.64	+1	2739224..2740228	-	334	167646488	-	Caul_2526	-	4-hydroxythreonine-4-phosphate dehydrogenase
2516	 67.99	0	2740225..2741583	-	452	167646489	-	Caul_2527	-	SurA domain-containing protein
2517	 65.24	0	2741660..2744110	-	816	167646490	-	Caul_2528	-	organic solvent tolerance protein
2518	 67.93	0	2744139..2745242	-	367	167646491	-	Caul_2529	-	permease YjgP/YjgQ family protein
2519	 64.64	0	2745239..2746375	-	378	167646492	-	Caul_2530	-	permease YjgP/YjgQ family protein
2520	 68.76	0	2746612..2748093	+	493	167646493	-	Caul_2531	-	leucyl aminopeptidase
2521	 69.48	0	2748096..2748557	+	153	167646494	-	Caul_2532	-	DNA polymerase III subunit chi
2522	 71.15	0	2748554..2748910	+	118	167646495	-	Caul_2533	-	hypothetical protein
2523	 71.18	0	2749005..2749646	-	213	167646496	-	Caul_2534	-	hypothetical protein
2524	 68.40	0	2749715..2750119	-	134	167646497	-	Caul_2535	-	hypothetical protein
2525	 68.71	0	2750341..2750928	+	195	167646498	-	Caul_2536	-	hypothetical protein
2526	 67.99	0	2750925..2752808	-	627	167646499	-	Caul_2537	-	ABC transporter related
2527	 62.62	-1	2752910..2753329	+	139	167646500	-	Caul_2538	-	nucleoside-diphosphate kinase
2528	 67.09	0	2753399..2755063	-	554	167646501	-	Caul_2539	-	integral membrane sensor signal transduction histidine kinase
2529	 69.15	0	2755197..2755880	+	227	167646502	-	Caul_2540	-	hypothetical protein
2530	 73.64	+1	2755946..2756590	+	214	167646503	-	Caul_2541	-	hypothetical protein
2531	 67.73	0	2756596..2757813	-	405	167646504	-	Caul_2542	-	membrane dipeptidase
2532	 64.66	0	2757870..2760260	-	796	167646505	-	Caul_2543	-	TonB-dependent receptor
2533	 71.48	0	2760907..2761488	-	193	167646506	-	Caul_2544	-	phosphoribosylglycinamide formyltransferase
2534	 70.08	0	2761651..2762676	-	341	167646507	-	Caul_2545	-	phosphoribosylaminoimidazole synthetase
2535	 68.97	0	2762790..2763959	+	389	167646508	-	Caul_2546	-	ribonuclease D
2536	 71.15	0	2763963..2766059	-	698	167646509	-	Caul_2547	-	histidine kinase
2537	 64.30	0	2766256..2769261	-	1001	167646510	-	Caul_2548	-	TonB-dependent receptor
2538	 73.05	+1	2769734..2771221	-	495	167646511	-	Caul_2549	-	Ppx/GppA phosphatase
2539	 71.43	0	2771318..2771779	-	153	167646512	-	Caul_2550	-	hypothetical protein
2540	 68.28	0	2771776..2774004	-	742	167646513	-	Caul_2551	-	polyphosphate kinase
2541	 74.79	+1	2774311..2775012	-	233	167646514	-	Caul_2552	-	DnaA-related protein
2542	 44.13	-2	2775138..2775767	-	209	167646515	-	Caul_2553	-	hypothetical protein
2543	 46.52	-2	2775760..2776866	-	368	167646516	-	Caul_2554	-	hypothetical protein
2544	 68.39	0	2776970..2777725	+	251	167646517	-	Caul_2555	-	hypothetical protein
2545	 65.79	0	2778066..2778407	-	113	167646518	-	Caul_2556	-	hypothetical protein
2546	 66.89	0	2778447..2780276	+	609	167646519	-	Caul_2557	-	aspartyl-tRNA synthetase
2547	 71.25	0	2780359..2781297	-	312	167646520	-	Caul_2558	-	pentapeptide repeat-containing protein
2548	 70.93	0	2781395..2781886	-	163	167646521	-	Caul_2559	-	pentapeptide repeat-containing protein
2549	 72.03	+1	2781956..2784712	-	918	167646522	-	Caul_2560	-	ribonucleotide reductase-related protein
2550	 64.96	0	2784944..2785354	+	136	167646523	-	Caul_2561	-	NADH dehydrogenase
2551	 72.81	+1	2785356..2786039	+	227	167646524	-	Caul_2562	-	hypothetical protein
2552	 67.58	0	2785976..2786629	-	217	167646525	-	Caul_2563	-	leucyl/phenylalanyl-tRNA--protein transferase
2553	 64.73	0	2786657..2788000	-	447	167646526	-	Caul_2564	-	acetyl-CoA carboxylase biotin carboxylase subunit
2554	 68.99	0	2788006..2788521	-	171	167646527	-	Caul_2565	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
2555	 63.51	-1	2788564..2789007	-	147	167646528	-	Caul_2566	-	3-dehydroquinate dehydratase
2556	 65.67	0	2789087..2789287	+	66	167646529	-	Caul_2567	-	thiamine biosynthesis protein ThiS
67.78	MEAN

3.85	STD DEV
