IslandPath Analysis: Caulobacter sp. K31

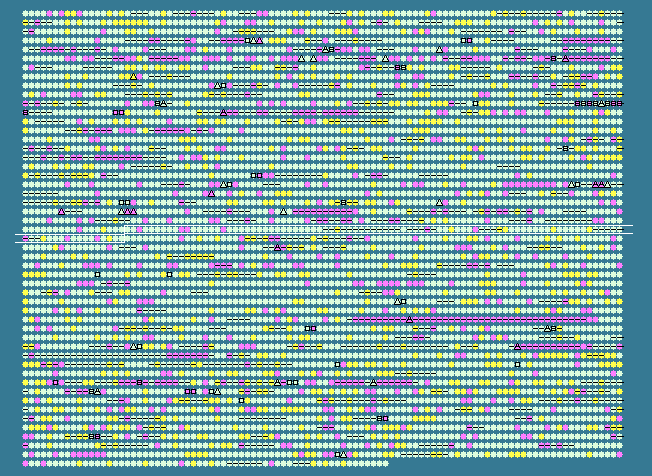

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2418	 69.85	0	2652028..2652750	+	240	167646391	-	Caul_2429	-	hypothetical protein
2419	 70.80	0	2652747..2654198	+	483	167646392	-	Caul_2430	-	AMP-dependent synthetase and ligase
2420	 64.25	0	2654211..2654873	+	220	167646393	-	Caul_2431	-	hypothetical protein
2421	 64.94	0	2654866..2655618	+	250	167646394	-	Caul_2432	-	short-chain dehydrogenase/reductase SDR
2422	 69.70	0	2655638..2656297	+	219	167646395	-	Caul_2433	-	hypothetical protein
2423	 68.88	0	2656431..2657153	+	240	167646396	-	Caul_2434	-	phosphoesterase PA-phosphatase related
2424	 67.39	0	2657357..2658880	+	507	167646397	-	Caul_2435	-	methyl-accepting chemotaxis sensory transducer
2425	 68.48	0	2659035..2659310	-	91	167646398	-	Caul_2436	-	hypothetical protein
2426	 64.54	0	2659428..2661071	+	547	167646399	-	Caul_2437	-	cytochrome c oxidase, cbb3-type, subunit I
2427	 64.25	0	2661082..2661825	+	247	167646400	-	Caul_2438	-	cytochrome c oxidase, cbb3-type, subunit II
2428	 60.38	-1	2661830..2661988	+	52	167646401	-	Caul_2439	-	Cbb3-type cytochrome oxidase component
2429	 68.63	0	2661988..2662854	+	288	167646402	-	Caul_2440	-	cytochrome c oxidase, cbb3-type, subunit III
2430	 67.07	0	2662860..2664365	+	501	167646403	-	Caul_2441	-	cytochrome c oxidase accessory protein CcoG
2431	 70.81	0	2664362..2664844	+	160	167646404	-	Caul_2442	-	FixH family protein
2432	 71.19	0	2664841..2667006	+	721	167646405	-	Caul_2443	-	heavy metal translocating P-type ATPase
2433	 68.48	0	2667003..2667167	+	54	167646406	-	Caul_2444	-	cytochrome oxidase maturation protein, cbb3-type
2434	 63.57	-1	2667332..2667976	+	214	167646407	-	Caul_2445	-	OmpW family protein
2435	 69.86	0	2668431..2669681	+	416	167646408	-	Caul_2446	-	hypothetical protein
2436	 67.29	0	2669859..2670986	+	375	167646409	-	Caul_2447	-	patatin
2437	 68.22	0	2671158..2671286	+	42	167646410	-	Caul_2448	-	hypothetical protein
2438	 70.38	0	2671288..2672283	+	331	167646411	-	Caul_2449	-	zinc-binding alcohol dehydrogenase family protein
2439	 65.17	0	2672389..2672988	-	199	167646412	-	Caul_2450	-	NAD(P)H dehydrogenase (quinone)
2440	 68.68	0	2673115..2673561	+	148	167646413	-	Caul_2451	-	hypothetical protein
2441	 68.80	0	2673640..2675283	+	547	167646414	-	Caul_2452	-	beta-lactamase domain-containing protein
2442	 67.88	0	2675360..2675689	+	109	167646415	-	Caul_2453	-	hypothetical protein
2443	 68.61	0	2675981..2676856	+	291	167646416	-	Caul_2454	-	UspA domain-containing protein
2444	 69.33	0	2676886..2677374	-	162	167646417	-	Caul_2455	-	NUDIX hydrolase
2445	 67.44	0	2677426..2677941	-	171	167646418	-	Caul_2456	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
2446	 66.50	0	2677982..2678596	-	204	167646419	-	Caul_2457	-	Crp/FNR family transcriptional regulator
2447	 70.36	0	2678772..2681453	-	893	167646420	-	Caul_2458	-	CoA-binding domain-containing protein
2448	 65.33	0	2681543..2681767	+	74	167646421	-	Caul_2459	-	response regulator receiver protein
2449	 67.93	0	2681849..2682244	+	131	167646422	-	Caul_2460	-	response regulator receiver protein
2450	 67.05	0	2682358..2683392	+	344	167646423	-	Caul_2461	-	alcohol dehydrogenase
2451	 69.14	0	2683404..2683808	+	134	167646424	-	Caul_2462	-	cytochrome c class I
2452	 64.74	0	2683943..2684098	+	51	167646425	-	Caul_2463	-	hypothetical protein
2453	 73.30	+1	2684269..2684826	+	185	167646426	-	Caul_2464	-	hypothetical protein
2454	 67.71	0	2685219..2685506	+	95	167646427	-	Caul_2465	-	hypothetical protein
2455	 70.26	0	2685590..2686006	-	138	167646428	-	Caul_2466	-	cytochrome c class I
2456	 66.21	0	2686003..2686443	-	146	167646429	-	Caul_2467	-	hypothetical protein
2457	 70.08	0	2686567..2686947	+	126	167646430	-	Caul_2468	-	cytochrome c class I
2458	 67.98	0	2687077..2687838	-	253	167646431	-	Caul_2469	-	hypothetical protein
2459	 66.88	0	2687838..2688785	-	315	167646432	-	Caul_2470	-	beta-lactamase domain-containing protein
2460	 69.90	0	2688861..2689634	+	257	167646433	-	Caul_2471	-	hypothetical protein
2461	 68.06	0	2689650..2690009	-	119	167646434	-	Caul_2472	-	ArsR family transcriptional regulator
2462	 67.95	0	2690030..2693230	-	1066	167646435	-	Caul_2473	-	acriflavin resistance protein
2463	 70.63	0	2693227..2694261	-	344	167646436	-	Caul_2474	-	RND family efflux transporter MFP subunit
2464	 68.50	0	2694298..2694624	-	108	167646437	-	Caul_2475	-	rhodanese domain-containing protein
2465	 68.47	0	2694624..2694956	-	110	167646438	-	Caul_2476	-	ArsR family transcriptional regulator
2466	 65.18	0	2695076..2696356	+	426	167646439	-	Caul_2477	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
2467	 70.13	0	2696373..2696834	+	153	167646440	-	Caul_2478	-	thioredoxin domain-containing protein
2468	 62.75	-1	2696837..2697040	+	67	167646441	-	Caul_2479	-	hypothetical protein
2469	 67.24	0	2697081..2698133	-	350	167646442	-	Caul_2480	-	histidine kinase
2470	 64.40	0	2698178..2698618	-	146	167646443	-	Caul_2481	-	peptidase M15A
2471	 68.60	0	2698770..2699339	+	189	167646444	-	Caul_2482	-	2'-5' RNA ligase
2472	 72.26	+1	2699465..2700877	-	470	167646445	-	Caul_2483	-	transcriptional regulator
2473	 68.42	0	2700913..2701311	+	132	167646446	-	Caul_2484	-	hypothetical protein
2474	 64.50	0	2701395..2702132	-	245	167646447	-	Caul_2485	-	protein of unknown function DUF899 thioredoxin family protein
2475	 68.90	0	2702209..2702655	+	148	167646448	-	Caul_2486	-	MarR family transcriptional regulator
2476	 63.31	-1	2702773..2703129	+	118	167646449	-	Caul_2487	-	arsenate reductase and related
2477	 68.48	0	2703130..2703789	+	219	167646450	-	Caul_2488	-	HAD family hydrolase
2478	 65.10	0	2703833..2704024	+	63	167646451	-	Caul_2489	-	hypothetical protein
2479	 65.02	0	2704064..2704489	+	141	167646452	-	Caul_2490	-	hypothetical protein
2480	 72.48	+1	2704489..2705004	+	171	167646453	-	Caul_2491	-	ECF subfamily RNA polymerase sigma-24 factor
2481	 72.33	+1	2705001..2705300	+	99	167646454	-	Caul_2492	-	hypothetical protein
2482	 64.63	0	2705469..2705861	+	130	167646455	-	Caul_2493	-	hypothetical protein
2483	 67.86	0	2705893..2706480	+	195	167646456	-	Caul_2494	-	ECF subfamily RNA polymerase sigma-24 factor
2484	 69.77	0	2706932..2707768	+	278	167646457	-	Caul_2495	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2485	 69.15	0	2707955..2708719	+	254	167646458	-	Caul_2496	-	TPR repeat-containing protein
2486	 68.98	0	2708716..2710143	+	475	167646459	-	Caul_2497	-	Pyrrolo-quinoline quinone
2487	 68.21	0	2710252..2712060	+	602	167646460	-	Caul_2498	-	GTP-binding protein EngA
2488	 70.87	0	2712057..2712959	-	300	167646461	-	Caul_2499	-	thioredoxin-disulfide reductase
2489	 72.91	+1	2713092..2713844	-	250	167646462	-	Caul_2500	-	short-chain dehydrogenase/reductase SDR
2490	 67.49	0	2713886..2714860	-	324	167646463	-	Caul_2501	-	bile acid:sodium symporter
2491	 68.13	0	2715008..2716510	-	500	167646464	-	Caul_2502	-	amidophosphoribosyltransferase
2492	 69.07	0	2716507..2717130	-	207	167646465	-	Caul_2503	-	colicin V production protein
2493	 69.63	0	2717127..2718509	-	460	167646466	-	Caul_2504	-	DNA repair protein RadA
2494	 65.91	0	2718682..2719869	+	395	167646467	-	Caul_2505	-	hypothetical protein
2495	 72.58	+1	2719942..2721024	-	360	167646468	-	Caul_2506	-	alanine racemase
2496	 69.88	0	2721091..2721774	-	227	167646469	-	Caul_2507	-	multiple antibiotic resistance (MarC)-related protein
2497	 67.54	0	2721877..2723358	-	493	167646470	-	Caul_2508	-	replicative DNA helicase
2498	 66.83	0	2723571..2725982	-	803	167646471	-	Caul_2509	-	TonB-dependent receptor
2499	 64.62	0	2726181..2726765	-	194	167646472	-	Caul_2510	-	50S ribosomal protein L9
2500	 67.03	0	2726779..2727057	-	92	167646473	-	Caul_2511	-	30S ribosomal protein S18
2501	 61.68	-1	2727073..2727453	-	126	167646474	-	Caul_2512	-	ribosomal protein S6
2502	 67.92	0	2727713..2728432	+	239	167646475	-	Caul_2513	-	hypothetical protein
2503	 65.92	0	2728436..2729239	-	267	167646476	-	Caul_2514	-	fatty acid hydroxylase
2504	 71.30	0	2729311..2730432	-	373	167646477	-	Caul_2515	-	AraC family transcriptional regulator
2505	 68.12	0	2730523..2731074	-	183	167646478	-	Caul_2516	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
2506	 70.58	0	2731302..2732246	+	314	167646479	-	Caul_2517	-	malonyl CoA-acyl carrier protein transacylase
2507	 68.42	0	2732390..2733130	+	246	167646480	-	Caul_2518	-	3-oxoacyl-(acyl-carrier-protein) reductase
2508	 57.92	-2	2733319..2733558	+	79	167646481	-	Caul_2519	-	acyl carrier protein
2509	 67.45	0	2733731..2735011	+	426	167646482	-	Caul_2520	-	3-oxoacyl-(acyl carrier protein) synthase II
2510	 70.78	0	2735008..2736126	+	372	167646483	-	Caul_2521	-	aminodeoxychorismate lyase
2511	 69.39	0	2736128..2737009	+	293	167646484	-	Caul_2522	-	hypothetical protein
2512	 66.36	0	2736999..2737643	+	214	167646485	-	Caul_2523	-	guanylate kinase
2513	 58.70	-2	2737685..2737960	+	91	167646486	-	Caul_2524	-	hypothetical protein
2514	 69.09	0	2738236..2739102	-	288	167646487	-	Caul_2525	-	dimethyladenosine transferase
2515	 72.64	+1	2739224..2740228	-	334	167646488	-	Caul_2526	-	4-hydroxythreonine-4-phosphate dehydrogenase
2516	 67.99	0	2740225..2741583	-	452	167646489	-	Caul_2527	-	SurA domain-containing protein
2517	 65.24	0	2741660..2744110	-	816	167646490	-	Caul_2528	-	organic solvent tolerance protein
67.78	MEAN

3.85	STD DEV
