IslandPath Analysis: Caulobacter sp. K31

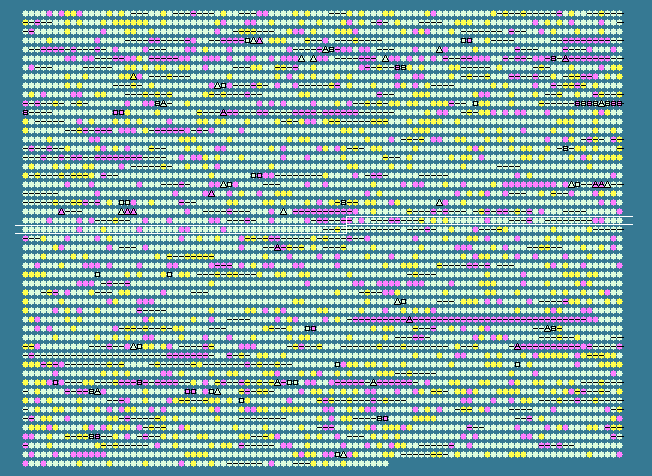

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2355	 64.27	0	2566892..2568145	-	417	167646328	-	Caul_2366	-	sarcosine oxidase beta subunit family protein
2356	 64.32	0	2568263..2569198	+	311	167646329	-	Caul_2367	-	AraC family transcriptional regulator
2357	 63.30	-1	2569397..2571535	+	712	167646330	-	Caul_2368	-	TonB-dependent receptor
2358	 66.37	0	2571651..2572994	+	447	167646331	-	Caul_2369	-	major facilitator transporter
2359	 66.00	0	2573079..2573975	+	298	167646332	-	Caul_2370	-	putative esterase
2360	 65.94	0	2574026..2576098	+	690	167646333	-	Caul_2371	-	prolyl oligopeptidase
2361	 65.43	0	2576185..2577801	+	538	167646334	-	Caul_2372	-	gamma-glutamyltransferase
2362	 63.49	-1	2577858..2579558	+	566	167646335	-	Caul_2373	-	hypothetical protein
2363	 63.23	-1	2579555..2580484	+	309	167646336	-	Caul_2374	-	hypothetical protein
2364	 67.26	0	2580567..2582084	-	505	167646337	-	Caul_2375	-	aldehyde dehydrogenase
2365	 68.07	0	2582117..2583400	-	427	167646338	-	Caul_2376	-	FAD dependent oxidoreductase
2366	 64.44	0	2583510..2584406	+	298	167646339	-	Caul_2377	-	LysR family transcriptional regulator
2367	 74.11	+1	2584725..2585060	+	111	167646340	-	Caul_2378	-	hypothetical protein
2368	 71.14	0	2585053..2585544	+	163	167646341	-	Caul_2379	-	hypothetical protein
2369	 72.49	+1	2585521..2588544	-	1007	167646342	-	Caul_2380	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
2370	 68.37	0	2588874..2589461	+	195	167646343	-	Caul_2381	-	ECF subfamily RNA polymerase sigma-24 factor
2371	 75.19	+1	2589567..2590481	+	304	167646344	-	Caul_2382	-	regulatory protein PupR, putative
2372	 69.11	0	2590565..2593345	+	926	167646345	-	Caul_2383	-	TonB-dependent receptor
2373	 69.16	0	2593361..2594485	+	374	167646346	-	Caul_2384	-	glycerophosphoryl diester phosphodiesterase
2374	 68.51	0	2594632..2595501	-	289	167646347	-	Caul_2385	-	LysR family transcriptional regulator
2375	 69.05	0	2595606..2596610	+	334	167646348	-	Caul_2386	-	alcohol dehydrogenase
2376	 69.05	0	2596591..2597220	+	209	167646349	-	Caul_2387	-	AraC family transcriptional regulator
2377	 66.09	0	2597279..2597626	-	115	167646350	-	Caul_2388	-	alkylhydroperoxidase
2378	 63.64	-1	2597795..2598256	-	153	167646351	-	Caul_2389	-	hypothetical protein
2379	 66.84	0	2598521..2599111	+	196	167646352	-	Caul_2390	-	AraC family transcriptional regulator
2380	 69.88	0	2599403..2602267	+	954	167646353	-	Caul_2391	-	transcriptional regulator
2381	 70.98	0	2602459..2603781	+	440	167646354	-	Caul_2392	-	aldehyde dehydrogenase
2382	 71.23	0	2603785..2604507	+	240	167646355	-	Caul_2393	-	alpha/beta hydrolase fold
2383	 68.07	0	2604676..2605104	+	142	167646356	-	Caul_2394	-	hypothetical protein
2384	 68.68	0	2605272..2606213	-	313	167646357	-	Caul_2395	-	beta-lactamase domain-containing protein
2385	 64.29	0	2606647..2607024	-	125	167646358	-	Caul_2396	-	hypothetical protein
2386	 64.66	0	2607195..2607743	-	182	167646359	-	Caul_2397	-	hypothetical protein
2387	 65.86	0	2607831..2608574	-	247	167646360	-	Caul_2398	-	short-chain dehydrogenase/reductase SDR
2388	 65.64	0	2608709..2609680	+	323	167646361	-	Caul_2399	-	AraC family transcriptional regulator
2389	 65.17	0	2609677..2612691	-	1004	167646362	-	Caul_2400	-	TonB-dependent receptor
2390	 68.65	0	2613199..2614155	-	318	167646363	-	Caul_2401	-	LacI family transcription regulator
2391	 67.60	0	2614933..2615892	-	319	167646364	-	Caul_2402	-	hypothetical protein
2392	 68.63	0	2615952..2617886	-	644	167646365	-	Caul_2403	-	protein of unknown function DUF303 acetylesterase putative
2393	 68.45	0	2618000..2620696	-	898	167646366	-	Caul_2404	-	Beta-glucosidase
2394	 68.28	0	2620747..2622915	-	722	167646367	-	Caul_2405	-	hypothetical protein
2395	 65.18	0	2622912..2624456	-	514	167646368	-	Caul_2406	-	tryptophan halogenase
2396	 63.21	-1	2624525..2627479	-	984	167646369	-	Caul_2407	-	TonB-dependent receptor
2397	 64.16	0	2627783..2628460	+	225	167646370	-	Caul_2408	-	SapC family protein
2398	 66.76	0	2628457..2629491	+	344	167646371	-	Caul_2409	-	hypothetical protein
2399	 64.98	0	2629526..2631601	-	691	167646372	-	Caul_2410	-	Alpha-N-arabinofuranosidase
2400	 64.95	0	2631861..2632967	+	368	167646373	-	Caul_2411	-	putative esterase
2401	 67.25	0	2633003..2634898	+	631	167646374	-	Caul_2412	-	Alpha-galactosidase
2402	 67.82	0	2634996..2636561	+	521	167646375	-	Caul_2413	-	glycoside hydrolase family protein
2403	 71.13	0	2636576..2637337	-	253	167646376	-	Caul_2414	-	GntR domain-containing protein
2404	 64.78	0	2637476..2639065	-	529	167646377	-	Caul_2415	-	Alpha-N-arabinofuranosidase
2405	 66.09	0	2639352..2640575	+	407	167646378	-	Caul_2416	-	hypothetical protein
2406	 68.54	0	2640575..2641696	+	373	167646379	-	Caul_2417	-	glycosyl transferase group 1
2407	 66.05	0	2641704..2642681	+	325	167646380	-	Caul_2418	-	acid phosphatase
2408	 66.14	0	2642777..2643343	-	188	167646381	-	Caul_2419	-	cytochrome B561
2409	 65.38	0	2643456..2643923	-	155	167646382	-	Caul_2420	-	rubrerythrin
2410	 62.01	-1	2644097..2644375	+	92	167646383	-	Caul_2421	-	hypothetical protein
2411	 66.02	0	2644382..2644996	+	204	167646384	-	Caul_2422	-	cytochrome B561
2412	 67.52	0	2644968..2645672	+	234	167646385	-	Caul_2423	-	two component transcriptional regulator
2413	 66.60	0	2645665..2647089	+	474	167646386	-	Caul_2424	-	integral membrane sensor signal transduction histidine kinase
2414	 72.41	+1	2647086..2647781	+	231	167646387	-	Caul_2425	-	hypothetical protein
2415	 68.94	0	2647810..2650224	-	804	167646388	-	Caul_2426	-	TonB-dependent receptor plug
2416	 69.03	0	2650253..2651227	-	324	167646389	-	Caul_2427	-	anti-FecI sigma factor, FecR
2417	 68.79	0	2651328..2651939	-	203	167646390	-	Caul_2428	-	ECF subfamily RNA polymerase sigma-24 factor
2418	 69.85	0	2652028..2652750	+	240	167646391	-	Caul_2429	-	hypothetical protein
2419	 70.80	0	2652747..2654198	+	483	167646392	-	Caul_2430	-	AMP-dependent synthetase and ligase
2420	 64.25	0	2654211..2654873	+	220	167646393	-	Caul_2431	-	hypothetical protein
2421	 64.94	0	2654866..2655618	+	250	167646394	-	Caul_2432	-	short-chain dehydrogenase/reductase SDR
2422	 69.70	0	2655638..2656297	+	219	167646395	-	Caul_2433	-	hypothetical protein
2423	 68.88	0	2656431..2657153	+	240	167646396	-	Caul_2434	-	phosphoesterase PA-phosphatase related
2424	 67.39	0	2657357..2658880	+	507	167646397	-	Caul_2435	-	methyl-accepting chemotaxis sensory transducer
2425	 68.48	0	2659035..2659310	-	91	167646398	-	Caul_2436	-	hypothetical protein
2426	 64.54	0	2659428..2661071	+	547	167646399	-	Caul_2437	-	cytochrome c oxidase, cbb3-type, subunit I
2427	 64.25	0	2661082..2661825	+	247	167646400	-	Caul_2438	-	cytochrome c oxidase, cbb3-type, subunit II
2428	 60.38	-1	2661830..2661988	+	52	167646401	-	Caul_2439	-	Cbb3-type cytochrome oxidase component
2429	 68.63	0	2661988..2662854	+	288	167646402	-	Caul_2440	-	cytochrome c oxidase, cbb3-type, subunit III
2430	 67.07	0	2662860..2664365	+	501	167646403	-	Caul_2441	-	cytochrome c oxidase accessory protein CcoG
2431	 70.81	0	2664362..2664844	+	160	167646404	-	Caul_2442	-	FixH family protein
2432	 71.19	0	2664841..2667006	+	721	167646405	-	Caul_2443	-	heavy metal translocating P-type ATPase
2433	 68.48	0	2667003..2667167	+	54	167646406	-	Caul_2444	-	cytochrome oxidase maturation protein, cbb3-type
2434	 63.57	-1	2667332..2667976	+	214	167646407	-	Caul_2445	-	OmpW family protein
2435	 69.86	0	2668431..2669681	+	416	167646408	-	Caul_2446	-	hypothetical protein
2436	 67.29	0	2669859..2670986	+	375	167646409	-	Caul_2447	-	patatin
2437	 68.22	0	2671158..2671286	+	42	167646410	-	Caul_2448	-	hypothetical protein
2438	 70.38	0	2671288..2672283	+	331	167646411	-	Caul_2449	-	zinc-binding alcohol dehydrogenase family protein
2439	 65.17	0	2672389..2672988	-	199	167646412	-	Caul_2450	-	NAD(P)H dehydrogenase (quinone)
2440	 68.68	0	2673115..2673561	+	148	167646413	-	Caul_2451	-	hypothetical protein
2441	 68.80	0	2673640..2675283	+	547	167646414	-	Caul_2452	-	beta-lactamase domain-containing protein
2442	 67.88	0	2675360..2675689	+	109	167646415	-	Caul_2453	-	hypothetical protein
2443	 68.61	0	2675981..2676856	+	291	167646416	-	Caul_2454	-	UspA domain-containing protein
2444	 69.33	0	2676886..2677374	-	162	167646417	-	Caul_2455	-	NUDIX hydrolase
2445	 67.44	0	2677426..2677941	-	171	167646418	-	Caul_2456	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
2446	 66.50	0	2677982..2678596	-	204	167646419	-	Caul_2457	-	Crp/FNR family transcriptional regulator
2447	 70.36	0	2678772..2681453	-	893	167646420	-	Caul_2458	-	CoA-binding domain-containing protein
2448	 65.33	0	2681543..2681767	+	74	167646421	-	Caul_2459	-	response regulator receiver protein
2449	 67.93	0	2681849..2682244	+	131	167646422	-	Caul_2460	-	response regulator receiver protein
2450	 67.05	0	2682358..2683392	+	344	167646423	-	Caul_2461	-	alcohol dehydrogenase
2451	 69.14	0	2683404..2683808	+	134	167646424	-	Caul_2462	-	cytochrome c class I
2452	 64.74	0	2683943..2684098	+	51	167646425	-	Caul_2463	-	hypothetical protein
2453	 73.30	+1	2684269..2684826	+	185	167646426	-	Caul_2464	-	hypothetical protein
2454	 67.71	0	2685219..2685506	+	95	167646427	-	Caul_2465	-	hypothetical protein
67.78	MEAN

3.85	STD DEV
