IslandPath Analysis: Caulobacter sp. K31

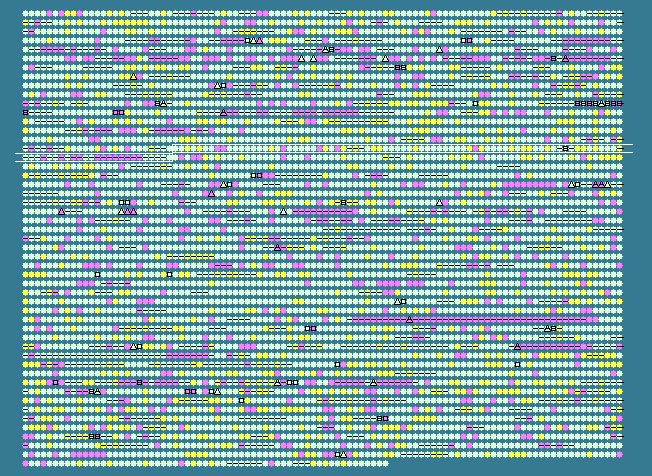

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.78 STD DEV: 3.85
Caulobacter sp. K31, complete genome - 1..5477872
5061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1526	 66.48	0	1624791..1625330	+	179	167645499	-	Caul_1534	-	hypothetical protein
1527	 66.67	0	1625527..1625667	-	46	167645500	-	Caul_1535	-	hypothetical protein
1528	 72.22	+1	1626014..1626787	-	257	167645501	-	Caul_1536	-	polysaccharide deacetylase
1529	 69.01	0	1626787..1627725	-	312	167645502	-	Caul_1537	-	glycosyl transferase family protein
1530	 71.59	0	1627722..1629164	-	480	167645503	-	Caul_1538	-	polysaccharide biosynthesis protein
1531	 70.55	0	1629174..1630694	-	506	167645504	-	Caul_1539	-	undecaprenyl-phosphate glucose phosphotransferase
1532	 65.78	0	1631068..1632078	-	336	167645505	-	Caul_1540	-	alcohol dehydrogenase
1533	 63.25	-1	1632214..1633764	-	516	167645506	-	Caul_1541	-	Alpha-L-fucosidase
1534	 63.35	-1	1634313..1635095	+	260	167645507	-	Caul_1542	-	IclR family transcriptional regulator
1535	 65.83	0	1635151..1635507	-	118	167645508	-	Caul_1543	-	hypothetical protein
1536	 68.57	0	1635757..1636491	-	244	167645509	-	Caul_1544	-	short-chain dehydrogenase/reductase SDR
1537	 68.40	0	1636498..1637709	-	403	167645510	-	Caul_1545	-	Altronate dehydratase
1538	 67.00	0	1637712..1638008	-	98	167645511	-	Caul_1546	-	D-galactarate dehydratase/altronate hydrolase-like protein
1539	 70.58	0	1638019..1639065	-	348	167645512	-	Caul_1547	-	pyridoxal 4-dehydrogenase
1540	 67.70	0	1639062..1639832	-	256	167645513	-	Caul_1548	-	IclR family transcriptional regulator
1541	 70.17	0	1639837..1640664	-	275	167645514	-	Caul_1549	-	amidohydrolase 2
1542	 71.72	+1	1640658..1640756	-	32	167645515	-	Caul_1550	-	hypothetical protein
1543	 65.67	0	1640760..1642064	-	434	167645516	-	Caul_1551	-	L-fucose transporter
1544	 63.99	0	1642343..1642753	+	136	167645517	-	Caul_1552	-	hypothetical protein
1545	 68.86	0	1642780..1643418	-	212	167645518	-	Caul_1553	-	anti-ECFsigma factor, ChrR
1546	 65.40	0	1643415..1644044	-	209	167645519	-	Caul_1554	-	ECF subfamily RNA polymerase sigma-24 factor
1547	 68.24	0	1644160..1645497	+	445	167645520	-	Caul_1555	-	amine oxidase
1548	 65.05	0	1645494..1646297	+	267	167645521	-	Caul_1556	-	hypothetical protein
1549	 64.31	0	1646617..1647126	+	169	167645522	-	Caul_1557	-	hypothetical protein
1550	 63.69	-1	1647184..1648023	+	279	167645523	-	Caul_1558	-	hypothetical protein
1551	 71.83	+1	1648526..1649203	+	225	167645524	-	Caul_1559	-	hypothetical protein
1552	 69.79	0	1649205..1650422	+	405	167645525	-	Caul_1560	-	tail sheath protein
1553	 63.87	-1	1650459..1650923	+	154	167645526	-	Caul_1561	-	phage tail protein
1554	 74.53	+1	1650927..1652249	+	440	167645527	-	Caul_1562	-	hypothetical protein
1555	 69.88	0	1652237..1653013	+	258	167645528	-	Caul_1563	-	hypothetical protein
1556	 73.14	+1	1653010..1654524	+	504	167645529	-	Caul_1564	-	hypothetical protein
1557	 65.80	0	1654527..1654871	+	114	167645530	-	Caul_1565	-	hypothetical protein
1558	 71.23	0	1654874..1655311	+	145	167645531	-	Caul_1566	-	GPW/gp25 family protein
1559	 71.96	+1	1655311..1657842	+	843	167645532	-	Caul_1567	-	hypothetical protein
1560	 71.82	+1	1657845..1658387	+	180	167645533	-	Caul_1568	-	hypothetical protein
1561	 66.81	0	1658412..1659794	+	460	167645534	-	Caul_1569	-	PASTA domain-containing protein
1562	 69.04	0	1659853..1660905	+	350	167645535	-	Caul_1570	-	PASTA domain-containing protein
1563	 64.62	0	1660959..1661936	+	325	167645536	-	Caul_1571	-	hypothetical protein
1564	 67.32	0	1661946..1662557	+	203	167645537	-	Caul_1572	-	hypothetical protein
1565	 64.91	0	1662561..1663298	-	245	167645538	-	Caul_1573	-	hypothetical protein
1566	 71.38	0	1663560..1664513	+	317	167645539	-	Caul_1574	-	VacJ family lipoprotein
1567	 65.77	0	1664510..1665181	+	223	167645540	-	Caul_1575	-	toluene tolerance family protein
1568	 69.36	0	1665237..1665755	+	172	167645541	-	Caul_1576	-	hypothetical protein
1569	 68.90	0	1665757..1666563	+	268	167645542	-	Caul_1577	-	hypothetical protein
1570	 67.43	0	1666560..1667342	+	260	167645543	-	Caul_1578	-	ABC transporter related
1571	 69.61	0	1667369..1667809	+	146	167645544	-	Caul_1579	-	hypothetical protein
1572	 64.54	0	1667904..1668608	+	234	167645545	-	Caul_1580	-	glutathione S-transferase domain-containing protein
1573	 68.00	0	1668784..1670955	+	723	167645546	-	Caul_1581	-	methyltransferase
1574	 70.95	0	1671033..1671242	-	69	167645547	-	Caul_1582	-	hypothetical protein
1575	 72.62	+1	1671252..1671419	-	55	167645548	-	Caul_1583	-	hypothetical protein
1576	 63.99	0	1671535..1672206	+	223	167645549	-	Caul_1584	-	hypothetical protein
1577	 72.60	+1	1672207..1672998	-	263	167645550	-	Caul_1585	-	hypothetical protein
1578	 70.10	0	1673086..1674570	-	494	167645551	-	Caul_1586	-	integral membrane sensor signal transduction histidine kinase
1579	 68.83	0	1674567..1675352	-	261	167645552	-	Caul_1587	-	two component transcriptional regulator
1580	 68.21	0	1675468..1676181	-	237	167645553	-	Caul_1588	-	beta-lactamase domain-containing protein
1581	 67.04	0	1676272..1677891	-	539	167645554	-	Caul_1589	-	amino acid permease-associated region
1582	 73.77	+1	1678131..1680608	+	825	167645555	-	Caul_1590	-	ATP-dependent helicase HrpB
1583	 67.36	0	1680971..1681114	+	47	167645556	-	Caul_1591	-	hypothetical protein
1584	 71.52	0	1681310..1683121	-	603	167645557	-	Caul_1592	-	peptidase M24
1585	 73.79	+1	1683164..1683598	-	144	167645558	-	Caul_1593	-	hypothetical protein
1586	 70.01	0	1683664..1684530	-	288	167645559	-	Caul_1594	-	ribosomal L11 methyltransferase
1587	 69.80	0	1684548..1685951	-	467	167645560	-	Caul_1595	-	O-antigen polymerase
1588	 73.89	+1	1686059..1686529	-	156	167645561	-	Caul_1596	-	hypothetical protein
1589	 69.29	0	1687785..1688774	-	329	167645562	-	Caul_1598	-	proline iminopeptidase
1590	 67.87	0	1688892..1689140	+	82	167645563	-	Caul_1599	-	hypothetical protein
1591	 70.18	0	1689429..1690367	+	312	167645564	-	Caul_1600	-	transposase IS116/IS110/IS902 family protein
1592	 67.78	0	1690405..1691391	-	328	167645565	-	Caul_1601	-	alpha/beta hydrolase fold
1593	 71.39	0	1691510..1692736	+	408	167645566	-	Caul_1602	-	Bcr/CflA subfamily drug resistance transporter
1594	 72.70	+1	1692869..1693249	-	126	167645567	-	Caul_1603	-	hypothetical protein
1595	 68.56	0	1693246..1693986	-	246	167645568	-	Caul_1604	-	integral membrane protein TerC
1596	 72.69	+1	1694028..1695737	-	569	167645569	-	Caul_1605	-	hypothetical protein
1597	 67.74	0	1695826..1696662	-	278	167645570	-	Caul_1606	-	RNA methyltransferase
1598	 64.74	0	1697121..1698311	+	396	167645571	-	Caul_1607	-	elongation factor Tu
1599	 69.79	0	1698589..1700253	-	554	167645572	-	Caul_1608	-	cyclic nucleotide-regulated FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1600	 73.04	+1	1700377..1701192	+	271	167645573	-	Caul_1609	-	formate dehydrogenase family accessory protein FdhD
1601	 69.42	0	1701192..1703483	+	763	167645574	-	Caul_1610	-	oxidoreductase alpha (molybdopterin) subunit
1602	 68.56	0	1703742..1704584	+	280	167645575	-	Caul_1611	-	hypothetical protein
1603	 66.54	0	1704672..1705433	-	253	167645576	-	Caul_1612	-	hypothetical protein
1604	 61.17	-1	1706047..1706355	+	102	167645577	-	Caul_1613	-	30S ribosomal protein S10
1605	 65.50	0	1706371..1707141	+	256	167645578	-	Caul_1614	-	50S ribosomal protein L3
1606	 64.32	0	1707141..1707779	+	212	167645579	-	Caul_1615	-	50S ribosomal protein L4
1607	 60.27	-1	1707779..1708075	+	98	167645580	-	Caul_1616	-	50S ribosomal protein L23
1608	 67.14	0	1708080..1708919	+	279	167645581	-	Caul_1617	-	50S ribosomal protein L2
1609	 63.44	-1	1708923..1709201	+	92	167645582	-	Caul_1618	-	ribosomal protein S19
1610	 62.99	-1	1709205..1709585	+	126	167645583	-	Caul_1619	-	50S ribosomal protein L22
1611	 65.20	0	1709585..1710334	+	249	167645584	-	Caul_1620	-	30S ribosomal protein S3
1612	 65.99	0	1710347..1710787	+	146	167645585	-	Caul_1621	-	50S ribosomal protein L16
1613	 62.05	-1	1710784..1710978	+	64	167645586	-	Caul_1622	-	ribosomal protein L29
1614	 55.83	-2	1710989..1711228	+	79	167645587	-	Caul_1623	-	ribosomal protein S17
1615	 62.06	-1	1711246..1711614	+	122	167645588	-	Caul_1624	-	ribosomal protein L14
1616	 61.90	-1	1711614..1711928	+	104	167645589	-	Caul_1625	-	ribosomal protein L24
1617	 59.86	-2	1711921..1712478	+	185	167645590	-	Caul_1626	-	50S ribosomal protein L5
1618	 62.75	-1	1712500..1712805	+	101	167645591	-	Caul_1627	-	ribosomal protein S14
1619	 63.41	-1	1712816..1713214	+	132	167645592	-	Caul_1628	-	ribosomal protein S8
1620	 62.55	-1	1713232..1713765	+	177	167645593	-	Caul_1629	-	50S ribosomal protein L6
1621	 66.11	0	1713769..1714125	+	118	167645594	-	Caul_1630	-	ribosomal protein L18
1622	 67.33	0	1714136..1714741	+	201	167645595	-	Caul_1631	-	30S ribosomal protein S5
1623	 64.58	0	1714745..1714936	+	63	167645596	-	Caul_1632	-	ribosomal protein L30
1624	 67.08	0	1715063..1715548	+	161	167645597	-	Caul_1633	-	ribosomal protein L15
1625	 64.53	0	1715816..1717174	+	452	167645598	-	Caul_1634	-	preprotein translocase subunit SecY
67.78	MEAN

3.85	STD DEV
