IslandPath Analysis: Campylobacter jejuni RM1221

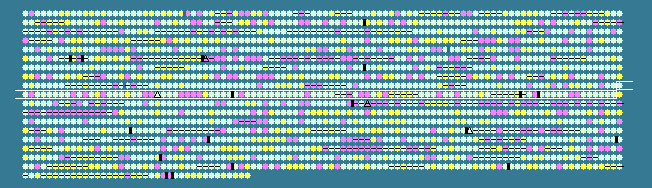

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
900	 32.27	0	866064..866906	-	280	57237681	fbp	CJE0927	-	fructose-1,6-bisphosphatase
901	 28.25	0	866908..867399	-	163	57237682	mobB	CJE0928	-	molybdopterin-guanine dinucleotide biosynthesis protein MobB
902	 25.93	-1	867495..867980	+	161	57237683	-	CJE0929	-	putative lipoprotein
903	 27.92	0	867877..869502	-	541	57237684	-	CJE0930	-	soluble lytic murein transglycosylase, putative
904	 30.85	0	869499..869780	-	93	57237685	-	CJE0931	-	YGGT family protein
905	 30.71	0	869783..871078	-	431	57237686	gltX	CJE0932	-	glutamyl-tRNA synthetase
906	 27.64	0	871164..872288	+	374	57237687	-	CJE0933	-	Ser/Thr protein phosphatase family protein
907	 28.96	0	872285..873085	+	266	57237688	psd	CJE0934	-	phosphatidylserine decarboxylase
908	 32.98	0	873082..873363	-	93	57237689	-	CJE0935	-	FlhB domain-containing protein
909	 26.52	0	873360..875471	-	703	57237690	-	CJE0936	-	hypothetical protein
910	 29.71	0	875464..876651	-	395	57237691	-	CJE0937	-	major facilitator family protein
911	 20.24	-2	876629..877132	-	167	57237692	-	CJE0938	-	hypothetical protein
912	 30.30	0	877132..877461	-	109	57237693	-	CJE0939	-	hypothetical protein
913	 33.88	0	877458..878732	-	424	57237694	hemL	CJE0940	-	glutamate-1-semialdehyde aminotransferase
914	 26.44	0	878729..879076	-	115	57237695	-	CJE0941	-	hypothetical protein
915	 32.98	0	879156..880004	+	282	57237696	folD	CJE0942	-	folD bifunctional protein
916	 32.39	0	880014..880862	+	282	57237697	lepB	CJE0943	-	signal peptidase I
917	 30.40	0	880884..882044	-	386	57237698	-	CJE0944	-	molybdopterin biosynthesis MoeA protein, putative
918	 36.04	+1	882041..883297	-	418	57237699	murA	CJE0945	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
919	 31.70	0	883363..883791	-	142	57237700	-	CJE0946	-	hypothetical protein
920	 28.98	0	883885..884757	+	290	57237701	-	CJE0947	-	integral membrane protein
921	 25.40	-1	884744..885310	-	188	57237702	pabA	CJE0948	-	para-aminobenzoate synthase glutamine amidotransferase, component II
922	 25.71	-1	885307..887091	-	594	57237703	pabB	CJE0949	-	para-aminobenzoate synthase glutamine amidotransferase, component I
923	 29.20	0	887081..888145	-	354	57237704	-	CJE0950	-	phage integrase family site specific recombinase
924	 30.02	0	888773..889435	+	220	57237705	dsbA	CJE0951	-	thiol:disulfide interchange protein DsbA
925	 31.17	0	889447..890232	+	261	57237706	dsbB	CJE0952	-	putative disulfide oxidoreductase
926	 26.64	0	891829..892500	+	223	57237707	-	CJE0954	-	thiol:disulfide interchange protein DsbA, putative
927	 21.28	-2	893729..893869	+	46	57237708	-	CJE0958	-	hypothetical protein
928	 22.91	-1	893857..894489	-	210	57237709	-	CJE0959	-	putative periplasmic protein
929	 25.10	-1	894486..894728	-	80	57237710	-	CJE0960	-	hypothetical protein
930	 25.60	-1	894712..895758	-	348	57237711	-	CJE0961	-	hypothetical protein
931	 34.57	+1	895767..897941	-	724	57237712	flhA	CJE0962	-	flagellar biosynthesis protein FlhA
932	 27.49	0	897928..898338	-	136	57237713	-	CJE0963	-	RrF2 family protein, putative
933	 28.94	0	898513..898785	+	90	57237714	rpsO	CJE0964	-	30S ribosomal protein S15
934	 30.11	0	898871..901696	-	941	57237715	-	CJE0965	-	cell division protein FtsK, putative
935	 32.31	0	901821..904073	-	750	57237716	-	CJE0966	-	flagellar hook-associated protein
936	 29.92	0	904454..906385	-	643	57237717	-	CJE0967	-	ABC transporter, ATP-binding protein
937	 24.96	-1	906389..907678	-	429	57237718	-	CJE0968	-	sensor histidine kinase
938	 27.75	0	907672..908334	-	220	57237719	-	CJE0969	-	DNA-binding response regulator
939	 32.83	0	908321..909904	-	527	57237720	serA	CJE0970	-	D-3-phosphoglycerate dehydrogenase
940	 28.22	0	909901..910389	-	162	57237721	-	CJE0971	-	hypothetical protein
941	 30.82	0	910389..912059	-	556	57237722	rpsA	CJE0972	-	30S ribosomal protein S1
942	 28.90	0	912191..913024	-	277	57237723	ispH	CJE0973	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
943	 31.08	0	913014..914300	-	428	57237724	aroA	CJE0974	-	3-phosphoshikimate 1-carboxyvinyltransferase
944	 28.38	0	914297..916618	-	773	57237725	pheT	CJE0975	-	phenylalanyl-tRNA synthetase subunit beta
945	 32.73	0	916615..917607	-	330	57237726	pheS	CJE0976	-	phenylalanyl-tRNA synthetase subunit alpha
946	 31.42	0	917730..918095	+	121	57237727	-	CJE0977	-	HIT family protein
947	 32.28	0	918125..918694	-	189	57237728	thiJ	CJE0978	-	4-methyl-5(B-hydroxyethyl)-thiazole monophosphate biosynthesis enzyme
948	 22.78	-1	918687..918866	-	59	57237729	-	CJE0979	-	hypothetical protein
949	 28.09	0	918949..919692	+	247	57237730	-	CJE0980	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
950	 31.41	0	919685..920413	+	242	57237731	-	CJE0981	-	amino acid ABC transporter, ATP-binding protein
951	 31.83	0	920441..921907	-	488	57237732	-	CJE0982	-	amino acid carrier protein
952	 29.49	0	922011..922478	-	155	57237733	-	CJE0983	-	RNA methyltransferase
953	 29.48	0	922481..923467	-	328	57237734	alr	CJE0984	-	alanine racemase
954	 28.43	0	923468..924445	-	325	57237735	-	CJE0985	-	hypothetical protein
955	 23.14	-1	924602..925072	+	156	57237736	-	CJE0986	-	hypothetical protein
956	 27.62	0	925158..925577	+	139	57237737	-	CJE0987	-	hypothetical protein
957	 25.39	-1	925581..926033	+	150	57237738	-	CJE0988	-	hypothetical protein
958	 25.67	-1	926030..926590	+	186	57237739	-	CJE0989	-	SCO1/SenC family protein
959	 31.44	0	926597..927496	-	299	57237740	cysK	CJE0990	-	cysteine synthase A
960	 35.02	+1	927623..927919	-	98	57237741	hup	CJE0991	-	DNA-binding protein HU
961	 26.13	-1	928021..929853	-	610	57237742	ciaB	CJE0992	-	invasion antigen B
962	 35.75	+1	929915..930328	+	137	57237743	-	CJE0993	-	thioesterase family protein
963	 28.28	0	930368..930565	-	65	57237744	-	CJE0994	-	hypothetical protein
964	 35.46	+1	930546..932657	-	703	57237745	cstA	CJE0995	-	carbon starvation protein A
965	 35.16	+1	932824..933753	-	309	57237746	prsA	CJE0996	-	ribose-phosphate pyrophosphokinase
966	 28.33	0	933860..934519	-	219	57237747	-	CJE0997	-	amino acid ABC transporter, permease protein PEB1
967	 32.01	0	934530..935282	-	250	57237748	-	CJE0998	-	amino acid ABC transporter, permease protein PEB1
968	 31.03	0	935284..936063	-	259	57237749	pebA	CJE0999	-	bifunctional adhesin/ABC transporter aspartate/glutamate-binding protein
969	 32.24	0	936085..936813	-	242	57237750	pebC	CJE1000	-	amino acid ABC transporter, ATP-binding protein PEB1
970	 26.49	0	936949..937737	-	262	57237751	cheR	CJE1001	-	chemotaxis protein methyltransferase CheR
971	 32.07	0	937753..938307	-	184	57237752	cheB	CJE1002	-	protein-glutamate methylesterase CheB
972	 31.96	0	938473..938910	+	145	57237753	rpiB	CJE1003	-	ribose 5-phosphate isomerase B
973	 26.43	0	938910..939242	+	110	57237754	-	CJE1004	-	hypothetical protein
974	 30.05	0	939239..939787	+	182	57237755	apt	CJE1005	-	adenine phosphoribosyltransferase
975	 29.82	0	939806..940402	+	198	57237756	-	CJE1006	-	DedA family protein
976	 31.96	0	940399..941850	+	483	57237757	-	CJE1007	-	leucyl aminopeptidase
977	 33.97	0	941847..942950	+	367	57237758	-	CJE1008	-	translation-associated GTPase
978	 30.73	0	942972..944354	-	460	57237759	argH	CJE1009	-	argininosuccinate lyase
979	 32.83	0	944364..945938	-	524	57237760	pckA	CJE1010	-	phosphoenolpyruvate carboxykinase
980	 32.67	0	945951..947750	-	599	57237761	-	CJE1011	-	oxaloacetate decarboxylase, alpha subunit, putative
981	 27.44	0	947782..949122	-	446	57237762	-	CJE1012	-	sodium transporter, putative
982	 30.49	0	949135..950469	-	444	57237763	-	CJE1013	-	sodium transporter, putative
983	 39.23	+2	950702..951040	+	112	57237764	atpE	CJE1014	-	F0F1 ATP synthase subunit C
984	 29.71	0	951358..952269	+	303	57237765	-	CJE1015	-	hypothetical protein
985	 29.97	0	952277..955789	-	1170	57237766	aas	CJE1016	-	2-acyl-glycerophospho-ethanolamine acyltransferase
986	 21.00	-2	955834..956214	-	126	57237767	-	CJE1017	-	hypothetical protein
987	 27.61	0	957015..957800	-	261	57237768	-	CJE1018	-	His/Glu/Gln/Arg/opine ABC transporter permease
988	 29.60	0	957823..959028	-	401	57237769	-	CJE1019	-	permease, putative
989	 33.10	0	959025..961613	-	862	57237770	secA	CJE1020	-	preprotein translocase subunit SecA
990	 26.86	0	961713..962222	+	169	161486705	lolA	CJE1021	-	outer-membrane lipoprotein carrier protein
991	 27.62	0	962219..962953	-	244	57237772	-	CJE1022	-	hypothetical protein
992	 26.34	0	962963..964306	-	447	57237773	-	CJE1023	-	hypothetical protein
993	 25.98	-1	964355..965701	+	448	57237774	-	CJE1024	-	putative lipoprotein
994	 33.10	0	965713..966585	-	290	57237775	-	CJE1025	-	carbon-nitrogen family hydrolase
995	 28.49	0	966582..967469	-	295	57237776	-	CJE1026	-	cation efflux family protein
996	 29.04	0	967466..968443	-	325	57237777	-	CJE1027	-	peptidyl-arginine deiminase family protein
997	 29.20	0	968542..968976	-	144	57237778	-	CJE1028	-	putative lipoprotein
998	 27.50	0	968992..969111	-	39	57237779	-	CJE1029	-	hypothetical protein
999	 31.84	0	969127..969660	-	177	57237780	-	CJE1030	-	methyl-accepting chemotaxis protein
30.10	MEAN

3.94	STD DEV
