IslandPath Analysis: Campylobacter jejuni RM1221

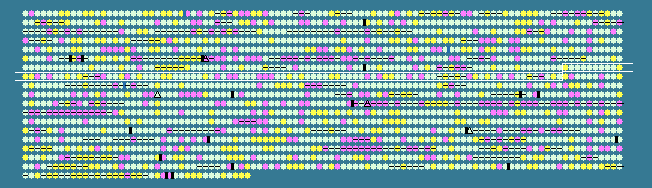

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
691	 34.01	0	639547..640737	+	396	57238199	-	CJE0708	-	carboxypeptidase
692	 31.88	0	640816..641988	+	390	57238198	-	CJE0709	-	macrolide-specific efflux protein macA
693	 32.55	0	641988..643913	+	641	57238197	-	CJE0710	-	macrolide-specific efflux protein macB
694	 26.99	0	643915..645285	+	456	57238196	-	CJE0711	-	outer membrane efflux protein
695	 28.67	0	645288..646466	-	392	57238195	-	CJE0712	-	hypothetical protein
696	 29.18	0	646453..647463	-	336	57238194	-	CJE0713	-	hypothetical protein
697	 27.16	0	647464..648840	-	458	57238193	algI	CJE0714	-	alginate O-acetyltransferase AlgI
698	 31.75	0	648883..649386	-	167	57238192	ftn	CJE0715	-	nonheme iron-containing ferritin
699	 32.43	0	649566..650561	+	331	57238191	-	CJE0716	-	phosphate ABC transporter, periplasmic phosphate-binding protein, putative
700	 34.32	+1	650571..651485	+	304	57238190	-	CJE0717	-	phosphate ABC transporter, permease protein PstC, putative
701	 34.07	+1	651482..652570	+	362	57238189	-	CJE0718	-	phosphate ABC transporter, permease protein PstA, putative
702	 34.68	+1	652567..653307	+	246	57238188	pstB	CJE0719	-	phosphate ABC transporter, ATP-binding protein
703	 13.13	-2	654603..654701	-	32	57238187	-	CJE0721	-	hypothetical protein
704	 32.35	0	654687..656003	+	438	57238186	-	CJE0722	-	MATE efflux family protein
705	 24.13	-1	655964..656626	+	220	57238185	-	CJE0723	-	hypothetical protein
706	 28.40	0	656668..658188	+	506	57238184	-	CJE0724	-	hypothetical protein
707	 30.27	0	658169..660358	+	729	57238183	hypF	CJE0725	-	[NiFe] hydrogenase maturation protein HypF
708	 35.35	+1	660435..661178	+	247	57238182	hypB	CJE0726	-	hydrogenase accessory protein HypB
709	 31.91	0	661178..661459	+	93	57238181	hypC	CJE0727	-	hydrogenase assembly chaperone HypC/HupF
710	 35.26	+1	661443..662534	+	363	57238180	hypD	CJE0728	-	hydrogenase expression/formation protein HypD
711	 33.85	0	662531..663505	+	324	57238179	hypE	CJE0729	-	hydrogenase expression/formation protein HypE
712	 31.30	0	663505..663849	+	114	57238178	hypA	CJE0730	-	hydrogenase nickel insertion protein HypA
713	 25.10	-1	663944..665971	+	675	57238177	-	CJE0731	-	type III restriction/modification enzyme, methylase subunit
714	 23.46	-1	665952..668513	+	853	57236942	-	CJE0732	-	type III restriction-modification enzyme
715	 28.05	0	668544..669509	-	321	57236943	-	CJE0733	-	DNA polymerase III subunit delta
716	 32.20	0	669502..671436	-	644	57236944	-	CJE0734	-	RNB-like protein
717	 35.58	+1	671555..672577	+	340	57236945	ilvC	CJE0735	-	ketol-acid reductoisomerase
718	 25.76	-1	672581..673663	+	360	57236946	-	CJE0736	-	hypothetical protein
719	 30.23	0	673653..674426	+	257	57236947	dprA	CJE0737	-	DNA processing protein A
720	 34.90	+1	674423..674806	+	127	57236948	-	CJE0738	-	Holliday junction resolvase-like protein
721	 27.86	0	674835..675674	+	279	57236949	-	CJE0739	-	NOL1/NOP2/sun family protein
722	 28.92	0	675850..676347	-	165	57236950	msrA	CJE0740	-	methionine sulfoxide reductase A
723	 31.79	0	676389..676907	-	172	57236951	ppa	CJE0741	-	inorganic pyrophosphatase
724	 34.02	0	676917..677495	-	192	57236952	adk	CJE0742	-	adenylate kinase
725	 35.33	+1	677492..679243	-	583	57236953	aspS	CJE0743	-	aspartyl-tRNA synthetase
726	 28.46	0	679334..680194	+	286	57236954	-	CJE0744	-	ATP-NAD kinase, putative
727	 27.43	0	680194..681717	+	507	57236955	recN	CJE0745	-	DNA repair protein RecN
728	 29.56	0	681823..683067	+	414	57236956	-	CJE0746	-	response regulator/GGDEF domain-containing protein
729	 29.78	0	683058..683873	+	271	57236957	-	CJE0747	-	TatD family hydrolase
730	 28.42	0	683873..684991	+	372	57236958	-	CJE0748	-	membrane-bound lytic murein transglycosylase D, putative
731	 36.71	+1	684951..685778	+	275	57236959	rlpA	CJE0749	-	rare lipoprotein A
732	 30.47	0	685784..686272	+	162	57236960	-	CJE0750	-	YrbI family phosphatase
733	 25.06	-1	686344..686778	+	144	57236961	-	CJE0751	-	hypothetical protein
734	 28.35	0	686760..687221	+	153	57236962	-	CJE0752	-	OstA family protein
735	 25.29	-1	687218..687814	+	198	57236963	-	CJE0753	-	GTPase EngB
736	 24.44	-1	687811..688305	+	164	57236964	-	CJE0754	-	hypothetical protein
737	 31.28	0	688312..690111	+	599	57236965	pbpC	CJE0755	-	penicillin-binding protein 2
738	 32.16	0	690232..692022	-	596	57236966	-	CJE0756	-	M24 family peptidase
739	 30.18	0	692038..693591	-	517	57236967	-	CJE0757	-	di-/tripeptide transporter
740	 26.25	0	694507..694746	-	79	57236968	-	CJE0759	-	hypothetical protein
741	 20.58	-2	695404..695952	-	182	57236969	-	CJE0761	-	hypothetical protein
742	 21.66	-2	696341..697051	-	236	57236970	-	CJE0762	-	hypothetical protein
743	 32.53	0	697038..697913	-	291	57236971	era	CJE0763	-	GTP-binding protein Era
744	 32.95	0	697910..699229	-	439	57236972	hslU	CJE0764	-	ATP-dependent protease ATP-binding subunit
745	 36.65	+1	699226..699768	-	180	57236973	hslV	CJE0765	-	ATP-dependent protease peptidase subunit
746	 33.11	0	699768..700211	-	147	57236974	rplI	CJE0766	-	50S ribosomal protein L9
747	 36.69	+1	700224..701444	-	406	57236975	argG	CJE0767	-	argininosuccinate synthase
748	 31.71	0	701600..701845	+	81	57236976	-	CJE0768	-	S4 domain-containing protein
749	 29.66	0	701842..702249	+	135	57236977	-	CJE0769	-	hypothetical protein
750	 32.66	0	702233..702970	+	245	57236978	-	CJE0770	-	ABC transporter, ATP-binding protein
751	 29.26	0	702970..704220	+	416	57236979	rpoN	CJE0771	-	RNA polymerase factor sigma-54
752	 35.30	+1	704384..705808	+	474	57236980	dcuB	CJE0772	-	anaerobic C4-dicarboxylate transporter
753	 36.84	+1	705950..706063	+	37	57236981	-	CJE0773	-	hypothetical protein
754	 31.53	0	709917..710525	+	202	57236982	-	CJE0776	-	potassium-transporting ATPase, C subunit, putative
755	 33.43	0	712327..714300	-	657	57236983	uvrB	CJE0778	-	excinuclease ABC subunit B
756	 29.87	0	714454..714684	+	76	57236984	-	CJE0779	-	hypothetical protein
757	 28.40	0	714674..714916	+	80	57236985	-	CJE0780	-	hypothetical protein
758	 26.48	0	714913..715350	+	145	57236986	-	CJE0781	-	hypothetical protein
759	 30.10	0	715332..717185	+	617	57236987	priA	CJE0782	-	primosome assembly protein PriA
760	 25.46	-1	717195..718592	-	465	57236988	-	CJE0783	-	invasion phenotype protein
761	 35.29	+1	718738..719811	+	357	57236989	ispG	CJE0785	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
762	 33.62	0	719841..720539	-	232	57236990	flgH	CJE0786	-	flagellar basal body L-ring protein
763	 31.61	0	720629..722134	+	501	57236991	pta	CJE0787	-	phosphate acetyltransferase
764	 32.33	0	722148..723338	+	396	57236992	ackA	CJE0788	-	acetate kinase
765	 26.38	0	723366..727118	-	1250	57236993	-	CJE0789	-	hypothetical protein
766	 27.24	0	727268..727759	+	163	57236994	-	CJE0790	-	hypothetical protein
767	 26.20	0	727747..728685	-	312	57236995	-	CJE0791	-	hypothetical protein
768	 28.19	0	728685..729617	-	310	57236996	mraW	CJE0792	-	S-adenosyl-methyltransferase MraW
769	 26.89	0	729782..731272	+	496	57236997	-	CJE0793	-	peptidyl-prolyl cis-trans isomerase D,-like protein
770	 32.39	0	731275..732657	+	460	57236998	ftsA	CJE0794	-	cell division protein FtsA
771	 35.85	+1	732673..733785	+	370	57236999	ftsZ	CJE0795	-	cell division protein FtsZ
772	 33.58	0	733941..734753	+	270	57237000	-	CJE0796	-	flagellar basal-body rod protein
773	 38.76	+2	734782..735573	+	263	57237001	flgG	CJE0797	-	flagellar basal body rod protein FlgG
774	 33.19	0	735639..737069	-	476	57237002	glnA	CJE0798	-	glutamine synthetase, type I
775	 13.01	-2	737158..737280	-	40	57238721	-	CJE0799	-	hypothetical protein
776	 34.05	+1	737272..737967	+	231	57237003	-	CJE0800	-	hypothetical protein
777	 31.98	0	737964..739217	+	417	57237004	-	CJE0801	-	U32 family peptidase
778	 35.15	+1	739218..739712	+	164	57237005	purE	CJE0802	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
779	 32.06	0	740270..741133	+	287	57237006	glyQ	CJE0804	-	glycyl-tRNA synthetase subunit alpha
780	 26.45	0	741120..741845	+	241	57237007	-	CJE0805	-	hypothetical protein
781	 28.87	0	741855..742571	+	238	57237008	-	CJE0806	-	hypothetical protein
782	 25.99	-1	742568..743725	+	385	57237009	waaA	CJE0807	-	3-deoxy-D-manno-octulosonic-acid transferase
783	 29.75	0	743706..744458	+	250	57237010	-	CJE0808	-	RNA pseudouridylate synthase family protein
784	 33.26	0	744526..745863	+	445	57237011	ffh	CJE0809	-	signal recognition particle protein
785	 35.96	+1	745929..746156	+	75	57237012	rpsP	CJE0810	-	30S ribosomal protein S16
786	 30.45	0	746159..746401	+	80	57237013	-	CJE0811	-	hypothetical protein
787	 25.56	-1	746394..746933	+	179	57237014	rimM	CJE0812	-	16S rRNA processing protein RimM
788	 29.93	0	746930..747634	+	234	57237015	trmD	CJE0813	-	tRNA (guanine-N(1)-)-methyltransferase
789	 33.61	0	747645..748001	+	118	57237016	rplS	CJE0814	-	50S ribosomal protein L19
790	 30.19	0	748135..748548	+	137	57237017	-	CJE0815	-	transthyretin-like protein
30.10	MEAN

3.94	STD DEV
