IslandPath Analysis: Campylobacter jejuni RM1221

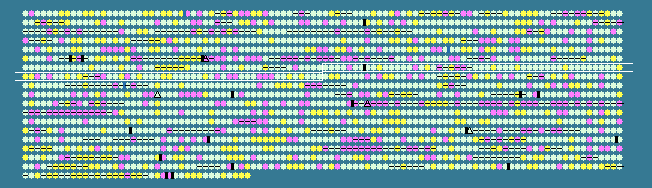

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
651	 33.26	0	603536..604912	+	458	57238239	dnaB	CJE0667	-	replicative DNA helicase
652	 29.77	0	605017..605577	+	186	57238238	-	CJE0668	-	hypothetical protein
653	 30.92	0	605568..605774	+	68	57238237	-	CJE0669	-	hypothetical protein
654	 27.34	0	605904..606971	+	355	57238236	-	CJE0670	-	GTP-binding protein
655	 25.73	-1	606982..607152	+	56	57238235	-	CJE0671	-	hypothetical protein
656	 29.08	0	607166..607471	+	101	57238234	-	CJE0672	-	hypothetical protein
657	 28.87	0	608545..609417	+	290	57238233	-	CJE0674	-	transcriptional regulator, putative
658	 32.16	0	609716..610735	+	339	57238232	ribB	CJE0675	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
659	 29.28	0	610747..611190	+	147	57238231	-	CJE0676	-	GatB/Yqey family protein
660	 35.86	+1	611208..612908	+	566	57238230	ilvB	CJE0677	-	acetolactate synthase 3 catalytic subunit
661	 30.75	0	612905..613369	+	154	57238229	ilvH	CJE0678	-	acetolactate synthase 3 regulatory subunit
662	 33.13	0	613366..614331	+	321	57238228	lpxD	CJE0679	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
663	 31.78	0	614320..615348	-	342	57238227	queA	CJE0680	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
664	 32.38	0	615341..616078	-	245	57238226	tatC	CJE0681	-	Sec-independent protein translocase TatC
665	 28.54	0	616071..616487	-	138	57238225	tatB	CJE0682	-	sec-independent translocase
666	 26.12	-1	616545..617612	-	355	57238224	-	CJE0683	-	coproporphyrinogen III oxidase
667	 28.87	0	617713..618183	+	156	57238223	nidH	CJE0684	-	dinucleoside polyphosphate hydrolase
668	 35.25	+1	618185..619387	+	400	57238222	-	CJE0685	-	aspartate kinase
669	 31.66	0	619388..619924	+	178	57238221	-	CJE0686	-	hypothetical protein
670	 25.67	-1	619930..620529	+	199	57238220	-	CJE0687	-	DNA polymerase III subunit delta'
671	 29.75	0	620531..621673	+	380	57238219	folP	CJE0688	-	dihydropteroate synthase
672	 34.21	+1	621674..623617	+	647	57238218	ligA	CJE0689	-	NAD-dependent DNA ligase LigA
673	 20.80	-2	623598..624602	+	334	57238217	-	CJE0690	-	hypothetical protein
674	 25.98	-1	624599..625360	+	253	57238216	tlyA	CJE0691	-	hemolysin A
675	 27.02	0	625326..626180	+	284	57238215	-	CJE0692	-	bifunctional riboflavin kinase/FMN adenylyltransferase
676	 28.53	0	626170..626877	+	235	57238214	-	CJE0693	-	methyltransferase, putative
677	 30.09	0	626867..627082	-	71	57238213	-	CJE0694	-	putative lipoprotein
678	 28.74	0	627085..627519	-	144	57238212	-	CJE0695	-	hypothetical protein
679	 35.55	+1	627577..628209	-	210	57238211	-	CJE0696	-	hypothetical protein
680	 28.11	0	628220..628870	-	216	57238210	-	CJE0697	-	DNA/RNA non-specific endonuclease
681	 31.26	0	628867..629493	-	208	57238209	nth	CJE0698	-	endonuclease III
682	 30.78	0	629574..630395	+	273	57238208	-	CJE0699	-	major antigenic peptide PEB4
683	 35.02	+1	630395..631459	+	354	57238207	fbaA	CJE0700	-	fructose-bisphosphate aldolase
684	 29.73	0	631554..632996	+	480	57238206	-	CJE0701	-	hypothetical protein
685	 28.51	0	632993..633946	+	317	57238205	-	CJE0702	-	chemotaxis protein MotB, putative
686	 26.94	0	633933..634808	+	291	57238204	-	CJE0703	-	hypothetical protein
687	 31.32	0	634800..636143	-	447	57238203	-	CJE0704	-	sodium-dependent transporter, putative
688	 29.00	0	636194..636862	-	222	57238202	-	CJE0705	-	MOSC domain-containing protein
689	 27.23	0	636859..638562	-	567	57238201	dsbD	CJE0706	-	thiol:disulfide interchange protein DsbD
690	 32.31	0	638657..639538	+	293	57238200	-	CJE0707	-	hypothetical protein
691	 34.01	0	639547..640737	+	396	57238199	-	CJE0708	-	carboxypeptidase
692	 31.88	0	640816..641988	+	390	57238198	-	CJE0709	-	macrolide-specific efflux protein macA
693	 32.55	0	641988..643913	+	641	57238197	-	CJE0710	-	macrolide-specific efflux protein macB
694	 26.99	0	643915..645285	+	456	57238196	-	CJE0711	-	outer membrane efflux protein
695	 28.67	0	645288..646466	-	392	57238195	-	CJE0712	-	hypothetical protein
696	 29.18	0	646453..647463	-	336	57238194	-	CJE0713	-	hypothetical protein
697	 27.16	0	647464..648840	-	458	57238193	algI	CJE0714	-	alginate O-acetyltransferase AlgI
698	 31.75	0	648883..649386	-	167	57238192	ftn	CJE0715	-	nonheme iron-containing ferritin
699	 32.43	0	649566..650561	+	331	57238191	-	CJE0716	-	phosphate ABC transporter, periplasmic phosphate-binding protein, putative
700	 34.32	+1	650571..651485	+	304	57238190	-	CJE0717	-	phosphate ABC transporter, permease protein PstC, putative
701	 34.07	+1	651482..652570	+	362	57238189	-	CJE0718	-	phosphate ABC transporter, permease protein PstA, putative
702	 34.68	+1	652567..653307	+	246	57238188	pstB	CJE0719	-	phosphate ABC transporter, ATP-binding protein
703	 13.13	-2	654603..654701	-	32	57238187	-	CJE0721	-	hypothetical protein
704	 32.35	0	654687..656003	+	438	57238186	-	CJE0722	-	MATE efflux family protein
705	 24.13	-1	655964..656626	+	220	57238185	-	CJE0723	-	hypothetical protein
706	 28.40	0	656668..658188	+	506	57238184	-	CJE0724	-	hypothetical protein
707	 30.27	0	658169..660358	+	729	57238183	hypF	CJE0725	-	[NiFe] hydrogenase maturation protein HypF
708	 35.35	+1	660435..661178	+	247	57238182	hypB	CJE0726	-	hydrogenase accessory protein HypB
709	 31.91	0	661178..661459	+	93	57238181	hypC	CJE0727	-	hydrogenase assembly chaperone HypC/HupF
710	 35.26	+1	661443..662534	+	363	57238180	hypD	CJE0728	-	hydrogenase expression/formation protein HypD
711	 33.85	0	662531..663505	+	324	57238179	hypE	CJE0729	-	hydrogenase expression/formation protein HypE
712	 31.30	0	663505..663849	+	114	57238178	hypA	CJE0730	-	hydrogenase nickel insertion protein HypA
713	 25.10	-1	663944..665971	+	675	57238177	-	CJE0731	-	type III restriction/modification enzyme, methylase subunit
714	 23.46	-1	665952..668513	+	853	57236942	-	CJE0732	-	type III restriction-modification enzyme
715	 28.05	0	668544..669509	-	321	57236943	-	CJE0733	-	DNA polymerase III subunit delta
716	 32.20	0	669502..671436	-	644	57236944	-	CJE0734	-	RNB-like protein
717	 35.58	+1	671555..672577	+	340	57236945	ilvC	CJE0735	-	ketol-acid reductoisomerase
718	 25.76	-1	672581..673663	+	360	57236946	-	CJE0736	-	hypothetical protein
719	 30.23	0	673653..674426	+	257	57236947	dprA	CJE0737	-	DNA processing protein A
720	 34.90	+1	674423..674806	+	127	57236948	-	CJE0738	-	Holliday junction resolvase-like protein
721	 27.86	0	674835..675674	+	279	57236949	-	CJE0739	-	NOL1/NOP2/sun family protein
722	 28.92	0	675850..676347	-	165	57236950	msrA	CJE0740	-	methionine sulfoxide reductase A
723	 31.79	0	676389..676907	-	172	57236951	ppa	CJE0741	-	inorganic pyrophosphatase
724	 34.02	0	676917..677495	-	192	57236952	adk	CJE0742	-	adenylate kinase
725	 35.33	+1	677492..679243	-	583	57236953	aspS	CJE0743	-	aspartyl-tRNA synthetase
726	 28.46	0	679334..680194	+	286	57236954	-	CJE0744	-	ATP-NAD kinase, putative
727	 27.43	0	680194..681717	+	507	57236955	recN	CJE0745	-	DNA repair protein RecN
728	 29.56	0	681823..683067	+	414	57236956	-	CJE0746	-	response regulator/GGDEF domain-containing protein
729	 29.78	0	683058..683873	+	271	57236957	-	CJE0747	-	TatD family hydrolase
730	 28.42	0	683873..684991	+	372	57236958	-	CJE0748	-	membrane-bound lytic murein transglycosylase D, putative
731	 36.71	+1	684951..685778	+	275	57236959	rlpA	CJE0749	-	rare lipoprotein A
732	 30.47	0	685784..686272	+	162	57236960	-	CJE0750	-	YrbI family phosphatase
733	 25.06	-1	686344..686778	+	144	57236961	-	CJE0751	-	hypothetical protein
734	 28.35	0	686760..687221	+	153	57236962	-	CJE0752	-	OstA family protein
735	 25.29	-1	687218..687814	+	198	57236963	-	CJE0753	-	GTPase EngB
736	 24.44	-1	687811..688305	+	164	57236964	-	CJE0754	-	hypothetical protein
737	 31.28	0	688312..690111	+	599	57236965	pbpC	CJE0755	-	penicillin-binding protein 2
738	 32.16	0	690232..692022	-	596	57236966	-	CJE0756	-	M24 family peptidase
739	 30.18	0	692038..693591	-	517	57236967	-	CJE0757	-	di-/tripeptide transporter
740	 26.25	0	694507..694746	-	79	57236968	-	CJE0759	-	hypothetical protein
741	 20.58	-2	695404..695952	-	182	57236969	-	CJE0761	-	hypothetical protein
742	 21.66	-2	696341..697051	-	236	57236970	-	CJE0762	-	hypothetical protein
743	 32.53	0	697038..697913	-	291	57236971	era	CJE0763	-	GTP-binding protein Era
744	 32.95	0	697910..699229	-	439	57236972	hslU	CJE0764	-	ATP-dependent protease ATP-binding subunit
745	 36.65	+1	699226..699768	-	180	57236973	hslV	CJE0765	-	ATP-dependent protease peptidase subunit
746	 33.11	0	699768..700211	-	147	57236974	rplI	CJE0766	-	50S ribosomal protein L9
747	 36.69	+1	700224..701444	-	406	57236975	argG	CJE0767	-	argininosuccinate synthase
748	 31.71	0	701600..701845	+	81	57236976	-	CJE0768	-	S4 domain-containing protein
749	 29.66	0	701842..702249	+	135	57236977	-	CJE0769	-	hypothetical protein
750	 32.66	0	702233..702970	+	245	57236978	-	CJE0770	-	ABC transporter, ATP-binding protein
30.10	MEAN

3.94	STD DEV
