IslandPathversion 1.0

IslandPath Analysis: Campylobacter jejuni RM1221

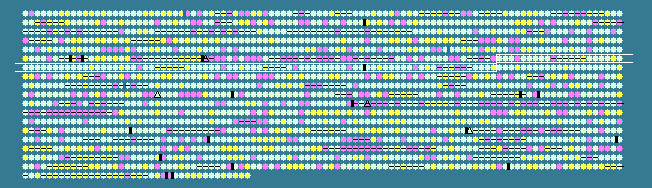

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
580	 30.21	0	533333..533716	+	127	57237595	-	CJE0593	-	hypothetical protein
581	 30.67	0	533709..534083	+	124	57237596	-	CJE0594	-	hypothetical protein
582	 27.87	0	534080..535360	+	426	57237597	-	CJE0595	-	hypothetical protein
583	 18.52	-2	535302..535409	+	35	57238719	-	CJE0596	-	hypothetical protein
584	 28.76	0	535409..535867	+	152	57237598	-	CJE0597	-	hypothetical protein
585	 26.90	0	535929..536348	+	139	57238304	-	CJE0598	-	hypothetical protein
586	 27.78	0	536266..536463	+	65	57238720	-	CJE0599	-	hypothetical protein
587	 31.50	0	536456..536947	+	163	57238303	-	CJE0600	-	hypothetical protein
588	 28.00	0	537061..538671	+	536	57238302	-	CJE0601	-	hypothetical protein
589	 24.67	-1	538788..538937	+	49	57238301	-	CJE0602	-	hypothetical protein
590	 27.07	0	538943..539644	+	233	57238300	-	CJE0603	-	hypothetical protein
591	 29.33	0	539634..540008	+	124	57238299	-	CJE0604	-	hypothetical protein
592	 27.39	0	539981..541258	+	425	57238298	-	CJE0605	-	putative lipoprotein
593	 32.30	0	541255..542031	+	258	57238297	trpC	CJE0606	-	indole-3-glycerol phosphate synthase
594	 35.19	+1	542041..542526	+	161	57238296	-	CJE0607	-	Hit family protein
595	 30.33	0	542516..543514	+	332	57238295	-	CJE0608	-	tRNA 2-selenouridine synthase
596	 27.74	0	545084..545995	-	303	57238294	hemH	CJE0610	-	ferrochelatase
597	 29.18	0	545992..546858	-	288	57238293	-	CJE0611	-	Gfo/Idh/MocA family oxidoreductase
598	 32.50	0	546863..547936	-	357	57238292	-	CJE0612	-	DegT/DnrJ/EryC1/StrS aminotransferase family protein
599	 34.12	+1	548051..550579	+	842	57238291	alaS	CJE0613	-	alanyl-tRNA synthetase
600	 28.26	0	550579..551130	+	183	57238290	maf	CJE0614	-	Maf-like protein
601	 33.02	0	551127..553058	+	643	57238289	pbpA	CJE0615	-	penicillin-binding protein 1A
602	 32.40	0	553086..555659	-	857	57238288	clpB	CJE0616	-	ATP-dependent chaperone protein ClpB
603	 31.27	0	555771..556061	-	96	57238287	-	CJE0617	-	hypothetical protein
604	 31.01	0	556188..557522	+	444	57238286	ctpA	CJE0618	-	carboxyl-terminal protease
605	 29.54	0	557524..558234	+	236	57238285	purC	CJE0619	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
606	 28.05	0	558243..558488	+	81	57238284	purS	CJE0620	-	phosphoribosylformylglycinamidine synthase, purS protein
607	 31.79	0	558490..559137	+	215	57238283	purQ	CJE0621	-	phosphoribosylformylglycinamidine synthase subunit I
608	 28.11	0	559221..560330	+	369	57238282	-	CJE0622	-	hypothetical protein
609	 28.86	0	560311..561003	+	230	57238281	-	CJE0623	-	1-acyl-sn-glycerol-3-phosphate acyltransferase, putative
610	 27.37	0	560997..561365	+	122	57238280	-	CJE0624	-	hypothetical protein
611	 29.45	0	561438..563264	+	608	57238279	htpG	CJE0625	-	heat shock protein 90
612	 34.59	+1	563261..563578	+	105	57238278	-	CJE0626	-	hypothetical protein
613	 27.36	0	563578..564012	+	144	57238277	-	CJE0627	-	hypothetical protein
614	 29.04	0	564133..565785	+	550	57238276	-	CJE0628	-	Na/Pi-cotransporter, putative
615	 30.80	0	565800..567539	-	579	57238275	-	CJE0629	-	penicillin-binding protein
616	 30.30	0	567597..567893	-	98	57238274	fliE	CJE0630	-	flagellar hook-basal body protein FliE
617	 33.94	0	567900..568394	-	164	57238273	flgC	CJE0631	-	flagellar basal body rod protein FlgC
618	 31.48	0	568404..568835	-	143	57238272	flgB	CJE0632	-	flagellar basal body rod protein FlgB
619	 29.68	0	568915..569817	-	300	57238271	-	CJE0633	-	hypothetical protein
620	 25.05	-1	569831..572401	+	856	57238270	-	CJE0634	-	hypothetical protein
621	 32.38	0	572518..574722	+	734	57238269	icd	CJE0635	-	isocitrate dehydrogenase, NADP-dependent
622	 30.90	0	574719..575621	+	300	57238268	mdh	CJE0636	-	malate dehydrogenase
623	 34.62	+1	575622..576785	+	387	57238267	sucC	CJE0637	-	succinyl-CoA synthase, beta subunit
624	 37.82	+1	576795..577664	+	289	57238266	sucD	CJE0638	-	succinyl-CoA synthase, alpha subunit
625	 40.71	+2	577678..577989	+	103	57238265	oorD	CJE0639	-	2-oxoglutarate-acceptor oxidoreductase subunit OorD
626	 36.00	+1	577998..579122	+	374	57238264	oorA	CJE0640	-	2-oxoglutarate-acceptor oxidoreductase subunit OorA
627	 34.63	+1	579123..579968	+	281	57238263	oorB	CJE0641	-	2-oxoglutarate-acceptor oxidoreductase subunit OorB
628	 36.20	+1	579965..580522	+	185	57238262	oorC	CJE0642	-	2-oxoglutarate-acceptor oxidoreductase subunit OorC
629	 26.89	0	580661..580924	+	87	57238261	-	CJE0643	-	hypothetical protein
630	 27.56	0	580927..581463	+	178	57238260	-	CJE0644	-	hypothetical protein
631	 28.30	0	581477..582370	+	297	57238259	-	CJE0645	-	polyprenyl synthetase family protein
632	 30.79	0	582370..583668	+	432	57238258	hemA	CJE0646	-	glutamyl-tRNA reductase
633	 32.22	0	583652..585361	+	569	57238257	proS	CJE0647	-	prolyl-tRNA synthetase
634	 25.38	-1	585358..585747	+	129	57238256	-	CJE0648	-	hypothetical protein
635	 32.47	0	585744..586667	+	307	57238255	hemC	CJE0649	-	porphobilinogen deaminase
636	 29.78	0	586664..588466	+	600	57238254	-	CJE0650	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase, putative
637	 37.43	+1	588622..588987	+	121	57238253	flaG	CJE0651	-	flagellar protein FlaG
638	 32.44	0	588990..590900	+	636	57238252	fliD	CJE0652	-	flagellar capping protein
639	 32.30	0	590912..591298	+	128	57238251	fliS	CJE0653	-	flagellar protein FliS
640	 26.81	0	591279..591554	+	91	57238250	-	CJE0654	-	hypothetical protein
641	 35.44	+1	591986..592555	+	189	57238249	efp	CJE0655	-	elongation factor P
642	 32.18	0	592715..593407	+	230	57238248	-	CJE0656	-	hypothetical protein
643	 31.45	0	593394..594347	+	317	57238247	-	CJE0657	-	hypothetical protein
644	 31.14	0	594357..595361	+	334	57238246	-	CJE0658	-	hypothetical protein
645	 30.15	0	595486..596772	+	428	57238245	-	CJE0659	-	hypothetical protein
646	 25.81	-1	596783..597580	+	265	57238244	-	CJE0660	-	hypothetical protein
647	 31.58	0	597577..598662	-	361	57238243	-	CJE0661	-	hypothetical protein
648	 31.31	0	598659..599891	-	410	57238242	proA	CJE0662	-	gamma-glutamyl phosphate reductase
649	 32.16	0	599962..600897	+	311	57238241	-	CJE0663	-	pyridine nucleotide-disulphide oxidoreductase family protein
650	 30.65	0	602453..603382	-	309	57238240	-	CJE0666	-	hypothetical protein
651	 33.26	0	603536..604912	+	458	57238239	dnaB	CJE0667	-	replicative DNA helicase
652	 29.77	0	605017..605577	+	186	57238238	-	CJE0668	-	hypothetical protein
653	 30.92	0	605568..605774	+	68	57238237	-	CJE0669	-	hypothetical protein
654	 27.34	0	605904..606971	+	355	57238236	-	CJE0670	-	GTP-binding protein
655	 25.73	-1	606982..607152	+	56	57238235	-	CJE0671	-	hypothetical protein
656	 29.08	0	607166..607471	+	101	57238234	-	CJE0672	-	hypothetical protein
657	 28.87	0	608545..609417	+	290	57238233	-	CJE0674	-	transcriptional regulator, putative
658	 32.16	0	609716..610735	+	339	57238232	ribB	CJE0675	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
659	 29.28	0	610747..611190	+	147	57238231	-	CJE0676	-	GatB/Yqey family protein
660	 35.86	+1	611208..612908	+	566	57238230	ilvB	CJE0677	-	acetolactate synthase 3 catalytic subunit
661	 30.75	0	612905..613369	+	154	57238229	ilvH	CJE0678	-	acetolactate synthase 3 regulatory subunit
662	 33.13	0	613366..614331	+	321	57238228	lpxD	CJE0679	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
663	 31.78	0	614320..615348	-	342	57238227	queA	CJE0680	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
664	 32.38	0	615341..616078	-	245	57238226	tatC	CJE0681	-	Sec-independent protein translocase TatC
665	 28.54	0	616071..616487	-	138	57238225	tatB	CJE0682	-	sec-independent translocase
666	 26.12	-1	616545..617612	-	355	57238224	-	CJE0683	-	coproporphyrinogen III oxidase
667	 28.87	0	617713..618183	+	156	57238223	nidH	CJE0684	-	dinucleoside polyphosphate hydrolase
668	 35.25	+1	618185..619387	+	400	57238222	-	CJE0685	-	aspartate kinase
669	 31.66	0	619388..619924	+	178	57238221	-	CJE0686	-	hypothetical protein
670	 25.67	-1	619930..620529	+	199	57238220	-	CJE0687	-	DNA polymerase III subunit delta'
671	 29.75	0	620531..621673	+	380	57238219	folP	CJE0688	-	dihydropteroate synthase
672	 34.21	+1	621674..623617	+	647	57238218	ligA	CJE0689	-	NAD-dependent DNA ligase LigA
673	 20.80	-2	623598..624602	+	334	57238217	-	CJE0690	-	hypothetical protein
674	 25.98	-1	624599..625360	+	253	57238216	tlyA	CJE0691	-	hemolysin A
675	 27.02	0	625326..626180	+	284	57238215	-	CJE0692	-	bifunctional riboflavin kinase/FMN adenylyltransferase
676	 28.53	0	626170..626877	+	235	57238214	-	CJE0693	-	methyltransferase, putative
677	 30.09	0	626867..627082	-	71	57238213	-	CJE0694	-	putative lipoprotein
678	 28.74	0	627085..627519	-	144	57238212	-	CJE0695	-	hypothetical protein
679	 35.55	+1	627577..628209	-	210	57238211	-	CJE0696	-	hypothetical protein
30.10	MEAN

3.94	STD DEV
