IslandPath Analysis: Campylobacter jejuni RM1221

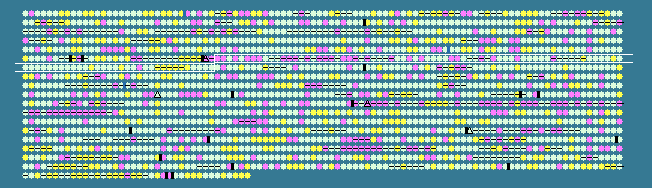

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 30.10   STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
533	 25.60	-1	500062..500604	-	180	57237548	-	CJE0546	-	pentapeptide repeat-containing protein
534	 19.79	-2	500614..500805	-	63	57237549	-	CJE0547	-	hypothetical protein
535	 30.42	0	501182..501799	-	205	57237550	-	CJE0548	-	phage anti-repressor protein, putative
536	 24.75	-1	501935..502330	-	131	57237551	-	CJE0549	-	hypothetical protein
537	 29.48	0	502374..503126	-	250	57237552	-	CJE0550	-	site-specific DNA-methyltransferase, putative
538	 24.94	-1	503107..503547	-	146	57237553	-	CJE0551	-	hypothetical protein
539	 22.52	-1	503622..503732	-	36	57237554	-	CJE0552	-	hypothetical protein
540	 24.62	-1	503790..504053	-	87	57237555	-	CJE0553	-	hypothetical protein
541	 27.30	0	504034..504729	-	231	57237556	-	CJE0554	-	hypothetical protein
542	 29.00	0	504729..505466	-	245	57237557	-	CJE0555	-	hypothetical protein
543	 29.47	0	505468..506322	-	284	57237558	-	CJE0556	-	hypothetical protein
544	 23.25	-1	506324..506551	-	75	57237559	-	CJE0557	-	hypothetical protein
545	 22.48	-1	506542..506799	-	85	57237560	-	CJE0558	-	hypothetical protein
546	 22.59	-1	506790..507059	-	89	57237561	-	CJE0559	-	hypothetical protein
547	 30.56	0	507286..507393	-	35	57237562	-	CJE0560	-	hypothetical protein
548	 26.01	-1	507621..507893	-	90	57237563	-	CJE0561	-	hypothetical protein
549	 27.59	0	508148..508843	+	231	57237564	-	CJE0562	-	hypothetical protein
550	 20.70	-2	508862..509233	-	123	57237565	-	CJE0563	-	hypothetical protein
551	 22.47	-1	509223..509756	-	177	57237566	-	CJE0564	-	hypothetical protein
552	 23.42	-1	509753..510418	-	221	57237567	-	CJE0565	-	hypothetical protein
553	 29.66	0	510498..511151	-	217	57237568	-	CJE0566	-	DNA/RNA non-specific endonuclease
554	 22.94	-1	511157..511849	-	230	57237569	-	CJE0567	-	hypothetical protein
555	 22.69	-1	511857..512645	-	262	57237570	-	CJE0568	-	hypothetical protein
556	 25.31	-1	512642..513376	-	244	57237571	-	CJE0569	-	phage repressor protein, putative
557	 28.89	0	513488..513712	+	74	57237572	-	CJE0570	-	hypothetical protein
558	 23.78	-1	513709..514137	+	142	57237573	-	CJE0571	-	hypothetical protein
559	 27.78	0	514134..514511	+	125	57237574	-	CJE0572	-	putative lipoprotein
560	 28.94	0	514508..515509	+	333	57237575	-	CJE0573	-	hypothetical protein
561	 27.78	0	515520..516167	+	215	57237576	-	CJE0574	-	hypothetical protein
562	 26.51	0	516185..516565	+	126	57237577	-	CJE0575	-	hypothetical protein
563	 31.52	0	516565..516951	+	128	57237578	-	CJE0576	-	hypothetical protein
564	 32.17	0	516948..518240	+	430	57237579	-	CJE0577	-	terminase B protein, putative
565	 25.27	-1	518230..518502	+	90	57237580	-	CJE0578	-	hypothetical protein
566	 30.93	0	518483..520021	+	512	57237581	-	CJE0579	-	hypothetical protein
567	 23.04	-1	520014..520217	+	67	57237582	-	CJE0580	-	hypothetical protein
568	 33.02	0	520207..520854	+	215	57237583	-	CJE0581	-	hypothetical protein
569	 29.10	0	520865..521242	+	125	57237584	-	CJE0582	-	hypothetical protein
570	 30.20	0	521507..522718	+	403	57237585	-	CJE0583	-	hypothetical protein
571	 28.58	0	522718..526419	+	1233	57237586	-	CJE0584	-	hypothetical protein
572	 22.81	-1	526698..527543	-	281	57237587	-	CJE0585	-	hypothetical protein
573	 21.74	-2	527553..527759	-	68	57237588	-	CJE0586	-	hypothetical protein
574	 33.53	0	527979..529013	+	344	57237589	-	CJE0587	-	hypothetical protein
575	 29.14	0	529013..529417	+	134	57237590	-	CJE0588	-	hypothetical protein
576	 26.77	0	529395..529592	+	65	57237591	-	CJE0589	-	hypothetical protein
577	 25.50	-1	529595..532237	+	880	57237592	-	CJE0590	-	hypothetical protein
578	 31.34	0	532338..532688	+	116	57237593	-	CJE0591	-	hypothetical protein
579	 24.53	-1	532701..533336	+	211	57237594	-	CJE0592	-	hypothetical protein
580	 30.21	0	533333..533716	+	127	57237595	-	CJE0593	-	hypothetical protein
581	 30.67	0	533709..534083	+	124	57237596	-	CJE0594	-	hypothetical protein
582	 27.87	0	534080..535360	+	426	57237597	-	CJE0595	-	hypothetical protein
583	 18.52	-2	535302..535409	+	35	57238719	-	CJE0596	-	hypothetical protein
584	 28.76	0	535409..535867	+	152	57237598	-	CJE0597	-	hypothetical protein
585	 26.90	0	535929..536348	+	139	57238304	-	CJE0598	-	hypothetical protein
586	 27.78	0	536266..536463	+	65	57238720	-	CJE0599	-	hypothetical protein
587	 31.50	0	536456..536947	+	163	57238303	-	CJE0600	-	hypothetical protein
588	 28.00	0	537061..538671	+	536	57238302	-	CJE0601	-	hypothetical protein
589	 24.67	-1	538788..538937	+	49	57238301	-	CJE0602	-	hypothetical protein
590	 27.07	0	538943..539644	+	233	57238300	-	CJE0603	-	hypothetical protein
591	 29.33	0	539634..540008	+	124	57238299	-	CJE0604	-	hypothetical protein
592	 27.39	0	539981..541258	+	425	57238298	-	CJE0605	-	putative lipoprotein
593	 32.30	0	541255..542031	+	258	57238297	trpC	CJE0606	-	indole-3-glycerol phosphate synthase
594	 35.19	+1	542041..542526	+	161	57238296	-	CJE0607	-	Hit family protein
595	 30.33	0	542516..543514	+	332	57238295	-	CJE0608	-	tRNA 2-selenouridine synthase
596	 27.74	0	545084..545995	-	303	57238294	hemH	CJE0610	-	ferrochelatase
597	 29.18	0	545992..546858	-	288	57238293	-	CJE0611	-	Gfo/Idh/MocA family oxidoreductase
598	 32.50	0	546863..547936	-	357	57238292	-	CJE0612	-	DegT/DnrJ/EryC1/StrS aminotransferase family protein
599	 34.12	+1	548051..550579	+	842	57238291	alaS	CJE0613	-	alanyl-tRNA synthetase
600	 28.26	0	550579..551130	+	183	57238290	maf	CJE0614	-	Maf-like protein
601	 33.02	0	551127..553058	+	643	57238289	pbpA	CJE0615	-	penicillin-binding protein 1A
602	 32.40	0	553086..555659	-	857	57238288	clpB	CJE0616	-	ATP-dependent chaperone protein ClpB
603	 31.27	0	555771..556061	-	96	57238287	-	CJE0617	-	hypothetical protein
604	 31.01	0	556188..557522	+	444	57238286	ctpA	CJE0618	-	carboxyl-terminal protease
605	 29.54	0	557524..558234	+	236	57238285	purC	CJE0619	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
606	 28.05	0	558243..558488	+	81	57238284	purS	CJE0620	-	phosphoribosylformylglycinamidine synthase, purS protein
607	 31.79	0	558490..559137	+	215	57238283	purQ	CJE0621	-	phosphoribosylformylglycinamidine synthase subunit I
608	 28.11	0	559221..560330	+	369	57238282	-	CJE0622	-	hypothetical protein
609	 28.86	0	560311..561003	+	230	57238281	-	CJE0623	-	1-acyl-sn-glycerol-3-phosphate acyltransferase, putative
610	 27.37	0	560997..561365	+	122	57238280	-	CJE0624	-	hypothetical protein
611	 29.45	0	561438..563264	+	608	57238279	htpG	CJE0625	-	heat shock protein 90
612	 34.59	+1	563261..563578	+	105	57238278	-	CJE0626	-	hypothetical protein
613	 27.36	0	563578..564012	+	144	57238277	-	CJE0627	-	hypothetical protein
614	 29.04	0	564133..565785	+	550	57238276	-	CJE0628	-	Na/Pi-cotransporter, putative
615	 30.80	0	565800..567539	-	579	57238275	-	CJE0629	-	penicillin-binding protein
616	 30.30	0	567597..567893	-	98	57238274	fliE	CJE0630	-	flagellar hook-basal body protein FliE
617	 33.94	0	567900..568394	-	164	57238273	flgC	CJE0631	-	flagellar basal body rod protein FlgC
618	 31.48	0	568404..568835	-	143	57238272	flgB	CJE0632	-	flagellar basal body rod protein FlgB
619	 29.68	0	568915..569817	-	300	57238271	-	CJE0633	-	hypothetical protein
620	 25.05	-1	569831..572401	+	856	57238270	-	CJE0634	-	hypothetical protein
621	 32.38	0	572518..574722	+	734	57238269	icd	CJE0635	-	isocitrate dehydrogenase, NADP-dependent
622	 30.90	0	574719..575621	+	300	57238268	mdh	CJE0636	-	malate dehydrogenase
623	 34.62	+1	575622..576785	+	387	57238267	sucC	CJE0637	-	succinyl-CoA synthase, beta subunit
624	 37.82	+1	576795..577664	+	289	57238266	sucD	CJE0638	-	succinyl-CoA synthase, alpha subunit
625	 40.71	+2	577678..577989	+	103	57238265	oorD	CJE0639	-	2-oxoglutarate-acceptor oxidoreductase subunit OorD
626	 36.00	+1	577998..579122	+	374	57238264	oorA	CJE0640	-	2-oxoglutarate-acceptor oxidoreductase subunit OorA
627	 34.63	+1	579123..579968	+	281	57238263	oorB	CJE0641	-	2-oxoglutarate-acceptor oxidoreductase subunit OorB
628	 36.20	+1	579965..580522	+	185	57238262	oorC	CJE0642	-	2-oxoglutarate-acceptor oxidoreductase subunit OorC
629	 26.89	0	580661..580924	+	87	57238261	-	CJE0643	-	hypothetical protein
630	 27.56	0	580927..581463	+	178	57238260	-	CJE0644	-	hypothetical protein
631	 28.30	0	581477..582370	+	297	57238259	-	CJE0645	-	polyprenyl synthetase family protein
632	 30.79	0	582370..583668	+	432	57238258	hemA	CJE0646	-	glutamyl-tRNA reductase
30.10	MEAN

3.94	STD DEV
