IslandPath Analysis: Campylobacter jejuni RM1221

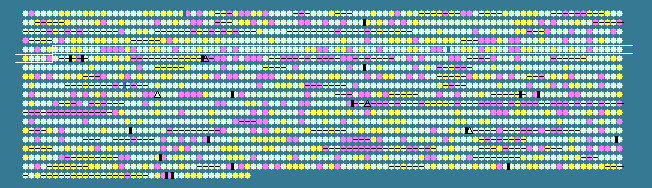

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
406	 31.52	0	373404..374507	-	367	57237422	cmeA	CJE0416	-	RND efflux system, membrane fusion protein CmeA
407	 26.86	0	374601..375233	-	210	57237423	-	CJE0417	-	TetR family transcriptional regulator
408	 28.32	0	375220..376596	-	458	57237424	-	CJE0418	-	iron-sulfur cluster-binding domain-containing protein
409	 35.21	+1	376756..376968	+	70	57237425	rpsU	CJE0419	-	30S ribosomal protein S21
410	 35.15	+1	377088..377693	+	201	57237426	-	CJE0420	-	hypothetical protein
411	 31.88	0	377703..378872	+	389	57237427	-	CJE0421	-	glutathionylspermidine synthase family protein
412	 30.24	0	378875..379810	+	311	57237428	-	CJE0422	-	2-hydroxyacid dehydrogenase
413	 29.07	0	379800..380291	+	163	57237429	-	CJE0423	-	nucleotide-binding protein
414	 23.48	-1	380300..380776	+	158	57237430	-	CJE0424	-	putative lipoprotein
415	 25.94	-1	380787..381611	+	274	57237431	-	CJE0425	-	hypothetical protein
416	 25.57	-1	381611..383323	+	570	57237432	-	CJE0426	-	ATPase, AAA family protein
417	 23.04	-1	383288..383860	-	190	57237433	-	CJE0427	-	hypothetical protein
418	 34.45	+1	383860..384753	-	297	57237434	-	CJE0428	-	putative sulfite oxidase subunit YedY
419	 24.09	-1	384809..385609	-	266	57237435	-	CJE0429	-	hypothetical protein
420	 30.36	0	385591..386430	-	279	57237436	pyrF	CJE0430	-	orotidine 5'-phosphate decarboxylase
421	 29.07	0	386427..386825	-	132	57237437	nusB	CJE0431	-	transcription antitermination protein NusB
422	 35.70	+1	386825..387289	-	154	57237438	ribH	CJE0432	-	riboflavin synthase subunit beta
423	 35.05	+1	387286..388101	-	271	57237439	kdsA	CJE0433	-	2-dehydro-3-deoxyphosphooctonate aldolase
424	 31.62	0	388098..389030	-	310	57237440	-	CJE0434	-	integral membrane protein
425	 32.47	0	389132..390514	+	460	57237441	engA	CJE0435	-	GTP-binding protein EngA
426	 25.50	-1	390501..390998	+	165	57237442	aroK	CJE0436	-	shikimate kinase
427	 33.12	0	390995..391954	+	319	57237443	trpS	CJE0437	-	tryptophanyl-tRNA synthetase
428	 33.09	0	391965..393200	+	411	57237444	serS	CJE0438	-	seryl-tRNA synthetase
429	 29.23	0	393210..395672	+	820	57237445	-	CJE0439	-	TPR domain-containing protein
430	 36.01	+1	395703..396338	-	211	57237446	-	CJE0440	-	hypothetical protein
431	 30.56	0	396436..397878	-	480	57237447	pyk	CJE0441	-	pyruvate kinase
432	 31.70	0	397927..399273	-	448	57237448	-	CJE0442	-	malate:quinone oxidoreductase, putative
433	 27.46	0	399391..400020	-	209	57237449	-	CJE0443	-	pantothenate kinase
434	 23.02	-1	400007..400297	-	96	57237450	-	CJE0444	-	tram-like protein
435	 27.93	0	400294..401292	-	332	57237451	-	CJE0445	-	putative lipoprotein
436	 22.63	-1	401289..401867	-	192	57237452	-	CJE0446	-	hypothetical protein
437	 28.77	0	402011..402295	+	94	57237453	gatC	CJE0447	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
438	 27.66	0	402363..402926	+	187	57237454	-	CJE0448	-	cvpA family protein
439	 30.59	0	402928..403401	+	157	57237455	fur	CJE0449	-	ferric uptake regulation protein
440	 31.54	0	403402..404907	+	501	57237456	lysS	CJE0450	-	lysyl-tRNA synthetase
441	 33.17	0	404904..406148	+	414	57237457	glyA	CJE0451	-	serine hydroxymethyltransferase
442	 30.22	0	406145..406690	+	181	57237458	-	CJE0452	-	hypothetical protein
443	 30.23	0	406704..407540	+	278	57237459	-	CJE0453	-	hypothetical protein
444	 29.28	0	407537..408325	+	262	57237460	aroE	CJE0454	-	shikimate 5-dehydrogenase
445	 28.89	0	408400..409299	-	299	57237461	-	CJE0455	-	putative lipoprotein
446	 29.17	0	409389..410204	+	271	57237462	lgt	CJE0456	-	prolipoprotein diacylglyceryl transferase
447	 32.69	0	410273..411055	+	260	57237463	frdC	CJE0457	-	fumarate reductase cytochrome b-556 subunit
448	 37.85	+1	411039..413030	+	663	57237464	frdA	CJE0458	-	fumarate reductase flavoprotein subunit
449	 35.81	+1	413023..413748	+	241	57237465	sdhB	CJE0459	-	fumarate reductase iron-sulfur subunit
450	 24.46	-1	413776..415962	+	728	57237466	-	CJE0460	-	GTP-binding protein
451	 25.79	-1	416072..417781	+	569	57237467	-	CJE0461	-	GTP-binding protein
452	 27.52	0	417781..418485	+	234	57237468	-	CJE0462	-	hypothetical protein
453	 35.12	+1	418621..419349	+	242	57237469	-	CJE0463	-	hypothetical protein
454	 37.17	+1	419351..421072	+	573	57237470	-	CJE0464	-	oxidoreductase, putative
455	 26.13	-1	421045..421155	-	36	57237471	-	CJE0465	-	hypothetical protein
456	 27.73	0	421278..421973	+	231	57237472	-	CJE0466	-	hypothetical protein
457	 35.04	+1	422080..422784	-	234	57237473	-	CJE0467	-	hypothetical protein
458	 28.65	0	422892..423254	+	120	57237474	-	CJE0468	-	HIT family protein
459	 28.80	0	423328..423900	+	190	57237475	-	CJE0469	-	hypothetical protein
460	 25.18	-1	423905..424861	-	318	57237476	-	CJE0470	-	hypothetical protein
461	 27.14	0	424922..425131	-	69	57237477	-	CJE0471	-	hypothetical protein
462	 31.19	0	425298..425717	+	139	57237478	-	CJE0472	-	hypothetical protein
463	 29.50	0	425760..426020	+	86	57237479	-	CJE0473	-	hypothetical protein
464	 29.40	0	426020..426553	+	177	57237480	-	CJE0474	-	putative lipoprotein
465	 34.16	+1	426676..428253	+	525	57237481	-	CJE0475	-	ABC transporter, ATP-binding protein
466	 33.93	0	428246..428578	+	110	57237482	-	CJE0476	-	hypothetical protein
467	 33.33	0	428655..429038	+	127	57237483	-	CJE0477	-	hypothetical protein
468	 27.35	0	429082..429666	-	194	57237484	-	CJE0478	-	hypothetical protein
469	 15.79	-2	429669..429782	+	37	57238718	-	CJE0479	-	hypothetical protein
470	 25.59	-1	429793..431019	+	408	57237485	-	CJE0480	-	hypothetical protein
471	 28.73	0	431012..431749	+	245	57237486	-	CJE0481	-	hypothetical protein
472	 31.51	0	438113..439321	-	402	57237487	murD	CJE0482	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
473	 31.17	0	439321..440382	-	353	57237488	mraY	CJE0483	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
474	 34.01	0	440462..441940	+	492	57237489	pgm	CJE0484	-	phosphoglyceromutase
475	 34.68	+1	442012..442755	+	247	57237490	fabG	CJE0485	-	3-ketoacyl-(acyl-carrier-protein) reductase
476	 28.92	0	442765..443172	+	135	57237491	-	CJE0486	-	hypothetical protein
477	 23.96	-1	443391..443486	+	31	57237492	-	CJE0487	-	hypothetical protein
478	 37.26	+1	443615..445345	+	576	57237493	sdhA	CJE0488	-	succinate dehydrogenase, flavoprotein subunit
479	 35.92	+1	445342..446307	+	321	57237494	sdhB	CJE0489	-	succinate dehydrogenase, iron-sulfur protein subunit
480	 33.57	0	446311..447168	+	285	57237495	sdhC	CJE0490	-	succinate dehydrogenase, C subunit
481	 28.83	0	447192..447857	-	221	57237496	-	CJE0491	-	TenA/Thi-4 family protein
482	 16.24	-2	447835..447951	+	38	57237497	-	CJE0492	-	hypothetical protein
483	 26.50	0	447970..448203	+	77	57237498	acpP	CJE0493	-	acyl carrier protein
484	 36.54	+1	448230..449444	+	404	57237499	fabF	CJE0494	-	3-oxoacyl-(acyl carrier protein) synthase II
485	 35.46	+1	449446..450384	+	312	57237500	accA	CJE0495	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
486	 29.31	0	452673..453269	+	198	57237501	-	CJE0497	-	NUDIX domain-containing protein
487	 30.60	0	453301..454398	-	365	57237502	-	CJE0498	-	methyl-accepting chemotaxis protein
488	 28.70	0	454408..454623	-	71	57237503	-	CJE0499	-	hypothetical protein
489	 35.90	+1	454808..455002	-	64	57237504	rpmB	CJE0500	-	50S ribosomal protein L28
490	 31.48	0	455142..455789	+	215	57237505	rpe	CJE0501	-	ribulose-phosphate 3-epimerase
491	 29.77	0	455855..456556	+	233	57237506	-	CJE0502	-	DNA polymerase III subunit epsilon
492	 35.65	+1	456731..458023	+	430	57237507	thiC	CJE0503	-	thiamine biosynthesis protein ThiC
493	 27.17	0	458015..458533	-	172	57237508	-	CJE0504	-	hypothetical protein
494	 27.46	0	458523..459050	-	175	57237509	-	CJE0505	-	hypothetical protein
495	 25.94	-1	459047..460006	-	319	57237510	-	CJE0506	-	hypothetical protein
496	 32.10	0	460008..460658	-	216	57237511	-	CJE0507	-	hypothetical protein
497	 32.18	0	460621..461922	-	433	57237512	miaB	CJE0508	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
498	 27.16	0	461919..462161	-	80	57237513	-	CJE0509	-	hypothetical protein
499	 30.49	0	462289..463377	+	362	57237514	nusA	CJE0510	-	transcription elongation factor NusA
500	 30.39	0	463393..464580	-	395	57237515	-	CJE0511	-	transporter, putative
501	 34.10	+1	464655..465701	+	348	57237516	-	CJE0512	-	hypothetical protein
502	 27.85	0	465701..466921	+	406	57237517	-	CJE0513	-	peptidase, putative
503	 29.71	0	466911..468734	+	607	57237518	recG	CJE0514	-	ATP-dependent DNA helicase RecG
504	 30.21	0	468731..469114	-	127	57237519	-	CJE0515	-	hypothetical protein
505	 22.95	-1	469210..469806	+	198	57237520	-	CJE0516	-	putative transcriptional regulator
30.10	MEAN

3.94	STD DEV
