IslandPath Analysis: Campylobacter jejuni RM1221

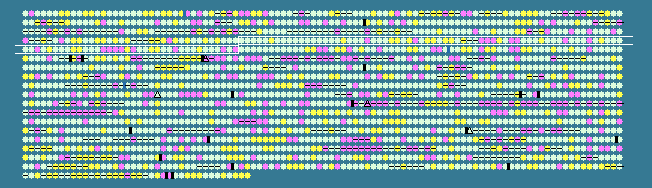

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
337	 30.60	0	311562..311963	-	133	57237353	-	CJE0347	-	TOBE domain-containing protein
338	 31.47	0	311960..312709	-	249	57237354	modA	CJE0348	-	molybdenum ABC transporter, periplasmic molybdenum-binding protein
339	 26.78	0	312763..313449	-	228	57237355	-	CJE0349	-	biotin biosynthesis protein BioC
340	 27.12	0	313446..314057	-	203	57237356	-	CJE0350	-	hypothetical protein
341	 30.27	0	314054..315196	-	380	57237357	bioF	CJE0351	-	8-amino-7-oxononanoate synthase
342	 34.03	+1	315263..316546	+	427	57237358	bioA	CJE0352	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
343	 29.21	0	316533..317138	-	201	57237359	bioD	CJE0353	-	dethiobiotin synthetase
344	 30.79	0	317148..317462	-	104	57237360	-	CJE0354	-	SMR family multidrug efflux pump
345	 30.38	0	317465..317803	-	112	57237361	-	CJE0355	-	SMR family multidrug efflux pump
346	 32.59	0	317935..318471	+	178	57237362	rplY	CJE0356	-	50S ribosomal protein L25/general stress protein Ctc
347	 31.87	0	318468..319013	+	181	57237363	pth	CJE0357	-	peptidyl-tRNA hydrolase
348	 26.91	0	319015..320073	+	352	57237364	-	CJE0358	-	hypothetical protein
349	 32.34	0	320117..321325	+	402	57237365	lysA	CJE0359	-	diaminopimelate decarboxylase
350	 31.25	0	321327..322094	+	255	57237366	-	CJE0360	-	HAD family hydrolase
351	 31.28	0	322082..323155	+	357	57237367	pheA	CJE0361	-	chorismate mutase/prephenate dehydratase
352	 28.86	0	323145..324239	+	364	57237368	hisC	CJE0362	-	histidinol-phosphate aminotransferase
353	 33.33	0	324291..325973	+	560	57237369	fliF	CJE0363	-	flagellar MS-ring protein
354	 35.96	+1	325973..327001	+	342	57237370	fliG	CJE0364	-	flagellar motor switch protein G
355	 30.57	0	327009..327839	+	276	57237371	fliH	CJE0365	-	flagellar assembly protein H
356	 33.55	0	327832..329679	+	615	57237372	dxs	CJE0366	-	1-deoxy-D-xylulose-5-phosphate synthase
357	 28.47	0	329765..330175	+	136	57237373	-	CJE0367	-	FUR family transcriptional regulator
358	 19.30	-2	330221..331417	+	398	57237374	-	CJE0368	-	hypothetical protein
359	 30.51	0	331420..332127	+	235	57237375	ubiE	CJE0369	-	ubiquinone/menaquinone biosynthesis methyltransferase
360	 28.18	0	332124..333287	+	387	57237376	xseA	CJE0370	-	exodeoxyribonuclease VII large subunit
361	 31.29	0	333297..334373	+	358	57237377	serC	CJE0371	-	phosphoserine aminotransferase
362	 33.62	0	334370..334720	+	116	57237378	-	CJE0372	-	endoribonuclease L-PSP family protein
363	 34.15	+1	334717..335691	-	324	57237379	fabH	CJE0373	-	3-oxoacyl-(acyl carrier protein) synthase III
364	 32.22	0	335684..336670	-	328	57237380	plsX	CJE0374	-	putative glycerol-3-phosphate acyltransferase PlsX
365	 40.14	+2	336676..336822	-	48	57237381	rpmF	CJE0375	-	50S ribosomal protein L32
366	 25.42	-1	336846..337199	-	117	57237382	-	CJE0376	-	hypothetical protein
367	 31.16	0	337200..337613	-	137	57237383	ndk	CJE0377	-	nucleoside diphosphate kinase
368	 40.00	+2	337726..338010	-	94	57237384	-	CJE0378	-	ferredoxin, 4Fe-4S
369	 34.67	+1	338216..338812	+	198	57237385	-	CJE0379	-	anti-oxidant AhpCTSA family protein
370	 32.97	0	338931..340019	+	362	57237386	flhB	CJE0380	-	flagellar biosynthesis protein FlhB
371	 34.01	0	340025..340768	-	247	57237387	motB	CJE0381	-	flagellar motor protein MotB
372	 36.04	+1	340771..341547	-	258	57237388	-	CJE0382	-	flagellar motor protein MotA
373	 29.28	0	341564..344203	-	879	57237389	polA	CJE0383	-	DNA polymerase I
374	 35.83	+1	344367..345728	+	453	57237390	-	CJE0384	-	major facilitator family transporter
375	 32.54	0	345725..346732	+	335	57237391	-	CJE0385	-	inosine-uridine preferring nucleoside hydrolase family protein
376	 27.25	0	346688..347131	-	147	57237392	-	CJE0386	-	hypothetical protein
377	 20.10	-2	347131..347727	-	198	57237393	-	CJE0387	-	hypothetical protein
378	 22.95	-1	347708..348391	-	227	57237394	-	CJE0388	-	hypothetical protein
379	 24.28	-1	348435..348986	-	183	57237395	-	CJE0389	-	hypothetical protein
380	 34.40	+1	348988..351810	-	940	57237396	uvrA	CJE0390	-	excinuclease ABC subunit A
381	 31.30	0	351883..352668	-	261	57237397	-	CJE0391	-	hypothetical protein
382	 11.40	-2	352768..352881	+	37	57237398	-	CJE0392	-	hypothetical protein
383	 20.20	-2	352896..352994	-	32	57237399	-	CJE0393	-	hypothetical protein
384	 29.42	0	353084..354334	+	416	57237400	trpE	CJE0394	-	anthranilate synthase component I
385	 30.77	0	354331..355932	+	533	57237401	trpD	CJE0395	-	anthranilate synthase component II
386	 27.33	0	355919..356518	+	199	57237402	trpF	CJE0396	-	N-(5'phosphoribosyl)anthranilate isomerase
387	 35.03	+1	356515..357693	+	392	57237403	trpB	CJE0397	-	tryptophan synthase subunit beta
388	 29.60	0	357686..358435	+	249	57237404	trpA	CJE0398	-	tryptophan synthase subunit alpha
389	 29.31	0	358506..358928	+	140	57237405	-	CJE0399	-	hypothetical protein
390	 31.72	0	358928..359236	+	102	57237406	fliN	CJE0400	-	flagellar motor switch protein
391	 24.69	-1	359237..360034	+	265	57237407	-	CJE0401	-	hypothetical protein
392	 29.23	0	360031..361491	-	486	57237408	-	CJE0402	-	Ppx/GppA family phosphatase
393	 33.33	0	361491..361736	-	81	57237409	-	CJE0403	-	ferredoxin, 4Fe-4S
394	 31.70	0	361849..362520	-	223	57237410	-	CJE0404	-	DNA-binding response regulator
395	 22.96	-1	362599..362916	-	105	57237411	-	CJE0405	-	FolB domain-containing protein
396	 29.56	0	362901..363509	-	202	57237412	-	CJE0406	-	putative glycerol-3-phosphate acyltransferase PlsY
397	 34.31	+1	363710..364735	+	341	57237413	ccpA-2	CJE0407	-	cytochrome c551 peroxidase
398	 27.93	0	364719..364829	-	36	57237414	-	CJE0408	-	hypothetical protein
399	 32.21	0	364829..366166	+	445	57237415	glmM	CJE0409	-	phosphoglucosamine mutase
400	 29.51	0	366159..366629	+	156	57237416	lspA	CJE0410	-	lipoprotein signal peptidase
401	 29.14	0	366613..367065	+	150	57237417	-	CJE0411	-	hypothetical protein
402	 28.52	0	367039..368409	-	456	57237418	-	CJE0412	-	coproporphyrinogen III oxidase
403	 24.60	-1	368537..368788	+	83	57237419	-	CJE0413	-	hypothetical protein
404	 31.71	0	368811..370289	-	492	57237420	cmeC	CJE0414	-	RND efflux system, outer membrane lipoprotein CmeC
405	 34.13	+1	370282..373404	-	1040	57237421	cmeB	CJE0415	-	RND efflux system, inner membrane transporter CmeB
406	 31.52	0	373404..374507	-	367	57237422	cmeA	CJE0416	-	RND efflux system, membrane fusion protein CmeA
407	 26.86	0	374601..375233	-	210	57237423	-	CJE0417	-	TetR family transcriptional regulator
408	 28.32	0	375220..376596	-	458	57237424	-	CJE0418	-	iron-sulfur cluster-binding domain-containing protein
409	 35.21	+1	376756..376968	+	70	57237425	rpsU	CJE0419	-	30S ribosomal protein S21
410	 35.15	+1	377088..377693	+	201	57237426	-	CJE0420	-	hypothetical protein
411	 31.88	0	377703..378872	+	389	57237427	-	CJE0421	-	glutathionylspermidine synthase family protein
412	 30.24	0	378875..379810	+	311	57237428	-	CJE0422	-	2-hydroxyacid dehydrogenase
413	 29.07	0	379800..380291	+	163	57237429	-	CJE0423	-	nucleotide-binding protein
414	 23.48	-1	380300..380776	+	158	57237430	-	CJE0424	-	putative lipoprotein
415	 25.94	-1	380787..381611	+	274	57237431	-	CJE0425	-	hypothetical protein
416	 25.57	-1	381611..383323	+	570	57237432	-	CJE0426	-	ATPase, AAA family protein
417	 23.04	-1	383288..383860	-	190	57237433	-	CJE0427	-	hypothetical protein
418	 34.45	+1	383860..384753	-	297	57237434	-	CJE0428	-	putative sulfite oxidase subunit YedY
419	 24.09	-1	384809..385609	-	266	57237435	-	CJE0429	-	hypothetical protein
420	 30.36	0	385591..386430	-	279	57237436	pyrF	CJE0430	-	orotidine 5'-phosphate decarboxylase
421	 29.07	0	386427..386825	-	132	57237437	nusB	CJE0431	-	transcription antitermination protein NusB
422	 35.70	+1	386825..387289	-	154	57237438	ribH	CJE0432	-	riboflavin synthase subunit beta
423	 35.05	+1	387286..388101	-	271	57237439	kdsA	CJE0433	-	2-dehydro-3-deoxyphosphooctonate aldolase
424	 31.62	0	388098..389030	-	310	57237440	-	CJE0434	-	integral membrane protein
425	 32.47	0	389132..390514	+	460	57237441	engA	CJE0435	-	GTP-binding protein EngA
426	 25.50	-1	390501..390998	+	165	57237442	aroK	CJE0436	-	shikimate kinase
427	 33.12	0	390995..391954	+	319	57237443	trpS	CJE0437	-	tryptophanyl-tRNA synthetase
428	 33.09	0	391965..393200	+	411	57237444	serS	CJE0438	-	seryl-tRNA synthetase
429	 29.23	0	393210..395672	+	820	57237445	-	CJE0439	-	TPR domain-containing protein
430	 36.01	+1	395703..396338	-	211	57237446	-	CJE0440	-	hypothetical protein
431	 30.56	0	396436..397878	-	480	57237447	pyk	CJE0441	-	pyruvate kinase
432	 31.70	0	397927..399273	-	448	57237448	-	CJE0442	-	malate:quinone oxidoreductase, putative
433	 27.46	0	399391..400020	-	209	57237449	-	CJE0443	-	pantothenate kinase
434	 23.02	-1	400007..400297	-	96	57237450	-	CJE0444	-	tram-like protein
435	 27.93	0	400294..401292	-	332	57237451	-	CJE0445	-	putative lipoprotein
436	 22.63	-1	401289..401867	-	192	57237452	-	CJE0446	-	hypothetical protein
30.10	MEAN

3.94	STD DEV
