IslandPath Analysis: Campylobacter jejuni RM1221

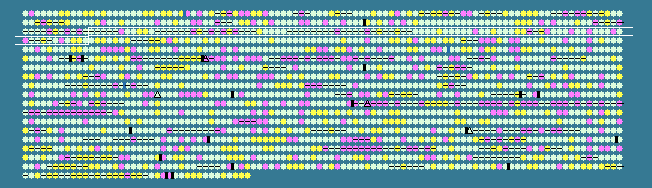

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 30.10   STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
212	 30.77	0	208876..208992	-	38	57237229	-	CJE0218	-	hypothetical protein
213	 29.51	0	209029..209211	+	60	57237230	-	CJE0219	-	hypothetical protein
214	 27.33	0	209239..210054	-	271	57237231	dam	CJE0220	-	DNA adenine methylase
215	 30.06	0	210256..210744	-	162	57237232	-	CJE0221	-	phage virion morphogenesis protein, putative
216	 33.38	0	210748..212964	-	738	57237233	-	CJE0222	-	TP901 family tail tape measure protein
217	 23.24	-1	212985..213311	+	108	57237234	-	CJE0223	-	hypothetical protein
218	 28.28	0	213298..213396	-	32	57237235	-	CJE0224	-	hypothetical protein
219	 32.08	0	213423..213662	-	79	57237236	-	CJE0225	-	hypothetical protein
220	 33.73	0	213815..214324	-	169	57237237	-	CJE0226	-	phage major tail tube protein, putative
221	 34.34	+1	214351..215544	-	397	57237238	-	CJE0227	-	major tail sheath protein
222	 30.28	0	215555..216568	-	337	57237239	-	CJE0228	-	hypothetical protein
223	 32.80	0	216668..217039	-	123	57237240	-	CJE0229	-	hypothetical protein
224	 29.78	0	217036..217542	-	168	57237241	-	CJE0230	-	hypothetical protein
225	 30.00	0	217552..218631	-	359	57237242	-	CJE0231	-	tail fiber protein H, putative
226	 28.50	0	218631..219251	-	206	57237243	-	CJE0232	-	phage tail protein, putative
227	 32.65	0	219248..220414	-	388	57237244	-	CJE0233	-	baseplate assembly protein J, putative
228	 32.62	0	220411..220692	-	93	57237245	-	CJE0234	-	baseplate assembly protein W, putative
229	 23.96	-1	220698..220889	-	63	57237246	-	CJE0235	-	hypothetical protein
230	 33.81	0	220898..221530	-	210	57237247	-	CJE0236	-	baseplate assembly protein V, putative
231	 27.30	0	221530..221844	-	104	57237248	-	CJE0237	-	hypothetical protein
232	 22.76	-1	221847..221969	-	40	57237249	-	CJE0238	-	hypothetical protein
233	 27.43	0	221956..222192	-	78	57237250	-	CJE0239	-	putative lipoprotein
234	 23.68	-1	222201..222542	-	113	57237251	-	CJE0240	-	hypothetical protein
235	 35.90	+1	222553..222942	-	129	57237252	-	CJE0241	-	hypothetical protein
236	 24.71	-1	223009..223182	-	57	57238717	-	CJE0242	-	hypothetical protein
237	 28.97	0	223091..223525	+	144	57237253	-	CJE0243	-	hypothetical protein
238	 31.37	0	223527..224342	+	271	57237254	-	CJE0244	-	Mu-like prophage I protein, putative
239	 30.87	0	224507..224872	+	121	57237255	-	CJE0245	-	hypothetical protein
240	 34.15	+1	224875..225852	+	325	57237256	-	CJE0246	-	hypothetical protein
241	 29.82	0	226028..226426	+	132	57237257	-	CJE0247	-	hypothetical protein
242	 31.83	0	226419..227018	+	199	57237258	-	CJE0248	-	hypothetical protein
243	 32.77	0	227105..228688	+	527	57237259	-	CJE0249	-	phage uncharacterized protein
244	 29.76	0	228698..230068	+	456	57237260	-	CJE0250	-	hypothetical protein
245	 30.02	0	230070..231308	+	412	57237261	-	CJE0251	-	prophage MuSo1, F protein, putative
246	 28.53	0	231434..231808	+	124	57237262	-	CJE0252	-	phage tail protein, putative
247	 30.73	0	231801..231992	+	63	57237263	-	CJE0253	-	tail protein X, putative
248	 29.65	0	231986..232963	+	325	57237264	-	CJE0254	-	tail protein D, putative
249	 28.07	0	232960..233244	-	94	57237265	-	CJE0255	-	DNA-binding protein, putative
250	 30.65	0	233338..234009	+	223	57237266	dns	CJE0256	-	extracellular deoxyribonuclease
251	 30.43	0	234001..234276	-	91	57237267	-	CJE0257	-	hypothetical protein
252	 29.56	0	234323..234772	-	149	57237268	-	CJE0258	-	hypothetical protein
253	 26.55	0	234769..235461	-	230	57237269	-	CJE0259	-	hypothetical protein
254	 32.59	0	235461..235730	-	89	57237270	-	CJE0260	-	hypothetical protein
255	 30.63	0	235727..236689	-	320	57237271	-	CJE0261	-	hypothetical protein
256	 30.75	0	236798..237184	-	128	57237272	-	CJE0262	-	hypothetical protein
257	 30.04	0	237181..237453	-	90	57237273	-	CJE0263	-	hypothetical protein
258	 24.44	-1	237517..237696	-	59	57237274	-	CJE0264	-	hypothetical protein
259	 31.07	0	237693..238178	-	161	57237275	-	CJE0265	-	host-nuclease inhibitor protein Gam, putative
260	 35.67	+1	238285..238626	-	113	57237276	-	CJE0266	-	hypothetical protein
261	 29.03	0	238722..238907	-	61	57237277	-	CJE0267	-	hypothetical protein
262	 28.92	0	238891..239094	-	67	57237278	-	CJE0268	-	hypothetical protein
263	 34.31	+1	239097..240020	-	307	57237279	-	CJE0269	-	bacteriophage DNA transposition protein B, putative
264	 32.37	0	240090..242162	-	690	57237280	-	CJE0270	-	bacteriophage DNA transposition protein A, putative
265	 32.34	0	242162..242362	-	66	57237281	-	CJE0271	-	hypothetical protein
266	 27.33	0	242507..243139	+	210	57237282	-	CJE0272	-	transcriptional regulator, putative
267	 26.79	0	243155..244132	+	325	57237283	-	CJE0273	-	hypothetical protein
268	 32.85	0	244537..245565	+	342	57237284	argC	CJE0275	-	N-acetyl-gamma-glutamyl-phosphate reductase
269	 32.89	0	245575..246021	+	148	57237285	-	CJE0276	-	acetyltransferase
270	 33.69	0	246031..246870	+	279	57237286	argB	CJE0277	-	acetylglutamate kinase
271	 32.91	0	246880..248061	+	393	57237287	argD	CJE0278	-	acetylornithine aminotransferase
272	 32.06	0	248081..248710	-	209	57237288	pcm	CJE0279	-	protein-L-isoaspartate O-methyltransferase
273	 32.97	0	248799..249347	+	182	57237289	-	CJE0280	-	hexapaptide repeat-containing transferase
274	 30.27	0	249316..250686	-	456	57237290	-	CJE0281	-	nicotinate phosphoribosyltransferase
275	 31.87	0	250676..251698	-	340	57237291	nrdF	CJE0282	-	ribonucleotide-diphosphate reductase subunit beta
276	 25.06	-1	251701..252123	-	140	57237292	-	CJE0283	-	hypothetical protein
277	 31.53	0	252124..252732	-	202	57237293	pyrE	CJE0284	-	orotate phosphoribosyltransferase
278	 32.44	0	252735..253292	-	185	57237294	frr	CJE0285	-	ribosome recycling factor
279	 33.87	0	253308..253679	-	123	57237295	secG	CJE0286	-	preprotein translocase subunit SecG
280	 31.61	0	253783..254478	-	231	57237296	-	CJE0287	-	hypothetical protein
281	 31.45	0	254639..255274	+	211	57237297	cynT	CJE0288	-	carbonic anhydrase
282	 27.76	0	255271..257154	+	627	57237298	-	CJE0289	-	mechanosensitive ion channel family protein
283	 35.19	+1	257177..258148	-	323	57237299	-	CJE0290	-	NifU family protein
284	 36.89	+1	258158..259339	-	393	57237300	-	CJE0291	-	cysteine desulfurase
285	 25.45	-1	260051..261217	-	388	57237301	-	CJE0293	-	hypothetical protein
286	 33.33	0	261376..261567	+	63	57237302	rpmI	CJE0294	-	50S ribosomal protein L35
287	 37.01	+1	261661..262014	+	117	57237303	rplT	CJE0295	-	50S ribosomal protein L20
288	 23.60	-1	262073..262555	-	160	57237304	-	CJE0296	-	hypothetical protein
289	 30.89	0	263633..264490	+	285	57237305	-	CJE0298	-	hypothetical protein
290	 27.88	0	264521..264997	+	158	57237306	-	CJE0299	-	hypothetical protein
291	 29.60	0	264966..266276	-	436	57237307	-	CJE0300	-	major facilitator superfamily protein
292	 25.42	-1	266260..266436	-	58	57237308	-	CJE0301	-	hypothetical protein
293	 31.43	0	266529..267002	+	157	57237309	moaC	CJE0302	-	molybdenum cofactor biosynthesis protein C
294	 26.89	0	266980..267243	+	87	57237310	-	CJE0303	-	hypothetical protein
295	 26.03	-1	267257..268393	+	378	57237311	-	CJE0304	-	hypothetical protein
296	 30.13	0	268412..269191	-	259	57237312	xth	CJE0305	-	exodeoxyribonuclease III
297	 27.03	0	269288..270826	+	512	57237313	-	CJE0306	-	sulfatase, putative
298	 28.85	0	270823..271179	+	118	57237314	dgkA	CJE0307	-	diacylglycerol kinase
299	 25.44	-1	271176..271403	+	75	57237315	-	CJE0308	-	hypothetical protein
300	 32.43	0	271412..272407	+	331	57237316	pyrC	CJE0309	-	dihydroorotase
301	 26.47	0	272329..275679	+	1116	57237317	-	CJE0310	-	D12 class N6 adenine-specific DNA methyltransferase, putative
302	 28.71	0	275685..276398	-	237	57237318	-	CJE0311	-	hypothetical protein
303	 30.52	0	276479..278467	-	662	57237319	-	CJE0312	-	methyl-accepting chemotaxis protein
304	 33.79	0	278663..279538	+	291	57237320	-	CJE0313	-	zinc transporter ZupT
305	 31.16	0	279637..281616	-	659	57237321	-	CJE0314	-	methyl-accepting chemotaxis protein
306	 28.24	0	281817..282326	-	169	57237322	-	CJE0315	-	hypothetical protein
307	 23.92	-1	282326..282835	-	169	57237323	-	CJE0316	-	hypothetical protein
308	 33.33	0	282869..283957	-	362	57237324	-	CJE0317	-	SPFH domain-containing protein
309	 33.77	0	283970..284884	-	304	57237325	ilvE	CJE0318	-	branched-chain amino acid aminotransferase
310	 34.30	+1	285060..285266	+	68	57237326	-	CJE0319	-	4-oxalocrotonate tautomerase family protein
311	 31.36	0	285263..285718	+	151	57237327	-	CJE0320	-	anti-oxidant AhpCTSA family protein
30.10	MEAN

3.94	STD DEV
