IslandPath Analysis: Campylobacter jejuni RM1221

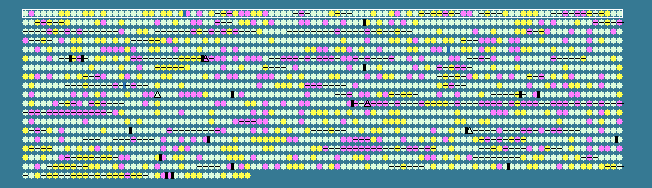

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 30.10   STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 29.93	0	1..1323	+	440	57236915	dnaA	CJE0001	-	chromosomal replication initiation protein
2	 26.22	0	1483..2550	+	355	57236916	dnaN	CJE0002	-	DNA polymerase III subunit beta
3	 33.03	0	2579..4888	+	769	57236917	gyrB	CJE0003	-	DNA gyrase subunit B
4	 31.58	0	4914..5255	-	113	57236918	-	CJE0004	-	hypothetical protein
5	 32.85	0	5258..6496	-	412	57236919	-	CJE0005	-	molybdopterin oxidoreductase family protein
6	 31.72	0	6707..8008	+	433	57236920	-	CJE0006	-	Na+/H+ antiporter family protein
7	 35.00	+1	8142..12632	+	1496	57236921	gltB	CJE0007	-	glutamate synthase, large subunit
8	 34.79	+1	12642..14087	+	481	57236922	gltD	CJE0008	-	glutamate synthase subunit beta
9	 32.29	0	14088..14663	-	191	57236923	rnhB	CJE0009	-	ribonuclease HII
10	 27.50	0	14696..14935	-	79	57236924	comEA	CJE0010	-	competence protein ComEA
11	 35.51	+1	15000..15551	-	183	57236925	rbr	CJE0011	-	rubrerythrin
12	 37.21	+1	15807..17483	+	558	57236926	ilvD	CJE0012	-	dihydroxy-acid dehydratase
13	 32.27	0	17983..19209	-	408	57236927	-	CJE0015	-	hypothetical protein
14	 34.07	+1	19287..19961	+	224	57236928	-	CJE0016	-	ExsB
15	 33.20	0	19982..21508	-	508	57236929	-	CJE0017	-	DsbB family disulfide bond formation protein
16	 31.55	0	21520..21687	-	55	57236930	-	CJE0018	-	hypothetical protein
17	 27.83	0	21793..23574	-	593	57236931	-	CJE0019	-	methyl-accepting chemotaxis protein
18	 32.24	0	23564..24478	-	304	57236932	ccpA-1	CJE0020	-	cytochrome c551 peroxidase
19	 31.63	0	24542..25420	-	292	57236933	-	CJE0021	-	fumarylacetoacetate hydrolase family protein
20	 30.01	0	25533..26435	-	300	57236934	-	CJE0022	-	RNA pseudouridylate synthase family protein
21	 33.63	0	26513..27841	+	442	57236935	purB-1	CJE0023	-	adenylosuccinate lyase
22	 33.59	0	27857..30226	+	789	57236936	nrdA	CJE0024	-	ribonucleotide-diphosphate reductase subunit alpha
23	 31.17	0	30265..31650	-	461	57236937	-	CJE0025	-	sodium/dicarboxylate symporter
24	 34.29	+1	31770..32393	-	207	57236938	thyX	CJE0026	-	FAD-dependent thymidylate synthase
25	 34.56	+1	32513..34144	+	543	57236939	pyrG	CJE0027	-	CTP synthetase
26	 29.71	0	34131..35702	+	523	57236940	recJ	CJE0028	-	single-stranded-DNA-specific exonuclease RecJ
27	 34.24	+1	35798..36793	+	331	57236941	ansA	CJE0029	-	L-asparaginase
28	 20.67	-2	43241..44638	+	465	57237045	-	CJE0030	-	hypothetical protein
29	 30.42	0	44699..48472	+	1257	57237046	-	CJE0031	-	type II restriction-modification enzyme
30	 23.08	-1	48472..50928	+	818	57237047	-	CJE0032	-	hypothetical protein
31	 32.34	0	50958..51659	-	233	57237048	-	CJE0033	-	hypothetical protein
32	 35.74	+1	51656..52858	-	400	57237049	-	CJE0034	-	Bcr/CflA subfamily drug resistance transporter
33	 31.19	0	52961..54310	+	449	57237050	-	CJE0035	-	hypothetical protein
34	 36.59	+1	54334..55377	-	347	57237051	-	CJE0036	-	cytochrome c family protein
35	 24.54	-1	55555..56202	-	215	57237052	-	CJE0037	-	hypothetical protein
36	 37.42	+1	56202..58010	-	602	57237053	typA	CJE0038	-	GTP-binding protein TypA
37	 23.15	-1	58145..58468	+	107	57237054	-	CJE0039	-	hypothetical protein
38	 26.52	0	58487..60277	+	596	57237055	-	CJE0040	-	hypothetical protein
39	 36.84	+1	60330..61214	+	294	57237056	flgD	CJE0041	-	flagellar basal body rod modification protein
40	 33.88	0	61218..62855	+	545	57237057	flgE-1	CJE0042	-	flagellar hook protein
41	 25.32	-1	62859..64730	-	623	57237058	-	CJE0043	-	hypothetical protein
42	 27.58	0	64687..65451	-	254	57237059	-	CJE0044	-	hypothetical protein
43	 31.18	0	65697..65789	+	30	57237060	-	CJE0045	-	hypothetical protein
44	 32.74	0	67407..68423	-	338	57237061	trmU	CJE0048	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
45	 31.19	0	68423..69028	-	201	57237062	-	CJE0049	-	lysine decarboxylase family protein
46	 27.67	0	69149..69307	-	52	57237063	-	CJE0050	-	hypothetical protein
47	 23.87	-1	69304..70296	-	330	57237064	-	CJE0051	-	hypothetical protein
48	 31.87	0	70366..70638	-	90	57237065	-	CJE0052	-	hypothetical protein
49	 29.90	0	70677..70880	-	67	57237066	-	CJE0053	-	hypothetical protein
50	 31.58	0	71013..71867	+	284	57237067	-	CJE0054	-	HmcD domain-containing protein
51	 29.48	0	71852..72448	+	198	57237068	-	CJE0055	-	peptidase family protein
52	 33.82	0	72497..73318	-	273	57237069	fliY	CJE0056	-	flagellar motor switch protein FliY
53	 33.98	0	73336..74415	-	359	57237070	fliM	CJE0057	-	flagellar motor switch protein FliM
54	 32.61	0	74415..75107	-	230	57237071	fliA	CJE0058	-	flagellar biosynthesis sigma factor
55	 26.89	0	75088..75444	-	118	57237072	-	CJE0059	-	hypothetical protein
56	 31.26	0	75463..76329	-	288	57237073	-	CJE0060	-	ParaA family ATPase
57	 30.52	0	76322..77776	-	484	57237074	flhF	CJE0061	-	flagellar biosynthesis regulator FlhF
58	 30.59	0	77786..78259	-	157	57237075	folK	CJE0062	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
59	 35.21	+1	78262..78741	-	159	57237076	aroQ	CJE0063	-	3-dehydroquinate dehydratase
60	 28.94	0	78832..80061	+	409	57237077	-	CJE0064	-	chlorohydrolase
61	 32.78	0	80049..80945	+	298	57237078	sppA	CJE0065	-	signal peptide peptidase SppA, 36K type
62	 34.80	+1	81097..82053	+	318	57237079	-	CJE0066	-	hypothetical protein
63	 26.42	0	82050..82208	-	52	57237080	-	CJE0067	-	hypothetical protein
64	 31.05	0	83090..83746	-	218	57237081	-	CJE0069	-	hypothetical protein
65	 35.21	+1	83739..85178	-	479	57237082	-	CJE0070	-	iron-sulfur cluster binding protein
66	 33.33	0	85175..85915	-	246	57237083	-	CJE0071	-	hypothetical protein
67	 34.92	+1	86025..87722	-	565	57237084	lctP	CJE0072	-	L-lactate permease
68	 31.05	0	87894..88463	-	189	57237085	cdtC	CJE0073	-	cytolethal distending toxin, subunit C
69	 36.47	+1	88474..89271	-	265	57237086	cdtB	CJE0074	-	cytolethal distending toxin, subunit B
70	 34.20	+1	89268..90074	-	268	57237087	cdtA	CJE0075	-	cytolethal distending toxin, subunit A
71	 21.85	-2	90151..90420	+	89	57237088	-	CJE0076	-	hypothetical protein
72	 34.87	+1	90421..91983	+	520	57237089	cydA	CJE0077	-	cytochrome d ubiquinol oxidase, subunit I
73	 32.71	0	91983..93107	+	374	57237090	cydB	CJE0078	-	cytochrome d ubiquinol oxidase, subunit II
74	 24.76	-1	93117..93221	+	34	57237091	-	CJE0079	-	hypothetical protein
75	 26.01	-1	93301..93996	-	231	57237092	-	CJE0080	-	aspartate racemase, putative
76	 29.02	0	94116..94811	-	231	57237093	ung	CJE0081	-	uracil-DNA glycosylase
77	 33.40	0	95082..96488	+	468	57237094	aspA	CJE0082	-	aspartate ammonia-lyase
78	 37.40	+1	96514..97842	+	442	57237095	dcuA	CJE0083	-	anaerobic C4-dicarboxylate transporter
79	 27.39	0	97948..99309	+	453	57237096	-	CJE0084	-	putative lipoprotein
80	 27.37	0	99319..99687	+	122	57237097	-	CJE0085	-	putative lipoprotein
81	 34.78	+1	99711..100334	+	207	57237098	-	CJE0086	-	putative lipoprotein
82	 31.02	0	100417..101754	+	445	57237099	-	CJE0087	-	hypothetical protein
83	 32.75	0	101764..102966	+	400	57237100	-	CJE0088	-	hypothetical protein
84	 34.95	+1	103125..103433	+	102	57237101	rplU	CJE0089	-	50S ribosomal protein L21
85	 37.25	+1	103444..103698	+	84	57237102	rpmA	CJE0090	-	50S ribosomal protein L27
86	 35.99	+1	103805..104857	+	350	57237103	obgE	CJE0091	-	GTPase ObgE
87	 32.01	0	104962..105717	+	251	57237104	proB	CJE0092	-	gamma-glutamyl kinase
88	 32.57	0	105791..106708	+	305	57237105	fmt	CJE0093	-	methionyl-tRNA formyltransferase
89	 28.44	0	106671..107324	+	217	57237106	-	CJE0094	-	biotin--protein ligase
90	 31.04	0	107321..108106	+	261	57237107	-	CJE0095	-	ParA family chromosome partitioning ATPase
91	 25.93	-1	108112..108948	+	278	57237108	-	CJE0096	-	ParB family chromosome partitioning protein
92	 28.17	0	109009..109434	+	141	57237109	-	CJE0097	-	F0F1 ATP synthase subunit B'
93	 25.54	-1	109445..109957	+	170	57237110	-	CJE0098	-	F0F1 ATP synthase subunit B
94	 21.84	-2	109960..110481	+	173	57237111	atpH	CJE0099	-	F0F1 ATP synthase subunit delta
95	 35.33	+1	110495..112000	+	501	57237112	atpA	CJE0100	-	F0F1 ATP synthase subunit alpha
96	 28.93	0	112009..112893	+	294	57237113	atpG	CJE0101	-	F0F1 ATP synthase subunit gamma
97	 35.12	+1	112919..114316	+	465	57237114	atpD	CJE0102	-	F0F1 ATP synthase subunit beta
98	 35.13	+1	114320..114709	+	129	57237115	atpC	CJE0103	-	F0F1 ATP synthase subunit epsilon
99	 29.91	0	114709..115263	+	184	57237116	-	CJE0104	-	MotA/TolQ/ExbB proton channel family protein
100	 28.21	0	115272..115661	+	129	57237117	-	CJE0105	-	TonB system transport protein ExbD, putative
30.10	MEAN

3.94	STD DEV
