IslandPath Analysis: Campylobacter jejuni RM1221

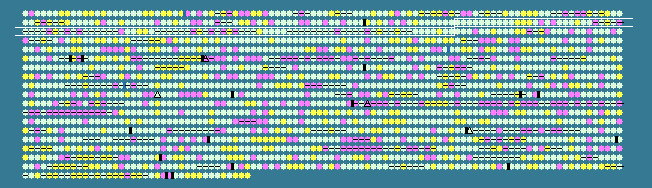

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 30.10   STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
173	 30.95	0	179894..180103	-	69	57237190	-	CJE0178	-	PhnA domain-containing protein
174	 31.94	0	180096..180815	-	239	57237191	-	CJE0179	-	TerC family integral membrane protein
175	 29.28	0	180887..181453	-	188	57237192	purN	CJE0180	-	phosphoribosylglycinamide formyltransferase
176	 28.45	0	181444..182814	-	456	57237193	-	CJE0181	-	hypothetical protein
177	 28.04	0	182798..183496	-	232	57237194	-	CJE0182	-	hypothetical protein
178	 30.35	0	183498..185003	-	501	57237195	-	CJE0183	-	Mg chelatase-related protein
179	 29.55	0	185000..185527	-	175	57237196	def	CJE0184	-	peptide deformylase
180	 32.48	0	185563..186147	-	194	57237197	clpP	CJE0185	-	ATP-dependent Clp protease proteolytic subunit
181	 30.11	0	186147..187481	-	444	57237198	tig	CJE0186	-	trigger factor
182	 32.46	0	187625..188197	+	190	57237199	folE	CJE0187	-	GTP cyclohydrolase I
183	 36.51	+1	188197..189582	+	461	57237200	fliI	CJE0188	-	flagellum-specific ATP synthase
184	 34.45	+1	189585..190922	-	445	57237201	purF	CJE0189	-	amidophosphoribosyltransferase
185	 35.12	+1	190924..191652	-	242	57237202	dapB	CJE0190	-	dihydrodipicolinate reductase
186	 30.88	0	191715..192896	-	393	57237203	-	CJE0191	-	recombination factor protein RarA
187	 20.92	-2	192896..194023	-	375	57237204	-	CJE0192	-	hypothetical protein
188	 29.60	0	194157..194504	-	115	57237205	-	CJE0193	-	hypothetical protein
189	 26.40	0	194603..195208	-	201	57237206	-	CJE0194	-	hypothetical protein
190	 29.32	0	195177..195500	-	107	57237207	-	CJE0195	-	hypothetical protein
191	 33.18	0	197273..199267	+	664	57237208	-	CJE0197	-	OPT family oligopeptide transporter
192	 30.97	0	199341..200144	+	267	57237209	-	CJE0198	-	undecaprenol kinase, putative
193	 33.94	0	200275..202083	+	602	57237210	thrS	CJE0199	-	threonyl-tRNA synthetase
194	 32.95	0	202080..202598	+	172	57237211	infC	CJE0200	-	translation initiation factor IF-3
195	 27.01	0	202637..203728	+	363	57237212	-	CJE0201	-	D12 class N6 adenine-specific DNA methyltransferase
196	 25.49	-1	203768..203869	+	33	57237213	-	CJE0202	-	hypothetical protein
197	 28.95	0	203805..203918	+	37	57237214	-	CJE0203	-	hypothetical protein
198	 34.13	+1	203958..204083	+	41	57237215	-	CJE0204	-	hypothetical protein
199	 29.75	0	204203..204649	+	148	57237216	-	CJE0205	-	hypothetical protein
200	 25.11	-1	204813..205043	+	76	57237217	-	CJE0206	-	hypothetical protein
201	 32.08	0	205106..205345	+	79	57237218	-	CJE0207	-	hypothetical protein
202	 31.69	0	205424..205606	+	60	57237219	-	CJE0208	-	hypothetical protein
203	 29.51	0	205700..205882	-	60	57237220	-	CJE0209	-	hypothetical protein
204	 29.06	0	205926..206042	+	38	57237221	-	CJE0210	-	hypothetical protein
205	 24.51	-1	206043..206246	+	67	57237222	-	CJE0211	-	pathogenicity domain-containing protein
206	 34.43	+1	206505..206687	+	60	57237223	-	CJE0212	-	pathogenicity protein,-like protein
207	 28.86	0	207115..207315	-	66	57237224	-	CJE0213	-	hypothetical protein
208	 20.83	-2	207469..207564	+	31	57237225	-	CJE0214	-	hypothetical protein
209	 27.94	0	207610..208239	+	209	57237226	-	CJE0215	-	phage repressor protein, putative
210	 23.99	-1	208320..208640	+	106	57237227	-	CJE0216	-	hypothetical protein
211	 30.26	0	208650..208844	+	64	57237228	-	CJE0217	-	hypothetical protein
212	 30.77	0	208876..208992	-	38	57237229	-	CJE0218	-	hypothetical protein
213	 29.51	0	209029..209211	+	60	57237230	-	CJE0219	-	hypothetical protein
214	 27.33	0	209239..210054	-	271	57237231	dam	CJE0220	-	DNA adenine methylase
215	 30.06	0	210256..210744	-	162	57237232	-	CJE0221	-	phage virion morphogenesis protein, putative
216	 33.38	0	210748..212964	-	738	57237233	-	CJE0222	-	TP901 family tail tape measure protein
217	 23.24	-1	212985..213311	+	108	57237234	-	CJE0223	-	hypothetical protein
218	 28.28	0	213298..213396	-	32	57237235	-	CJE0224	-	hypothetical protein
219	 32.08	0	213423..213662	-	79	57237236	-	CJE0225	-	hypothetical protein
220	 33.73	0	213815..214324	-	169	57237237	-	CJE0226	-	phage major tail tube protein, putative
221	 34.34	+1	214351..215544	-	397	57237238	-	CJE0227	-	major tail sheath protein
222	 30.28	0	215555..216568	-	337	57237239	-	CJE0228	-	hypothetical protein
223	 32.80	0	216668..217039	-	123	57237240	-	CJE0229	-	hypothetical protein
224	 29.78	0	217036..217542	-	168	57237241	-	CJE0230	-	hypothetical protein
225	 30.00	0	217552..218631	-	359	57237242	-	CJE0231	-	tail fiber protein H, putative
226	 28.50	0	218631..219251	-	206	57237243	-	CJE0232	-	phage tail protein, putative
227	 32.65	0	219248..220414	-	388	57237244	-	CJE0233	-	baseplate assembly protein J, putative
228	 32.62	0	220411..220692	-	93	57237245	-	CJE0234	-	baseplate assembly protein W, putative
229	 23.96	-1	220698..220889	-	63	57237246	-	CJE0235	-	hypothetical protein
230	 33.81	0	220898..221530	-	210	57237247	-	CJE0236	-	baseplate assembly protein V, putative
231	 27.30	0	221530..221844	-	104	57237248	-	CJE0237	-	hypothetical protein
232	 22.76	-1	221847..221969	-	40	57237249	-	CJE0238	-	hypothetical protein
233	 27.43	0	221956..222192	-	78	57237250	-	CJE0239	-	putative lipoprotein
234	 23.68	-1	222201..222542	-	113	57237251	-	CJE0240	-	hypothetical protein
235	 35.90	+1	222553..222942	-	129	57237252	-	CJE0241	-	hypothetical protein
236	 24.71	-1	223009..223182	-	57	57238717	-	CJE0242	-	hypothetical protein
237	 28.97	0	223091..223525	+	144	57237253	-	CJE0243	-	hypothetical protein
238	 31.37	0	223527..224342	+	271	57237254	-	CJE0244	-	Mu-like prophage I protein, putative
239	 30.87	0	224507..224872	+	121	57237255	-	CJE0245	-	hypothetical protein
240	 34.15	+1	224875..225852	+	325	57237256	-	CJE0246	-	hypothetical protein
241	 29.82	0	226028..226426	+	132	57237257	-	CJE0247	-	hypothetical protein
242	 31.83	0	226419..227018	+	199	57237258	-	CJE0248	-	hypothetical protein
243	 32.77	0	227105..228688	+	527	57237259	-	CJE0249	-	phage uncharacterized protein
244	 29.76	0	228698..230068	+	456	57237260	-	CJE0250	-	hypothetical protein
245	 30.02	0	230070..231308	+	412	57237261	-	CJE0251	-	prophage MuSo1, F protein, putative
246	 28.53	0	231434..231808	+	124	57237262	-	CJE0252	-	phage tail protein, putative
247	 30.73	0	231801..231992	+	63	57237263	-	CJE0253	-	tail protein X, putative
248	 29.65	0	231986..232963	+	325	57237264	-	CJE0254	-	tail protein D, putative
249	 28.07	0	232960..233244	-	94	57237265	-	CJE0255	-	DNA-binding protein, putative
250	 30.65	0	233338..234009	+	223	57237266	dns	CJE0256	-	extracellular deoxyribonuclease
251	 30.43	0	234001..234276	-	91	57237267	-	CJE0257	-	hypothetical protein
252	 29.56	0	234323..234772	-	149	57237268	-	CJE0258	-	hypothetical protein
253	 26.55	0	234769..235461	-	230	57237269	-	CJE0259	-	hypothetical protein
254	 32.59	0	235461..235730	-	89	57237270	-	CJE0260	-	hypothetical protein
255	 30.63	0	235727..236689	-	320	57237271	-	CJE0261	-	hypothetical protein
256	 30.75	0	236798..237184	-	128	57237272	-	CJE0262	-	hypothetical protein
257	 30.04	0	237181..237453	-	90	57237273	-	CJE0263	-	hypothetical protein
258	 24.44	-1	237517..237696	-	59	57237274	-	CJE0264	-	hypothetical protein
259	 31.07	0	237693..238178	-	161	57237275	-	CJE0265	-	host-nuclease inhibitor protein Gam, putative
260	 35.67	+1	238285..238626	-	113	57237276	-	CJE0266	-	hypothetical protein
261	 29.03	0	238722..238907	-	61	57237277	-	CJE0267	-	hypothetical protein
262	 28.92	0	238891..239094	-	67	57237278	-	CJE0268	-	hypothetical protein
263	 34.31	+1	239097..240020	-	307	57237279	-	CJE0269	-	bacteriophage DNA transposition protein B, putative
264	 32.37	0	240090..242162	-	690	57237280	-	CJE0270	-	bacteriophage DNA transposition protein A, putative
265	 32.34	0	242162..242362	-	66	57237281	-	CJE0271	-	hypothetical protein
266	 27.33	0	242507..243139	+	210	57237282	-	CJE0272	-	transcriptional regulator, putative
267	 26.79	0	243155..244132	+	325	57237283	-	CJE0273	-	hypothetical protein
268	 32.85	0	244537..245565	+	342	57237284	argC	CJE0275	-	N-acetyl-gamma-glutamyl-phosphate reductase
269	 32.89	0	245575..246021	+	148	57237285	-	CJE0276	-	acetyltransferase
270	 33.69	0	246031..246870	+	279	57237286	argB	CJE0277	-	acetylglutamate kinase
271	 32.91	0	246880..248061	+	393	57237287	argD	CJE0278	-	acetylornithine aminotransferase
272	 32.06	0	248081..248710	-	209	57237288	pcm	CJE0279	-	protein-L-isoaspartate O-methyltransferase
30.10	MEAN

3.94	STD DEV
