IslandPath Analysis: Campylobacter jejuni RM1221

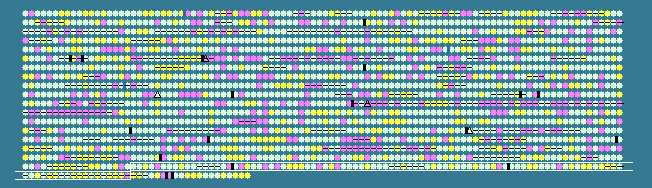

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1719	 32.85	0	1672859..1673482	+	207	57238617	hisI	CJE1776	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
1720	 32.99	0	1673507..1674667	-	386	57238618	-	CJE1777	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase, putative
1721	 34.60	+1	1674693..1675799	-	368	57238619	mrp	CJE1778	-	ATP/GTP-binding protein
1722	 33.42	0	1675922..1677037	+	371	57238620	ispDF	CJE1779	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
1723	 24.77	-1	1677034..1677921	+	295	57238621	-	CJE1780	-	DNA-binding response regulator, putative
1724	 29.46	0	1677899..1679059	+	386	57238622	-	CJE1781	-	ATP-sulfurylase family protein
1725	 29.34	0	1679064..1679564	+	166	57238623	pgpA	CJE1782	-	phosphatidylglycerophosphatase A
1726	 33.33	0	1679643..1679906	+	87	57238624	rpsT	CJE1783	-	30S ribosomal protein S20
1727	 35.21	+1	1679925..1680992	+	355	57238625	prfA	CJE1784	-	peptide chain release factor 1
1728	 31.22	0	1681006..1681761	-	251	57238626	-	CJE1785	-	hypothetical protein
1729	 31.15	0	1681954..1684110	+	718	57238627	chuA	CJE1786	-	TonB-dependent heme receptor
1730	 32.52	0	1684085..1685071	+	328	57238628	-	CJE1787	-	hemin ABC transporter, permease protein, putative
1731	 27.80	0	1685071..1685847	+	258	57238629	-	CJE1788	-	hemin ABC transporter, ATP-binding protein, putative
1732	 28.50	0	1685844..1686650	+	268	57238630	-	CJE1789	-	hemin ABC transporter, periplasmic hemin-binding protein, putative
1733	 33.17	0	1687671..1688930	+	419	57238631	kgtP	CJE1791	-	alpha-ketoglutarate permease
1734	 30.88	0	1688916..1689935	-	339	57238632	mutY	CJE1792	-	A/G-specific adenine glycosylase
1735	 26.43	0	1690008..1690760	+	250	57238633	-	CJE1793	-	hypothetical protein
1736	 32.11	0	1691440..1692420	+	326	57238634	-	CJE1794	-	riboflavin biosynthesis protein RibD, putative
1737	 24.33	-1	1692401..1692922	+	173	57238635	-	CJE1795	-	hypothetical protein
1738	 34.65	+1	1692930..1694294	-	454	57238636	sdaA	CJE1796	-	L-serine ammonia-lyase
1739	 31.41	0	1694309..1695559	-	416	57238637	sdaC	CJE1797	-	serine transporter
1740	 29.98	0	1695818..1696234	-	138	57238638	-	CJE1798	-	hypothetical protein
1741	 25.54	-1	1696300..1697043	-	247	57238639	-	CJE1799	-	hypothetical protein
1742	 31.46	0	1697202..1697627	+	141	57238640	exbB-2	CJE1800	-	TonB system transport protein ExbB
1743	 25.06	-1	1697599..1698009	+	136	57238641	exbD	CJE1801	-	biopolymer transport exbD protein
1744	 27.53	0	1698701..1699579	-	292	57238642	-	CJE1803	-	hypothetical protein
1745	 33.84	0	1699633..1699830	-	65	57238643	-	CJE1804	-	hypothetical protein
1746	 33.64	0	1699952..1700935	+	327	57238644	-	CJE1805	-	hypothetical protein
1747	 34.25	+1	1701022..1702110	-	362	57238645	aroC	CJE1806	-	chorismate synthase
1748	 32.74	0	1702110..1702784	-	224	57238646	rnc	CJE1807	-	ribonuclease III
1749	 32.88	0	1702771..1703211	-	146	57238647	rnhA	CJE1808	-	ribonuclease H
1750	 25.53	-1	1703198..1704184	-	328	57238648	-	CJE1809	-	hypothetical protein
1751	 28.44	0	1704254..1706071	+	605	57238649	dnaG	CJE1810	-	DNA primase
1752	 37.00	+1	1706153..1706425	+	90	57238650	-	CJE1811	-	NifU family protein
1753	 25.18	-1	1706412..1706963	+	183	57238651	-	CJE1812	-	hypothetical protein
1754	 32.48	0	1706947..1708230	+	427	57238652	murE	CJE1813	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1755	 33.33	0	1708234..1708545	+	103	57238653	-	CJE1814	-	hypothetical protein
1756	 29.77	0	1708542..1709636	+	364	57238654	-	CJE1815	-	PDZ domain-containing protein
1757	 32.27	0	1709633..1710478	+	281	57238655	ispA	CJE1816	-	geranyltranstransferase
1758	 35.91	+1	1710488..1712386	+	632	57238656	tkt	CJE1817	-	transketolase
1759	 31.08	0	1712388..1713497	+	369	57238657	-	CJE1818	-	ABC transporter, permease protein, putative
1760	 30.57	0	1713498..1714220	+	240	57238658	-	CJE1819	-	ABC transporter, ATP-binding protein
1761	 30.98	0	1714223..1715113	+	296	57238659	-	CJE1820	-	ABC transporter, periplasmic substrate-binding protein, putative
1762	 27.00	0	1715113..1715712	+	199	57238660	-	CJE1821	-	putative lipoprotein
1763	 28.54	0	1715768..1716268	+	166	57238661	-	CJE1822	-	hypothetical protein
1764	 35.97	+1	1716639..1717397	-	252	57238662	map	CJE1823	-	methionine aminopeptidase
1765	 30.78	0	1717407..1718150	-	247	57238663	murI	CJE1824	-	glutamate racemase
1766	 32.90	0	1718152..1718610	-	152	57238664	nlpC	CJE1825	-	lipoprotein NlpC
1767	 31.11	0	1718619..1719788	-	389	57238665	nhaA-1	CJE1826	-	Na+/H+ antiporter NhaA
1768	 28.81	0	1719785..1720933	-	382	57238666	nhaA-2	CJE1827	-	Na+/H+ antiporter NhaA
1769	 38.25	+2	1721076..1721258	-	60	57238667	-	CJE1828	-	hypothetical protein
1770	 28.95	0	1721618..1721731	+	37	57238668	-	CJE1829	-	hypothetical protein
1771	 32.66	0	1722176..1724266	+	696	57238669	-	CJE1830	-	FTR1 family iron permease
1772	 37.04	+1	1724263..1724802	+	179	57238670	-	CJE1831	-	hypothetical protein
1773	 28.28	0	1724885..1726288	+	467	57238671	-	CJE1832	-	hypothetical protein
1774	 32.25	0	1726278..1727567	+	429	57238672	-	CJE1833	-	ABC transporter, permease protein
1775	 29.76	0	1727557..1728675	+	372	57238673	-	CJE1834	-	ABC transporter, permease protein
1776	 35.93	+1	1728672..1729325	+	217	57238674	-	CJE1835	-	ABC transporter, ATP-binding protein
1777	 31.29	0	1729322..1729810	+	162	57238675	-	CJE1836	-	thiredoxin,-like protein
1778	 28.77	0	1729771..1730274	+	167	57238676	-	CJE1837	-	thioredoxin family protein
1779	 34.93	+1	1730284..1730721	-	145	57238677	-	CJE1838	-	hypothetical protein
1780	 19.44	-2	1730812..1730955	-	47	57238678	-	CJE1839	-	hypothetical protein
1781	 28.43	0	1731021..1731326	-	101	57238679	-	CJE1840	-	hypothetical protein
1782	 29.92	0	1732089..1732937	-	282	57238680	-	CJE1841	-	DNA ligase
1783	 28.05	0	1732937..1733599	-	220	57238681	-	CJE1842	-	hypothetical protein
1784	 26.96	0	1733589..1733792	-	67	57238682	-	CJE1843	-	hypothetical protein
1785	 37.59	+1	1733858..1735102	-	414	57238683	eno	CJE1844	-	phosphopyruvate hydratase
1786	 36.63	+1	1735102..1736133	-	343	57238684	recA	CJE1845	-	recombinase A
1787	 32.17	0	1736239..1737099	+	286	57238685	-	CJE1846	-	hypothetical protein
1788	 32.96	0	1737111..1737380	+	89	57238686	fliQ	CJE1847	-	flagellar biosynthesis protein FliQ
1789	 30.12	0	1737377..1738153	+	258	57238687	murB	CJE1848	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1790	 24.44	-1	1738177..1738941	-	254	57238688	-	CJE1849	-	hypothetical protein
1791	 29.54	0	1738987..1739751	-	254	57238689	cysQ	CJE1850	-	CysQ
1792	 35.62	+1	1739831..1741099	-	422	57238690	gltA	CJE1851	-	citrate synthase
1793	 30.27	0	1741214..1742389	-	391	57238691	-	CJE1852	-	sodium/hydrogen exchanger family protein
1794	 36.08	+1	1742370..1743206	-	278	57238692	bioB	CJE1853	-	biotin synthase
1795	 33.71	0	1743208..1745310	-	700	57238693	topA	CJE1854	-	DNA topoisomerase I
1796	 31.45	0	1745505..1746776	+	423	57238694	-	CJE1855	-	major facilitator superfamily protein
1797	 34.12	+1	1746804..1748069	-	421	57238695	secY	CJE1856	-	preprotein translocase subunit SecY
1798	 34.10	+1	1748069..1748461	-	130	57238696	rplO	CJE1857	-	50S ribosomal protein L15
1799	 37.61	+1	1748466..1748909	-	147	57238697	rpsE	CJE1858	-	30S ribosomal protein S5
1800	 31.09	0	1748921..1749277	-	118	57238698	rplR	CJE1859	-	50S ribosomal protein L18
1801	 32.22	0	1749287..1749823	-	178	57238699	rplF	CJE1860	-	50S ribosomal protein L6
1802	 31.31	0	1749902..1750297	-	131	57238700	rpsH	CJE1861	-	30S ribosomal protein S8
1803	 38.17	+2	1750307..1750492	-	61	57238701	rpsN	CJE1862	-	30S ribosomal protein S14
1804	 33.33	0	1750494..1751039	-	181	57238702	rplE	CJE1863	-	50S ribosomal protein L5
1805	 34.19	+1	1751043..1751276	-	77	57238703	rplX	CJE1864	-	50S ribosomal protein L24
1806	 36.86	+1	1751276..1751644	-	122	57238704	rplN	CJE1865	-	50S ribosomal protein L14
1807	 32.54	0	1751644..1751895	-	83	57238705	rpsQ	CJE1866	-	30S ribosomal protein S17
1808	 28.49	0	1751905..1752090	-	61	57238706	rpmC	CJE1867	-	50S ribosomal protein L29
1809	 36.85	+1	1752077..1752502	-	141	57238707	rplP	CJE1868	-	50S ribosomal protein L16
1810	 35.75	+1	1752505..1753206	-	233	57238708	rpsC	CJE1869	-	30S ribosomal protein S3
1811	 35.21	+1	1753206..1753631	-	141	57238709	rplV	CJE1870	-	50S ribosomal protein L22
1812	 33.33	0	1753642..1753923	-	93	57238710	rpsS	CJE1871	-	30S ribosomal protein S19
1813	 38.99	+2	1753925..1754755	-	276	57238711	rplB	CJE1872	-	50S ribosomal protein L2
1814	 32.62	0	1754757..1755038	-	93	57238712	rplW	CJE1873	-	50S ribosomal protein L23
1815	 33.82	0	1755041..1755655	-	204	57238713	rplD	CJE1874	-	50S ribosomal protein L4
1816	 35.42	+1	1755652..1756227	-	191	57238730	rplC	CJE1875	-	50S ribosomal protein L3
1817	 39.10	+2	1756237..1756548	-	103	57236893	rpsJ	CJE1876	-	30S ribosomal protein S10
1818	 18.63	-2	1756607..1756708	+	33	57236894	-	CJE1877	-	hypothetical protein
30.10	MEAN

3.94	STD DEV
