IslandPath Analysis: Campylobacter jejuni RM1221

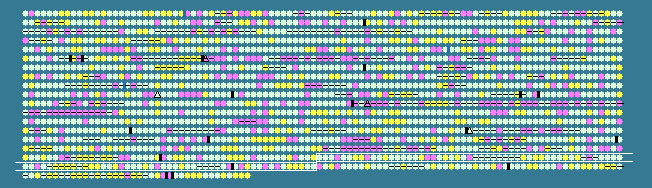

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1650	 27.23	0	1601423..1602028	+	201	57238548	coaE	CJE1701	-	dephospho-CoA kinase
1651	 32.27	0	1602025..1602774	+	249	57238549	dapF	CJE1702	-	diaminopimelate epimerase
1652	 29.37	0	1602749..1603480	+	243	57238550	-	CJE1703	-	mannosyl-glycoprotein endo-beta-N-acetylglucosamidase domain-containing protein
1653	 22.93	-1	1603477..1604514	-	345	57238551	-	CJE1704	-	hypothetical protein
1654	 32.44	0	1604579..1605028	-	149	57238552	-	CJE1705	-	bacterioferritin, putative
1655	 30.38	0	1605155..1606375	-	406	57238553	pgi	CJE1706	-	glucose-6-phosphate isomerase
1656	 34.18	+1	1606369..1607193	-	274	57238554	galU	CJE1707	-	UTP-glucose-1-phosphate uridylyltransferase
1657	 36.37	+1	1607275..1609248	-	657	57238555	acs	CJE1708	-	acetyl-CoA synthetase
1658	 23.29	-1	1609387..1610382	-	331	57238556	-	CJE1709	-	tungsten ABC transporter, ATP-binding protein, putative
1659	 32.02	0	1610384..1611070	-	228	57238557	-	CJE1710	-	tungstate ABC transporter, permease protein, putative
1660	 32.10	0	1611149..1611958	+	269	57238558	-	CJE1711	-	tungstate ABC transporter, periplasmic tungstate-binding protein, putative
1661	 33.98	0	1612100..1612867	+	255	57238559	-	CJE1712	-	hypothetical protein
1662	 33.06	0	1612877..1613617	+	246	57238560	-	CJE1713	-	hypothetical protein
1663	 31.88	0	1613598..1614563	+	321	57238561	-	CJE1714	-	hypothetical protein
1664	 29.43	0	1614560..1615456	-	298	57238562	-	CJE1715	-	integral membrane protein
1665	 32.12	0	1615489..1616067	-	192	57238563	-	CJE1716	-	flavodoxin-like fold domain-containing protein
1666	 30.75	0	1616167..1616514	+	115	57238564	-	CJE1717	-	transcriptional regulator, putative
1667	 39.65	+2	1616954..1618030	-	358	57238565	-	CJE1719	-	zinc-binding dehydrogenase family oxidoreductase
1668	 22.69	-1	1620475..1622805	+	776	57238566	-	CJE1721	-	RloC protein, putative
1669	 25.68	-1	1624123..1625193	+	356	57238567	-	CJE1723	-	MloA protein, putative
1670	 30.03	0	1625194..1626678	+	494	57238568	hsdM	CJE1724	-	type I restriction-modification system, M subunit
1671	 33.85	0	1626756..1627139	-	127	57238569	-	CJE1725	-	4-carboxymuconolactone decarboxylase, putative
1672	 26.79	0	1627119..1627286	+	55	57238570	-	CJE1726	-	hypothetical protein
1673	 35.95	+1	1627327..1627746	-	139	57238571	-	CJE1727	-	hypothetical protein
1674	 29.76	0	1627804..1628979	-	391	57238572	-	CJE1728	-	transporter, putative
1675	 26.27	0	1629937..1630884	+	315	57238573	-	CJE1730	-	permease, putative
1676	 29.87	0	1630894..1631211	+	105	57238574	arsR	CJE1731	-	arsenical resistance operon repressor
1677	 33.33	0	1631208..1631630	+	140	57238575	arsC	CJE1732	-	arsenate reductase
1678	 30.94	0	1631624..1632667	+	347	57238576	-	CJE1733	-	arsenical-resistance protein, putative
1679	 30.01	0	1633202..1635157	+	651	57238577	-	CJE1735	-	methyl-accepting chemotaxis protein
1680	 27.00	0	1635200..1637566	-	788	57238578	pflA	CJE1736	-	paralyzed flagella protein PflA
1681	 27.57	0	1637588..1638976	-	462	57238579	nuoN	CJE1737	-	NADH-quinone oxidoreductase, N subunit
1682	 29.30	0	1638966..1640453	-	495	57238580	nuoM	CJE1738	-	NADH-quinone oxidoreductase, M subunit
1683	 32.16	0	1640455..1642245	-	596	57238581	nuoL	CJE1739	-	NADH dehydrogenase subunit L
1684	 33.67	0	1642247..1642543	-	98	57238582	nuoK	CJE1740	-	NADH-quinone oxidoreductase, K subunit
1685	 30.06	0	1642540..1643058	-	172	57238583	nuoJ	CJE1741	-	NADH dehydrogenase subunit J
1686	 34.27	+1	1643055..1643696	-	213	57238584	nuoI	CJE1742	-	NADH dehydrogenase subunit I
1687	 34.33	+1	1643706..1644704	-	332	57238585	nuoH	CJE1743	-	NADH dehydrogenase subunit H
1688	 31.14	0	1644697..1647159	-	820	57238586	nuoG	CJE1744	-	NADH dehydrogenase subunit G
1689	 26.98	0	1647156..1647848	-	230	57238587	-	CJE1745	-	hypothetical protein
1690	 31.58	0	1647845..1648072	-	75	57238588	-	CJE1746	-	hypothetical protein
1691	 35.94	+1	1648069..1649295	-	408	57238589	nuoD	CJE1747	-	NADH dehydrogenase subunit D
1692	 30.56	0	1649297..1650088	-	263	57238590	nuoC	CJE1748	-	NADH dehydrogenase subunit C
1693	 38.10	+2	1650088..1650591	-	167	57238591	nuoB	CJE1749	-	NADH dehydrogenase subunit B
1694	 30.51	0	1650573..1650962	-	129	57238592	nuoA	CJE1750	-	NADH dehydrogenase subunit A
1695	 24.77	-1	1651075..1651740	-	221	57238593	-	CJE1751	-	peptide ABC transporter, ATP-binding protein
1696	 27.57	0	1651733..1652443	-	236	57238594	-	CJE1752	-	peptide ABC transporter, ATP-binding protein
1697	 29.02	0	1652440..1653228	-	262	57238595	-	CJE1753	-	peptide ABC transporter, permease protein
1698	 28.04	0	1653221..1654165	-	314	57238596	-	CJE1754	-	peptide ABC transporter, permease protein
1699	 30.92	0	1654165..1655700	-	511	57238597	-	CJE1755	-	peptide ABC transporter, periplasmic peptide-binding protein
1700	 30.59	0	1655809..1658580	-	923	57238598	-	CJE1756	-	oxidoreductase, FAD-binding, iron-sulfur cluster-binding
1701	 28.61	0	1658732..1659154	+	140	57238599	-	CJE1757	-	flavohemoprotein, truncation
1702	 28.80	0	1659174..1660805	-	543	57238600	-	CJE1758	-	multidrug transporter membrane component/ATP-binding component
1703	 24.35	-1	1662239..1662583	+	114	57238601	-	CJE1760	-	hypothetical protein
1704	 28.33	0	1662616..1663035	+	139	57238602	-	CJE1761	-	metallo-beta-lactamase domain-containing protein
1705	 31.51	0	1663123..1663341	+	72	57238603	infA	CJE1762	-	translation initiation factor IF-1
1706	 39.47	+2	1663513..1663626	+	37	57238604	rpmJ	CJE1763	-	50S ribosomal protein L36
1707	 33.88	0	1663629..1663994	+	121	57238605	rpsM	CJE1764	-	30S ribosomal protein S13
1708	 36.64	+1	1664004..1664396	+	130	57238606	rpsK	CJE1765	-	30S ribosomal protein S11
1709	 36.52	+1	1664424..1665050	+	208	57238607	rpsD	CJE1766	-	30S ribosomal protein S4
1710	 32.74	0	1665063..1666076	+	337	57238608	rpoA	CJE1767	-	DNA-directed RNA polymerase subunit alpha
1711	 33.62	0	1666080..1666433	+	117	57238609	rplQ	CJE1768	-	50S ribosomal protein L17
1712	 34.33	+1	1666606..1667505	+	299	57238610	hisG	CJE1769	-	ATP phosphoribosyltransferase
1713	 35.35	+1	1667513..1668799	+	428	57238611	hisD	CJE1770	-	histidinol dehydrogenase
1714	 33.52	0	1668796..1669854	+	352	57238612	hisB	CJE1771	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
1715	 31.46	0	1669851..1670438	+	195	57238613	hisH	CJE1772	-	imidazole glycerol phosphate synthase subunit HisH
1716	 34.56	+1	1670435..1671166	+	243	57238614	hisA	CJE1773	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1717	 26.30	0	1671151..1672089	+	312	57238615	-	CJE1774	-	HrgA protein
1718	 32.94	0	1672090..1672857	+	255	57238616	hisF-2	CJE1775	-	imidazole glycerol phosphate synthase subunit HisF
1719	 32.85	0	1672859..1673482	+	207	57238617	hisI	CJE1776	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
1720	 32.99	0	1673507..1674667	-	386	57238618	-	CJE1777	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase, putative
1721	 34.60	+1	1674693..1675799	-	368	57238619	mrp	CJE1778	-	ATP/GTP-binding protein
1722	 33.42	0	1675922..1677037	+	371	57238620	ispDF	CJE1779	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
1723	 24.77	-1	1677034..1677921	+	295	57238621	-	CJE1780	-	DNA-binding response regulator, putative
1724	 29.46	0	1677899..1679059	+	386	57238622	-	CJE1781	-	ATP-sulfurylase family protein
1725	 29.34	0	1679064..1679564	+	166	57238623	pgpA	CJE1782	-	phosphatidylglycerophosphatase A
1726	 33.33	0	1679643..1679906	+	87	57238624	rpsT	CJE1783	-	30S ribosomal protein S20
1727	 35.21	+1	1679925..1680992	+	355	57238625	prfA	CJE1784	-	peptide chain release factor 1
1728	 31.22	0	1681006..1681761	-	251	57238626	-	CJE1785	-	hypothetical protein
1729	 31.15	0	1681954..1684110	+	718	57238627	chuA	CJE1786	-	TonB-dependent heme receptor
1730	 32.52	0	1684085..1685071	+	328	57238628	-	CJE1787	-	hemin ABC transporter, permease protein, putative
1731	 27.80	0	1685071..1685847	+	258	57238629	-	CJE1788	-	hemin ABC transporter, ATP-binding protein, putative
1732	 28.50	0	1685844..1686650	+	268	57238630	-	CJE1789	-	hemin ABC transporter, periplasmic hemin-binding protein, putative
1733	 33.17	0	1687671..1688930	+	419	57238631	kgtP	CJE1791	-	alpha-ketoglutarate permease
1734	 30.88	0	1688916..1689935	-	339	57238632	mutY	CJE1792	-	A/G-specific adenine glycosylase
1735	 26.43	0	1690008..1690760	+	250	57238633	-	CJE1793	-	hypothetical protein
1736	 32.11	0	1691440..1692420	+	326	57238634	-	CJE1794	-	riboflavin biosynthesis protein RibD, putative
1737	 24.33	-1	1692401..1692922	+	173	57238635	-	CJE1795	-	hypothetical protein
1738	 34.65	+1	1692930..1694294	-	454	57238636	sdaA	CJE1796	-	L-serine ammonia-lyase
1739	 31.41	0	1694309..1695559	-	416	57238637	sdaC	CJE1797	-	serine transporter
1740	 29.98	0	1695818..1696234	-	138	57238638	-	CJE1798	-	hypothetical protein
1741	 25.54	-1	1696300..1697043	-	247	57238639	-	CJE1799	-	hypothetical protein
1742	 31.46	0	1697202..1697627	+	141	57238640	exbB-2	CJE1800	-	TonB system transport protein ExbB
1743	 25.06	-1	1697599..1698009	+	136	57238641	exbD	CJE1801	-	biopolymer transport exbD protein
1744	 27.53	0	1698701..1699579	-	292	57238642	-	CJE1803	-	hypothetical protein
1745	 33.84	0	1699633..1699830	-	65	57238643	-	CJE1804	-	hypothetical protein
1746	 33.64	0	1699952..1700935	+	327	57238644	-	CJE1805	-	hypothetical protein
1747	 34.25	+1	1701022..1702110	-	362	57238645	aroC	CJE1806	-	chorismate synthase
1748	 32.74	0	1702110..1702784	-	224	57238646	rnc	CJE1807	-	ribonuclease III
1749	 32.88	0	1702771..1703211	-	146	57238647	rnhA	CJE1808	-	ribonuclease H
30.10	MEAN

3.94	STD DEV
