IslandPath Analysis: Campylobacter jejuni RM1221

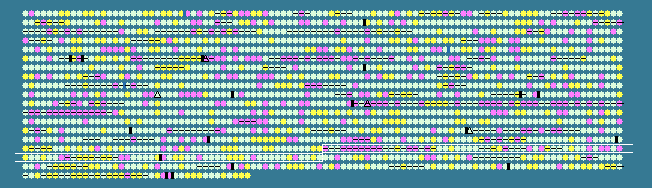

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1551	 26.11	-1	1498390..1499511	-	373	57238449	-	CJE1599	-	hypothetical protein
1552	 28.35	0	1499584..1500768	-	394	57238450	kpsS	CJE1600	-	capsule polysaccharide export protein KpsS
1553	 28.56	0	1500765..1502837	-	690	57238451	kpsC	CJE1601	-	capsule polysaccharide export protein KpsC
1554	 24.53	-1	1502815..1504734	-	639	57238452	-	CJE1602	-	capsular polysaccharide biosynthesis protein, putative
1555	 25.65	-1	1504703..1506655	-	650	57238453	-	CJE1603	-	capsular polysaccharide biosynthesis protein, putative
1556	 26.11	-1	1506655..1508136	-	493	57238454	-	CJE1604	-	capsular polysaccharide biosynthesis protein, putative
1557	 26.03	-1	1508138..1508863	-	241	57238455	-	CJE1605	-	capsular polysaccharide biosynthesis protein, putative
1558	 25.12	-1	1508850..1510151	-	433	57238456	-	CJE1606	-	haloacid dehalogenase-like hydrolase
1559	 25.25	-1	1510144..1510737	-	197	57238457	-	CJE1607	-	hypothetical protein
1560	 26.14	-1	1510712..1511392	-	226	57238458	-	CJE1608	-	capsular biosynthesis nucleotidyltransferase, putative
1561	 32.34	0	1511380..1511985	-	201	57238459	gmhA-2	CJE1609	-	phosphoheptose isomerase
1562	 32.94	0	1511973..1512992	-	339	57238460	-	CJE1610	-	capsular biosynthesis sugar kinase, putative
1563	 34.01	0	1512989..1514020	-	343	57238461	wcbK	CJE1611	-	GDP-mannose 4,6-dehydratase
1564	 28.10	0	1514017..1515066	-	349	57238462	fcl	CJE1612	-	GDP-L-fucose synthetase
1565	 23.09	-1	1515078..1516688	-	536	57238463	-	CJE1613	-	capsular polysaccharide biosynthesis protein, putative
1566	 24.01	-1	1516685..1518121	-	478	57238464	-	CJE1614	-	hypothetical protein
1567	 27.53	0	1518157..1519500	-	447	57238465	-	CJE1615	-	capsular polysaccharide biosynthesis glycosyltransferase WcbB, putative
1568	 22.22	-2	1519503..1521104	-	533	57238466	-	CJE1616	-	capsular polysaccharide biosynthesis protein, putative
1569	 36.60	+1	1521101..1522048	-	315	57238467	kpsF	CJE1617	-	arabinose-5-phosphate isomerase
1570	 31.40	0	1522058..1523716	-	552	57238468	kpsD	CJE1618	-	capsular polysaccharide ABC transporter, periplasmic polysaccharide-binding protein
1571	 29.58	0	1523718..1524836	-	372	57238469	kpsE	CJE1619	-	capsular polysaccharide ABC transporter
1572	 33.63	0	1524836..1525498	-	220	57238470	kpsT	CJE1620	-	capsular polysaccharide ABC transporter, ATP-binding protein
1573	 28.86	0	1525495..1526277	-	260	57238471	kpsM	CJE1621	-	capsular polysaccharide ABC transporter, permease protein
1574	 28.92	0	1526349..1526756	-	135	57238472	-	CJE1622	-	hypothetical protein
1575	 29.08	0	1526831..1527394	+	187	57238473	-	CJE1623	-	hypothetical protein
1576	 29.86	0	1527430..1528119	+	229	57238474	-	CJE1624	-	deoxyuridine triphosphatase domain-containing protein
1577	 26.75	0	1528121..1528834	+	237	57238475	-	CJE1625	-	hypothetical protein
1578	 28.16	0	1528817..1529782	-	321	57238476	-	CJE1626	-	PP-loop family protein
1579	 34.47	+1	1529772..1531091	-	439	57238477	yliG	CJE1627	-	putative tRNA modifying protein
1580	 36.89	+1	1531165..1532262	+	365	57238478	prfB	CJE1628	-	peptide chain release factor 2
1581	 25.00	-1	1532420..1532599	-	59	57238479	-	CJE1629	-	hypothetical protein
1582	 29.63	0	1532637..1532771	+	44	57238480	-	CJE1630	-	hypothetical protein
1583	 30.83	0	1532855..1533973	-	372	57238481	truD	CJE1631	-	tRNA pseudouridine synthase D
1584	 29.56	0	1533942..1534763	-	273	57238482	-	CJE1632	-	thiamine monophosphate kinase
1585	 25.98	-1	1534850..1535923	+	357	57238483	-	CJE1633	-	hypothetical protein
1586	 27.86	0	1535920..1536303	+	127	57238484	-	CJE1634	-	hypothetical protein
1587	 26.35	0	1536293..1536979	+	228	57238485	-	CJE1635	-	site-specific DNA methyltransferase, putative
1588	 36.68	+1	1537038..1538084	+	348	57238486	flgI	CJE1636	-	flagellar basal body P-ring protein
1589	 30.41	0	1538084..1538425	+	113	57238487	-	CJE1637	-	hypothetical protein
1590	 32.32	0	1538488..1538685	+	65	57238488	-	CJE1638	-	hypothetical protein
1591	 29.43	0	1538728..1539162	+	144	57238489	-	CJE1639	-	hypothetical protein
1592	 33.83	0	1539172..1540998	+	608	57238490	flgK	CJE1640	-	flagellar hook-associated protein FlgK
1593	 27.84	0	1541015..1541779	+	254	57238491	-	CJE1641	-	hypothetical protein
1594	 32.68	0	1541783..1542547	+	254	57238492	-	CJE1642	-	hypothetical protein
1595	 25.80	-1	1542540..1543721	-	393	57238493	ctsF	CJE1643	-	general secretory pathway protein F
1596	 29.23	0	1543718..1545277	-	519	57238494	ctsE	CJE1644	-	general secretory pathway protein E
1597	 25.00	-1	1545267..1545854	-	195	57238495	ctsX	CJE1645	-	transformation system protein
1598	 23.15	-1	1545858..1546466	-	202	57238496	ctsP	CJE1646	-	transformation system protein
1599	 27.81	0	1546459..1547871	-	470	57238497	ctsD	CJE1647	-	general secretory pathway protein D
1600	 21.15	-2	1547849..1548160	-	103	57238498	ctsR	CJE1648	-	transformation system protein
1601	 36.09	+1	1548184..1551744	-	1186	57238499	-	CJE1649	-	pyruvate ferredoxin/flavodoxin oxidoreductase
1602	 29.13	0	1551837..1552478	-	213	57238500	-	CJE1650	-	HAD-superfamily hydrolase, subfamily IA, variant 1 family protein
1603	 31.77	0	1552478..1553437	-	319	57238501	cadF	CJE1651	-	fibronectin-binding protein
1604	 38.97	+2	1553562..1553951	-	129	57238502	rpsI	CJE1652	-	30S ribosomal protein S9
1605	 33.33	0	1553954..1554379	-	141	57238503	rplM	CJE1653	-	50S ribosomal protein L13
1606	 26.75	0	1554463..1557228	-	921	57238504	-	CJE1654	-	ATP-dependent DNA helicase UvrD
1607	 25.81	-1	1557225..1559591	-	788	57238505	-	CJE1655	-	hypothetical protein
1608	 25.48	-1	1559588..1560109	-	173	57238506	-	CJE1656	-	putative lipoprotein
1609	 28.86	0	1560096..1560698	-	200	57238507	-	CJE1657	-	hypothetical protein
1610	 36.27	+1	1560695..1560796	-	33	57238508	-	CJE1658	-	hypothetical protein
1611	 33.79	0	1560793..1561011	-	72	57238509	-	CJE1659	-	hypothetical protein
1612	 33.91	0	1561011..1561874	-	287	57238510	ccoP	CJE1660	-	cytochrome c oxidase, cbb3-type, subunit III
1613	 28.09	0	1561874..1562140	-	88	57238511	ccoQ	CJE1661	-	cytochrome c oxidase, cbb3-type, subunit IV
1614	 33.78	0	1562142..1562807	-	221	57238512	ccoO	CJE1662	-	cytochrome c oxidase, cbb3-type, subunit II
1615	 35.58	+1	1562820..1564286	-	488	57238513	ccoN	CJE1663	-	cytochrome c oxidase, cbb3-type, subunit I
1616	 29.07	0	1564412..1565092	-	226	57238514	-	CJE1664	-	DNA-binding response regulator
1617	 25.08	-1	1565095..1566306	-	403	57238515	-	CJE1665	-	sensory box sensor histidine kinase, putative
1618	 24.24	-1	1566303..1566962	-	219	57238516	-	CJE1666	-	hypothetical protein
1619	 30.21	0	1566959..1568077	-	372	57238517	carA	CJE1667	-	carbamoyl phosphate synthase small subunit
1620	 26.81	0	1568077..1568628	-	183	57238518	-	CJE1668	-	hypothetical protein
1621	 30.44	0	1568721..1569239	-	172	57238519	-	CJE1669	-	hypothetical protein
1622	 31.93	0	1569232..1569660	-	142	57238520	-	CJE1670	-	hypothetical protein
1623	 35.01	+1	1569657..1570907	-	416	57238521	purA	CJE1671	-	adenylosuccinate synthetase
1624	 19.19	-2	1571036..1571134	+	32	57238522	-	CJE1672	-	hypothetical protein
1625	 31.27	0	1571172..1572380	+	402	57238523	-	CJE1673	-	putative inner membrane protein
1626	 35.09	+1	1572384..1572611	+	75	57238524	-	CJE1674	-	hypothetical protein
1627	 34.49	+1	1572627..1574096	-	489	57238525	putP	CJE1675	-	sodium/proline permease
1628	 30.21	0	1574114..1577602	-	1162	57238526	-	CJE1676	-	bifunctional putA protein, putative
1629	 30.50	0	1577733..1578755	-	340	57238527	selD	CJE1677	-	selenide, water dikinase
1630	 26.35	0	1578765..1579337	-	190	57238528	-	CJE1678	-	hypothetical protein
1631	 30.34	0	1579448..1581550	-	700	57238529	-	CJE1679	-	methyl-accepting chemotaxis protein
1632	 29.27	0	1581663..1582400	-	245	57238530	-	CJE1680	-	molybdate transport repressor
1633	 32.44	0	1582393..1583175	-	260	57238531	fdhD	CJE1681	-	formate dehydrogenase accessory protein
1634	 31.73	0	1583342..1584274	-	310	57238532	fdhC	CJE1682	-	formate dehydrogenase, cytochrome b subunit
1635	 36.45	+1	1584271..1584912	-	213	57238533	fdhB	CJE1683	-	formate dehydrogenase, iron-sulfur subunit
1636	 37.11	+1	1584909..1587713	-	934	57238534	fdhA	CJE1684	-	formate dehydrogenase, alpha subunit, selenocysteine-containing
1637	 34.90	+1	1587713..1587904	-	63	57238535	-	CJE1685	-	Tat pathway signal sequence domain-containing protein
1638	 27.78	0	1587879..1588580	-	233	57238536	-	CJE1686	-	hypothetical protein
1639	 17.54	-2	1588748..1588861	-	37	57238537	-	CJE1687	-	hypothetical protein
1640	 31.85	0	1588897..1590045	-	382	57238538	nspC	CJE1688	-	carboxynorspermidine decarboxylase
1641	 32.88	0	1590169..1591710	+	513	57238539	-	CJE1689	-	oxidoreductase, putative
1642	 27.93	0	1591712..1591933	+	73	57238540	-	CJE1690	-	thiS family protein
1643	 33.56	0	1591934..1592377	+	147	57238541	-	CJE1691	-	molybdopterin converting factor, subunit 2
1644	 29.98	0	1592374..1592790	+	138	57238542	-	CJE1692	-	hypothetical protein
1645	 35.18	+1	1592793..1593983	+	396	57238543	-	CJE1693	-	molybdopterin biosynthesis MoeA protein, putative
1646	 26.39	0	1594481..1594912	-	143	57238544	cas2	CJE1694	-	CRISPR-associated Cas2 family protein
1647	 30.75	0	1594905..1595795	-	296	57238545	cas1	CJE1695	-	CRISPR-associated Cas1 family protein
1648	 31.07	0	1598988..1599164	+	58	57238546	-	CJE1698	-	hypothetical protein
1649	 34.75	+1	1600373..1601362	-	329	57238547	purM	CJE1700	-	phosphoribosylaminoimidazole synthetase
1650	 27.23	0	1601423..1602028	+	201	57238548	coaE	CJE1701	-	dephospho-CoA kinase
30.10	MEAN

3.94	STD DEV
